Electrical Discharge Machining (EDM) Services

Electrical Discharge Machining (EDM) is a precision manufacturing process that uses electrical sparks to erode material from conductive metals, creating intricate shapes. It’s ideal for hard-to-machine materials, tight tolerances, and complex geometries in high-temperature alloys.

Send us your designs and specifications for a free quotation

All uploaded files are secure and confidential

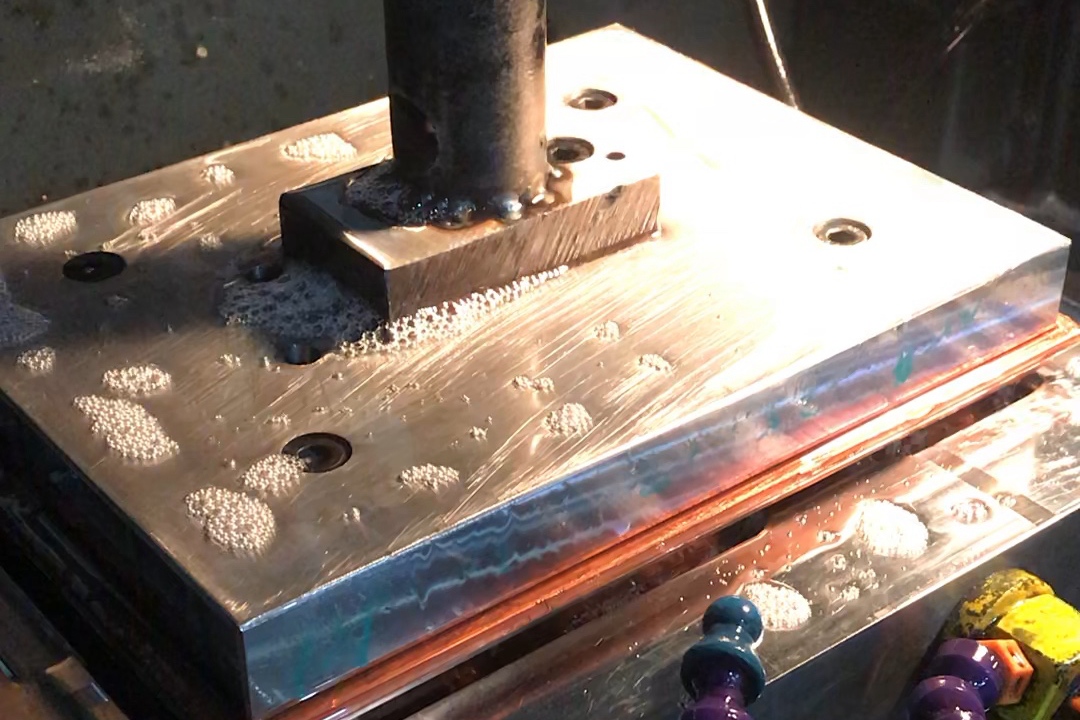

Benefits of EDM on Superalloy Castings

Electrical Discharge Machining (EDM) offers precision in shaping superalloy castings, enabling the creation of complex geometries and fine features that are difficult to achieve with conventional machining. It ensures minimal thermal damage, preserves material integrity, and works well on hard or brittle alloys. EDM is ideal for aerospace and energy applications, ensuring accurate, high-quality components with excellent surface finishes.

Benefits	Description
Precision Machining of Hard Materials:	EDM (Electrical Discharge Machining) enables precise machining of superalloys, which are difficult to process using conventional methods due to their hardness and high heat resistance.
Complex Shapes and Tight Tolerances:	EDM allows the creation of intricate geometries and tight tolerances in superalloy castings, supporting the manufacture of high-precision components for aerospace and power generation industries.
Minimal Mechanical Stress:	As EDM is a non-contact process, it avoids introducing mechanical stress or deformation, preserving the structural integrity and fatigue resistance of the superalloy parts.
Surface Finish Enhancement:	EDM produces smooth and accurate surface finishes, reducing the need for additional finishing operations and ensuring optimal performance in high-temperature applications.
Access to Deep and Hard-to-Reach Features:	EDM excels at machining deep cavities, fine holes, and complex internal features in superalloy castings, making it ideal for turbine components and other precision applications.

Learn More

When Does Superalloy Parts Need EDM Service?

Superalloy parts need Electrical Discharge Machining (EDM) service when intricate geometries, tight tolerances, or complex internal features are required. EDM is essential for machining hard-to-reach areas, such as cooling channels in turbine blades, or for creating fine holes and sharp edges in aerospace, energy, and medical components. It ensures precision without inducing mechanical stress, which is crucial for high-performance applications.

Blank Parts	Typical Applications	Process Defects	How EDM Improves	Link
Single Crystal Castings	Turbine blades with intricate cooling channels Jet engine nozzles requiring sharp edges Guide vanes with complex geometries	Thermal stress cracks Geometrical inaccuracies Undesired recast layers	Achieves precise internal cooling channels Minimizes mechanical stress during machining Removes recast layers for smoother finishes	Learn
Equiaxed Crystal castings	Pump impellers with precise flow paths Valve components with sharp edges Combustion chamber parts requiring complex profiles	Porosity at machined edges Cracking due to machining stress Irregular surface finishes	Maintains dimensional accuracy without stress Eliminates porosity with fine-tuned precision Creates smooth, burr-free surfaces	Learn
Directional Castings	Turbine vanes with cooling ports Afterburner components with fine channels Nozzles with sharp-edged openings	Misaligned internal features Surface roughness Micro-cracks from mechanical machining	Precisely aligns internal geometries Achieves high-quality surface finishes Prevents micro-cracks by avoiding mechanical forces	Learn
Special Alloy Castings	Marine exhaust components with intricate flow paths Chemical reactors with precision openings Aerospace structural parts with complex contours	Edge burrs Thermal stress defects Dimensional deviations	Removes burrs without damaging surfaces Reduces thermal stress with controlled machining Ensures dimensional precision for complex parts	Learn
Powder Metallurgy Turbine Disc	Turbine discs with precise holes High-speed compressor hubs Rotor components with intricate channels	Voids along drilled paths Misalignment of internal features Surface imperfections	Eliminates voids with high-precision cutting Ensures perfect alignment of features Smoothens surfaces for improved airflow	Learn
Precision Forging Parts	Crankshafts with oil passages Landing gear with precise cut-outs Turbine shafts with keyways	Dimensional inaccuracies Surface cracks Misaligned features	Corrects dimensional errors with precision Seals micro-cracks without additional stress Creates aligned, intricate features	Learn
CNC Machined Parts	Heat exchanger parts with fine holes Oil and gas valve components Fuel injectors with complex profiles	Tool wear-induced inaccuracies Burr formation Surface irregularities	Removes burrs for smooth operation Compensates for tool wear with precision Creates flawless, intricate geometries	Learn
3D printed Parts	Medical implants with complex channels Aerospace brackets with intricate contours Customized nozzles for energy systems	Layer misalignment Rough internal surfaces Residual stress-induced warping	Corrects misaligned features with fine cutting Refines rough surfaces for better performance Relieves residual stress for dimensional stability	Learn

Post Process	Functions	Link
Hot Isostatic Pressing (HIP)	Enhances density, eliminates porosity, improves mechanical properties	Learn >>
Heat Treatment	Alters microstructure, enhances strength, toughness, and creep resistance	Learn >>
Superalloy Welding	Joins materials, maintains alloy properties, repairs critical components	Learn >>
Thermal Barrier Coating (TBC)	Protects against thermal degradation, enhances high-temperature oxidation resistance	Learn >>
Superalloy CNC Machining	Ensures alloy composition, properties, and integrity under operational conditions	Learn >>
Superalloy Deep Hole Drilling	Achieves precision, complex geometries, maintains tight tolerances in superalloys	Learn >>
Electrical Discharge Machining (EDM)	Enables cooling channels, maintains structural integrity, precise hole depths	Learn >>
Material Testing and Analysis	Allows intricate machining, minimal thermal impact, suitable for hard alloys	Learn >>

Custom Superalloy Components Manufacturing

Neway offers custom superalloy components manufacturing, delivering high-performance parts such as turbine blades, discs, and impellers. We ensure superior heat resistance, strength, and durability by using advanced techniques like casting, forging, and powder metallurgy. Our solutions are tailored for aerospace, energy, and defense industries, providing reliable components designed to excel in extreme operational environments.
