Achieving Tight Tolerances in Alloy Castings Using EDM
The Role of Electrical Discharge Machining (EDM)
Precision is non-negotiable in high-performance industries such as aerospace, power generation, and defense. Components manufactured for these fields must meet rigorous tolerance standards to ensure reliability under extreme conditions. Superalloy castings, known for their remarkable strength and durability at high temperatures, are essential in these sectors. However, achieving tight tolerances in such materials can be challenging due to their hardness and resistance to wear.
Electrical Discharge Machining (EDM) has become vital in overcoming this challenge. As a non-contact machining method, EDM achieves high precision without imparting significant mechanical stress on the material, making it ideal for refining complex superalloy castings. This blog explores how EDM, combined with high-quality superalloy materials and advanced post-processing and testing techniques, plays a crucial role in producing precision-engineered components that meet the stringent requirements of industries that demand excellence.
Material Selection for Superalloy Castings
The choice of material is fundamental to achieving high performance in components exposed to extreme heat, pressure, or corrosive environments. At NewayAero, we select a diverse range of superalloys to meet the demanding requirements of various industries, including aerospace, power generation, and chemical processing.
Superalloy Families and Their Advantages
Inconel: Renowned for high-temperature strength and corrosion resistance, Inconel alloys are essential in aerospace and power generation applications. Examples like Inconel 718 and Inconel 625 offer robust performance in these demanding settings.
CMSX Single-Crystal Alloys: Known for extraordinary creep resistance, CMSX alloys such as CMSX-10 are favored for jet engine turbine blades due to their stability under prolonged high-temperature conditions.
Monel Alloys: With exceptional corrosion resistance in acidic and marine environments, Monel alloys, including Monel K500, are valuable in chemical processing and oil and gas applications.
Hastelloy Alloys: Known for their resistance to pitting and stress-corrosion cracking, Hastelloy alloys, like Hastelloy C-276, are extensively used in chemical processing for their stability in highly corrosive environments.
Stellite Alloys: Valued for their wear and corrosion resistance, Stellite alloys, such as Stellite 6, find applications in cutting tools and valve seats.
Nimonic Alloys: Nimonic alloys provide exceptional high-temperature strength, making them suitable for turbine blades and automotive valves.
Titanium Alloys: Known for their high strength-to-weight ratio and corrosion resistance, titanium alloys, like Ti-6Al-4V (TC4), are widely used in aerospace and medical implants.
Rene Alloys: These alloys offer superior thermal stability and creep resistance, making them ideal for high-temperature components in gas turbines.
Superalloy Casting and EDM Manufacturing Processes
Superalloy casting is the initial step in creating high-precision superalloy components. At NewayAero, we specialize in several advanced casting techniques that lay the groundwork for achieving tight tolerances, even before EDM is applied. Vacuum Investment Casting, Directional Casting, Single Crystal Casting, and Equiaxed Crystal Casting are just a few methods to ensure material integrity and alignment with required dimensional standards.
Each casting method offers unique advantages. For instance, Vacuum Investment Casting provides an excellent surface finish and reduces porosity, which is critical for parts exposed to high stress. Single Crystal Casting eliminates grain boundaries, reducing the risk of creep and ensuring a robust and uniform structure ideal for high-temperature applications. With its Castingly oriented grains, Equiaxed Casting offers balanced strength and durability, suitable for components that require consistent performance.
Once cast, components often need to be rougher or more complex to meet final tolerance specifications. It is where EDM becomes essential. EDM operates by eroding material from the surface using electrical sparks generated between the workpiece and a precisely controlled electrode. Unlike traditional machining, EDM does not require direct contact, which is particularly beneficial for complex, brittle superalloys that could crack or deform under mechanical stress.
EDM offers several benefits for achieving precision:
It allows for exceptionally tight tolerances, often within microns.

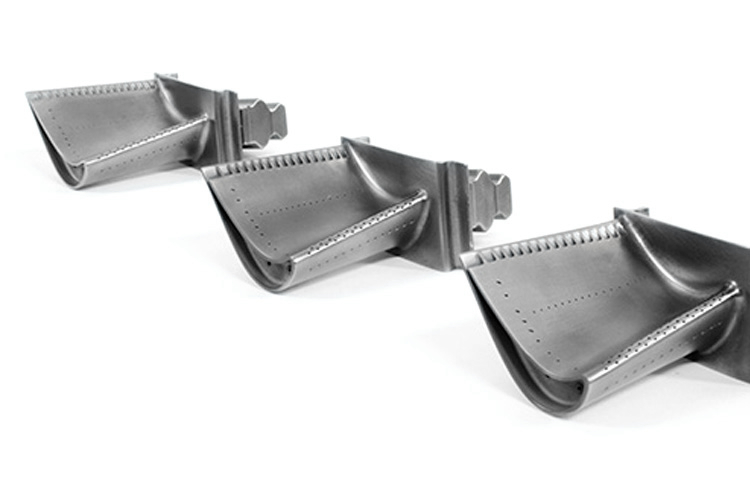

It can handle intricate geometries, making it ideal for parts with complex shapes and fine details, like turbine blades or fuel injector nozzles.
EDM avoids heat-affected zones, ensuring that the material's original properties are preserved, which is crucial for superalloys designed to perform in extreme environments.
Post-Processing Techniques to Ensure Tolerance Accuracy
After EDM machining, further post-processing steps are necessary to ensure the superalloy casting meets both dimensional accuracy and performance standards. Post-processing at NewayAero involves several advanced techniques, each tailored to enhance material characteristics and ensure tight tolerances.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) reduces porosity and enhances material density. HIP improves the component's structural integrity by eliminating internal voids and promoting uniform grain distribution, essential for parts subjected to high thermal and mechanical stress. By optimizing the density and microstructure, HIP helps achieve tighter tolerances and boosts overall part durability, making it ideal for critical applications in aerospace and energy industries.
Heat Treatment
Heat treatment is another essential post-processing step. It alters the material's microstructure to optimize strength, hardness, and resistance to deformation. Precise temperature control during heat treatment stabilizes superalloy properties, ensuring the part remains within dimensional specifications under operational conditions. Following heat treatment, EDM can again be applied if additional refinement is needed, ensuring the final part meets exact tolerance specifications.
Thermal Barrier Coating (TBC) and Superalloy Welding
Thermal Barrier Coating (TBC) and superalloy welding are employed for components operating in extremely high-temperature environments. TBC, in particular, is crucial for aerospace applications where parts face prolonged exposure to intense heat. Superalloy welding joins superalloy components with minimal thermal distortion, preserving tolerance and structural integrity in the final assembly.
EDM as a Finishing Process
EDM also serves as a finishing process in post-processing, allowing for precise final adjustments to achieve exact dimensions and geometries. With other post-processing methods, EDM ensures that even the most complex superalloy components meet exacting tolerance requirements. It is invaluable in applications where precision is critical for performance and longevity.
Testing and Quality Control
Testing and quality control are essential to verify that the superalloy castings meet the tight tolerances and performance requirements. NewayAero has implemented comprehensive inspection and testing capabilities to ensure each part meets or exceeds industry standards.
Coordinate Measuring Machine (CMM) and 3D Scanning.
Coordinate Measuring Machine (CMM) and 3D Scanning Measuring Instruments are critical for verifying dimensional accuracy. These tools provide precise measurements down to the micron level, ensuring that each part adheres to specified tolerances. Additionally, 3D scanning enables detailed inspection of complex geometries, providing a full view of the part's surface to detect deviations.
X-ray Testing and Line Array Industrial CT (GE)
X-ray Testing and Line Array Industrial CT (GE) are used for internal quality assessment to inspect internal structures for voids, cracks, or inclusions that could affect performance. These non-destructive testing methods allow thoroughly examining the component's interior without compromising its structural integrity.
Surface Corrosion Testing and EBSD Analysis
Surface Corrosion Testing and Electron Backscattering Diffractometer (EBSD) Analysis provide insights into the material's surface integrity and elemental composition. These tests help verify that the superalloy's surface is free from impurities or weaknesses that could compromise tolerance and performance.
CFD Analysis, Unstructured Mesh, and Finite Volume Testing
Advanced testing methods like CFD Analysis, Unstructured Mesh, and Finite Volume Testing simulate operational conditions to ensure that the part performs accurately under pressure, temperature, and stress. These simulations provide valuable data on how the part will behave in real-world applications, validating its precision and tolerance levels.
Combining EDM's precision capabilities with rigorous testing, NewayAero ensures that each superalloy casting meets the highest quality standards and performs reliably in demanding environments.
Industry Applications and Benefits
Achieving tight tolerances in superalloy castings is vital for numerous industries where performance and reliability are paramount. EDM-enhanced superalloy castings are particularly valuable in aerospace, power generation, oil and gas, military, and defense sectors.
Aerospace and Aviation
In aerospace and aviation, tight tolerances are essential for components like turbine blades, jet engine parts, and exhaust systems. Superalloys with precise dimensions ensure optimal airflow, fuel efficiency, and thermal resistance, improving engine performance. With EDM and high-precision post-processing, NewayAero produces aerospace components that withstand extreme conditions without compromising safety or functionality.
Power Generation
Superalloy components must endure high temperatures and rotational speeds in power generation, especially in gas and steam turbines. Tight tolerances in turbine blades and other critical parts improve energy efficiency and reduce the likelihood of mechanical failure. EDM's precision enables the creation of components with intricate cooling channels and exact geometries, such as superalloy heat exchanger parts, enhancing thermal management and energy output.
Oil and Gas
The oil and gas industry requires corrosion-resistant superalloy components for pumps, valves, and piping systems exposed to harsh environments. EDM machining allows for the precise finishing of Monel, Hastelloy, and Inconel alloys, ensuring these components fit seamlessly within larger assemblies. Accurate tolerances help prevent leaks, reduce maintenance, and extend the lifespan of offshore drilling and chemical processing equipment.
Military and Defense
Superalloy parts with tight tolerances are essential for military and defense applications in manufacturing firearm accessories, missile segments, and armor systems. Components need to be durable and precise to ensure safety and reliability. EDM allows for producing superalloy parts, like armor system parts, that maintain their integrity in extreme mechanical stress and high temperatures.
Nuclear Applications
Nuclear applications require superalloy components, such as control rods and reactor vessel parts, that can maintain dimensional stability under intense radiation and heat. Achieving tight tolerances in these parts is crucial for ensuring the safe operation of nuclear reactors. NewayAero's EDM and quality control processes ensure that each component meets the specifications required for these high-stakes applications, providing robust solutions for reactor vessel components.
