How EDM Reduces Mechanical Stress in Superalloy Parts

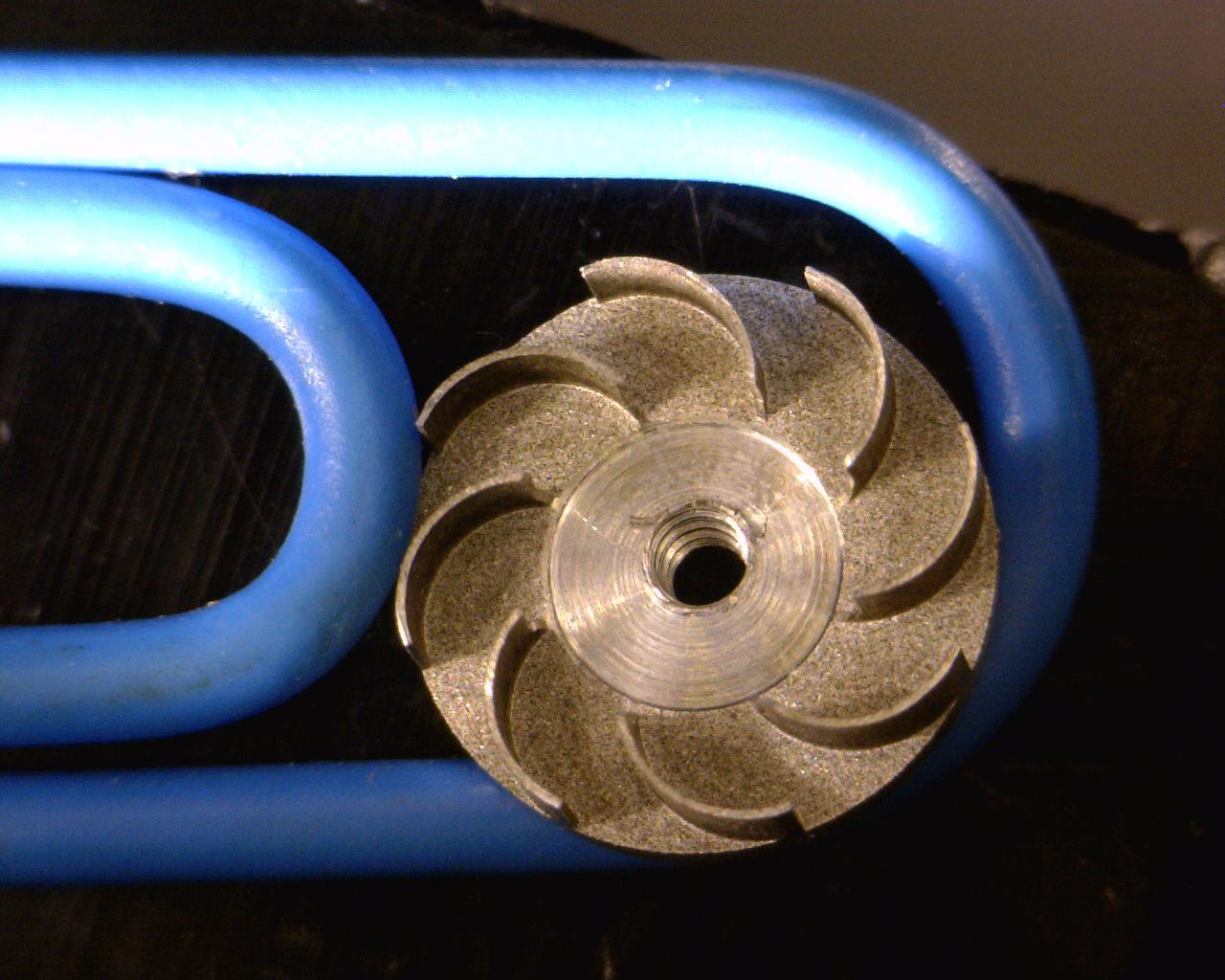

Minimizing Mechanical Stress in Superalloy Components with Electrical Discharge Machining (EDM)
In industries where performance under extreme conditions is crucial, such as aerospace, power generation, and defense, minimizing mechanical stress in components is essential. Superalloys—renowned for their high-temperature strength, corrosion resistance, and durability—are often selected for these demanding applications. However, achieving precise tolerances in superalloy parts without introducing mechanical stress can be challenging due to their inherent hardness and resilience.
Electrical Discharge Machining (EDM) has become a preferred method for shaping and refining superalloy components. Unlike traditional machining, which involves direct mechanical contact, EDM uses electrical sparks to erode material from the workpiece. This non-contact approach allows EDM to achieve tight tolerances without imparting stress on the part, making it ideal for superalloys that require both high precision and minimal internal stress. In this blog, we'll explore how EDM works to reduce mechanical stress in superalloy parts, supported by advanced post-processing, testing, and quality control.
Material Characteristics and Challenges in Superalloy Parts
Superalloys are engineered explicitly for environments that require durability under high temperatures, mechanical loads, and corrosive elements. Alloys like Inconel, CMSX, Hastelloy, and Stellite are designed to perform exceptionally in extreme conditions. Superalloys can maintain their strength at temperatures approaching 1,000°C, resist oxidation, and endure various chemical degradations. Their applications are critical in high-stakes industries, from aerospace turbine blades to nuclear reactor components.
However, the properties that make superalloys indispensable in harsh environments also introduce challenges in machining. Their hardness and deformation resistance can lead to difficulties with traditional machining, as these methods may induce mechanical stress, potentially causing micro-cracks, warping, or other distortions that compromise the part's integrity. Conventional machining tools produce heat due to direct contact with the workpiece, often resulting in residual stresses that can weaken the superalloy's microstructure.
How EDM Minimizes Mechanical Stress
Electrical Discharge Machining (EDM) is a non-contact machining technique that utilizes electrical discharges to erode material from the surface of a workpiece. In EDM, a conductive electrode and the workpiece are immersed in a dielectric fluid, and a controlled voltage is applied between them. When the electrode and the workpiece are close enough, electrical sparks jump across the gap, vaporizing and melting small amounts of material from the part's surface. The dielectric fluid flushes away these particles, leaving an exact, stress-free finish.
EDM's primary advantage in machining superalloys is its non-contact nature. Since the electrode never touches the workpiece, no direct mechanical force is applied, significantly reducing the likelihood of inducing mechanical stress. It contrasts with traditional machining methods, where cutting forces can cause deformation or residual stress, particularly in complex and brittle materials like superalloys.
Additionally, EDM generates minimal heat-affected zones compared to traditional machining. Although the EDM process does involve localized heating, the dielectric fluid quickly dissipates the heat, preventing it from spreading into the bulk of the material. This characteristic of EDM minimizes the thermal stress that often occurs in conventional machining, where continuous friction between the tool and workpiece raises the temperature and can lead to warping or weakening of the superalloy structure.
By combining high precision with minimal mechanical and thermal stress, EDM enables the production of superalloy parts with tight tolerances while preserving material properties. Components manufactured using EDM are better suited to endure extreme conditions in aerospace, power generation, and oil and gas industries.
Post-Processing Techniques to Further Mitigate Stress
Once EDM machining is complete, additional post-processing steps are often employed to ensure that the superalloy parts maintain their dimensional accuracy and mechanical integrity. These post-processing methods further reduce residual stress and enhance the part's overall performance, making them crucial steps in the manufacturing process for high-stress applications.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) is one of the most effective techniques for reducing residual stress in superalloy parts. During HIP, the component is subjected to high temperature and high pressure in an inert atmosphere, which closes any internal porosity and encourages a uniform microstructure. This process benefits superalloy parts exposed to high temperatures and mechanical loads, increasing material density and structural integrity while reducing stress concentrations.
Heat Treatment
Heat treatment is another critical post-processing method that stabilizes the material properties of superalloys. Precise control of temperature and cooling rates allows for microstructure refinement, enhancing characteristics like hardness, toughness, and resistance to deformation. Heat treatment is particularly effective at minimizing residual stresses from prior machining or casting processes. By optimizing the material's microstructure, heat treatment helps the superalloy component maintain dimensional accuracy and perform reliably under stress.
Thermal Barrier Coatings (TBC)
Thermal Barrier Coatings (TBC) provide additional protection for parts exposed to extreme thermal cycling. TBCs are ceramic coatings applied to superalloy components to insulate them from high temperatures. These coatings protect the part from thermal damage and reduce stress by buffering the underlying material against rapid temperature fluctuations. It is precious for aerospace components, such as turbine blades, operating in environments where temperatures vary significantly in short periods.
EDM as a Finishing Process
Finally, after other post-processing steps, EDM can be used as a finishing process. By carefully removing small amounts of material, EDM can refine the component's surface and achieve exact dimensions and geometries without reintroducing stress. This final machining stage ensures that the part meets tight tolerance specifications and is ready for high-performance applications.
Testing and Quality Control to Verify Stress Minimization
Rigorous testing and quality control processes are essential to guarantee that superalloy parts meet stress and tolerance specifications. At NewayAero, we employ a wide range of inspection methods to verify the integrity and performance of EDM-machined superalloy components, ensuring they are free from mechanical stress and other potential defects.
Coordinate Measuring Machines (CMM) and 3D Scanning Instruments.
Coordinate Measuring Machines (CMM) and 3D Scanning Instruments are fundamental tools for verifying dimensional accuracy. These instruments ensure that each component meets specified tolerances by measuring parts down to the micron level. 3D scanning allows for thoroughly inspecting complex geometries, helping detect deviations that might compromise performance.
X-ray Testing and Industrial CT Scanning
X-ray Testing and Industrial CT Scanning offer non-destructive methods to inspect the internal structure of superalloy parts. These tests are critical for identifying internal voids, inclusions, or stress points that could compromise the part's structural integrity. In EDM-machined components, these techniques help verify that no residual stress or micro-cracks have been introduced during machining or post-processing.
Electron Backscattering Diffraction (EBSD) Analysis
EBSD analysis examines the material's surface structure and crystal orientation, providing insights into the component's mechanical properties. EBSD can reveal microstructural inconsistencies or potential stress areas, ensuring the superalloy maintains its desired characteristics. EBSD testing is precious for high-temperature alloy components to confirm that the material has retained its heat-resistant qualities.
CFD Analysis and Finite Volume Testing
Additional testing methods like CFD Analysis and Finite Volume Testing simulate the part's performance under operational conditions. These simulations help predict how the part will behave under stress, temperature, and pressure, providing valuable data on its reliability.
Combining EDM's precision with extensive quality control, NewayAero ensures that each component is stress-free and meets the high standards required in its industry applications.
Industry Applications and Benefits of Stress-Reduced Superalloy Parts
Reducing mechanical stress in superalloy parts is particularly valuable for industries that rely on components to perform under harsh conditions without failure. EDM-enhanced superalloy parts are essential for aerospace, power generation, oil and gas, and defense sectors, where reduced stress leads to extended lifespan, improved performance, and decreased maintenance requirements.
Aerospace and Aviation
In aerospace, superalloy parts such as turbine blades, exhaust systems, and combustion chambers require high dimensional accuracy and low residual stress to function effectively. EDM machining, followed by rigorous post-processing, produces components that can withstand high temperatures and pressures without distortion. These stress-free parts improve fuel efficiency, reduce wear, and provide excellent reliability in aerospace engines.
Power Generation
Stress-reduced superalloy components ensure safe and efficient operation for power generation applications, particularly in gas and steam turbines. Turbine blades, heat exchangers, and other high-temperature components require precise tolerances to maintain optimal airflow and thermal management. EDM allows for creating intricate cooling channels and other complex features while minimizing mechanical stress, which helps the component maintain its shape and strength under prolonged exposure to high temperatures.
Oil and Gas
The oil and gas industry demands corrosion-resistant superalloy parts for pumps, valves, and piping systems that operate in highly corrosive environments. The ability of EDM to achieve tight tolerances without introducing mechanical stress is precious here, as stress-free parts are less prone to cracking or fatigue, even under high pressure. It improves equipment reliability and reduces maintenance needs in offshore and onshore facilities.
Military and Defense
Stress-reduced superalloy components are essential in manufacturing firearm accessories, missile segments, and armor systems in military and defense applications. Components must maintain their structural integrity under intense mechanical stress and high temperatures, and EDM enables the precision needed for such high-performance parts. EDM reduces mechanical stress and enhances mission-critical equipment's safety, reliability, and performance.
Nuclear Applications
Reducing mechanical stress also has significant benefits in nuclear applications. Superalloy parts, such as control rods and reactor vessel components, must maintain dimensional stability and resistance to radiation-induced degradation. EDM machining helps produce these components with tight tolerances and minimal stress, supporting safe and reliable operation in nuclear reactors.
Conclusion
Low-stress components are critical to delivering reliable, high-performance parts in high-temperature alloy manufacturing. EDM machining offers a unique solution to this challenge by eliminating direct mechanical contact, minimizing heat-affected zones, and achieving tight tolerances without compromising material integrity. When coupled with post-processing techniques like HIP, heat treatment, and thermal barrier coating (TBC), EDM allows superalloy parts to meet the demanding requirements of industries such as aerospace, power generation, oil and gas, and defense.
NewayAero's commitment to quality is reflected in its comprehensive testing and quality control processes, ensuring that each superalloy component meets strict stress resistance and dimensional accuracy standards. By integrating EDM, advanced post-processing, and rigorous testing, NewayAero continues to deliver components that excel in extreme environments, providing clients with durable, stress-free parts designed for high-performance applications.
FAQs
How does EDM help in reducing mechanical stress compared to traditional machining methods?
What types of superalloys benefit the most from EDM machining for stress reduction?
Are there specific post-processing methods that complement EDM to minimize stress in superalloy parts?
What testing techniques are used to verify that EDM has effectively reduced mechanical stress in superalloy components?
Which industries are reducing mechanical stress in superalloy parts most critical, and why?
