Superalloy Deep Hole Drilling Services

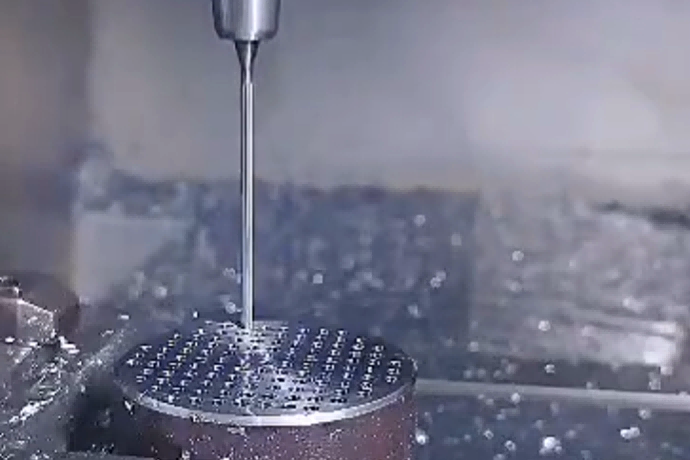

Superalloy Deep Hole Drilling is a precision machining process that creates deep, narrow holes in superalloy components like turbine discs and blades. We mainly provide CNC deep hole drilling with a depth ratio of 100:1 and gas spark discharge deep hole drilling with a depth ratio of more than 100:1.

Send us your designs and specifications for a free quotation

All uploaded files are secure and confidential

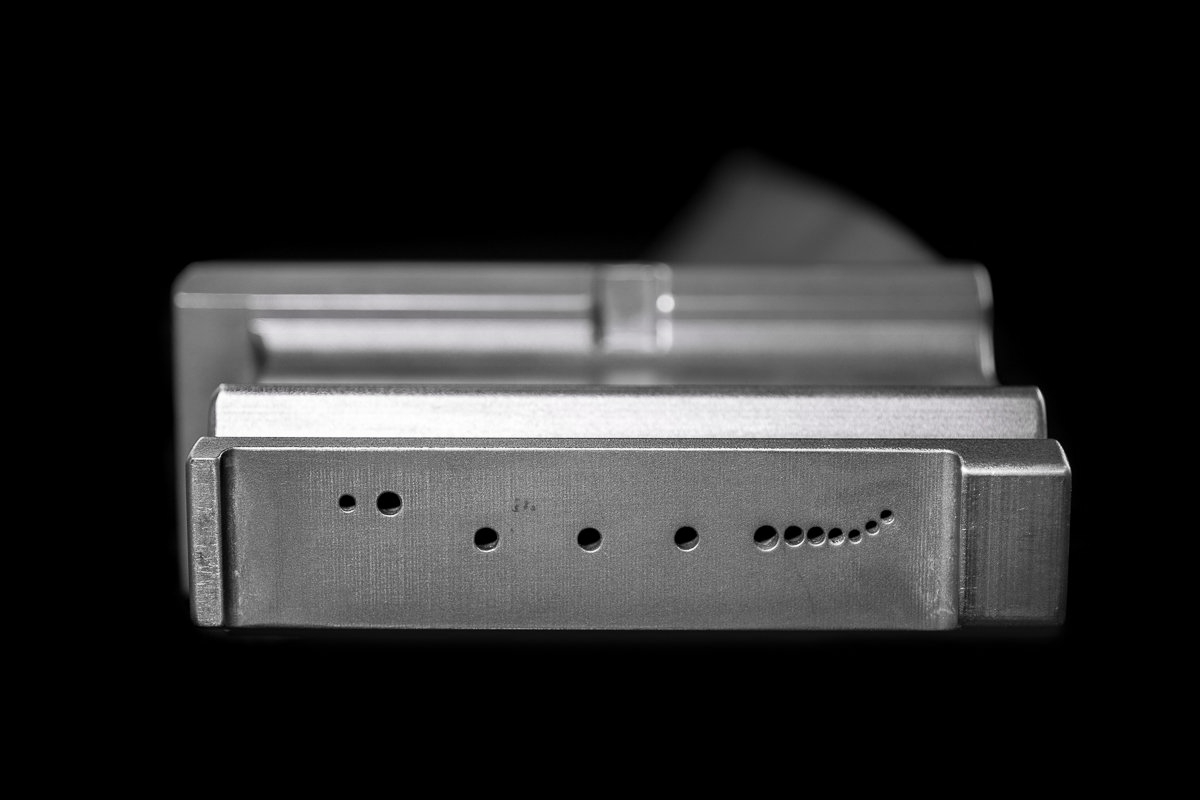

Benefits of Deep Hole Drilling on Superalloy Castings

Deep hole drilling on superalloy castings creates precise, high-aspect-ratio holes essential for cooling channels in aerospace and power generation components. It ensures dimensional accuracy, smooth internal surfaces, and minimal distortion, preserving the casting's mechanical integrity. This process improves heat dissipation, enhances component performance, and extends service life under extreme operating conditions.

Benefits	Description
Precise Cooling Channels:	Enables accurate drilling of high-aspect-ratio holes for cooling pathways, essential for components in turbines and jet engines to manage thermal loads effectively.
Enhanced Heat Dissipation:	Facilitates better thermal management, improving the performance and extending the lifespan of cast parts operating in high-temperature environments.
Minimal Distortion and High Accuracy:	Achieves tight tolerances with minimal material deformation, ensuring the integrity of intricate superalloy castings is maintained.
Improved Surface Quality:	Produces smooth internal surfaces, reducing friction and improving fluid or airflow through the drilled channels, enhancing efficiency.
Extended Component Life:	Contributes to longer service life by optimizing cooling and preventing overheating, making it ideal for aerospace, energy, and defense applications.

Learn More

When Does Superalloy Parts Need Deep Hole Drilling Service?

Superalloy parts require deep hole drilling service when precise, long bores are needed for optimal fluid flow or cooling channels. This is essential for components like turbine blades, shafts, nozzles, and heat exchangers in the aerospace, energy, and oil industries. Deep hole drilling ensures accuracy, smooth internal surfaces, and structural integrity in applications where high precision and durability under extreme conditions are critical.

Blank Parts	Typical Applications	Process Defects	How Welding Improves	Link
Single Crystal Castings	Cooling channels in turbine blades Fuel nozzles for jet engines High-temperature guide vanes	Micro-cracks along drill paths Misalignment of cooling channels Surface roughness inside bores	Ensures precise alignment of intricate channels Reduces internal surface roughness for better fluid flow Prevents cracks by minimizing drilling stress	Learn
Equiaxed Crystal castings	Pump housings with coolant channels Valve bodies with deep flow paths Combustion chamber parts	Porosity along the drill path Drill deflection in thick sections Burr formation at exit points	Maintains straight paths in complex geometries Seals porosity through precision drilling Reduces burrs for smooth assembly	Learn
Directional Castings	Aerospace turbine vanes with internal cooling Afterburner casings with drilled ports Gas turbine nozzles	Cracks from thermal stress Channel misalignment Rough internal surfaces	Prevents thermal cracking with precise techniques Ensures straight channels for accurate performance Achieves smooth bores for better heat management	Learn
Special Alloy Castings	Chemical reactor housings Marine exhaust systems Heat exchanger components	Drill wander in dense alloys Excessive burrs inside ports Heat-affected zones causing micro-cracks	Ensures precision in hard-to-machine alloys Minimizes heat-affected areas for improved strength Removes burrs for seamless integration	Learn
Powder Metallurgy Turbine Disc	Turbine discs with cooling paths High-speed compressor rotors Gas turbine hubs	Voids in drilled paths Cracks from drilling stress Channel blockage by debris	Clears blockages for smooth airflow Prevents voids through precise drilling techniques Reduces stress-induced cracks	Learn
Precision Forging Parts	Shafts for turbines and compressors Landing gear components with fluid paths Crankshafts with oil galleries	Drill misalignment in long shafts Surface roughness inside bores Drill bit deflection	Ensures straight, aligned bores in long components Refines internal surfaces for better lubrication Reduces tool deflection with advanced techniques	Learn
CNC Machined Parts	Valve bodies with deep channels Fuel injectors for engines Hydraulic manifolds	Inconsistent bore diameters Debris accumulation in holes Thermal damage during drilling	Achieves consistent diameters with precision tools Removes debris effectively with coolant flushing Minimizes thermal damage with optimized speeds	Learn
3D printed Parts	Complex cooling channels in aerospace components Medical implants with fluid pathways Customized nozzles for energy systems	Residual stress affecting bore accuracy Layered structures causing drill path deviation Surface irregularities inside holes	Corrects deviations in layered structures Relieves residual stress for precise drilling Smoothens internal surfaces for enhanced performance	Learn

Post Process	Functions	Link
Hot Isostatic Pressing (HIP)	Enhances density, eliminates porosity, improves mechanical properties	Learn >>
Heat Treatment	Alters microstructure, enhances strength, toughness, and creep resistance	Learn >>
Superalloy Welding	Joins materials, maintains alloy properties, repairs critical components	Learn >>
Thermal Barrier Coating (TBC)	Protects against thermal degradation, enhances high-temperature oxidation resistance	Learn >>
Superalloy CNC Machining	Ensures alloy composition, properties, and integrity under operational conditions	Learn >>
Superalloy Deep Hole Drilling	Achieves precision, complex geometries, maintains tight tolerances in superalloys	Learn >>
Electrical Discharge Machining (EDM)	Enables cooling channels, maintains structural integrity, precise hole depths	Learn >>
Material Testing and Analysis	Allows intricate machining, minimal thermal impact, suitable for hard alloys	Learn >>

Custom Superalloy Components Manufacturing

We specialize in manufacturing custom superalloy components for critical applications. We use cutting-edge processes like casting, forging, and powder metallurgy to produce high-performance parts such as turbine blades, discs, and impellers. Our components are engineered for superior heat resistance, strength, and durability, making them ideal for aerospace, energy, and industrial sectors operating in extreme environments.
