Improved Surface Quality with Deep Hole Drilling for Alloys

Enhancing Superalloy Surface Quality and Integrity Through Deep Hole Drilling

Superalloys are critical materials for high-performance applications in aerospace, power generation, and marine industries. These materials must withstand extreme conditions, such as high temperatures, corrosion, and mechanical stress, without compromising performance. As a result, the manufacturing and post-processing techniques used to produce superalloy components are of paramount importance.

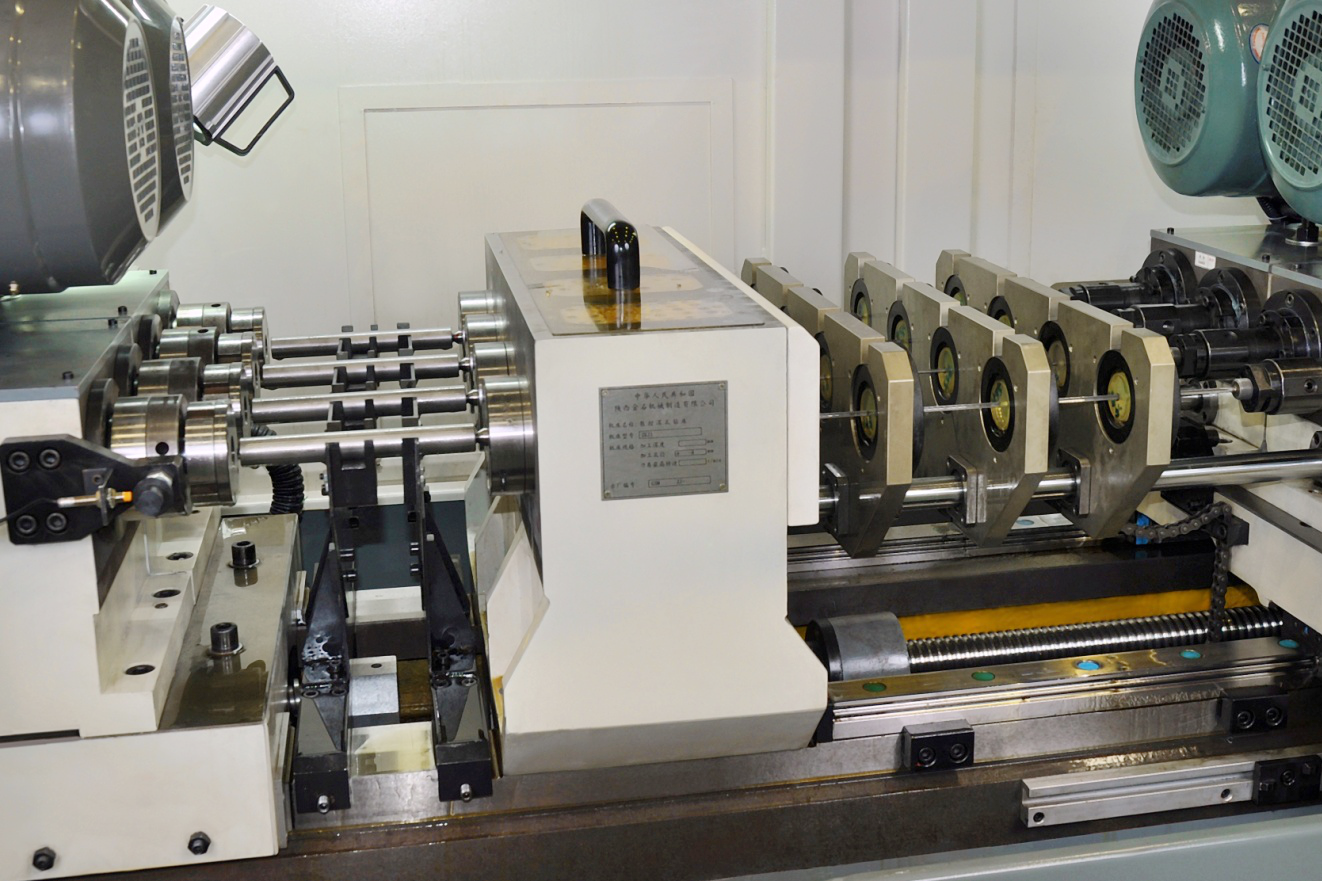

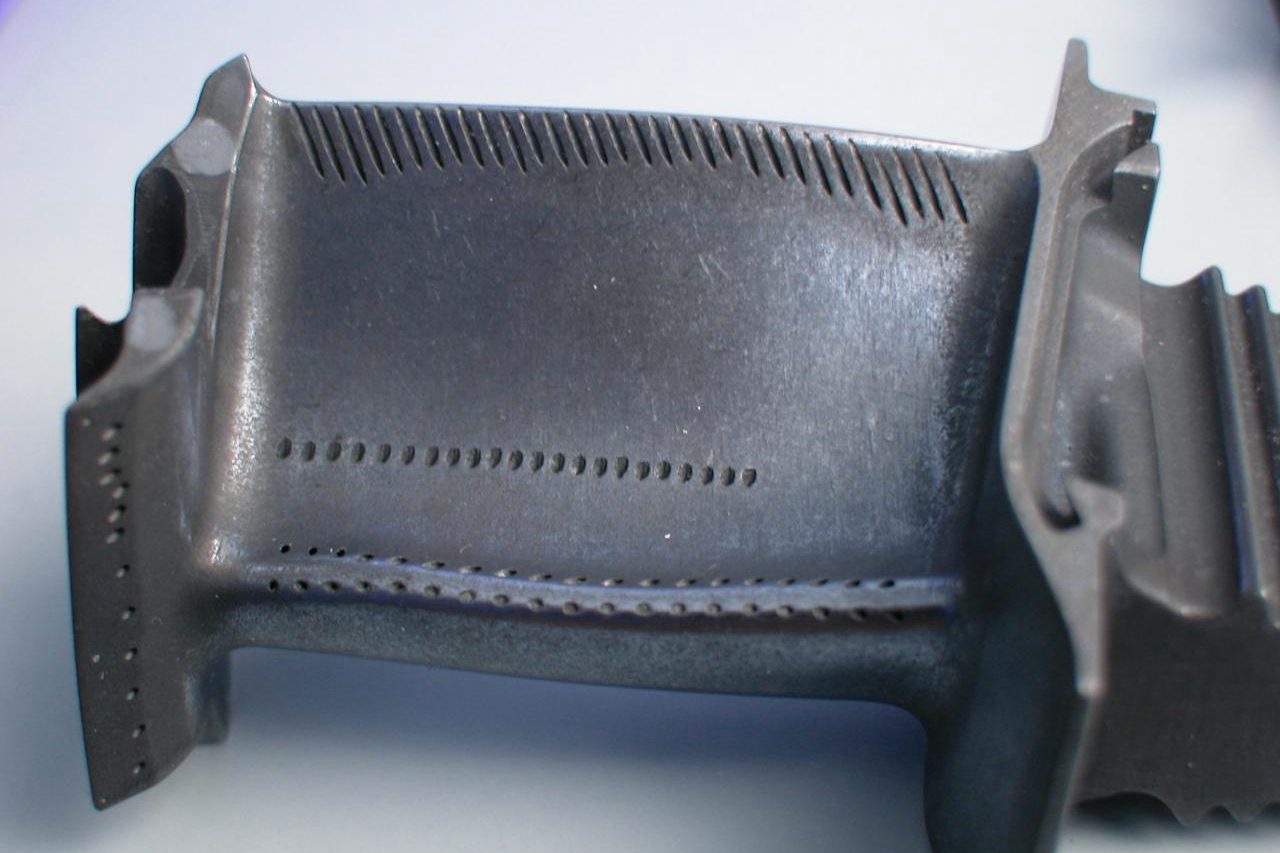

One such technique that plays a crucial role in enhancing the surface quality and integrity of superalloy parts is deep hole drilling. This process is essential for minimizing defects, ensuring dimensional accuracy, and improving the final product's performance. Deep hole drilling removes material from internal areas of superalloy parts, which helps reduce internal stresses and ensures that components maintain their geometric integrity. It is precious in creating cooling passages or channels in parts like turbine blades, where precision and efficiency are critical to their performance.

The benefits of deep-hole drilling extend beyond the manufacturing stage. It contributes significantly to the overall quality of the part, improving its ability to withstand high thermal and mechanical loads. As part of a comprehensive approach that includes superalloy CNC machining, heat treatment, and post-processing, deep hole drilling ensures that superalloy components meet the stringent demands of industries that rely on them for safety, durability, and efficiency.

Benefits to Superalloy Parts

Deep hole drilling offers several benefits to superalloy parts across different manufacturing methods. By improving the surface quality, deep hole drilling contributes to the final components' durability, reliability, and performance.

Vacuum Investment Castings

Vacuum investment casting, including single crystal casting, equiaxed crystal casting, and directional casting, is widely used to produce complex superalloy parts like turbine blades and guide vanes for the aerospace and power generation industries. This process offers exceptional precision and detail, but defects like porosity, surface irregularities, and dimensional inaccuracies can occur.

Deep hole drilling improves surface quality by removing any internal voids or imperfections that might have formed during the casting process. It is essential in single crystal casting, where even minor defects can drastically reduce the performance of turbine blades. By refining the surface, deep hole drilling enhances the material's resistance to fatigue, oxidation, and creep.

Single Crystal Castings

These castings benefit from deep hole drilling by ensuring smooth internal surfaces, which are critical for enhancing the creep resistance of turbine blades.

Equiaxed Crystal Castings

Equiaxed crystal castings achieve a uniform grain structure with deep hole drilling, improving toughness and fatigue resistance.

Directional Castings

The directional solidification process benefits from deep hole drilling by refining the material's properties and enhancing its ability to withstand high mechanical stresses.

Powder Metallurgy Parts

Powder metallurgy is used to produce turbine discs and other high-performance superalloy parts. This process allows for greater control over the alloy composition, ensuring uniform material properties. However, the parts produced through powder metallurgy can have surface defects like porosity or roughness.

Deep hole drilling helps remove any internal or surface defects left after the powder metallurgy process. It ensures that the final parts exhibit excellent mechanical properties, such as high strength and fatigue resistance, making them suitable for high-stress applications like turbine engines.

Superalloy Precision Forgings

Precision forging produces components like turbine discs, shafts, and other critical parts that require high strength and dimensional accuracy. However, superalloy forgings often require post-processing to remove imperfections and ensure the parts meet stringent specifications.

Deep hole drilling is particularly effective in removing any internal stresses or distortions in forged components, ensuring they maintain their dimensional stability and strength after processing. The surface finish achieved through deep-hole drilling also contributes to the overall durability of these forged parts.

3D Printed Superalloy Parts

Additive manufacturing (3D printing) has revolutionized the production of complex superalloy components. 3D printing offers the ability to create parts with intricate geometries and complex internal features that are difficult or impossible to achieve through traditional manufacturing methods.

However, 3D-printed parts often require post-processing to remove support structures, smooth the surfaces, and ensure dimensional accuracy. Deep hole drilling is an ideal method for refining the surface quality of 3D-printed superalloy parts, removing any surface irregularities that may have resulted from the printing process. It ensures that the final components have the strength, precision, and surface finish for demanding applications.

Post-Process Techniques

In addition to deep hole drilling, several other post-processing techniques enhance superalloy parts' surface quality and overall performance.

Hot Isostatic Pressing (HIP)

Hot Isostatic Pressing (HIP) is used to eliminate porosity and improve the overall material properties of superalloy parts. The process involves subjecting the part to high pressure and temperature, which helps to densify the material and improve its microstructure.

After HIP, deep hole drilling can refine the surface, ensuring the parts meet the required tolerances and material integrity specifications. It is essential for parts exposed to high stresses or extreme environmental conditions, such as turbine blades and combustion chambers.

Heat Treatment

Heat treatment is used to adjust the microstructure of superalloy components, improving their mechanical properties, such as strength and toughness. However, heat treatment can also lead to surface oxidation or distortion.

Deep hole drilling removes surface oxidation and ensures the parts maintain their dimensional stability after heat treatment. It also helps refine the microstructure of the parts, improving their performance in high-stress environments.

Superalloy Welding

Superalloy welding is used to join components that require high strength and durability. After welding, deep hole drilling ensures that the welds are free from defects, such as cracks or voids, and that the surface finish meets the required specifications.

This process is critical in industries like aerospace, where the integrity of welded parts is critical to safety and performance.

Thermal Barrier Coating (TBC)

Thermal Barrier Coating (TBC) protects superalloy components from high temperatures and oxidation. Deep hole drilling ensures that the coating adheres properly to the surface, improving the component's overall performance in extreme conditions.

Testing and Inspection Methods

After deep hole drilling, superalloy parts undergo rigorous testing and inspection to meet the required performance standards. Common testing methods include:

Coordinate Measuring Machine (CMM)

CMM technology ensures that the superalloy part meets the precise dimensional specifications after deep hole drilling. CMM provides highly accurate 3D measurements to verify the final geometry of the part.

Scanning Electron Microscope (SEM)

SEM is used to inspect the microstructure of superalloy parts, checking for surface defects or inconsistencies that may affect performance. It offers a detailed examination of the material's surface and microstructure.

X-ray and Ultrasound Inspection

X-ray inspection and ultrasonic testing are non-destructive testing methods that help detect internal flaws or voids in the material that may have been missed during machining. These techniques ensure the integrity of the superalloy parts without causing any damage.

Tensile Testing

Tensile testing assesses the superalloy parts' mechanical strength and flexibility, ensuring they can withstand the expected operational stresses. This test provides essential data on the material's ability to resist deformation under tensile load.

Glow Discharge Mass Spectrometer (GDMS)

GDMS is a technique used to ensure that the alloy composition is correct and that the material's purity has been maintained throughout the manufacturing process. It provides a compassionate elemental composition analysis to verify that the material adheres to specifications.

Industry Applications of Deep Hole Drilling in Superalloy Parts

Superalloy parts with improved surface quality through deep-hole drilling are essential in industries where performance and durability are critical. Deep hole drilling ensures these parts' precision and surface integrity to withstand extreme conditions.

Aerospace

In aerospace applications, parts like turbine blades, combustor liners, and guide vanes must withstand high temperatures, mechanical stress, and environmental corrosion. Deep hole drilling enhances the surface quality of these components, ensuring that they can perform reliably in jet engines and other high-performance systems.

Power Generation

Superalloy parts used in turbines, reactors, and heat exchangers in power generation must meet strict standards for reliability and performance. Deep hole drilling ensures these parts are defect-free and have the surface integrity to withstand extreme conditions. Superalloy turbine components benefit from this process for improved longevity and efficiency.

Oil and Gas

In the oil and gas industry, superalloy parts like valves, pumps, and turbines are exposed to harsh environments. Deep hole drilling ensures that these components are durable and resistant to corrosion, wear, and fatigue, improving the performance of critical parts such as subsea equipment.

Chemical Processing

Chemical reactors and heat exchangers require superalloy components that withstand corrosive environments and high temperatures. Deep hole drilling helps refine the surface finish of these parts, ensuring their long-term reliability in demanding environments.

Marine

Superalloy parts used in marine engines and turbines must resist corrosion and wear. Deep hole drilling enhances the surface quality of these components, ensuring that they can perform reliably in seawater environments, such as marine turbines.

FAQs

• How does deep hole drilling improve surface quality in superalloy parts?

• What are the most common superalloy materials that benefit from deep hole drilling?

• How does deep hole drilling contribute to the performance of vacuum investment castings, especially in aerospace applications?

• What role do post-processing techniques like HIP and heat treatment play in enhancing the surface quality of superalloy components?

• How do inspection methods like CMM and SEM help verify the effectiveness of deep hole drilling in superalloy parts?
