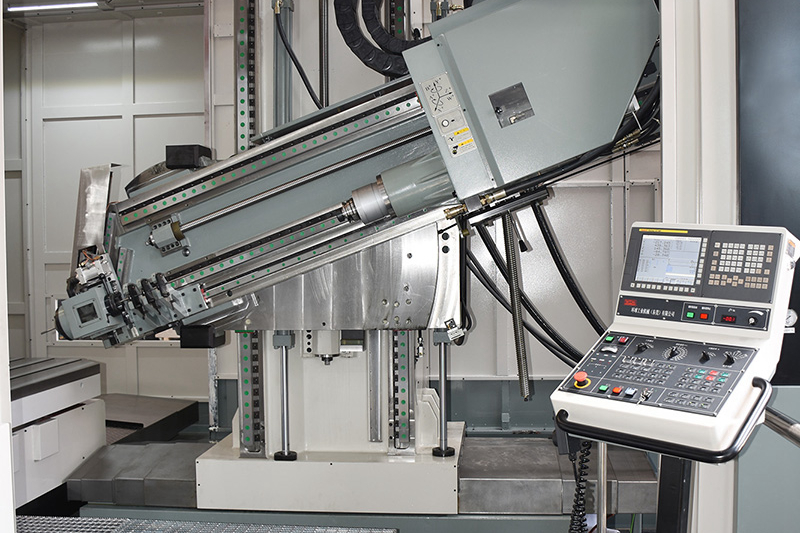

Extending Component Life Using Deep Hole Drilling Techniques
Superalloys are essential materials in high-performance applications that require superior mechanical strength, resistance to heat, and longevity. Industries like aerospace, power generation, automotive, and chemical processing rely on the exceptional properties of superalloys for components that must endure extreme operating conditions. However, even the most advanced materials can suffer from internal stresses, defects, and wear over time, ultimately limiting lifespan and performance.
Deep hole drilling is a critical technique that significantly enhances the life and performance of superalloy parts. This process helps optimize cooling channels, remove internal voids, and improve overall structural integrity, which is crucial for parts subjected to extreme temperatures and mechanical stresses. Manufacturers can mitigate the risk of defects such as cracking and fatigue by precisely drilling deep holes in superalloy components, which could otherwise compromise the component's functionality and lifespan.
In this blog, we will explore how deep-hole drilling techniques can extend the lifespan of superalloy components by improving structural integrity, minimizing defects, and optimizing performance across various industries. We will also discuss the types of superalloy materials commonly used in high-performance applications, the specific benefits of deep hole drilling in superalloy parts, post-processing techniques like heat treatment, hot isostatic pressing (HIP), testing and inspection methods such as CNC machining, and the various industry applications of this process.
Typical Superalloy Materials
Superalloys are engineered to perform in high-stress environments, including extreme temperatures and corrosion conditions. They are primarily used in sectors where materials are exposed to high mechanical stress and temperatures, such as aerospace, energy, and marine applications.
Here are some of the typical superalloy materials used across various industries:
Inconel Alloys
Inconel alloys are known for their excellent heat resistance and strength at high temperatures. Common grades include Inconel 718 and Inconel 625, which are used extensively in turbine blades, jet engines, and gas turbines.
CMSX Series
These alloys, such as CMSX-4 and CMSX-10, are primarily used for single crystal casting turbine blades in aerospace applications. They provide outstanding creep resistance and highly resist oxidation at high temperatures.
Monel Alloys
Composed primarily of nickel and copper, Monel alloys like Monel 400 and Monel K500 are corrosion-resistant, making them ideal for marine and chemical processing industries.
Stellite Alloys
Known for their excellent wear and corrosion resistance, Stellite alloys like Stellite 6 and Stellite 21 are commonly used in applications like valve seats and engine components.
Titanium Alloys
Titanium alloys like Ti-6Al-4V are prized for their high strength-to-weight ratio and excellent corrosion resistance, commonly used in aerospace and marine applications.
Rene Alloys
These high-performance alloys, including Rene 104 and Rene 88, are often used in the most demanding applications, such as turbine engines, where high strength and heat resistance are critical.
These materials provide the basis for the components often deep-hole drilled to improve performance and extend their lifespan in the field.
Benefits of Deep Hole Drilling to Superalloy Parts
Deep hole drilling is a precise and highly specialized process that involves drilling deep, narrow holes into superalloy parts. It is essential for improving superalloy components' mechanical properties, integrity, and overall performance. Here are several ways in which deep hole drilling enhances superalloy parts:
Improved Structural Integrity
Deep hole drilling helps to remove any internal and surface defects, such as porosity, cracks, and inclusions, which can significantly reduce the lifespan and mechanical performance of superalloy components. By eliminating these defects, deep hole drilling ensures that the part remains structurally sound under extreme conditions. For example, deep hole drilling is particularly effective in improving the strength of turbine blades, where internal voids can compromise performance under high stress and temperature.
Enhanced Fatigue Resistance
Fatigue resistance is critical for superalloy parts used in applications involving repetitive loading and high-stress conditions. Deep hole drilling helps minimize stress concentrations around holes, common sites for crack initiation. By ensuring that the drilled holes are free from defects and properly aligned, deep hole drilling enhances the fatigue resistance of the part, reducing the likelihood of catastrophic failure. It is particularly beneficial in parts like turbine discs, where fatigue failure is a significant concern.
Defect Removal
One of the primary benefits of deep hole drilling is its ability to remove residual stress and defects that might otherwise affect the functionality and reliability of superalloy components. Superalloy castings, especially those made using complex methods like vacuum investment casting and single crystal casting, can sometimes contain internal defects that may not be visible on the surface. Deep hole drilling ensures that these defects are removed, improving the material's overall mechanical properties and service life.
Precision and Tolerance
Superalloy parts often require extremely tight tolerances for complex geometries. Deep hole drilling provides the precision necessary to achieve tolerances and ensure proper fit and functionality. It is essential in aerospace and power generation industries, where parts must fit perfectly to maintain optimal performance and safety.
Deep Hole Drilling in Specific Superalloy Parts
Deep hole drilling plays a crucial role in improving the performance and extending the life of various superalloy components, especially those produced through advanced manufacturing techniques such as casting, powder metallurgy, forging, and 3D printing.
Vacuum Investment Castings
Vacuum investment casting is one of the most commonly used methods for manufacturing superalloy components, particularly turbine blades and other high-performance parts. Deep hole drilling improves the integrity of these parts by removing internal defects and stress concentrations.
Single Crystal Castings:
Deep hole drilling enhances the mechanical properties of single crystal turbine blades by eliminating internal voids and reducing stress, which is critical for maintaining creep resistance and long-term performance.
Equiaxed Crystal Castings:
For less complex geometries, deep hole drilling ensures uniformity and reduces the chances of surface defects that could affect the component's performance.
Superalloy Directional Castings:
Deep hole drilling ensures that directional solidification, critical for enhancing thermal and mechanical properties, is not interrupted by defects. This process is vital in the production of turbine blades.
Special Alloy Castings:
Deep hole drilling is also used to improve the integrity of components made from special alloys, ensuring that the parts meet the stringent requirements of industries like aerospace and marine.
Powder Metallurgy Parts
Powder metallurgy is a technique used to manufacture superalloy components by pressing metal powders into shape and then sintering the material. Deep hole drilling improves the uniformity of these parts, ensuring that any porosity or defects are removed. It also helps to ensure precise dimensions for components like turbine discs subjected to extreme conditions.
Superalloy Precision Forgings
Precision forging is another manufacturing method for creating superalloy parts, particularly for critical applications like turbine discs and compressor blades. Deep hole drilling improves the mechanical properties of these forged parts by reducing residual stresses, which can otherwise lead to deformation and premature failure.
3D Printed Superalloy Parts
3D printing has gained significant traction in producing superalloy components, particularly in aerospace and energy applications. Deep hole drilling enhances the surface quality and dimensional accuracy of 3D-printed parts. Deep hole drilling ensures that 3D-printed parts meet the required strength and performance standards by removing internal defects and optimizing hole dimensions.
Post-Processing Techniques to Enhance Superalloy Components
After deep hole drilling, several post-processing techniques are used further to improve the properties and performance of superalloy components:
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) helps to remove any remaining porosity and further enhances the mechanical properties of the component by applying high pressure and temperature in a vacuum. This process improves the material’s density and structural integrity, ensuring the component performs optimally in extreme conditions.
Heat Treatment
Heat treatment processes such as annealing, aging, and solution treatment improve superalloy components' strength, hardness, and flexibility, enhancing their performance under high-temperature conditions. These processes are essential for tailoring the alloy's microstructure to meet specific application demands.
Surface Coating
Thermal Barrier Coatings (TBC) and other surface treatments protect superalloy parts from oxidation and wear. These coatings are crucial for turbine blades operating in extreme conditions. TBCs help extend the lifespan of components exposed to high heat by reducing thermal degradation.
Polishing and Finishing
After deep hole drilling, polishing and finishing are used to improve the surface finish, which reduces the potential for fatigue cracks and corrosion. These post-processing steps ensure the components meet stringent surface quality standards, crucial for parts exposed to high-stress, high-temperature environments.
Testing and Inspection of Superalloy Parts
To ensure that deep hole drilling has achieved the desired results, superalloy components are subjected to various testing and inspection methods:
Coordinate Measuring Machine (CMM)
CMM technology is used to verify the dimensional accuracy of deep hole drilled parts, ensuring they meet the required tolerances. This method provides highly accurate measurements to ensure compliance with design specifications.
Scanning Electron Microscopy (SEM)
SEM is used to inspect the microstructure of superalloy parts and detect any potential defects that may have been introduced during the deep hole drilling process. SEM allows for detailed analysis of the material’s surface at a microscopic level.
X-ray Inspection
X-ray inspection is essential for detecting internal defects, such as cracks and voids, that may not be visible on the surface. This non-destructive testing method ensures the part's integrity without causing any damage.
Tensile Testing
Tensile testing assesses the material strength of deep hole drilled superalloy components, ensuring they can withstand the mechanical stresses they will experience in service. It provides critical data on the material’s ability to resist deformation under tensile load.
Fatigue Testing
Fatigue testing evaluates the resistance of deep-hole-drilled superalloy components to cyclic loading and high-stress conditions. This test helps ensure the long-term reliability and performance of parts exposed to fluctuating loads and thermal cycles.
Industry Applications of Deep Hole Drilling
Deep hole drilling plays a critical role in a wide range of industries where superalloy components are used:
Aerospace
In the aerospace industry, turbine blades, engine components, and other critical parts benefit from deep-hole drilling, which ensures high precision and fatigue resistance. This process is essential for parts exposed to extreme temperatures and mechanical stresses, such as turbine blades.
Power Generation
Gas turbines, compressors, and other power generation components require deep hole drilling to improve their structural integrity and fatigue resistance. Deep hole drilling is crucial for creating cooling channels and other features that help maintain the efficiency and reliability of turbines under high-temperature, high-pressure conditions.
Chemical Processing
Components like reactors and heat exchangers in chemical processing must withstand extreme conditions, and deep hole drilling helps improve their durability by creating precise cooling channels and fluid passages. These components can operate more efficiently and resist thermal damage in demanding environments.
Marine
Marine engines and turbines expose superalloy parts to harsh environments, including seawater corrosion and high mechanical loads. Deep hole drilling is essential for improving longevity and performance, particularly in marine turbines that require cooling channels and fluid flow paths.
Automotive
High-performance engine components, such as fuel injectors and valve seats in automotive applications, also benefit from deep hole drilling. This process improves precision and durability, allowing these parts to withstand extreme pressures and temperatures, ensuring the engine performs efficiently and reliably.
Conclusion
Deep hole drilling is vital in enhancing superalloy components' performance and lifespan. Deep hole drilling ensures that these critical parts perform optimally in demanding environments by improving structural integrity, enhancing fatigue resistance, and eliminating defects. This technique, combined with other post-processing methods and rigorous testing, guarantees that superalloy parts can withstand the harshest conditions and provide reliable service across various industries.
FAQs
How does deep hole drilling improve the life of superalloy turbine blades?
What are the main benefits of deep hole drilling for 3D-printed superalloy parts?
Can deep hole drilling be applied to all superalloy materials?
What role does heat treatment play in enhancing the effects of deep hole drilling?
How do inspection methods like SEM and CMM help ensure profound hole drilling effectiveness?
