Stellite 6K
About Stellite 6K
Name and Equivalent Name: Stellite 6K, also called Cobalt-Chromium Alloy 6K, has the UNS designation R30026. It meets ASTM F1537, F75, B659, and ISO 5832-4 standards. Equivalent standards include GB/T 15025: CoCrW6K, with specifications under AMS 5894 and ASME SB-75, and it is approved for use in environments governed by NACE MR0175.
Stellite 6K Basic Introduction
Stellite 6K is a high-performance cobalt-based alloy designed to withstand extreme wear, corrosion, and thermal stress. Its carbide-rich microstructure provides excellent resistance to mechanical friction, making it ideal for components subjected to sliding wear and abrasive environments.
This alloy maintains its strength at elevated temperatures, making it suitable for aerospace, power generation, and chemical processing industries. With excellent thermal fatigue resistance, Stellite 6K ensures long-term performance under continuous mechanical stress. It is preferred for demanding applications such as valve seats, cutting tools, and turbine components.
Alternative Superalloys of Stellite 6K
Stellite 6K shares similarities with Stellite 6B and Stellite 21, which offer comparable wear resistance and corrosion protection. Stellite 6B enhances creep resistance, while Stellite 21 offers superior corrosion protection but lower hardness.
Inconel 625 and Hastelloy C276 are suitable alternatives for high-temperature applications demanding enhanced oxidation resistance. When thermal cycling performance is essential, Rene 41 and Nimonic 90 offer higher fatigue resistance.
Stellite 6K Design Intention
Stellite 6K is designed to balance wear resistance and corrosion protection while maintaining mechanical stability under high temperatures. It targets applications where long-term exposure to friction and thermal stress is inevitable.
The alloy is intended for turbine blades, valve seats, cutting tools, and other critical components. It offers high resistance to abrasive environments and thermal cycling, ensuring durability and reducing maintenance costs in demanding applications such as aerospace engines and chemical reactors.
Stellite 6K Chemical Composition
Stellite 6K’s primary components include cobalt, which ensures toughness, and chromium, which provides corrosion resistance. Tungsten enhances the alloy’s hardness, while carbon contributes to strength, although it reduces ductility.
Element | Composition (%) |
|---|---|
Cobalt (Co) | Balance |
Chromium (Cr) | 28.0-32.0 |
Tungsten (W) | 4.0-6.0 |
Carbon (C) | 1.2-1.4 |
Nickel (Ni) | Max 3.0 |
Silicon (Si) | Max 1.0 |
Iron (Fe) | Max 3.0 |
Stellite 6K Physical Properties
Stellite 6K features high density, good thermal conductivity, and exceptional mechanical stability at elevated temperatures, ensuring reliable performance over extended periods.
Property | Value |
|---|---|
Density (g/cm³) | 8.76 |
Melting Point (°C) | 1330 |
Thermal Conductivity (W/(m·K)) | 12.5 |
Elastic Modulus (GPa) | 207 |
Metallographic Structure of Stellite 6K Superalloy
The microstructure of Stellite 6K is composed of a cobalt matrix with dispersed tungsten and chromium carbides. These carbides give the alloy excellent wear resistance, ensuring its durability in components subjected to continuous friction and abrasive wear.
The alloy’s chromium content contributes to forming a protective oxide layer, improving its corrosion resistance. While the high carbon content increases strength, it also limits ductility, making machining challenging. However, the alloy maintains excellent thermal stability, even under long-term exposure to elevated temperatures.
Stellite 6K Mechanical Properties
Stellite 6K offers excellent tensile strength and yield strength, superior fatigue resistance, and long-term stability under thermal cycling. It is ideal for components used in high-temperature environments.
Property | Value |
|---|---|
Tensile Strength (MPa) | ~950 |
Yield Strength (MPa) | ~600 |
Creep Strength | Strong at high temperatures |
Hardness (HRC) | 50-55 |
Elongation (%) | 5-8% |
Modulus of Elasticity (GPa) | 205 |
Key Features of Stellite 6K Superalloy
Exceptional Wear Resistance Stellite 6K provides outstanding resistance to sliding wear and abrasion. It is ideal for valve seats, pump components, and cutting tools exposed to continuous mechanical stress.
Thermal Stability and Fatigue Resistance The alloy maintains its mechanical stability at high temperatures. It offers excellent resistance to thermal cycling, ensuring long-term reliability in power generation turbines and aerospace engines.
Corrosion and Oxidation Resistance With high chromium content, Stellite 6K forms a protective oxide layer, providing superior corrosion resistance in harsh environments such as chemical reactors and marine applications.
Difficult Machinability but Excellent Weldability While Stellite 6K is challenging to machine due to its hardness, it offers excellent weldability, particularly for hard-facing applications, extending the service life of critical components.
Long-Term Performance in High-Stress Environments The alloy’s ability to retain mechanical properties under extreme conditions makes it suitable for demanding applications, ensuring performance over long periods with minimal maintenance.
Stellite 6K Superalloy’s Machinability and Processing
Vacuum Investment Casting: Stellite 6K is suitable for vacuum investment casting due to its ability to retain mechanical properties and corrosion resistance. The vacuum environment minimizes oxidation, producing high-quality components ideal for the aerospace and energy sectors.
Single Crystal Casting: Stellite 6K is unsuitable for single crystal casting. Its carbide microstructure disrupts the formation of uniform grains required for single-crystal applications, such as high-performance turbine blades.

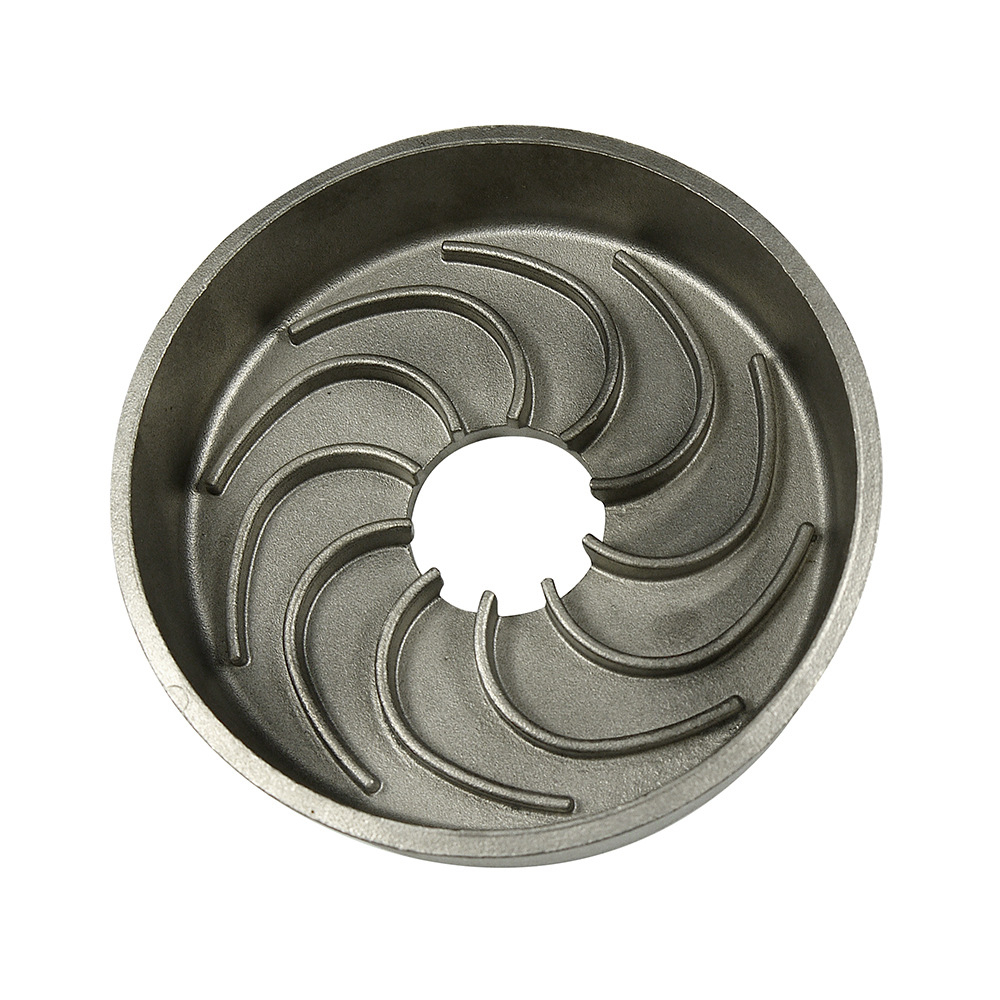

Equiaxed Crystal Casting: Stellite 6K performs well in equiaxed crystal casting, delivering consistent mechanical properties. This casting method suits applications such as valve seats and wear-resistant pump components.
Superalloy Directional Casting: Stellite 6K is not optimal for directional casting due to its carbide structure, which requires aligned grains for enhanced high-temperature mechanical performance.
Powder Metallurgy Turbine Disc: Stellite 6K is not typically used in powder metallurgy turbine discs due to limited ductility, which makes it less suitable for rotating parts subjected to mechanical stress.
Superalloy Precision Forging: While Stellite 6K is not ideal for traditional forging due to its brittleness, it can be used in overlay applications to enhance wear resistance in components.
Superalloy 3D Printing: 3D printing Stellite 6K presents challenges due to carbide formation, which can lead to cracking. Post-processing methods are required to ensure mechanical integrity.
CNC Machining: Stellite 6K is suitable for CNC machining, though it requires specialized tools due to its hardness. Grinding is often necessary to achieve precision, especially for valve seats and cutting tools.
Superalloy Welding: Stellite 6K offers excellent weldability, making it ideal for hard-facing applications. It provides superior wear resistance and extends the service life of components in demanding environments.
Hot Isostatic Pressing (HIP): HIP improves the mechanical properties of Stellite 6K by eliminating porosity, increasing fatigue resistance, and ensuring long-term performance under thermal cycling.
Stellite 6K Superalloy Applications
Aerospace and Aviation: Stellite 6K is used for valve seats, bearings, and turbine blades in aerospace engines, where durability under extreme temperatures and wear is essential.
Power Generation: Stellite 6K is applied to steam turbines and heat exchangers in power plants, providing reliable wear resistance under high temperatures and thermal cycling.
Oil and Gas: Stellite 6K is used in valves, drill bits, and refinery equipment, offering superior corrosion resistance and wear protection in abrasive environments.
Energy: The alloy performs well in energy systems, including gas turbines and heat exchangers, ensuring high performance under mechanical and thermal stress.
Marine: Stellite 6K is employed in propeller shafts, pumps, and valves, providing excellent resistance to saltwater corrosion and mechanical wear.
Mining: In mining, the alloy is used for crushers, slurry pumps, and drill bits, ensuring durability in abrasive conditions and extending component lifespan.
Automotive: Stellite 6K is applied to engine exhaust valves and other high-performance components, providing resistance to wear and thermal fatigue under extreme conditions.
Chemical Processing: The alloy is used in chemical reactors and pumps, offering corrosion resistance and ensuring long service life in aggressive chemical environments.
Pharmaceutical and Food: Stellite 6K ensures non-contaminating surfaces in food and pharmaceutical processing equipment, delivering wear resistance and reliability.
Military and Defense: Stellite 6K is used in defense components such as missile and armor-piercing rounds, offering high wear resistance in extreme conditions.
Nuclear: In nuclear reactors, Stellite 6K is applied to valve seats and seals, providing long-term stability under high radiation and thermal cycling.
When to Choose Stellite 6K Superalloy
Custom superalloy parts like Stellite 6K are ideal when components are subjected to high wear, corrosion, and thermal stress. The alloy is best suited for industries where reliability and durability are essential, such as aerospace, power generation, and chemical processing.
Stellite 6K excels in applications requiring long-term performance under extreme conditions, such as gas turbines, valves, and heat exchangers. Although machining can be challenging, the alloy’s excellent weldability makes it a top choice for hard-facing applications, extending the life of critical components. Stellite 6K offers a reliable solution for static and dynamic components for industries seeking high-performance materials.
