CMSX-11
About CMSX-11
Name and Equivalent Name: CMSX-11 is a nickel-based single-crystal superalloy designed for exceptional strength and thermal stability applications. While it does not have a designated UNS or ASTM standard, it stands out for its application in gas turbines, jet engines, and other high-temperature components, ensuring performance and reliability in extreme environments.
CMSX-11 Basic Introduction
CMSX-11 is a single-crystal superalloy known for its high creep strength, superior fatigue resistance, and long service life under extreme temperatures. The alloy's exceptional mechanical stability, achieved by eliminating grain boundaries, makes it ideal for critical applications in aerospace and power generation.
It offers excellent thermal fatigue resistance at temperatures above 1050°C, making it suitable for turbine blades and high-stress engine components. With a tensile strength of 1130 MPa and a creep rupture life of over 20,000 hours, CMSX-11 ensures durability and reliable performance in harsh environments.
Alternative Superalloys of CMSX-11
Alternative superalloys to CMSX-11 include CMSX-4, CMSX-10, and Rene N5. CMSX-4 is known for its excellent oxidation resistance and is suitable for combustion applications. CMSX-10 offers enhanced fatigue strength and is preferred for components exposed to cyclic thermal loads.
Rene N5 is another comparable alloy, offering strong creep resistance with slightly improved corrosion properties. IN738, although not a single crystal, is used in less demanding conditions, providing a cost-effective solution for high-temperature environments.
CMSX-11 Design Intention
The design of CMSX-11 focuses on maximizing performance under continuous thermal and mechanical loads. Its single-crystal structure eliminates grain boundaries, enhancing fatigue resistance and reducing creep deformation.
The alloy's composition includes rhenium and tantalum to provide high creep strength, while aluminum and chromium ensure excellent oxidation resistance. CMSX-11 is intended for applications such as turbine blades, where long service life, resistance to thermal fatigue, and operational reliability are essential.
CMSX-11 Chemical Composition
CMSX-11 is optimized with elements that improve mechanical strength, thermal stability, and resistance to environmental degradation. Rhenium increases creep resistance, while cobalt enhances overall mechanical strength.
Element | Composition (%) |
|---|---|
Nickel (Ni) | Balance |
Chromium (Cr) | 3 |
Cobalt (Co) | 3 |
Tungsten (W) | 5 |
Molybdenum (Mo) | 0.2 |
Aluminum (Al) | 5.7 |
Tantalum (Ta) | 8 |
Rhenium (Re) | 6 |
Hafnium (Hf) | 0.1 |
CMSX-11 Physical Properties
CMSX-11’s physical properties enable it to withstand extreme temperatures and mechanical stress, ensuring excellent performance in demanding environments.
Property | Value |
|---|---|
Density (g/cm³) | 8.73 |
Melting Point (°C) | 1345 |
Thermal Conductivity (W/(m·K)) | 11.3 |
Modulus of Elasticity (GPa) | 219 |
Metallographic Structure of CMSX-11 Superalloy
CMSX-11 features a single crystal microstructure with no grain boundaries, minimizing creep deformation and improving fatigue resistance. This structure ensures long-term performance under continuous mechanical stress at elevated temperatures.
The alloy contains gamma-prime (γ') precipitates, critical for maintaining strength by resisting dislocation motion within the matrix. These precipitates, enriched with aluminum and tantalum, contribute to its mechanical stability and ensure that CMSX-11 performs reliably under thermal cycling.
CMSX-11 Mechanical Properties
CMSX-11 delivers outstanding tensile strength, yield strength, and fatigue resistance. Its ability to withstand high temperatures and resist creep deformation ensures long service life.
Property | Value |
|---|---|
Tensile Strength (MPa) | 1250–1300 |
Yield Strength (MPa) | ~1100 |
Creep Strength | High at 1050°C |
Fatigue Strength (MPa) | ~700 |
Hardness (HRC) | 40 – 45 |
Elongation (%) | ~12 |
Creep Rupture Life | > 20,000 hours at 1000–1050°C |
Modulus of Elasticity (GPa) | ~225 |
Key Features of CMSX-11 Superalloy
High Creep Resistance CMSX-11 maintains exceptional creep resistance at temperatures exceeding 1050°C, ensuring minimal deformation during prolonged exposure to mechanical stress.
Superior Fatigue Strength The alloy offers outstanding fatigue resistance, making it ideal for rotating components such as turbine blades that experience cyclic thermal loads.
Thermal Fatigue Resistance CMSX-11 is engineered to withstand repeated thermal cycling, ensuring stable performance and long service life under fluctuating temperatures.
Long Creep Rupture Life With a creep rupture life exceeding 20,000 hours at 1050°C, CMSX-11 reduces maintenance requirements, ensuring operational efficiency.
Excellent Oxidation Resistance The alloy's chromium and aluminum content provide strong oxidation resistance, protecting components from environmental degradation during high-temperature operation.
CMSX-11 Superalloy’s Machinability
CMSX-11 can be utilized in Vacuum Investment Casting to achieve intricate and high-quality components, thanks to its excellent fluidity and thermal stability during casting.

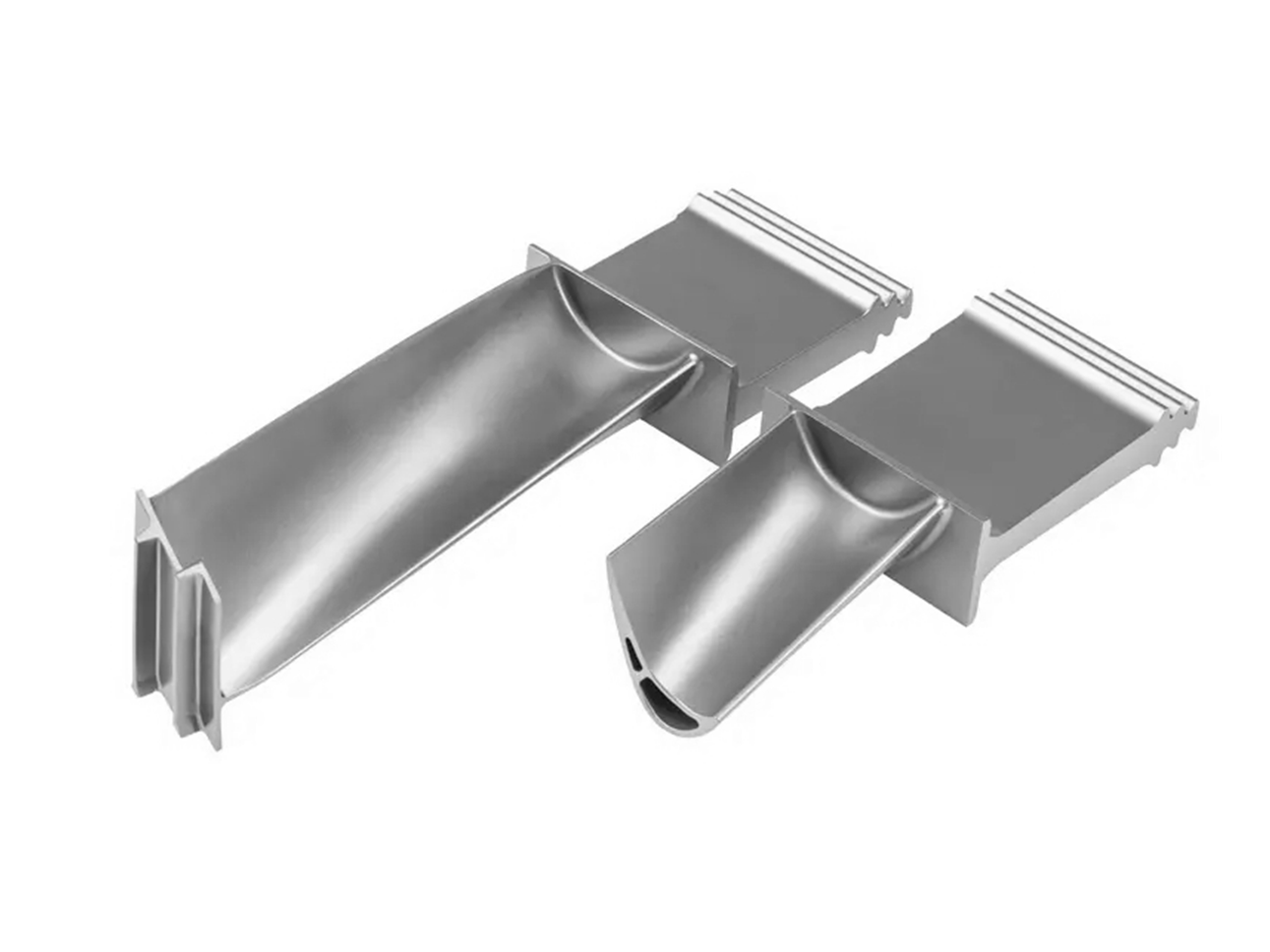

Single Crystal Casting is the preferred method for CMSX-11, as it eliminates grain boundaries, enhancing creep resistance and fatigue strength under extreme thermal stress.
CMSX-11 is unsuitable for Equiaxed Crystal Casting since this method introduces grains, reducing its high-temperature performance.
Using Superalloy Directional Casting for CMSX-11 is unnecessary as single crystal casting provides superior creep resistance without grain boundaries.
The complex microstructure of CMSX-11 makes it unsuitable for Powder Metallurgy Turbine Disc production, as the single-crystal properties cannot be preserved through powder processes.
CMSX-11 cannot undergo Precision Forging due to its hardness and limited ductility, making it impractical.
Superalloy 3D Printing is not ideal for CMSX-11, as current additive manufacturing techniques can introduce microstructural flaws, reducing its fatigue resistance.
CNC Machining of CMSX-11 is possible, but it requires advanced machining strategies to manage its hardness and maintain tight tolerances.
Superalloy Welding is possible for localized repairs on CMSX-11, though strict thermal control is necessary to avoid cracks and defects.
Hot Isostatic Pressing (HIP) enhances CMSX-11’s mechanical properties by eliminating internal porosity, ensuring long-term durability.
CMSX-11 Superalloy Applications
In Aerospace and Aviation, CMSX-11 is used in turbine blades and jet engines, offering superior fatigue resistance and thermal stability under high mechanical loads.
In the Power Generation sector, CMSX-11 ensures efficiency and durability in gas turbines by withstanding continuous high-temperature exposure.
For oil and gas operations, CMSX-11 is ideal for high-stress components such as valves and turbines, which perform reliably in extreme environments.
In the Energy industry, CMSX-11 supports critical systems by maintaining mechanical strength under sustained thermal stress.
In Marine applications, CMSX-11 ensures durability in exhaust systems and propulsion components by offering excellent corrosion resistance and thermal stability.
In Mining, CMSX-11 is used for essential equipment such as nozzles and impellers, providing high wear resistance.
In Automotive applications, CMSX-11 improves turbocharger performance by maintaining strength and stability under extreme thermal cycling.
For Chemical Processing, CMSX-11 offers corrosion resistance in high-temperature reactors and valves, ensuring operational efficiency.
In the Pharmaceutical and Food industries, CMSX-11 is used in heat treatment equipment due to its long service life and resistance to thermal fatigue.
In Military and Defense, CMSX-11 is utilized in missile and jet engine components, providing exceptional strength and reliability.
For Nuclear applications, CMSX-11 ensures stability and performance in reactor components by maintaining mechanical integrity at elevated temperatures.
When to Choose CMSX-11 Superalloy
Choose custom superalloy parts made from CMSX-11 for applications where high creep strength, fatigue resistance, and thermal stability are essential. CMSX-11 performs exceptionally in gas turbines, jet engines, and power generation systems, where long service life and resistance to thermal cycling are critical.
CMSX-11 is also ideal for aerospace, oil and gas, and energy sectors, offering superior durability and reduced maintenance costs. Its ability to maintain mechanical strength under extreme heat ensures operational efficiency, making it the optimal choice for rotating components and other high-stress applications. Use CMSX-11 where advanced materials are required to meet the demands of harsh environments, ensuring long-term reliability and performance.
