Inconel X-750

About Inconel X-750 Superalloy

Inconel X-750, also known as Alloy X-750, Nimonic X-750, or Haynes X-750, is a nickel-chromium alloy with added titanium and aluminum to enhance its mechanical strength and oxidation resistance. It adheres to ASTM B637 and DIN 2.4669 standards, ensuring suitability for demanding applications.

The alloy is used extensively across power generation, aerospace, and chemical industries due to its excellent strength and fatigue resistance, even under elevated temperatures. It offers reliable performance in critical components, such as gas turbines, springs, and fasteners, where creep and stress rupture resistance are essential.

Inconel X-750 Basic Introduction

Inconel X-750 is a high-strength superalloy designed to withstand harsh conditions, including elevated temperatures and mechanical stress. Its chemical composition balances nickel, chromium, and titanium, enhancing corrosion resistance and fatigue performance.

Primarily used in high-temperature environments, Inconel X-750 ensures mechanical integrity over extended periods, particularly at temperatures up to 700°C. It is known for its exceptional thermal fatigue resistance, which makes it a preferred choice for jet engine components, gas turbines, and nuclear reactors.

Alternative Superalloys of Inconel X-750

Alternative materials to Inconel X-750 include Inconel 718, Hastelloy X, and Nimonic 80A. Inconel 718 offers similar oxidation resistance but with higher tensile strength, making it suitable for turbine applications.

Hastelloy X provides enhanced resistance to extreme oxidation environments, which is ideal for chemical processing. Meanwhile, Nimonic 80A delivers comparable creep strength with slightly better machinability, making it suitable for fasteners and other precision components. These alternatives are used when specific performance characteristics are required beyond X-750's capabilities.

Inconel X-750 Design Intention

Inconel X-750 was designed to meet the rigorous demands of applications requiring mechanical strength and oxidation resistance at high temperatures. It aims to maintain structural integrity during thermal cycling and under mechanical loads for extended periods.

The alloy's balanced chemistry ensures that it offers excellent resistance to both creep and stress rupture. Its ability to retain fatigue strength makes it suitable for springs, bolts, and other components subject to cyclic loads. Inconel X-750 is particularly valued in the aerospace and nuclear industries for its reliability and long service life.

Inconel X-750 Chemical Composition

Inconel X-750's nickel base provides excellent corrosion resistance, while chromium enhances oxidation resistance. Titanium and aluminum improve the alloy’s mechanical strength by forming precipitate phases.

Inconel X-750 Physical Properties

Inconel X-750 demonstrates excellent thermal stability and resistance to oxidation and corrosion, making it ideal for extreme environments.

Metallographic Structure of Inconel X-750 Superalloy

Inconel X-750 exhibits a face-centered cubic (FCC) structure typical of nickel-based superalloys. The microstructure is stabilized by adding aluminum and titanium, which form γ′ precipitates. These precipitates enhance strength and thermal stability by inhibiting dislocation motion.

During service, the alloy maintains its microstructural stability even at elevated temperatures, minimizing the formation of deleterious phases. The alloy’s resistance to grain boundary oxidation makes it suitable for high-temperature applications, ensuring longevity under cyclic thermal loads.

Inconel X-750 Mechanical Properties

The mechanical properties of Inconel X-750 make it ideal for high-stress environments.

Key Features of Inconel X-750 Superalloy

1. High-Temperature Strength

Inconel X-750 retains excellent tensile strength at temperatures up to 700°C, making it ideal for aerospace and gas turbine applications. It provides long-term service life in environments subject to mechanical stress and thermal cycling.

2. Exceptional Oxidation Resistance

The alloy’s high chromium content ensures excellent oxidation resistance, preventing surface degradation even under extreme conditions. This feature is critical in chemical processing and nuclear applications.

3. Superior Creep and Stress Rupture Resistance

Inconel X-750 offers outstanding creep resistance, maintaining mechanical integrity over extended periods under stress. It is well-suited for springs, fasteners, and other components exposed to prolonged loads.

4. Good Machinability with Specialized Tools

While the Inconel X-750 is challenging to machine due to its hardness, it can be successfully machined using appropriate tools and techniques. Its machinability ensures precision manufacturing for complex aerospace components.

5. Reliable Performance in Nuclear and Aerospace Applications

The alloy’s resistance to radiation and fatigue makes it a preferred material for nuclear reactors and aerospace engines. Its ability to withstand repeated thermal cycles ensures consistent performance over time.

Inconel X-750 Superalloy’s Machinability

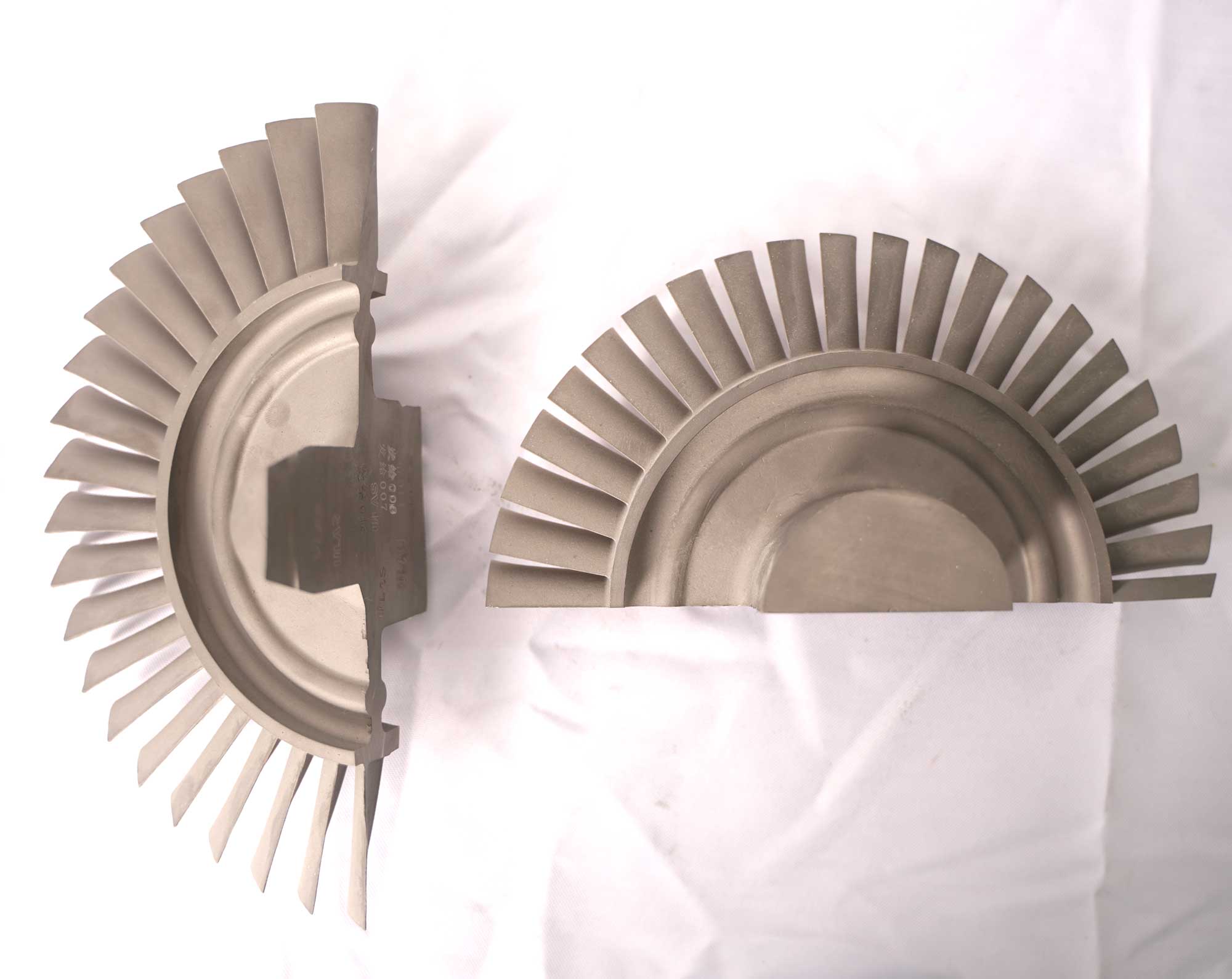

Based on industry standards, Inconel X-750 is well-suited for Vacuum Investment Casting due to its stable structure and oxidation resistance. The alloy ensures dimensional accuracy and durability for high-temperature applications, making it ideal for precision components like turbine blades.

Inconel X-750 is not commonly used in Single Crystal Casting. This casting technique minimizes grain boundaries, but Inconel X-750’s properties are optimized more for polycrystalline applications with good fatigue resistance.

The alloy performs well in Equiaxed Crystal Casting, where uniform grain structures enhance fatigue strength. This makes the Inconel X-750 ideal for parts under cyclic loading, such as springs and fasteners.

Inconel X-750 is compatible with Superalloy Directional Casting. This technique helps improve creep strength by aligning grains along specific stress directions, enhancing the performance of components in turbines and jet engines.

Although not traditionally used in powder metallurgy turbine disc applications, the Inconel X-750 can still offer adequate mechanical properties, with fatigue and creep resistance being prioritized.

Inconel X-750’s strength and thermal stability make it suitable for Superalloy Precision Forging, ensuring high performance in components such as fasteners and structural parts.

While Superalloy 3D Printing is feasible, Inconel X-750’s high hardness can challenge achieving smooth finishes and precision through additive manufacturing.

Inconel X-750 is ideal for CNC Machining, which uses specialized cutting tools. Its machinability ensures precise and reliable production of complex aerospace and power generation components.

Superalloy Welding with Inconel X-750 requires precise control to avoid cracking, but it is feasible using advanced welding techniques such as TIG and laser welding. The alloy’s welding performance supports applications demanding mechanical integrity at high temperatures.

Hot Isostatic Pressing (HIP) further enhances Inconel X-750 by eliminating porosity and improving fatigue strength, making it a valuable post-processing technique for critical aerospace components.

Inconel X-750 Superalloy Applications

In the Aerospace and Aviation industry, Inconel X-750 is used in gas turbine components, springs, and fasteners due to its fatigue strength and creep resistance at elevated temperatures.

In the Power Generation sector, the alloy's thermal stability ensures reliable performance in gas and steam turbines, where long service life under stress is essential.

The Oil and Gas industry utilizes Inconel X-750 in downhole equipment and high-pressure environments due to its corrosion resistance and fatigue strength.

In Energy applications, Inconel X-750 components are used in high-temperature heat exchangers, supporting reliable energy production under harsh conditions.

In the Marine industry, the alloy’s corrosion resistance makes it a preferred material for fasteners, springs, and valves exposed to seawater.

The Mining industry benefits from Inconel X-750’s mechanical strength in heavy-duty equipment and high-stress components, ensuring durability.

In the Automotive sector, the alloy is used in exhaust systems and high-performance engines, where thermal resistance is crucial.

In Chemical Processing, Inconel X-750’s resistance to corrosion and oxidation makes it ideal for reactors and heat exchangers.

The Pharmaceutical and Food industries rely on Inconel X-750 in hygienic processing equipment, where durability and resistance to cleaning agents are essential.

In Military and Defense, the alloy's reliability under extreme conditions supports applications in jet engines and missile systems.

In Nuclear environments, Inconel X-750 provides radiation resistance and mechanical stability, ensuring safety in critical reactor components.

When to Choose Inconel X-750 Superalloy

Inconel X-750 is ideal for applications demanding high-temperature strength, fatigue resistance, and corrosion resistance. It excels in custom superalloy parts, such as springs and fasteners, used in critical sectors like aerospace and energy. The alloy maintains mechanical integrity during repeated thermal cycles, ensuring long service life.

For custom superalloy parts, Inconel X-750 provides reliable performance in environments subject to extreme mechanical and thermal stress. It is particularly advantageous for components exposed to cyclic loads, such as jet engine parts and gas turbines, where creep resistance is essential for operational efficiency.
