Inconel 713LC

About Inconel 713LC Superalloy

Material Name and Equivalent Names: Inconel 713LC, or Alloy 713LC, follows ASTM B637 and complies with DIN/EN 2.4650 and GB/T 14992: GH713LC. This alloy does not have AMS or British (BS) standards.

Inconel 713LC Basic Introduction

Inconel 713LC is a high-strength nickel-chromium-cobalt superalloy designed for demanding high-temperature applications. It offers exceptional fatigue resistance and mechanical stability, ensuring performance under prolonged thermal exposure. Its properties make it suitable for turbine blades, vanes, and industrial components.

This alloy is primarily used in aerospace and power generation industries, where mechanical integrity at 982°C is essential. With excellent creep rupture life and thermal fatigue resistance, Inconel 713LC meets the requirements for components exposed to extreme stress over long periods.

Alternative Superalloys of Inconel 713LC

Alternatives to Inconel 713LC include Inconel 718, Rene 77, and Mar-M247. Inconel 718 provides superior tensile strength and oxidation resistance but is more suited to cryogenic applications. Rene 77 offers improved creep resistance, but manufacturing challenges limit its widespread use. Mar-M247, known for its high-temperature properties, performs well under extreme heat but lacks the same fatigue resistance as Inconel 713LC.

Thanks to its combination of fatigue strength and thermal stability, Inconel 713LC remains the preferred choice for components like turbine blades.

Inconel 713LC Design Intention

Inconel 713LC was designed for high-temperature applications requiring excellent fatigue resistance and mechanical stability. With nickel as the primary element, it ensures thermal stability, while chromium enhances oxidation resistance. Cobalt, titanium, and aluminum provide strength through precipitation hardening, while niobium stabilizes the alloy’s microstructure under prolonged heat exposure.

The alloy is optimized for elevated temperatures, making it ideal for turbine blades and aerospace components, where reliable performance at 982°C is critical for long service life.

Inconel 713LC Chemical Composition

The chemical composition of Inconel 713LC offers a balance of high-temperature strength, corrosion resistance, and fatigue durability.

Inconel 713LC Physical Properties

Inconel 713LC offers excellent thermal conductivity, stiffness, and density, ensuring reliable performance under high-stress conditions.

Metallographic Structure of Inconel 713LC Superalloy

Inconel 713LC has an austenitic face-centered cubic (FCC) microstructure, ensuring mechanical stability under high-temperature conditions. Precipitation hardening through titanium and aluminum promotes the formation of gamma prime (γ') phases, which improve strength and fatigue resistance.

The alloy’s structure resists grain boundary precipitation, preventing embrittlement during thermal cycling. Niobium provides additional microstructural stability, ensuring the alloy retains its mechanical properties even after prolonged exposure to extreme heat.

Inconel 713LC Mechanical Properties

Inconel 713LC delivers outstanding mechanical performance at elevated temperatures, ensuring reliability in high-stress applications.

Key Features of Inconel 713LC Superalloy

1. Superior Fatigue Resistance: Inconel 713LC offers high fatigue resistance, making it ideal for components exposed to cyclic thermal and mechanical loads, such as gas turbine blades.

2. Exceptional High-Temperature Strength: The alloy retains tensile strength of up to 1280 MPa, ensuring mechanical integrity during continuous exposure to temperatures near 982°C.

3. Long Creep Life: Inconel 713LC provides reliable creep resistance, with a rupture life of 10,000 hours at 982°C, ensuring long-term durability in aerospace applications.

4. Oxidation and Corrosion Resistance: Chromium content offers enhanced resistance to oxidation, extending the service life of components used in high-temperature environments.

5. Reliable Mechanical Stability: The alloy maintains its mechanical stability under prolonged stress, reducing maintenance costs and improving operational efficiency in aerospace and power generation systems.

Inconel 713LC Superalloy’s Machinability

Inconel 713LC is well-suited for Vacuum Investment Casting due to its ability to retain mechanical strength at high temperatures. This precision casting method ensures minimal defects, making it ideal for complex aerospace components.

The alloy is not recommended for Single Crystal Casting because its optimized equiaxed structure does not benefit from the directional growth required in single-crystal casting.

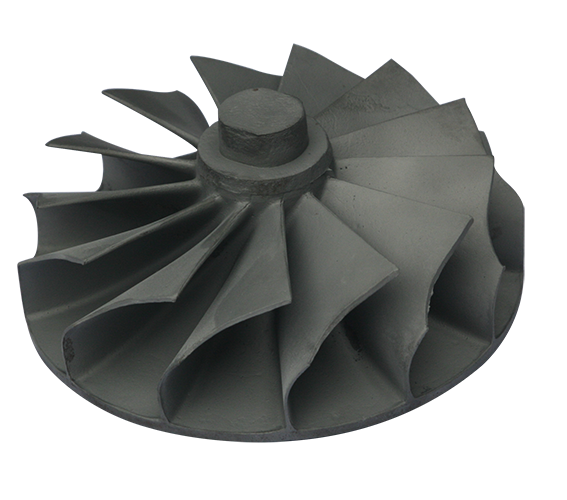

Inconel 713LC performs exceptionally well with Equiaxed Crystal Casting. This process enhances fatigue and creep resistance by producing uniform grain structures, making it perfect for gas turbine blades and vanes.

Superalloy Directional Casting can be applied to Inconel 713LC, improving its creep resistance through grain orientation and making it reliable for high-temperature, high-stress applications.

The alloy is not suitable for Powder Metallurgy Turbine Discs due to its superior performance in cast forms, where it maintains optimal mechanical properties.

Although Superalloy Precision Forging can enhance strength, Inconel 713LC is typically cast to maintain mechanical integrity during complex component fabrication.

Inconel 713LC is not ideal for Superalloy 3D Printing because achieving the same properties through additive manufacturing remains a challenge.

The alloy performs well in CNC Machining, but specialized tools and strategies are required to address work hardening and manage tool wear effectively.

Superalloy Welding is feasible with Inconel 713LC, though preheating and post-weld heat treatment are recommended to avoid cracking and maintain structural integrity.

Hot Isostatic Pressing (HIP) further improves Inconel 713LC’s performance by eliminating porosity, enhancing fatigue resistance, and improving mechanical stability for critical aerospace applications.

Inconel 713LC Superalloy Applications

In Aerospace and Aviation, Inconel 713LC is used in turbine blades, vanes, and exhaust components due to its ability to maintain mechanical stability at elevated temperatures.

In Power Generation, the alloy is employed in gas turbines and heat exchangers, ensuring long-term performance under extreme conditions.

In the Oil and Gas industry, Inconel 713LC provides high-temperature corrosion resistance, making it ideal for downhole tools and exhaust systems.

The alloy is essential in Energy, where it is used in high-performance turbines and exhaust systems to ensure reliability under continuous thermal cycling.

In Marine applications, the alloy offers oxidation resistance, making it suitable for seawater-exposed exhaust systems and other marine components.

In Mining, Inconel 713LC is used for high-performance pumps and valves that endure abrasive conditions and extreme heat.

In the Automotive sector, the alloy is applied in turbochargers and exhaust systems where heat resistance is essential for optimal performance.

In Chemical Processing, Inconel 713LC is used for reactors and heat exchangers exposed to aggressive chemicals at high temperatures.

In Pharmaceutical and Food industries, the alloy’s corrosion resistance ensures hygienic conditions, making it ideal for heat exchangers and valves.

In Military and Defense, Inconel 713LC provides reliability in missile systems and high-temperature jet engine components.

In the Nuclear sector, the alloy’s thermal stability and oxidation resistance make it ideal for reactors and steam generator components.

When to Choose Inconel 713LC Superalloy

Inconel 713LC is optimal for applications requiring high fatigue resistance, long-term thermal stability, and mechanical strength at elevated temperatures. It is particularly suitable for custom superalloy parts used in gas turbines, jet engines, and exhaust systems, where reliability under cyclic thermal loads is critical.

This alloy excels in aerospace, power generation, and chemical industries due to its ability to maintain mechanical properties at 982°C. Inconel 713LC ensures long service life with minimal maintenance, making it a cost-effective solution for high-stress environments where performance and durability are paramount.
