Inconel 690

About Inconel 690 Superalloy

Material Name and Equivalent Names: Inconel 690, also known as Alloy 690, Nicrofer 6030, and Chronin 690, complies with UNS N06690. It meets ASTM B163, B167, and B829 standards and aligns with DIN/EN 2.4642, BS 3076: NA30, and GB/T 15059: GH690.

Inconel 690 Basic Introduction

Inconel 690 is a nickel-chromium alloy designed for applications demanding superior resistance to high-temperature oxidation and chemical corrosion. Its high chromium content protects against oxidizing environments, while the nickel base ensures resistance to stress-corrosion cracking.

This alloy is widely used in the nuclear industry for steam generator tubes and chemical processing for heat exchangers. Inconel 690 offers long-term stability and thermal fatigue resistance, ensuring reliable performance even in environments with frequent thermal cycling.

Alternative Superalloys of Inconel 690

Alternative materials to Inconel 690 include Inconel 600, Incoloy 800H, and Hastelloy C-276. Inconel 600 provides good oxidation resistance but lacks the higher chromium content required for extreme oxidizing environments. Incoloy 800H offers better creep resistance but is less corrosion-resistant. Hastelloy C-276 performs well in highly corrosive chemical environments but lacks the thermal stability of Inconel 690.

While these alternatives serve specific applications, Inconel 690 remains preferred for long-term use in nuclear reactors and chemical processing under oxidizing conditions.

Inconel 690 Design Intention

Inconel 690 was designed to withstand extreme chemical and thermal environments, particularly in oxidizing conditions. The high chromium content enhances oxidation resistance, while nickel provides superior stress-corrosion cracking resistance. Cobalt and silicon further strengthen the alloy’s structural integrity, ensuring long-term thermal cycling stability.

This alloy excels in applications requiring long service life at high temperatures, making it ideal for nuclear steam generator tubes, heat exchangers, and chemical processing reactors.

Inconel 690 Chemical Composition

Inconel 690’s chemical composition balances corrosion resistance, mechanical strength, and stability for high-temperature applications. Nickel offers excellent oxidation resistance, and chromium ensures long-term protection in oxidizing conditions.

Inconel 690 Physical Properties

Inconel 690’s high density, melting point, and good thermal conductivity and elasticity make it suitable for high-temperature, high-stress environments.

Metallographic Structure of Inconel 690 Superalloy

Inconel 690 has an austenitic face-centered cubic (FCC) structure, ensuring excellent ductility and resistance to thermal fatigue. This microstructure offers good resistance to grain boundary precipitation, essential for long-term stability in high-temperature applications.

The alloy’s structure remains stable under thermal cycling, making it suitable for nuclear and chemical environments. Cobalt and silicon enhance the alloy's stability by minimizing microstructural degradation, ensuring prolonged service life.

Inconel 690 Mechanical Properties

Inconel 690 provides exceptional mechanical properties, offering strength and stability for applications under high thermal and mechanical stress.

Key Features of Inconel 690 Superalloy

1. Exceptional Oxidation Resistance: Inconel 690 provides superior resistance to oxidation at high temperatures, making it suitable for applications in nuclear reactors and chemical processing where exposure to oxidizing agents is common.

2. Excellent Stress-Corrosion Cracking Resistance: The high nickel content in Inconel 690 ensures outstanding resistance to stress-corrosion cracking, especially in steam generators and heat exchangers exposed to aggressive environments.

3. Thermal Cycling Stability: Inconel 690 offers excellent thermal fatigue resistance, maintaining mechanical integrity even after prolonged thermal cycling. This makes it a preferred material for long-term use in reactors and high-temperature industrial systems.

4. Long-Term Service Reliability: With good creep and fatigue strength, Inconel 690 ensures long-term performance in high-temperature environments. It is often used in components requiring a service life of many years with minimal maintenance.

5. Versatility in Extreme Environments: Inconel 690 performs well in various industries, including nuclear, chemical, and energy sectors. Its ability to withstand high temperatures and corrosive conditions makes it ideal for diverse, challenging applications.

Inconel 690 Superalloy’s Machinability

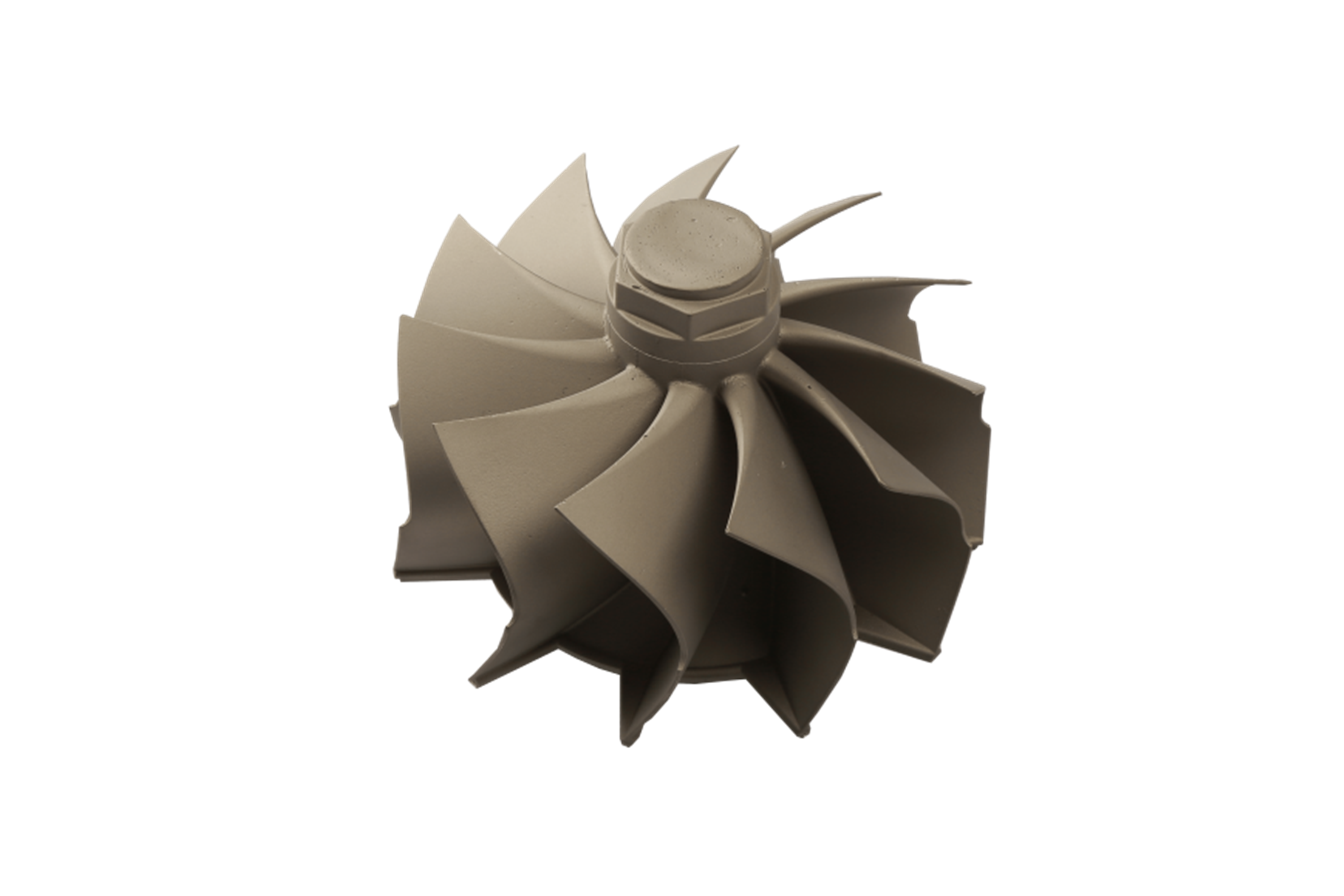

Inconel 690 is well-suited for Vacuum Investment Casting due to its ability to maintain mechanical properties under high temperatures. This process ensures precision and minimal oxidation during casting.

Single Crystal Casting is not recommended for Inconel 690, as the alloy’s microstructure does not benefit from single-crystal formation, which is essential for applications like turbine blades under extreme stress.

Equiaxed Crystal Casting works well with Inconel 690, providing a uniform grain structure that enhances corrosion resistance, especially in steam generators and heat exchangers.

Inconel 690 can also be used in Superalloy Directional Casting, where grain orientation improves thermal fatigue resistance, making it practical for long-term high-temperature exposure.

The alloy is not typically suitable for Powder Metallurgy Turbine Disc applications since its properties are optimized for cast and forged forms rather than powdered applications.

Superalloy Precision Forging enhances Inconel 690’s mechanical strength, making it a good choice for critical components in power plants and chemical processing.

Superalloy 3D Printing is challenging for Inconel 690 due to its high melting point, though some progress has been made with advanced additive manufacturing techniques.

Inconel 690 performs well with CNC Machining, though it requires advanced tools and cooling strategies to manage work hardening and maintain precision.

The alloy offers good weldability for Superalloy Welding, ensuring corrosion-resistant joints without compromising mechanical integrity, especially in chemical and energy applications.

Hot Isostatic Pressing (HIP) can enhance Inconel 690’s density and mechanical properties by eliminating porosity and improving durability in critical environments.

Inconel 690 Superalloy Applications

In Aerospace and Aviation, Inconel 690 is used in exhaust systems and heat exchangers, benefiting from its high thermal stability and oxidation resistance.

In Power Generation, the alloy is ideal for nuclear reactors and steam generator tubes, offering long-term resistance to oxidation and stress.

For Oil and Gas applications, Inconel 690 ensures corrosion resistance in pipelines, valves, and offshore platforms exposed to harsh chemical environments.

In the Energy sector, the alloy is widely used in heat exchangers and turbines, providing excellent thermal fatigue resistance under high-temperature conditions.

For Marine applications, Inconel 690 offers reliable performance in exhaust systems and seawater pumps, thanks to its corrosion resistance in saltwater environments.

In Mining, the alloy is used for wear-resistant equipment like valves and pumps, ensuring long service life under abrasive conditions.

In the Automotive industry, Inconel 690 is applied in turbochargers and high-performance exhaust systems where heat resistance is critical.

For Chemical Processing, Inconel 690 is used in reactors and piping systems, offering excellent resistance to oxidizing chemicals.

In the Pharmaceutical and Food industries, the alloy ensures contamination-free environments by providing corrosion-resistant components like valves and heat exchangers.

In Military and Defense, Inconel 690 is employed in missile systems and high-temperature exhaust components, offering reliability under extreme conditions.

In the Nuclear industry, the alloy’s high thermal stability and oxidation resistance make it essential for reactor components and steam generator tubes.

When to Choose Inconel 690 Superalloy

Inconel 690 is the optimal choice for applications requiring long-term resistance to oxidation, corrosion, and thermal fatigue. It is particularly effective in nuclear, chemical, and energy sectors where components must endure frequent thermal cycling and exposure to harsh chemicals.

For custom superalloy parts, Inconel 690 balances mechanical strength and corrosion resistance, ensuring reliability in critical applications. Whether used in nuclear reactors, heat exchangers, or chemical processing plants, the alloy offers long-lasting performance, reducing maintenance and downtime in demanding environments.
