CMSX-6
About CMSX-6
Name and Equivalent Name: CMSX-6 is a single-crystal superalloy developed for high-temperature applications. Although it lacks an official UNS or ASTM designation, it is widely recognized in the aerospace and energy industries for turbine blades and rotating components. CMSX-6 offers superior creep resistance and fatigue strength in extreme environments with no grain boundaries.
CMSX-6 Basic Introduction
CMSX-6 is a nickel-based single-crystal superalloy that withstands extreme temperatures and mechanical stress. It is used extensively in turbine blades and other high-performance components, where long-term durability and thermal stability are essential.
With a melting point of 1350°C, CMSX-6 ensures reliable performance above 1000°C, making it ideal for applications in aerospace engines and power generation turbines. The alloy features exceptional resistance to creep, thermal fatigue, and cyclic loading, ensuring component stability and reduced maintenance over extended service periods.
Alternative Superalloys of CMSX-6
Several superalloys are considered alternatives to CMSX-6. CMSX-4 offers enhanced creep resistance and oxidation stability, making it suitable for newer-generation turbines. CMSX-10 provides higher oxidation resistance at extreme temperatures, which makes it ideal for next-gen aerospace applications.
Other alternatives include Rene N5 and IN738. Rene N5 provides comparable creep properties with slight improvements in oxidation resistance, while IN738 is a polycrystalline superalloy used where single-crystal performance is not required, offering good corrosion resistance.
CMSX-6 Design Intention
CMSX-6 is designed to maintain mechanical integrity under extreme thermal and mechanical stress. The absence of grain boundaries ensures superior creep resistance, making it ideal for turbine blades and rotating components in engines and power plants.
The alloy's composition, including rhenium and tungsten, enhances its high-temperature strength, while cobalt improves structural stability. CMSX-6 offers reliable long-term performance at temperatures exceeding 1000°C, reducing maintenance needs and extending component lifespans in critical applications.
CMSX-6 Chemical Composition
The chemical composition of CMSX-6 plays a critical role in its performance. Nickel is the primary matrix, while rhenium and tungsten enhance creep resistance. Chromium ensures oxidation resistance, and tantalum contributes to high-temperature stability.
Element | Composition (%) |
|---|---|
Nickel (Ni) | Balance |
Chromium (Cr) | 8 |
Cobalt (Co) | 10 |
Tungsten (W) | 5 |
Molybdenum (Mo) | 0.6 |
Aluminum (Al) | 5 |
Tantalum (Ta) | 8 |
Hafnium (Hf) | 0.1 |
CMSX-6 Physical Properties
CMSX-6 offers excellent thermal stability and mechanical strength. Its high melting point and elastic modulus provide robust structural support, while thermal conductivity aids in managing heat effectively during operation.
Property | Value |
|---|---|
Density (g/cm³) | 8.78 |
Melting Point (°C) | 1350 |
Thermal Conductivity (W/(m·K)) | 11.2 |
Modulus of Elasticity (GPa) | 218 |
Metallographic Structure of CMSX-6 Superalloy
CMSX-6 features a single crystal microstructure, eliminating grain boundaries that can cause mechanical failure under stress. This structure ensures exceptional creep resistance, making the alloy suitable for high-performance turbine blades and rotating components.
The alloy contains gamma-prime (γ') precipitates formed by elements like aluminum and tantalum. These precipitates are distributed throughout the nickel matrix, improving creep strength and fatigue resistance. The absence of grain boundaries reduces dislocation movement, ensuring stable performance under cyclic thermal loads.
CMSX-6 Mechanical Properties
CMSX-6 delivers high tensile and yield strength, maintaining mechanical stability at elevated temperatures. Its excellent creep resistance and fatigue strength are ideal for long-term applications under extreme conditions.
Property | Value |
|---|---|
Tensile Strength (MPa) | 1035 – 1150 |
Yield Strength (MPa) | ~900 |
Creep Strength | High at 1000°C |
Fatigue Strength (MPa) | 600 – 700 at 1000°C |
Hardness (HRC) | 40 – 45 |
Elongation (%) | ~10 |
Modulus of Elasticity (GPa) | ~215 |
Key Features of CMSX-6 Superalloy
Exceptional Creep Resistance CMSX-6 offers outstanding creep strength at temperatures exceeding 1000°C. Its single-crystal structure ensures minimal deformation under continuous mechanical stress, making it ideal for turbine blades.
High Oxidation Resistance With chromium content, CMSX-6 provides excellent oxidation resistance, ensuring long-term stability in high-temperature environments exposed to oxygen and combustion gases.
Thermal Fatigue Resistance CMSX-6 performs exceptionally well under thermal cycling, maintaining mechanical integrity during repeated heating and cooling cycles in jet engines and gas turbines.
Long-Term Durability The alloy provides long-term performance in extreme environments, with creep rupture life exceeding industry standards. This durability reduces maintenance needs and enhances operational efficiency.
Superior Mechanical Strength CMSX-6 offers high tensile and yield strength, ensuring that components maintain structural stability under extreme loads and temperatures, making it an ideal material for rotating engine parts.
CMSX-6 Superalloy’s Machinability
CMSX-6 is suitable for Vacuum Investment Casting because it can form precise, high-integrity castings that maintain mechanical properties at elevated temperatures.
Single Crystal Casting is the optimal process for CMSX-6, as it ensures a defect-free structure without grain boundaries, enhancing creep resistance and long-term stability.
CMSX-6 is incompatible with Equiaxed Crystal casting, as the formation of equiaxed grains would compromise its single-crystal advantages.
Superalloy Directional Casting is unnecessary for CMSX-6, as its design eliminates grain boundaries, making directional solidification redundant.
CMSX-6 cannot be used in powder metallurgy turbine disc production, as powder metallurgy does not support preserving the alloy’s single-crystal structure.
Superalloy Precision Forging is impractical for CMSX-6 due to its high hardness and resistance to deformation, which limits forging potential.
CMSX-6 is unsuitable for Superalloy 3D Printing as the additive manufacturing process may introduce microcracks and grain boundaries.
CNC Machining is feasible with CMSX-6, but specialized cutting tools and strategies are required to handle the alloy's hardness and maintain precision.
Superalloy Welding is challenging but possible for localized repairs. Careful control of heat input is needed to prevent cracking.
CMSX-6 is highly compatible with Hot Isostatic Pressing (HIP), which improves material density and mechanical performance by eliminating internal voids.
CMSX-6 Superalloy Applications

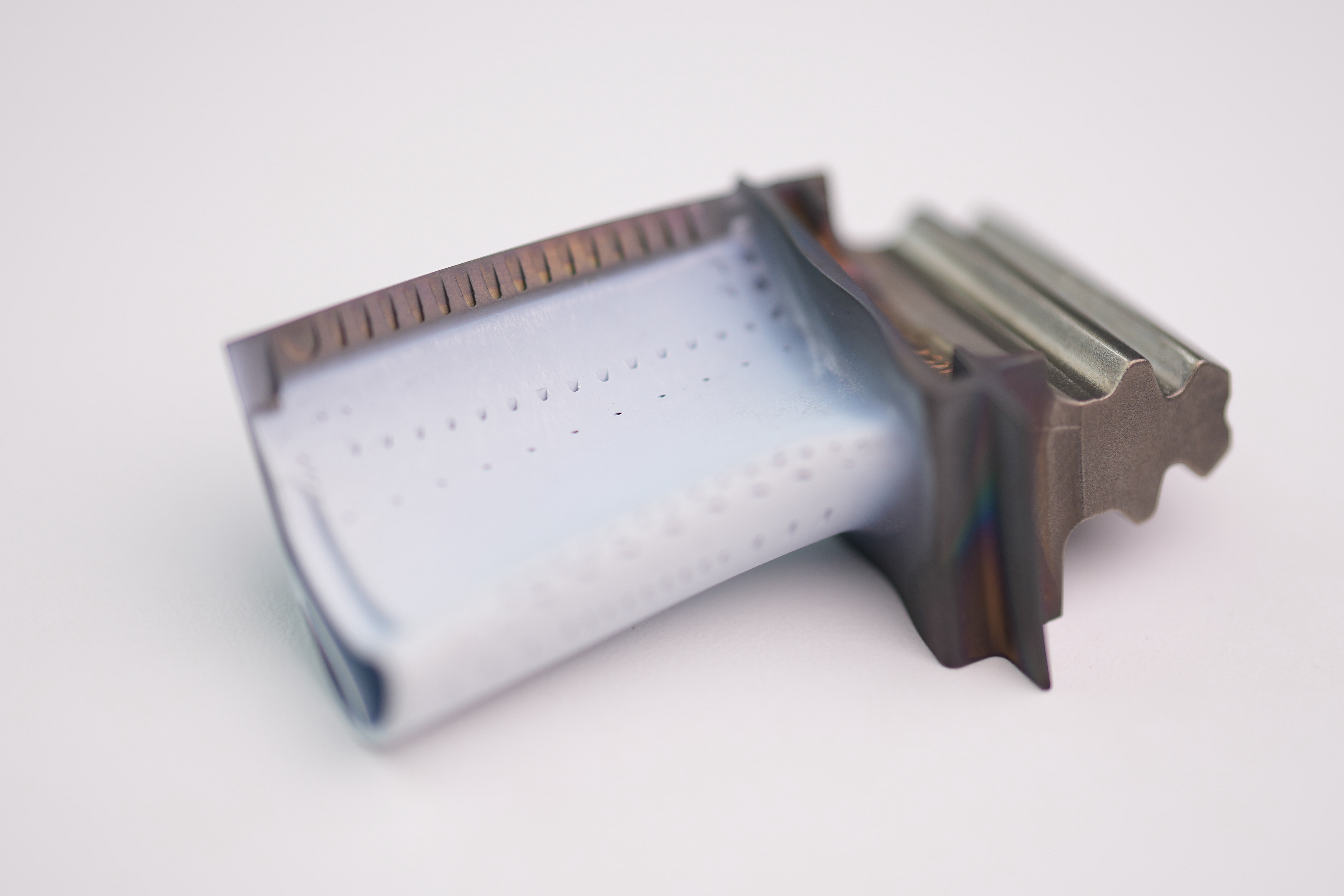

In Aerospace and Aviation, CMSX-6 is used in turbine blades and jet engines, where resistance to extreme temperatures and mechanical stress is essential.
For Power Generation, CMSX-6 ensures long-term reliability in gas turbines, delivering high performance under thermal and cyclic loading.
In Oil and Gas applications, CMSX-6 is employed in high-temperature turbine components, ensuring durability in corrosive and demanding environments.
CMSX-6 plays a vital role in Energy systems, providing long-term stability for gas turbines operating under continuous thermal stress.
In the Marine industry, CMSX-6 is applied in propulsion systems and exhaust assemblies, delivering reliable performance in harsh, high-temperature conditions.
In Mining, CMSX-6 is used for critical wear components like impellers, providing excellent fatigue resistance in abrasive environments.
For the Automotive industry, CMSX-6 is found in turbochargers, delivering resistance to high thermal and mechanical stress and improving engine efficiency.
Chemical Processing utilizes CMSX-6 in reactors and valves, providing corrosion resistance and thermal stability for high-temperature operations.
In the Pharmaceutical and Food industries, CMSX-6 ensures reliable performance in heat-treatment equipment and sterilization systems.
For Military and Defense, CMSX-6 components enhance jet engines and missile systems, providing superior mechanical strength and heat resistance.
In the Nuclear industry, CMSX-6 is used in reactor components, ensuring stability under intense thermal and radiation exposure.
When to Choose CMSX-6 Superalloy
Choose custom superalloy parts made from CMSX-6 for applications that demand exceptional mechanical performance under extreme temperatures. This alloy is ideal for aerospace and power generation industries, particularly in turbine blades and rotating components that require long-term creep resistance and thermal stability. CMSX-6 is also well-suited for harsh environments in oil and gas, marine, and defense sectors, where fatigue strength and oxidation resistance are essential. Use CMSX-6 when reducing maintenance cycles and ensuring operational reliability are priorities, especially in high-stress applications where materials must withstand thermal cycling and mechanical fatigue for extended periods.
