X-Ray Inspection: Non-Destructive Testing for Superalloy Castings Internal Defect Detection
Introduction for This Process
Superalloys are designed for applications where high performance is non-negotiable. From jet engines to power turbines, these materials endure extreme conditions, including high temperatures, intense pressures, and corrosive environments. For such critical applications, any defect, whether visible or hidden, can compromise a component's structural integrity and performance. This level of reliability is particularly crucial in industries like aerospace and aviation and nuclear.
Internal defects, such as voids, cracks, and inclusions, are particularly challenging because they cannot be detected through surface-level inspections. X-ray inspection, a robust non-destructive testing (NDT) method, comes into play. X-ray inspection allows manufacturers to identify and evaluate internal flaws in superalloy parts without damaging the components. This ensures that only defect-free parts, like those used in superalloy exhaust system parts and superalloy reactor vessel components, make it to the final application, reducing risks and enhancing reliability.
What Is This Process?
X-ray inspection is a non-destructive testing (NDT) technique widely used in aerospace and power generation industries to evaluate the internal structure of materials without damaging them. This process uses high-energy X-rays to penetrate materials, creating detailed images that reveal hidden defects like cracks, porosity, and inclusions.
Types of X-Ray Inspection
Radiographic Testing (RT):
Traditional X-ray inspection that captures images on film.
A proven method for detecting defects in dense materials such as superalloys.
Reliable for applications requiring durable and long-term records of inspections.
Digital Radiography (DR):
A modern technique using digital sensors instead of film.
Offers faster image capture, higher resolution, and image manipulation capabilities for enhanced defect detection.
Commonly applied in industries needing quick turnaround and detailed analysis.
Process Steps
Positioning the Sample:
The superalloy component is placed between the X-ray source and the detector to ensure accurate imaging.
X-Ray Emission:
High-energy X-rays are emitted from the source, penetrating the material. The varying absorption rates of the material, depending on its density and thickness, create an internal image.
Image Capture:

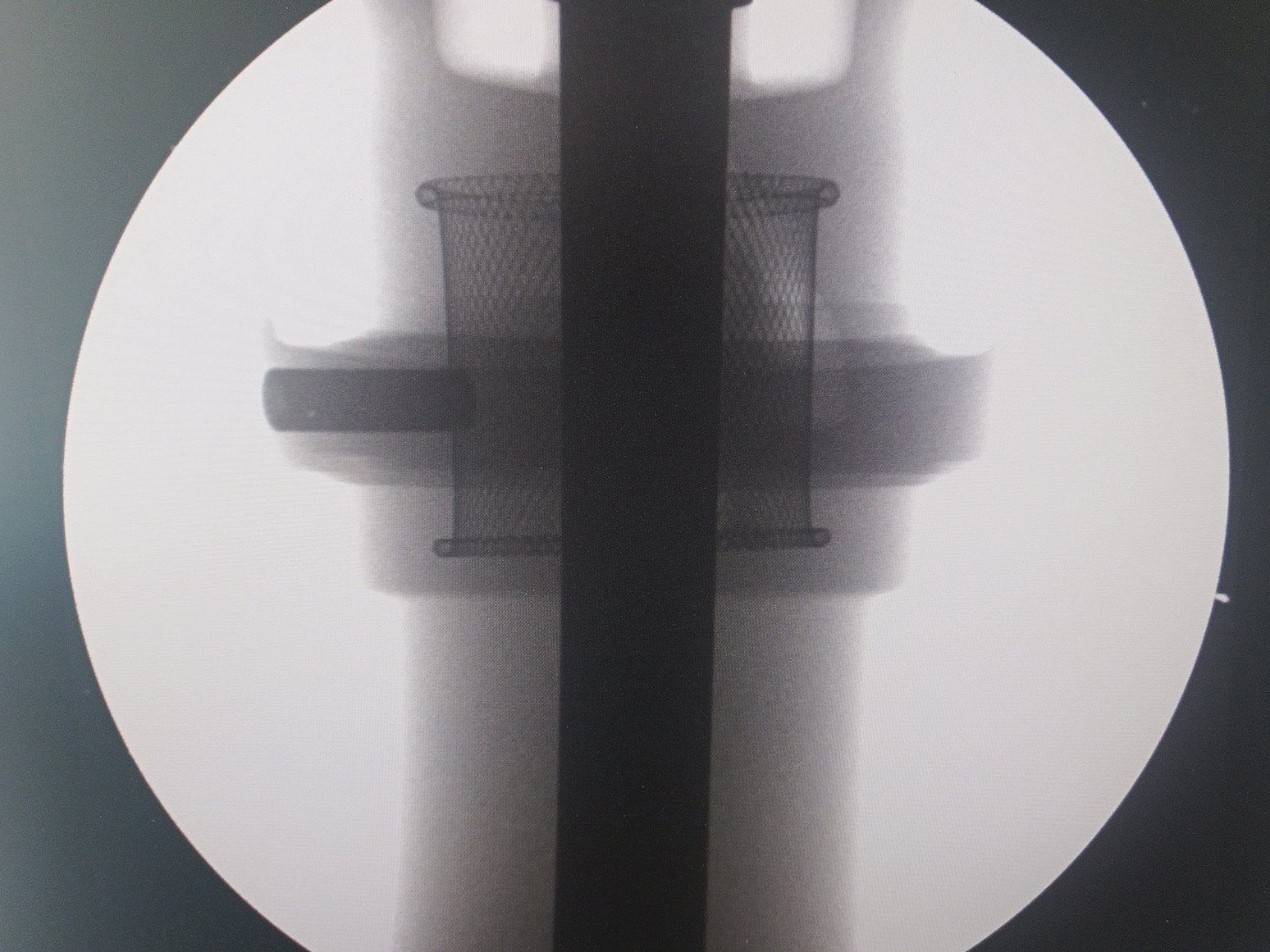

The detector (film or digital sensor) records the X-rays passing through the material, producing a radiographic image highlighting internal features.
Analysis:
The image is analyzed for defects such as cracks, voids, or inclusions. This step is critical for ensuring the integrity and reliability of the component in demanding applications.
Applications and Benefits
X-ray inspection is particularly effective for dense materials like superalloys, revealing internal defects that might be undetectable through surface-level inspections. This technique ensures the quality and reliability of components used in extreme environments, such as turbine blades and critical structural parts.
By detecting flaws early in the manufacturing process, X-ray inspection reduces failure rates, improves performance, and complies with industry standards.
Role in Superalloy Parts Checking
Superalloy components are vital in high-stress applications where reliability and performance are paramount. X-ray inspection is crucial in ensuring that these components meet stringent quality standards by detecting internal defects that could compromise their integrity. Here’s how X-ray inspection is applied across different stages of superalloy parts manufacturing:
Checking for Superalloy Castings
Superalloy castings, such as turbine blades, impellers, and nozzle rings, are prone to internal defects due to the complexity of their geometries and the casting process itself. Common issues include:
Porosity: Air pockets trapped within the material.
Cracks: Resulting from uneven cooling during solidification.
Inclusions: Foreign materials are introduced during the casting process.
X-ray inspection identifies these internal flaws, ensuring that the structural integrity of cast components is maintained. This step is critical in high-performance applications like aerospace engines and power turbines, where undetected defects could lead to catastrophic failures.
Checking for 3D Printed Superalloy Parts
Additive manufacturing, or 3D printing, enables the production of intricate superalloy components. However, the layer-by-layer process introduces unique challenges, such as:
Incomplete Fusion: Gaps between layers due to poor bonding.
Voids: Air pockets formed during material deposition.
Material Inconsistencies: Variations in density or composition.
X-ray inspection is essential for analyzing these parts, as it penetrates complex geometries and reveals hidden defects without damaging the component. This ensures that 3D printed superalloy parts meet the high-performance requirements of aerospace and power generation industries.
Checking for CNC Machined Superalloy Parts
CNC machining is commonly used to refine superalloy components' dimensions and surface finishes after casting or 3D printing. However, machining can expose or exacerbate hidden defects, such as:
Cracks: Propagated under machining stress.
Delamination: Separation of layers in certain composite superalloys.
X-ray inspection verifies the internal integrity of CNC machined superalloy parts, ensuring that no defects remain undetected. This is particularly critical for components like turbine discs and seals, which must perform reliably under extreme conditions.
Other Detection Scenarios
In addition to inspecting cast, 3D printed, and machined parts, X-ray inspection is valuable for other applications, including:
Welded Joints: Verifying that welds are free of internal voids or cracks.
Heat-Treated Parts: Confirming that thermal processes haven’t introduced defects.
Bonded Assemblies: Ensuring the integrity of brazed or adhesive-bonded components.
X-ray inspection ensures that superalloy components, regardless of their manufacturing process, meet the highest standards of quality and reliability, providing confidence in their performance for critical applications.
Compare with Other Checking Methods
While X-ray inspection is a powerful tool, it is one of many methods for detecting defects in superalloy components. Here’s how it compares to other common techniques:
Ultrasonic Testing (UT)
Strengths: UT uses sound waves to detect internal defects and is effective for significant, thick components. It is portable and often more cost-effective than X-ray inspection. Water immersion ultrasonic inspection is beneficial for ensuring material homogeneity in superalloy parts.
Weaknesses: UT requires skilled operators and may struggle with complex geometries or very dense materials like superalloys.
CT Scanning
Strengths: Computed Tomography (CT) provides 3D images of internal structures, offering a more detailed analysis than traditional X-ray inspection. It is ideal for complex components with intricate geometries. For example, line array industrial CT can detect even the smallest internal flaws in superalloy directional castings.
Weaknesses: CT scanning is more expensive and time-consuming than X-ray inspection, making it less practical for high-volume production.
Surface Inspection Methods (CMM, SEM)
Strengths: Coordinate Measuring Machines (CMM) and Scanning Electron Microscopy (SEM) are excellent for surface-level inspections and dimensional analysis. They are particularly effective in ensuring geometric precision and analyzing surface defects at a microscopic level.
Weaknesses: These methods cannot detect internal defects, making them unsuitable for comprehensive quality control.
Conclusion
While each method has its place in quality assurance, X-ray inspection stands out for providing a detailed view of internal defects in a non-destructive manner, especially for dense and complex superalloy components. Combining X-ray inspection with complementary techniques like CT or UT ensures comprehensive defect detection and reliability for applications requiring precise internal analysis.
When to Choose X-Ray Inspection for High-Precision Applications
X-ray inspection is not always the first choice for every application, but it is indispensable in scenarios where internal defect detection is critical. Consider using X-ray inspection in the following situations:
High-Stakes Applications: Components used in aerospace and nuclear parts manufacturing often demand flawless performance, where failure is not an option. X-ray inspection ensures these components meet stringent safety standards, such as those required for energy gas turbine combustion chamber parts.
Complex Geometries: Parts with intricate internal features, like superalloy turbine blades or monocrystalline compressor blades, require non-destructive testing methods that can penetrate and reveal hidden defects.
Post-Manufacturing Validation: After production, ensuring components are defect-free is crucial. For instance, Inconel superalloy turbine components and precision-engineered mining parts benefit significantly from X-ray inspection as part of quality assurance protocols.
Failure Analysis: Investigating the root cause of a component’s failure by analyzing its internal structure is vital in understanding issues in products such as Hastelloy X heat exchanger components or vacuum investment cast parts.
Manufacturers can balance cost, efficiency, and reliability by carefully selecting X-ray inspection for the right applications, particularly for critical and high-precision parts.
