Why Superalloy Components Need Water Immersion Ultrasonic Inspection Equipment Testing?
Introduction of Water Immersion Ultrasonic Inspection Equipment
Water Immersion Ultrasonic Inspection Equipment uses ultrasonic waves for non-destructive testing (NDT), ensuring the structural integrity of materials and components. This method offers precision measurement capabilities, especially for intricate parts with complex geometries.
The equipment plays a pivotal role in precision engineering by enabling manufacturers to detect subsurface defects such as cracks, voids, and porosity. The high accuracy provided by water immersion ultrasonic inspection enhances the reliability and performance of critical components used in demanding industries such as aerospace, power generation, and automotive.
What Is Water Immersion Ultrasonic Inspection Equipment Checking?
Water Immersion Ultrasonic Inspection Equipment operates by transmitting ultrasonic waves through the water to inspect components without physical contact. The equipment utilizes piezoelectric transducers that emit ultrasonic pulses, which travel through the material, reflecting from flaws or boundaries. These reflected signals are captured to generate detailed data on the component’s internal structure.
Commonly inspected parts include turbine blades, medical implants, automotive gears, and high-temperature alloy components. Industries that demand high precision, such as aerospace, energy, and medical devices, rely on this inspection technique to ensure product quality and performance.
How Does a Water Immersion Ultrasonic Inspection Equipment Work?
The core components include an ultrasonic transducer, a positioning system, and a water tank. The inspected part is immersed in water, which acts as a coupling medium, allowing ultrasonic waves to propagate effectively without signal loss.

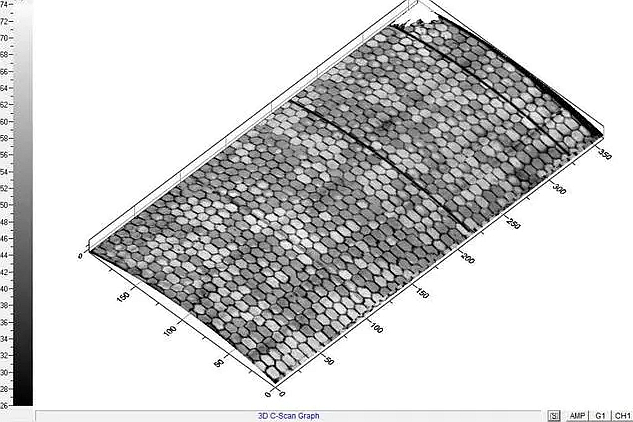

The transducer scans the part, and the signals are converted into data that display the internal condition of the component. Sophisticated software analyzes the reflections to identify any defects or irregularities. The results can be visualized in 2D or 3D models, improving quality control and preventing failure.
Types of Water Immersion Ultrasonic Inspection Equipment Machines
Single-Axis Scanners: Ideal for inspecting parts with linear geometries like tubes or rods, ensuring consistent quality along a single axis.
Multi-Axis Scanners: Designed for complex parts with intricate geometries like turbine blades, providing comprehensive inspection coverage from multiple angles.
Automated Systems: Best suited for high-volume production environments, offering fully automated scanning to boost throughput and minimize human intervention.
Benefits of Water Immersion Ultrasonic Inspection Equipment Checking
High Precision: Enables micron-level measurements, essential for parts requiring extreme accuracy, such as aerospace components.
Improved Efficiency: Automated systems reduce inspection time, ensuring quicker detection of defects and streamlined production.
Data Integration: Inspection data can be seamlessly integrated into digital platforms for advanced analysis and reporting.
Consistency and Reliability: Eliminates variability introduced by manual inspection, enhancing consistency in quality control.
Versatility: Suitable for inspecting parts with varying shapes and materials across multiple industries.
Applications of Water Immersion Ultrasonic Inspection Equipment Checking in Different Industries
Water immersion ultrasonic inspection ensures the quality and performance of high-temperature alloy components used across industries. Some key industries include:
Aerospace and Aviation: Ensures the integrity of turbine blades and structural components exposed to extreme conditions.
Power Generation: Detects defects in gas, steam, and generators to prevent failures.
Oil and Gas: Inspects drilling equipment, pipelines, and valves for corrosion and structural flaws.
Energy: Monitors wind turbine components and solar energy infrastructure for performance degradation.
Marine: Evaluates propellers, shafts, and engine parts for fatigue and wear resistance.
Mining: Checks pumps, nozzles, and valves used in abrasive environments for durability.
Automotive: Ensures the safety and longevity of engine components and transmission gears.
Chemical Processing: Verifies the structural integrity of reactors and pressure vessels used in corrosive environments.
Pharmaceutical and Food: Ensures the cleanliness and functionality of process equipment.
Military and Defense: Inspects armored vehicles and aerospace components for mission-critical performance.
Nuclear: Checks reactor components and containment structures for safety and compliance.
Water Immersion Ultrasonic Inspection Equipment Testing in Custom Superalloy Parts Manufacturing
Superalloy Vacuum Investment Casting
Vacuum Investment Casting is a precise casting technique used to manufacture complex components with smooth surfaces and fine details. It is ideal for aerospace turbine blades and power generation parts, where structural integrity and precision are paramount.
Vacuum Investment Casting requires water immersion ultrasonic inspection to detect internal defects such as invisible voids and cracks on the surface, ensuring that these components meet stringent safety and performance standards.
Superalloy Single Crystal Casting
Single crystal casting produces components without grain boundaries, enhancing strength and resistance to thermal fatigue, and is commonly used in jet engines. This technique ensures uniform performance under high temperatures.
Single Crystal Casting parts benefit from ultrasonic inspection to confirm homogeneity, revealing any hidden defects that might compromise performance.
Superalloy Equiaxed Crystal Casting
Equiaxed Crystal Casting creates components with uniformly sized grains, often used in gas turbines and energy applications. These components provide excellent mechanical properties and resistance to thermal stress.
Equiaxed Crystal casting parts need ultrasonic testing to ensure consistency in grain structure and detect any porosity that could affect durability.
Superalloy Directional Casting
Directional Casting aligns grain structures for improved mechanical properties along specific stress paths, making it ideal for aerospace and military applications.
Superalloy Directional Casting components require an ultrasonic inspection to confirm proper grain alignment and the absence of internal defects.
Special Alloy Casting
Special Alloy Casting involves unique alloys designed for high performance in corrosive or high-stress environments, commonly used in chemical processing and marine industries.
Special Alloy Casting components undergo water immersion ultrasonic inspection to verify structural integrity and material consistency.
Superalloy Powder Metallurgy Turbine Disc
Powder Metallurgy Turbine Discs are used in aerospace and power turbines, offering superior mechanical properties through fine-grain distribution.
Powder Metallurgy Turbine Disc inspection ensures the material is free from defects caused by powder compaction and sintering.
Superalloy Precision Forging
Precision Forging shapes superalloys into high-strength components used in aerospace engines and military equipment.
Superalloy Precision Forging parts require ultrasonic inspection to detect cracks and ensure dimensional accuracy.
Superalloy Isothermal Forging
Isothermal Forging maintains a constant temperature throughout the forging process, enhancing material properties for critical components in the aerospace and energy sectors.
Isothermal forging benefits from ultrasonic inspection to validate uniformity and identify potential defects.
Superalloy Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) reduces porosity and increases material density, improving fatigue resistance and lifespan.
Hot Isostatic Pressing (HIP) components undergo ultrasonic testing to confirm optimal material consolidation.
Superalloy Welding
Superalloy Welding joins components without compromising material integrity and is commonly used in aerospace and energy equipment.
Superalloy Welding requires ultrasonic inspection to detect any hidden flaws in welded joints.
Superalloy CNC Machining
CNC Machining of superalloys involves precise material removal to achieve complex shapes for the aerospace, automotive, and energy sectors.
Superalloy CNC Machining parts need ultrasonic inspection to ensure surface quality and internal soundness.
Superalloy 3D Printing
3D Printing of superalloys allows the creation of intricate, lightweight components used in aerospace and medical implants.
Superalloy 3D Printing benefits from ultrasonic testing to validate material integrity layer by layer.
When To Choose Water Immersion Ultrasonic Inspection Equipment Testing?
Aerospace and Military Applications: When components must meet stringent quality standards to ensure safety in flight or combat scenarios.
High-Temperature Operations: For parts exposed to extreme temperatures, such as jet engines and gas turbine blades.
Medical Implants: To ensure that components used in human implants are free from defects and meet precise tolerances.
Automotive and Energy Industries: When inspecting parts like gears and bearings for fatigue resistance and durability.
New Manufacturing Processes: Testing components produced via 3D printing, forging, or casting to confirm quality and eliminate defects.
FAQs about Water Immersion Ultrasonic Inspection Equipment Checking
1. What materials can be tested using water immersion ultrasonic inspection? Water immersion ultrasonic inspection is suitable for metals, composites, and ceramics used in the aerospace, automotive, medical, and energy sectors.
2. What makes water immersion ultrasonic inspection different from other NDT techniques? Unlike contact-based methods, water immersion inspection provides more consistent coupling and is ideal for intricate geometries.
3. How accurate is water immersion ultrasonic inspection? The technique can detect defects as small as a few microns, offering high accuracy for quality control.
4. What industries benefit most from water immersion ultrasonic inspection? Aerospace, energy, automotive, and medical industries heavily rely on this method for critical component testing.
5. Can water immersion ultrasonic inspection be automated? Yes, automated systems are available, which increase efficiency by integrating with production lines and software systems.
