What is Metallographic Microscopy Checking?
Introduction of Metallographic Microscopy
Metallographic microscopy checking is a non-destructive testing method that examines the microstructure of metals and alloys at high magnification. It provides detailed insights into grain boundaries, phase distributions, and defects that affect material performance. This method plays a critical role in quality assurance during manufacturing processes.
In precision engineering, metallographic microscopy helps evaluate material properties to ensure components meet design and performance criteria. This technique is essential in aerospace, automotive, and energy industries, where material integrity is critical to product safety and reliability.
What Is Metallographic Microscopy Checking?

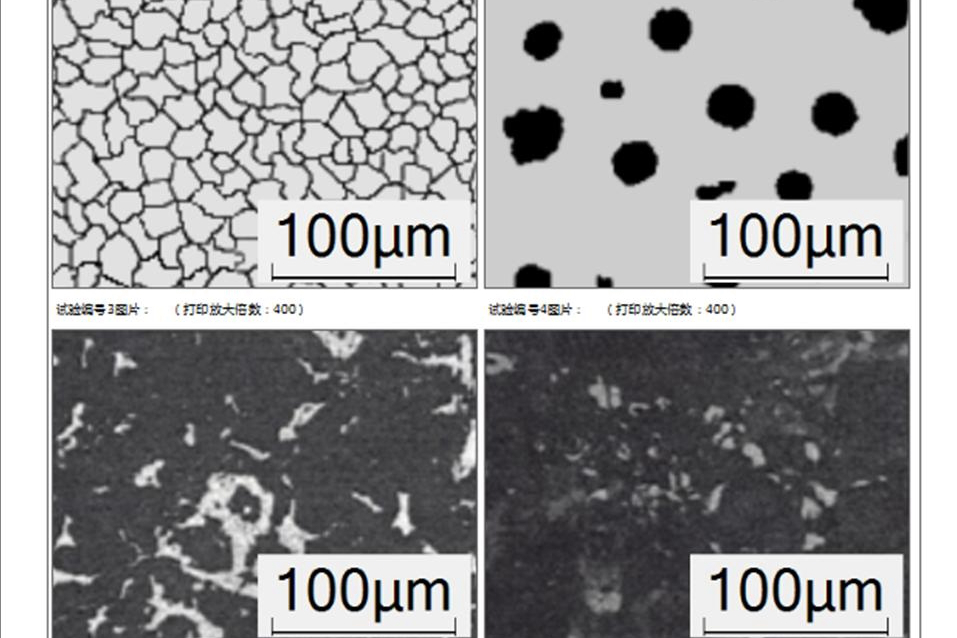

Metallographic microscopy is the process of examining the microstructure of materials using specialized microscopes. The equipment captures high-resolution images revealing grain size, including distribution and micro-cracks. This insight is crucial for assessing material performance and failure analysis.
This technique inspects components like turbine blades, welded parts, and precision-forged products. It ensures that the material meets the required specifications and helps identify processing errors that could affect the part's performance.
How Does Metallographic Microscopy Work?
Metallographic microscopes comprise several vital components, including an optical lens system, a light source, and digital imaging software. The specimen is prepared by polishing and etching to reveal its microstructure before being placed under the microscope.
The microscope captures high-resolution images by illuminating the sample and magnifying its structure. The images are then analyzed using software to detect defects such as voids, grain irregularities, or phase imbalances, providing essential data for quality assurance.
Types of Metallographic Microscopy Machines
Optical Microscopy: Uses visible light to examine polished surfaces, providing quick insights into grain boundaries and material phases.
Scanning Electron Microscopy (SEM): Offers higher magnification and resolution, making it ideal for detecting micro-cracks and inclusions.
Transmission Electron Microscopy (TEM): Provides detailed internal imaging, essential for analyzing delicate material structures in aerospace components.
Digital Microscopy: Uses advanced imaging software for real-time analysis, allowing for immediate inspection results and data integration.
Benefits of Metallographic Microscopy Checking
High Precision: Achieves micron-level measurements, which are crucial for detecting minor defects.
Improved Efficiency: Speeds up quality control by reducing manual inspections.
Data Integration: Automatically feeds results into digital analysis tools for comprehensive reporting.
Consistency and Reliability: Ensures repeatable inspections, minimizing human error.
Versatility: Suitable for various materials, including superalloys, metals, and composites.
Applications of Metallographic Microscopy Checking in Different Industries
Aerospace and Aviation: Inspects turbine blades and other high-performance parts to ensure material integrity and identify micro-cracks or grain defects.
Power Generation: Analyzes the microstructure of turbine components, ensuring high-temperature performance and longevity.
Oil and Gas: Ensures the reliability of high-pressure components by identifying microstructural flaws that could lead to corrosion or failure.
Energy: Supports the quality control of renewable energy equipment, such as wind turbine components.
Marine: Evaluates metal parts exposed to harsh marine environments, ensuring durability and corrosion resistance.
Mining: Inspect wear-resistant tools to verify their microstructure can withstand abrasive conditions.
Automotive: Analyzes engine components to detect defects that could impact vehicle performance and safety.
Chemical Processing: Ensures the structural integrity of chemical processing equipment through microstructural analysis.
Pharmaceutical and Food: Inspect critical components to ensure compliance with hygiene and safety standards.
Military and Defense: Analyzes the microstructure of defense equipment to ensure reliability under extreme conditions.
Nuclear: Inspects reactor components to ensure they meet stringent safety requirements and resist radiation damage.
Metallographic Microscopy Testing in Custom Superalloy Parts Manufacturing
Superalloy Vacuum Investment Casting
Vacuum Investment Casting produces components with intricate designs by reducing contamination during processing. This method is commonly used for turbine blades and aerospace parts.
Vacuum Investment Casting benefits from metallographic microscopy to detect microstructural inconsistencies, such as porosity or voids, ensuring the part performs well under high-temperature conditions.
Superalloy Single Crystal Casting
Single Crystal Casting produces components with a continuous crystal structure, eliminating grain boundaries and enhancing creep resistance. It is widely used in aerospace engines.
Single Crystal Casting requires metallographic microscopy to verify the correct crystal orientation and ensure there are no grain boundary formations that could weaken the component.
Superalloy Equiaxed Crystal Casting
Equiaxed Crystal Casting yields parts with uniform grain structures, providing excellent mechanical strength and thermal stability, and is commonly used in gas turbines.
Equiaxed Crystal Casting undergoes metallographic inspection to detect any inconsistencies in grain size and ensure optimal structural performance under varying temperatures.
Superalloy Directional Casting
Directional Casting aligns grains along a preferred axis, improving fatigue strength and durability, making it suitable for high-stress aerospace applications.
Superalloy Directional Casting benefits from metallographic microscopy to confirm proper grain alignment and detect internal defects that could compromise the part’s strength.
Special Superalloy Casting
Special Alloy Casting involves custom formulations for extreme environments, such as military and nuclear applications.
Special Alloy Casting requires a metallographic inspection to identify phase segregation or inclusions, ensuring the alloy’s performance matches design specifications.
Superalloy Powder Metallurgy Turbine Disc
Powder Metallurgy produces high-density, precision-engineered turbine discs with superior fatigue resistance.
Powder Metallurgy Turbine Disc uses metallographic microscopy to ensure proper powder consolidation and detect voids or unbonded particles.
Superalloy Precision Forging
Precision Forging shapes metal at high temperatures, enhancing the material’s mechanical properties and grain flow.
Superalloy Precision Forging relies on metallographic inspection to analyze the grain structure and detect any surface defects introduced during the forging process.
Superalloy Isothermal Forging
Isothermal Forging maintains consistent temperatures, ensuring uniform grain structures and mechanical properties.
Isothermal Forging requires metallographic microscopy to inspect for grain growth or phase transformations that could affect performance.
Superalloy Hot Isostatic Pressing (HIP)
HIP applies heat and pressure to eliminate porosity in cast and powder metallurgy parts, improving density and strength.
Hot Isostatic Pressing (HIP) benefits from metallographic inspection to confirm complete pore closure and detect microstructural changes caused by the process.
Superalloy Welding
Welding joins metal components, ensuring high-strength seams in aerospace and energy applications.
Superalloy Welding relies on metallographic microscopy to inspect weld quality, revealing any micro-cracks or incomplete fusions within the joint.
Superalloy CNC Machining
CNC Machining creates highly precise complex parts, often used in aerospace and automotive industries.
Superalloy CNC Machining requires a metallographic inspection to detect micro-stress cracks or grain damage introduced during machining.
Superalloy 3D Printing
3D Printing enables the production of intricate superalloy components, offering design flexibility and reduced material waste.
Superalloy 3D Printing requires metallographic microscopy to ensure layer integrity and detect any defects formed during printing.
When to Choose Metallographic Microscopy Testing?
Material Characterization: Used to analyze grain size, phase distributions, and inclusions during research and development.
Failure Analysis: Essential for identifying the root cause of component failures, such as cracks or phase separations.
Process Validation: Confirms that manufacturing processes like casting or welding produce desired microstructures.
Quality Control: Ensures each batch meets industry standards by checking for defects during production.
Lifecycle Assessment: Monitors material degradation over time, ensuring components meet safety and performance standards throughout their lifespan.
FAQs about Metallographic Microscopy Checking
What is the purpose of metallographic microscopy? It analyzes the internal structure of metals and alloys to detect defects and evaluate material properties.
How is a sample prepared for metallographic microscopy? The sample is polished and etched to reveal its microstructure before being inspected under a microscope.
What industries benefit from metallographic microscopy? Aerospace, automotive, energy, and military sectors rely on metallographic microscopy for quality control.
What types of defects can metallographic microscopy detect? It identifies grain boundary defects, phase separations, micro-cracks, and inclusions.
How does metallographic microscopy compare to other testing methods? It offers detailed microstructural insights that complement other non-destructive testing methods like X-ray inspection.
