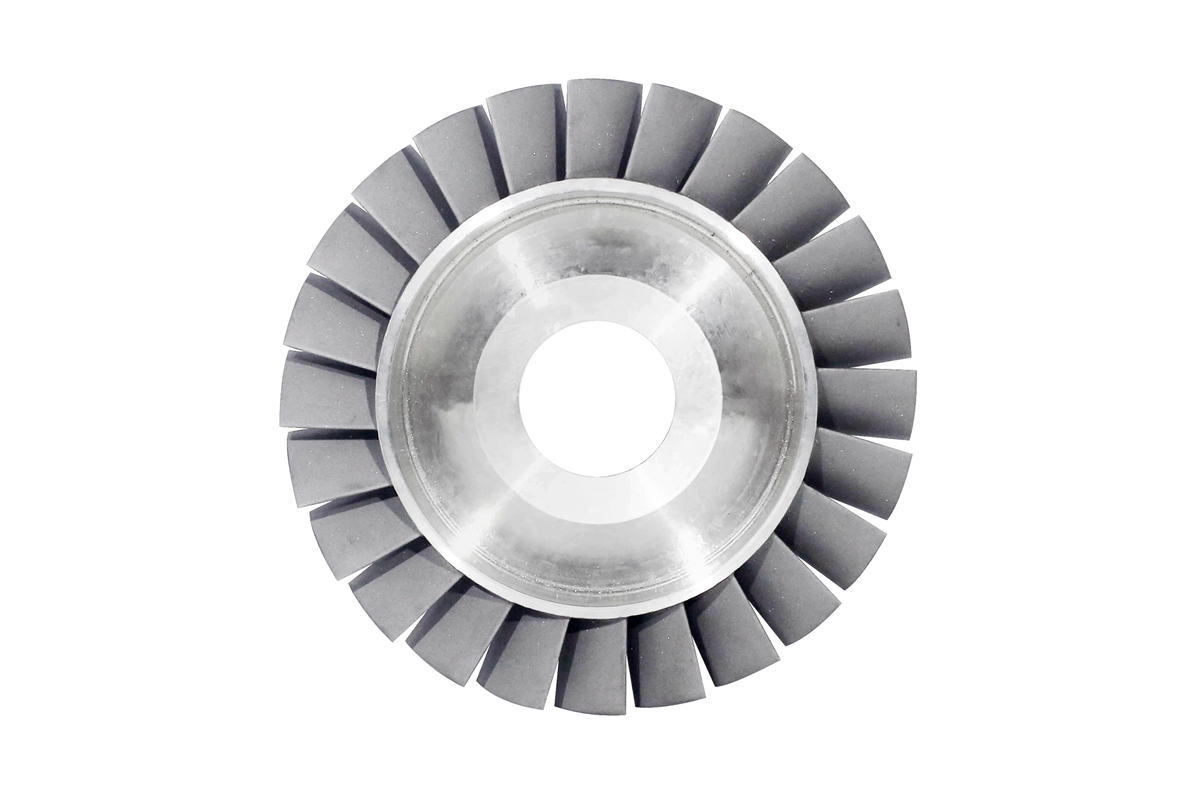

Vacuum Investment Casting: A Precision Solution for Complex Superalloy Components
Manufacturing Process
Vacuum investment casting is a highly specialized method for producing intricate superalloy components with exceptional precision. The process begins with creating a wax model, often called a pattern, representing the exact geometry of the final part. This model is constructed manually, through traditional methods, or increasingly through 3D printing, enabling rapid prototyping and highly detailed designs.
Once the wax pattern is complete, it is dipped into a ceramic slurry to create a thin, even coating. This step is repeated multiple times, often with fine sand or other refractory materials, to build up a durable ceramic shell capable of withstanding the extreme temperatures involved in casting. The shell is then cured to harden, ensuring it maintains its shape during the subsequent processes. Advanced automated shell-building techniques ensure consistency and efficiency in this process stage.
The next stage is dewaxing, where the wax pattern is melted and removed, leaving behind a hollow ceramic mold. The mold is then preheated to remove residual moisture and ensure it does not crack during pouring. Controlled dewaxing plays a key role in preserving the integrity of the mold for high-quality castings.
The casting phase involves pouring molten superalloy into the preheated ceramic mold within a vacuum environment. The vacuum ensures that the molten metal does not come into contact with oxygen, preventing oxidation and eliminating the formation of gas porosity within the part. This step is critical for ensuring the mechanical and thermal integrity of the component, particularly in applications where reliability under extreme conditions is paramount. Precision pouring techniques help achieve uniform mold filling and reduce casting defects.
After the metal has solidified and cooled, the ceramic shell is carefully broken away to reveal the cast part. Post-casting processes such as trimming, grinding, heat treatment, and surface finishing are applied to refine the part’s dimensions and properties. Heat treatment is essential for superalloy components, as it enhances their mechanical strength, thermal stability, and resistance to creep and corrosion. Vacuum heat treatment, for example, is essential for homogenizing the microstructure and enhancing the final properties of the cast parts.
Vacuum investment casting is celebrated for its ability to produce parts with complex geometries, tight tolerances, and excellent surface finishes, making it a preferred choice for high-performance applications across aerospace and power generation industries.
Typical Superalloys Used in This Process
Superalloys are at the heart of vacuum investment casting, an essential service offered by Newayaerotech, enabling the production of components that can withstand extreme temperatures, mechanical stress, and corrosive environments. The process accommodates a wide range of advanced materials, including the following:
Inconel Alloys
Inconel Alloys, such as Inconel 713LC, Inconel 738LC, and Inconel X-750, are some of the most commonly used materials. These nickel-based alloys are known for their excellent thermal stability, high strength, and resistance to oxidation and corrosion, making them ideal for turbine blades, combustion chambers, and exhaust systems.
Rene Alloys
Rene Alloys, such as Rene 77, Rene 95, and Rene 108, offer outstanding creep resistance and high-temperature strength, particularly for aerospace components subjected to prolonged stress at elevated temperatures.
CMSX Series
CMSX Series, including CMSX-4, CMSX-6, and CMSX-10, are single crystal alloys designed explicitly for high-performance turbine blades. These materials eliminate grain boundaries, reducing the risk of creep and thermal fatigue under extreme conditions.
Other Materials
Hastelloy, Nimonic, and Titanium Alloys are also frequently employed, depending on the application's specific requirements. Operating temperature, environmental conditions, and mechanical load drive the choice of superalloy.
Prototyping Process: Additive Manufacturing and CNC Machining
Prototyping is critical in developing complex superalloy components, ensuring the final parts meet design and performance specifications. Vacuum investment casting has dramatically benefited from advancements in additive manufacturing and CNC machining, which streamline the prototyping process and enhance precision.
Additive Manufacturing
Additive manufacturing, including 3D printing, is revolutionizing the prototyping stage by enabling the rapid production of wax patterns directly from digital models. This eliminates the need for traditional pattern-making tools and allows for quick design iterations, providing manufacturers greater flexibility. Additive manufacturing also facilitates the creation of intricate features, such as internal cooling channels, which are challenging to achieve with conventional methods, thus enhancing the effectiveness of superalloy castings in critical applications.
CNC Machining
CNC machining complements additive manufacturing by producing highly accurate tooling and molds for the ceramic shells used in equiaxed crystal casting and other superalloy casting processes. CNC machining also plays a crucial role in the finishing operations of cast parts, ensuring they meet tight tolerances and specific customer requirements. This combination of precision machining and additive techniques allows for enhanced final quality in the most demanding high-temperature environments.
The integration of these technologies allows manufacturers to reduce lead times, minimize material waste, and improve the overall quality and consistency of the superalloy casting process. This is particularly valuable for aerospace and power generation industries, where precision and reliability are paramount.
Testing Methods
To ensure the quality and reliability of vacuum investment cast components, a range of advanced testing methods is employed at various stages of the manufacturing process. These tests verify the parts' dimensional accuracy, structural integrity, and mechanical properties.
Coordinate Measuring Machines (CMM)
Coordinate Measuring Machines (CMM) are used to measure the dimensions of the finished part and compare them against the original CAD design. This ensures that the part meets the required tolerances, which is crucial for components used in critical applications like jet engines and gas turbines.
Metallographic Microscopy
Metallographic microscopy examines the microstructure of the superalloy to verify that the grain structure aligns with the desired specifications. Proper grain structure ensures the component's mechanical strength and thermal stability.
Non-Destructive Testing (NDT)
X-ray and ultrasonic inspection methods detect internal defects such as cracks, voids, or inclusions without damaging the part. These techniques are vital for ensuring the integrity of components used in safety-critical applications.
Mechanical Testing
Tensile and fatigue tests evaluate the part’s mechanical properties, such as strength, flexibility, and resistance. Simultaneous Thermal Analyzer (STA) testing assesses the material's thermal stability, ensuring it can withstand extreme temperatures without degradation.
By employing these testing methods, manufacturers can guarantee that each component meets its intended application's stringent performance and safety requirements, contributing to the reliability and longevity of high-performance superalloy parts.
Industry and Applications
Vacuum investment casting is a cornerstone technology for industries requiring high-performance components that can operate under extreme conditions. Its versatility and precision make it indispensable across a wide range of sectors.
Aerospace and Aviation
The aerospace and aviation industry is one of the largest consumers of vacuum investment casting. Applications include turbine blades, jet engine components, and exhaust systems, where the ability to withstand high temperatures and mechanical stresses is critical. Parts like superalloy jet engine components require precise casting processes to achieve superior strength and resistance to high temperatures.
Power Generation
Power generation relies heavily on gas turbines used in power plants, which require superalloy components for their efficiency and durability. Superalloy heat exchanger parts and turbine wheels are some of the key parts produced using vacuum investment casting to ensure high thermal resistance and longevity.
Oil and Gas
The oil and gas industry requires components that can resist corrosion and high pressures in the harsh environments of oil rigs and refineries. Vacuum investment casting produces critical parts such as pump components and corrosion-resistant piping accessories, ensuring durability and performance under extreme conditions.
Automotive
High-performance automotive vehicles benefit from lightweight yet durable components like brake system accessories and transmission assemblies. These parts are often cast using vacuum investment techniques to ensure precision and reliability. Nickel-based alloy brake system accessories are key examples of how vacuum casting provides the necessary strength and accuracy.
Marine and Military
Marine and military and defense applications require corrosion-resistant and heat-resistant components. Vacuum investment casting is used for components like missile segments, naval engine parts, and armor systems. Superalloy missile segments and armor system parts benefit from the precision and durability offered by this process, ensuring their reliable performance under extreme conditions.
Nuclear and Chemical Processing
The chemical processing and nuclear industries demand components that can endure corrosive and high-temperature environments. Vacuum investment casting produces reactor vessel components, distillation equipment modules, and containment system accessories, ensuring that these parts perform consistently in aggressive operational settings.
By utilizing vacuum investment casting, industries can achieve the highest level of component precision and performance, meeting the demands of extreme conditions across various applications.
