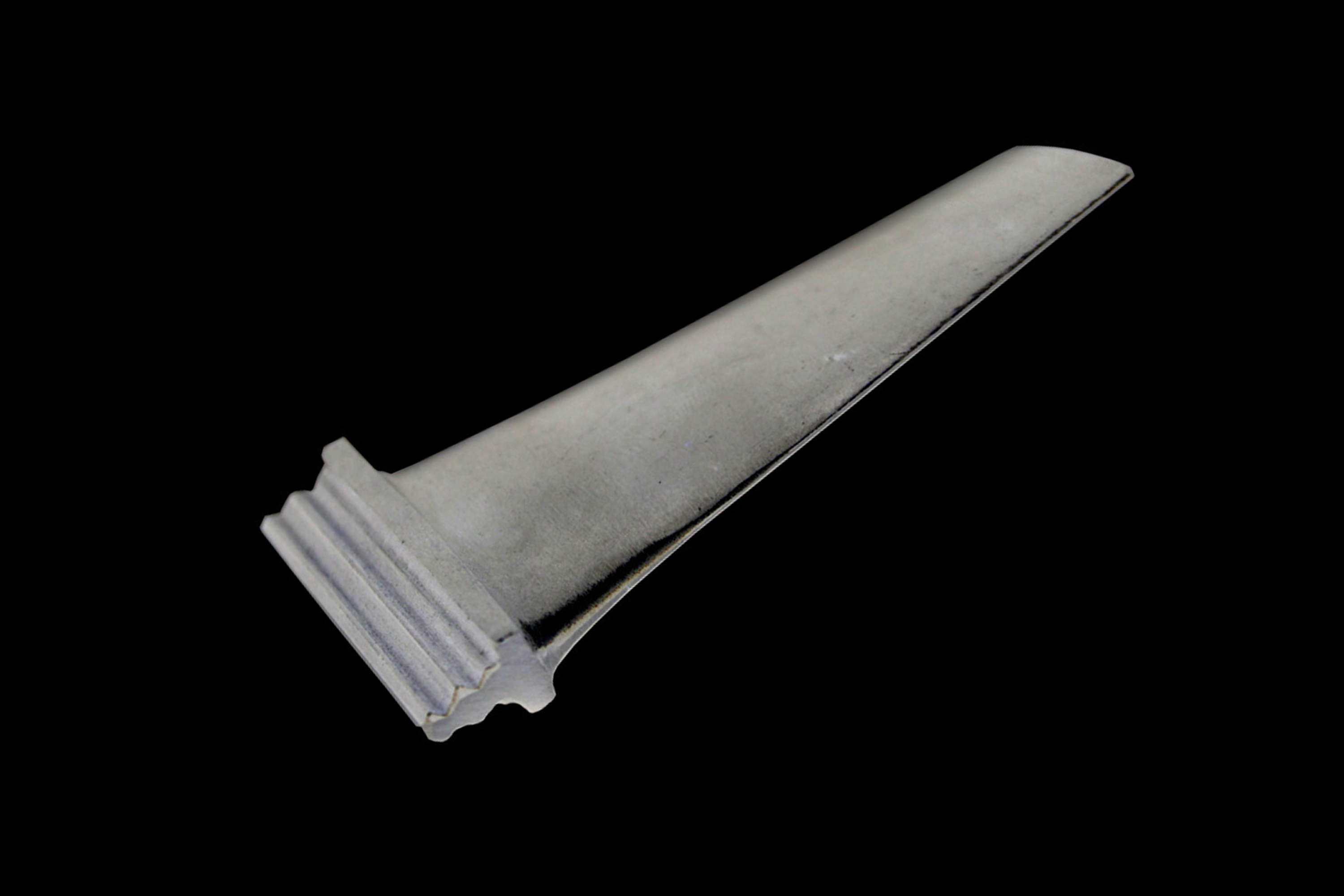

Single Crystal Casting Turbine Blade Customization Factory
Overview of Single Crystal Casting Turbine Blades
In industries like aerospace, power generation, and defense, high-performance turbine blades are essential components that power everything from jet engines to gas turbines. The complexity of these parts, which must endure extreme conditions such as high temperatures and mechanical stress, requires the most advanced manufacturing techniques. One such process is single crystal casting, which creates blades with an uninterrupted crystal structure. This process is particularly valuable in ensuring that turbine blades have superior mechanical properties, such as resistance to high temperatures, thermal fatigue, and creep.
As a specialized single crystal casting turbine blade customization factory, we provide high-performance turbine blades that meet stringent requirements for various industries. Our state-of-the-art technology, deep knowledge of superalloys, and commitment to quality control make us a trusted partner for manufacturers and companies looking for durable and high-quality turbine blades.
What Is Single Crystal Casting?
Single crystal casting is a specialized manufacturing process used to produce turbine blades that are made from a single, uninterrupted crystal structure. Unlike conventional metal casting processes that form parts with multiple grains, single crystal casting ensures that there are no grain boundaries within the structure. This lack of grain boundaries significantly enhances the mechanical properties of the material, as grain boundaries can be weak points prone to cracking and failure under high stress. Directional solidification is a key process used to achieve this effect in single crystal casting.
The process begins with the careful control of the cooling rate of molten metal to form a single crystal. The casting process requires a precise setup, including high-temperature furnaces, seed crystals, and directional solidification, to ensure that the crystal grows in one continuous direction. The result is a turbine blade with extraordinary strength, creep resistance, and the ability to withstand extreme thermal cycles and stress. This seed crystal method is essential for guiding the crystal growth in the desired orientation.
Single crystal turbine blades are often used in gas turbines, jet engines, and other high-performance engines, where the material must perform reliably in environments with temperatures exceeding 1,000°C (1,832°F). By using single crystal casting, manufacturers can improve the performance and lifespan of turbine blades, ensuring safety and efficiency in their operations. This advanced casting technique is crucial for aerospace and power generation applications, where materials are subjected to extreme conditions.
Typical Superalloys Used in Single Crystal Casting
The performance of turbine blades made from single crystal casting heavily depends on the superalloy used in their production. Superalloys are designed to perform at extremely high temperatures without losing their mechanical properties, such as strength and oxidation resistance. When selecting a superalloy for turbine blades, factors such as temperature capability, creep resistance, oxidation resistance, and mechanical strength must be considered.
Below, we explore some of the most common superalloys used in single crystal turbine blade casting.
Superalloy Brand 1: Inconel
Inconel is a family of high-performance superalloys based on nickel that offers excellent strength and resistance to oxidation and corrosion at high temperatures. It is frequently used for turbine blades due to its ability to withstand extreme thermal and mechanical stresses.
Inconel 718: Inconel 718 is widely used in gas turbines, jet engines, and other high-performance systems. Its unique composition provides excellent high-temperature strength, fatigue resistance, and oxidation resistance. It is ideal for applications in environments where the temperature reaches around 700°C (1,292°F).
Inconel 738: A higher-strength variant of Inconel, Inconel 738 offers superior creep resistance, making it ideal for turbine blades that are exposed to very high temperatures. This superalloy performs well in environments where continuous high stress is exerted on the turbine blades.
Inconel 625: Inconel 625 provides exceptional oxidation resistance and strength at high temperatures, making it suitable for use in high-performance turbine blades in aerospace, marine, and industrial applications. Its resistance to corrosion in hostile environments makes it a versatile choice.
Superalloy Brand 2: CMSX Series
The CMSX series is a family of single crystal superalloys specifically designed for use in turbine blades exposed to the highest temperatures in gas turbines and jet engines.
CMSX-4: This superalloy offers excellent high-temperature stability, mechanical strength, and resistance to oxidation. CMSX-4 is a go-to material for advanced turbine blades used in commercial and military jet engines.
CMSX-10: With superior high-temperature capabilities, CMSX-10 provides enhanced strength and oxidation resistance, making it the material of choice for next-generation turbine blades operating in the most demanding environments.
CMSX-486: An advanced version of CMSX-10, CMSX-486 offers enhanced resistance to thermal creep and oxidation, making it ideal for turbine blades in power generation and advanced aerospace applications.
Superalloy Brand 3: Rene Alloys
Rene alloys are another family of nickel-based superalloys renowned for their exceptional high-temperature strength and resistance to oxidation, making them an excellent choice for single crystal casting of turbine blades.
Rene 41: Known for its high strength at elevated temperatures, Rene 41 provides exceptional resistance to creep and fatigue, making it ideal for turbine blades that will experience prolonged thermal exposure.
Rene 104: This superalloy is engineered for use in turbines that operate in extreme temperatures and environments. Rene 104 offers excellent creep resistance and high-temperature mechanical properties, ensuring longevity and reliability.
Rene 77: Rene 77 is an advanced material known for its outstanding resistance to high-temperature oxidation and creep. It is often used in high-performance turbine blades where longevity and performance under stress are critical.
Other Single Crystal Superalloys
In addition to the superalloys mentioned above, other materials like Hastelloy X and Rene N5 are used in single crystal casting for turbine blades. These superalloys are ideal for applications that require superior thermal fatigue resistance, corrosion resistance, and strength in environments with fluctuating temperatures.
Inspection for Crystal Casting Turbine Blades
After the single crystal turbine blades are cast, they undergo a series of rigorous inspections to ensure their quality and integrity. These inspections help verify that the blades meet the required standards for strength, durability, and safety.
Coordinate Measuring Machine (CMM) Checking
The CMM is a precision measuring tool used to inspect the geometry and dimensions of turbine blades. CMM ensures that the blades meet the exact specifications and tolerances needed for high-performance applications. This technology ensures that every part is dimensionally accurate and free from defects that could impact its functionality. By verifying the accuracy of the blade’s shape, CMM ensures its compatibility within the turbine assembly, critical for high-temperature alloys used in demanding aerospace and power generation environments.
X-ray Inspection
X-ray inspection is employed to detect any internal flaws in the turbine blades, such as cracks, porosity, or voids. X-ray imaging allows manufacturers to identify internal defects that may not be visible on the surface but could weaken the blade's structural integrity. This non-destructive testing method helps ensure that the blades maintain their strength and reliability during operation, reducing the risk of premature failure in high-performance components under extreme conditions.
Metallographic Microscopy Checking
Metallographic microscopy is used to examine the microstructure of turbine blades, ensuring that the material is free from inclusions and has a uniform single-crystal structure. This process verifies that the casting process was successful and that there are no grain boundaries that could compromise the blade’s mechanical properties. Proper microstructure analysis ensures that each blade will perform optimally under high stress and temperature conditions, which is vital for reliability in aerospace applications.
Scanning Electron Microscope (SEM) Checking
The SEM provides high-resolution imaging of the surface of the turbine blades. This inspection method is particularly useful for detecting surface defects such as cracks, pits, or oxidation that may affect the performance and longevity of the blades. SEM is crucial for examining surface integrity and identifying defects that could lead to performance degradation over time, especially in high-temperature environments.
Tensile Testing
Tensile testing is performed to assess the strength of turbine blades under tensile stress. This test simulates the conditions that the blades will experience during operation, helping to ensure they can withstand the forces they will face. Tensile testing measures the material's ability to resist deformation and failure under stress, which is critical for ensuring component durability in turbine engines and other high-performance applications.
Applications of Superalloy Single Crystal Castings
Single crystal turbine blades are critical in a wide variety of applications where high performance and reliability are essential. These advanced materials provide exceptional thermal stability and strength, making them indispensable in demanding industries. Some key sectors that rely on these advanced blades include:
Aerospace
In the aerospace industry, single crystal turbine blades are vital for both commercial and military aircraft. These blades are used in jet engines that operate at high temperatures and pressures, ensuring optimal performance and reliability. CMSX-10 Vacuum Investment Casting is a common technique used to manufacture these high-performance blades, providing excellent resistance to thermal degradation.
Power Generation
In power generation, single crystal castings are crucial for producing turbine blades used in gas turbines that power plants depend on. These turbines operate under extreme conditions and require blades that can endure continuous operation without failure. The Nimonic 75 Superalloy Directional Casting process ensures the blades maintain their strength and durability over time, making them essential for the energy sector.
Defense
In the defense sector, single crystal turbine blades play a vital role in military jet engines. These components must perform reliably under extreme operational conditions, including high-speed flight and high-stress maneuvers. Rene 80 Single Crystal Manufacturing is widely used in these applications due to its superior mechanical properties and ability to withstand harsh environments.
Energy
In the energy sector, single crystal superalloy turbine blades are also used in renewable energy systems, such as wind turbines. These blades are engineered to increase efficiency and ensure long-term operation in harsh environmental conditions. The Rene 77 Equiaxed Crystal Casting technique, known for its durability, is a preferred method in producing components for marine propulsion systems, where exposure to the elements is intense.
FAQs
What is the advantage of using single crystal casting for turbine blades?
How does single crystal casting improve turbine blade performance?
What are the main challenges in manufacturing single crystal turbine blades?
What factors should be considered when selecting a superalloy for turbine blades?
How do the inspection processes ensure the quality of single crystal turbine blades?
