Metallographic Microscopy: Analyzing Microstructural Integrity for Superalloy Components
Introduction for This Process
Metallographic microscopy is a key technique for ensuring the quality and reliability of superalloy components used in high-stress, high-temperature applications. Superalloys are engineered to withstand extreme conditions, and their microstructure plays a significant role in determining their mechanical properties, including strength, fatigue, and corrosion resistance. Given that the performance of these materials often determines the safety and efficiency of critical machinery in industries like aerospace and aviation, power generation, and military and defense, ensuring their structural integrity is paramount.
The importance of metallographic microscopy lies in its ability to provide detailed, microscopic insights into the internal structure of superalloy components. Metallographic analysis helps manufacturers and engineers optimize alloy compositions, manufacturing processes, and part designs to ensure performance under the most demanding conditions by examining the grain structure, phases, inclusions, and other microstructural features. This blog explores the role of metallographic microscopy in superalloy parts checking, its advantages, and how it compares with other inspection methods, such as X-ray checking.
What Is This Process?
Metallographic microscopy is a process used to examine the internal microstructure of materials, particularly metals, and alloys like superalloys, under a microscope. This technique provides valuable insights into how materials perform under operational stresses, such as extreme temperatures, fatigue, and corrosion. By revealing the material's grain boundaries, phases, and inclusions, metallographic microscopy helps ensure the high-performance properties of superalloy components.
Sample Preparation
The first step in metallographic microscopy is preparing the superalloy sample. The material is cut into small pieces and then mounted in a resin or similar medium to stabilize the surface. The sample is polished progressively with finer abrasives to achieve a smooth finish. After polishing, the sample is etched using specific chemicals or acids to reveal the microstructural features, such as grain boundaries, phases, and inclusions.
Microscopic Examination

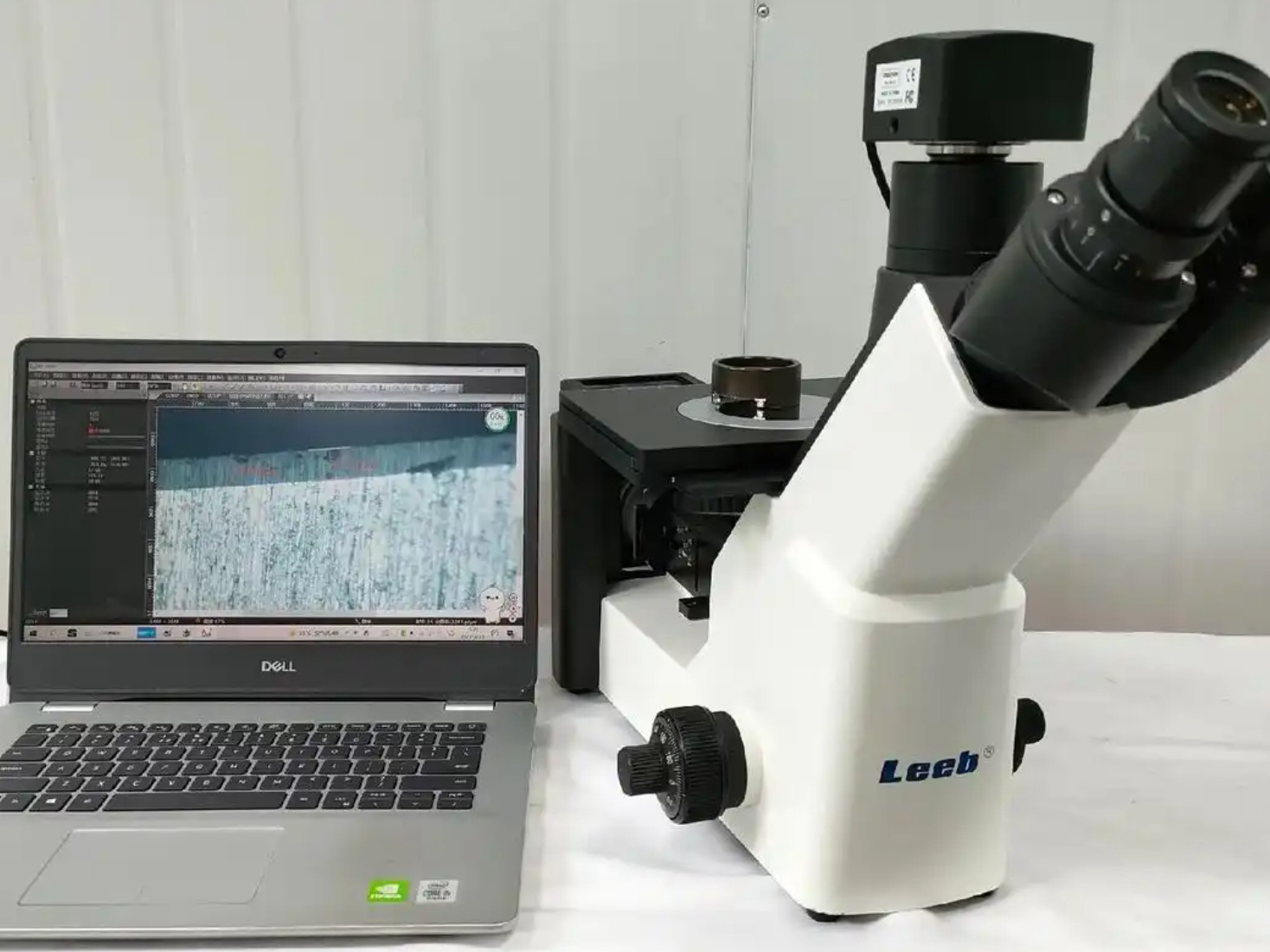

Once the sample is prepared, it is examined under a microscope. An optical microscope is often used for low to moderate magnifications (up to 1000x), sufficient for observing general microstructural features. For a more detailed analysis, particularly to detect fine features such as precipitates, a Scanning Electron Microscope (SEM) is used. SEM can provide magnifications up to 100,000x and produces highly detailed images of the material’s surface and microstructure. This makes it ideal for inspecting superalloy castings and identifying potential defects or imperfections that could affect material properties.
Image Analysis
The final step in the process is image analysis. Metallurgists analyze the images to evaluate the material's internal characteristics, such as grain structure, segregation, porosity, and phase distribution. These features are essential for understanding how the material will behave under stress. For example, impurities or improper grain alignment can reduce a superalloy's strength and fatigue resistance, making metallographic microscopy a crucial tool for optimizing the performance of high-temperature alloys in industries such as aerospace and power generation.
Manufacturers ensure that the superalloy components meet the demanding standards of industries like aerospace, energy, and defense by conducting metallographic microscopy. This ensures that the material can withstand high temperatures and mechanical stresses in real-world applications.
Role in Superalloy Parts Checking
Metallographic microscopy is a crucial tool in ensuring the quality and reliability of superalloy parts. It provides detailed insights into the material's microstructure, which is vital for high-stress, high-temperature applications such as turbine blades, combustion chambers, and other critical components. Metallographers can identify potential issues that may compromise the part's performance under extreme conditions by examining the microstructure.
Checking for Superalloy Castings
Superalloy castings undergo complex cooling and solidification processes, sometimes resulting in defects that affect the final part. Vacuum investment casting and directional casting are often used to create these high-performance components. Metallographic microscopy helps detect microstructural issues such as:
Grain Boundaries: The grain structure is key in the material's mechanical properties. A fine, uniform grain structure typically improves strength and fatigue resistance. Microscopy can identify irregularities in the grain structure that might weaken the material.
Segregation: During solidification, alloying elements may segregate, leading to material weakness. Microscopy detects these variations and ensures the alloy composition is consistent across the casting.
Porosity and Inclusions: These defects can significantly weaken the material. Metallographic inspection can reveal voids or inclusions that may compromise the integrity of the casting.
Metallographic microscopy, combined with advanced casting techniques, ensures that superalloy castings meet the stringent requirements of high-performance industries.
Checking for 3D Printed Superalloy Parts
The rise of 3D printing allows for the production of complex superalloy parts with reduced waste and enhanced design flexibility. However, the unique nature of additive manufacturing introduces challenges in microstructure formation. Metallographic microscopy helps detect the following:
Layer Bonding: In 3D printing, parts are built layer by layer. Weak bonding between layers can create material discontinuities, which can be identified through microscopy.
Residual Stresses: Rapid heating and cooling during the 3D printing can introduce residual stresses, leading to microcracks. These stresses are visible under a microscope and can be addressed before they affect the part's performance.
Porosity: Voids trapped during the printing process can significantly weaken the material. Microscopy helps detect these defects, ensuring the part meets required aerospace or power generation application standards.
Through 3D printed superalloy parts inspection, manufacturers can refine the additive manufacturing process to ensure part integrity and performance.
Checking for CNC Machined Superalloy Parts
After producing superalloy castings or 3D printed parts, they undergo CNC machining to refine their dimensions and enhance surface characteristics. During machining, the material's microstructure can be altered. Metallographic microscopy is used to inspect:
Heat-Affected Zones (HAZ): The heat generated during machining can cause phase transformations in the material near the surface, resulting in altered properties. Microscopy helps identify these heat-affected zones and minimizes their impact on the material's strength and fatigue resistance.
Grain Structure: The machining process can deform the grain structure, especially near the surface. Microscopy can detect grain refinement or damage, ensuring the mechanical properties remain intact.
Surface Integrity: The surface of CNC machined parts is critical for their performance. Microcracks, surface roughness, and residual stresses introduced during machining can be identified through microscopy, ensuring the part meets stringent requirements for high-stress applications such as turbine discs.
Metallographic microscopy is indispensable for verifying the quality of CNC machined superalloy parts, ensuring they meet the required specifications for critical applications.
Other Detection Scenarios
Beyond casting, 3D printing, and CNC machining, metallographic microscopy also plays a vital role in other inspection scenarios, including:
Heat Treatment: Metallographic microscopy is used to assess the impact of heat treatment processes like annealing or quenching, ensuring the material's microstructure is modified to achieve the desired mechanical properties.
Welding: In the fabrication of complex assemblies, welding can introduce defects such as cracks or lack of fusion. Microscopy can inspect weld zones to ensure integrity and prevent failure.
Corrosion and Fatigue Analysis: Superalloy parts exposed to high-temperature and corrosive environments may suffer from pitting, cracking, or other damage. Metallographic microscopy helps detect early signs of damage, providing valuable insights into material performance over time.
Metallographic microscopy is essential in maintaining the performance and longevity of superalloy components, ensuring their ability to withstand extreme conditions.
Compare with Other Checking Methods
Metallographic microscopy offers distinct advantages but is often used with other inspection methods. Here’s how it compares with other commonly used techniques for superalloy parts inspection:
X-Ray Inspection
Strengths: X-ray inspection is a non-destructive technique that detects internal defects such as porosity, cracks, and inclusions. It is beneficial for inspecting the volume of a part, especially for castings, and is often employed in high-temperature alloy manufacturing to ensure component integrity.
Weaknesses: X-ray inspection cannot provide detailed information about the material’s microstructure, such as grain boundaries, phase distribution, or segregation. Metallographic microscopy provides this level of detail, which is crucial for understanding material behavior under stress.
Ultrasonic Testing (UT)
Strengths: UT is excellent for detecting volumetric defects and flaws like cracks and voids in thick superalloy parts. It is also a non-destructive method that can be applied to large components. Water immersion ultrasonic inspection is particularly practical for ensuring the structural integrity of large superalloy parts.
Weaknesses: Ultrasonic testing does not provide insights into the material’s microstructure or grain structure. It’s primarily used to detect large defects rather than analyzing the material’s internal properties. Metallographic microscopy provides a much more detailed view of these internal features.
Scanning Electron Microscopy (SEM)
Strengths: Scanning Electron Microscopy (SEM) provides extremely high-resolution images of a material’s surface, revealing fine details of microstructural features, inclusions, and defects. It’s beneficial for examining small-scale defects or precipitates in superalloy castings, particularly in turbine components.
Weaknesses: SEM requires careful sample preparation and is more expensive and time-consuming than optical microscopy. It is typically used for more focused, surface-level analysis and does not provide comprehensive volumetric data like X-ray inspection or UT.
Hardness Testing
Strengths: Hardness testing is quick, easy to perform, and provides information on the material’s resistance to deformation, which correlates with overall strength. It’s commonly used in superalloy parts manufacturing for material consistency checks.
Weaknesses: Hardness testing doesn’t provide a comprehensive view of the material’s microstructure nor reveals internal defects or the influence of processing history on material performance. Unlike metallographic microscopy, it doesn’t allow for examining material features at the microscopic level.
Conclusion
While each method has its strengths and weaknesses, metallographic microscopy excels at providing detailed information about the microstructure of superalloys. However, for a comprehensive assessment, techniques like X-ray inspection, SEM, and UT are often used to ensure both internal integrity and surface characteristics of high-performance alloy components.
When to Choose Metallographic Microscopy for Superalloy Parts
Metallographic microscopy should be chosen in the following situations:
Quality Control and Assurance: Metallographic microscopy is invaluable for ensuring material quality during manufacturing, especially when dealing with high-performance superalloy turbine components, such as those in the aerospace and energy industries. It helps verify the consistency of the material’s microstructure, ensuring parts meet stringent performance standards.
Failure Analysis: If a part fails during operation, metallographic microscopy can help identify the cause by examining the material’s microstructure and locating any defects or weaknesses. For example, turbine blades or engine components that experience cracking or fatigue can be analyzed to trace the root cause of failure.
R&D and Process Optimization: Metallographic microscopy is critical for researchers developing new superalloys or optimizing manufacturing processes. It helps reveal how changes in composition or processing, such as in Stellite superalloy, affect the material's performance and durability in high-stress environments.
Post-Manufacturing Analysis: After casting, machining, or welding, metallographic microscopy provides detailed information on whether the material’s properties meet the required specifications for the intended application. This is particularly valuable for vacuum investment casting components, ensuring they maintain structural integrity and performance under demanding conditions.
Metallographic microscopy is a powerful tool for ensuring the reliability of high-performance materials and superalloy components used across various critical industries.
