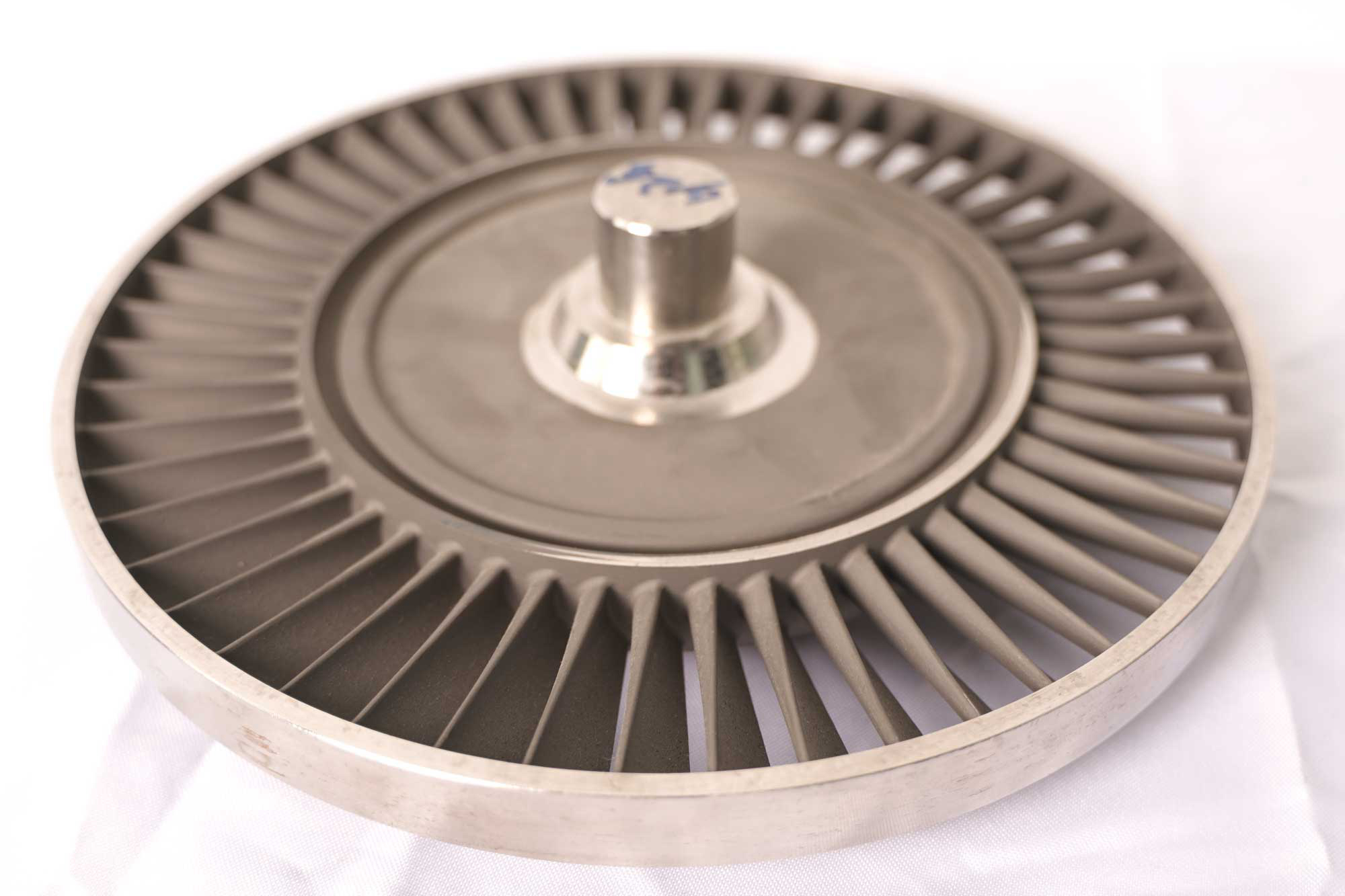

Inconel Superalloy Equiaxed Crystal Casting Production Expert
Overview of Inconel Superalloy
Inconel alloys are a family of high-performance superalloys primarily composed of nickel-chromium. They are known for their excellent resistance to heat, oxidation, and corrosion, making them a preferred choice in applications that require superior strength at high temperatures. Inconel alloys are primarily used in industries like aerospace, power generation, and chemical processing due to their ability to withstand extreme conditions.
Inconel alloys are often used to manufacture critical components, such as turbine blades, exhaust systems, and heat exchangers, because they maintain their strength even in high-temperature and highly corrosive environments. One of the most widely used Inconel superalloys is Inconel 718, which is known for its excellent fatigue and thermal-fatigue strength. Inconel 625, another widely used grade, offers exceptional resistance to corrosion and oxidation in aggressive environments.
What makes Inconel alloys highly suitable for such extreme environments is their ability to retain high tensile strength and resistance to creep even at temperatures above 1000°C. These characteristics make Inconel alloys particularly essential in gas turbines, jet engines, and other high-performance applications.
What Is Superalloy Equiaxed Crystal Casting?
Equiaxed crystal casting is a specialized method used to produce components with a uniform, equiaxed (or equal-sized) grain structure. This casting process is essential when consistent mechanical properties are required across the entire material. It is commonly used in the production of superalloys for high-stress applications, such as turbine blades and engine components. By promoting the formation of equiaxed crystals, this process ensures enhanced material toughness and fatigue resistance, which are critical for components exposed to extreme conditions.
How Equiaxed Crystal Casting Works
The equiaxed crystal casting process involves cooling molten metal in a way that promotes the formation of equiaxed grains rather than columnar or directional grain structures. Controlled cooling allows random alignment of crystals, creating an isotropic grain structure with consistent properties in all directions. This uniformity is particularly important in parts subjected to cyclical stresses and high thermal gradients, such as those found in gas turbines.
Unlike single crystal casting, which involves the precise control of cooling to form a single grain, equiaxed casting encourages multiple grains to solidify simultaneously. This random crystal alignment distributes stresses more evenly across the part, improving its performance under fluctuating conditions.
Benefits of Equiaxed Crystal Casting
The primary advantage of equiaxed crystal casting is the formation of a consistent, isotropic grain structure that provides uniform mechanical properties. This is especially beneficial for parts like turbine blades and other components that face both high temperatures and cyclical stresses. Components manufactured using this method exhibit:
Improved Toughness: The uniform grain structure enhances resistance to cracking and deformation.
Fatigue Resistance: Equiaxed grains distribute stress more evenly, reducing the risk of failure under repeated loading cycles.
Enhanced Durability: The isotropic nature of the grain structure ensures consistent performance, even in challenging thermal and mechanical environments.
Applications of Equiaxed Crystal Casting
Equiaxed crystal casting is widely used in industries where reliability and material integrity are critical. This includes:
Aerospace and Aviation: For components like turbine blades and nozzle guide vanes that operate in extreme heat and pressure. Superalloy components made using equiaxed casting offer superior performance and durability.
Power Generation: Gas turbine parts requiring excellent fatigue resistance and thermal stability.
Automotive and Energy Sectors: High-temperature components where uniform material properties are essential for long-term performance.
By ensuring consistent mechanical properties and minimizing defects, equiaxed crystal casting remains a key process in the production of high-performance superalloy components across these demanding industries.
More Directional Casting Superalloys
The versatility of directional casting, including equiaxed crystal casting, extends to a variety of superalloy brands, each offering unique properties tailored for specific applications. Below are several superalloy brands commonly used in directional casting processes:
Superalloy Brand 1: Inconel Alloys
Inconel 718: Known for its excellent strength at high temperatures, Inconel 718 is widely used in aerospace and power generation for parts such as turbine blades and combustion chambers.
Inconel 625: Inconel 625 is known for its exceptional resistance to oxidation, corrosion, and thermal fatigue. It is ideal for components exposed to high temperatures and corrosive environments.
Inconel 713: This alloy has excellent resistance to high-temperature creep, making it a common choice for gas turbine components and exhaust systems.
Superalloy Brand 2: Nimonic Alloys
Nimonic 90: A high-strength nickel-chromium alloy, Nimonic 90 is widely used for high-temperature applications such as turbine blades and other engine components.
Nimonic 75: This superalloy offers excellent resistance to oxidation and creep at elevated temperatures, making it suitable for both gas turbine blades and industrial heating systems.
CMSX-10: A high-performance single crystal superalloy, CMSX-10 is specifically designed for use in advanced gas turbine applications and is capable of operating at extremely high temperatures.
Superalloy Brand 3: Hastelloy and Rene Alloys
Hastelloy X: Known for its resistance to oxidation and carburization, Hastelloy X is commonly used in gas turbines, rocket engines, and other high-performance applications.
Rene 104: A nickel-based superalloy with excellent high-temperature strength, Rene 104 is typically used in the aerospace industry for turbine blades and similar components.
Ti-6Al-4V: This titanium alloy offers a combination of high strength, low weight, and excellent corrosion resistance, making it ideal for use in aerospace applications and high-performance engines.
Inspection for Equiaxed Crystal Castings
Inspection is a critical part of the manufacturing process for equiaxed crystal castings, ensuring that the final components meet the required specifications for performance, safety, and durability. Several inspection methods are employed to evaluate the integrity and quality of equiaxed crystal castings, especially in high-performance superalloy components like turbine blades.
Key Inspection Methods
X-ray Inspection: X-ray inspection is used to detect internal defects, such as voids, cracks, or inclusions, that could compromise the structural integrity of the casting. This non-destructive testing method ensures that only defect-free components are used in critical applications. X-ray imaging is an essential tool for identifying hidden internal flaws that could jeopardize the performance of equiaxed crystal castings.
Metallographic Microscopy: Metallographic microscopy involves analyzing the microstructure of the casting to ensure the correct formation of equiaxed crystals. This method can also reveal imperfections, such as grain boundary issues or porosity, that may affect the performance of the final component. The detailed observation of microstructural features is critical for ensuring casting quality and uniformity.
CMM (Coordinate Measuring Machine): CMM technology is used to verify the geometric accuracy of the cast component. It can measure complex shapes and dimensions to ensure they conform to the design specifications. This ensures that the component dimensions meet tight tolerances required for critical applications, such as gas turbine engines.
Tensile Testing: Tensile testing involves stretching a sample of the material until it breaks, providing information on its strength, elongation, and yield point. This test is essential for evaluating the mechanical properties of equiaxed crystal castings under high-stress conditions, ensuring the material's ability to withstand operational forces in high-performance environments.
Surface Hardness Analysis: Hardness testing, such as the Rockwell or Vickers test, determines the material’s resistance to deformation and wear. Hardness tests are commonly used in the inspection of equiaxed crystal castings to confirm their resistance to wear and suitability for demanding industrial applications.
SEM (Scanning Electron Microscopy): SEM, combined with EDAX (Energy Dispersive X-ray Analysis), provides detailed images and elemental analysis of the material's surface and microstructure. These advanced inspection tools are used to detect microscopic defects such as cracks or inclusions that could compromise casting integrity. SEM analysis is crucial for identifying micro-level defects that may affect the overall reliability of equiaxed crystal castings.
By using these advanced inspection methods, manufacturers can ensure that equiaxed crystal castings meet the high standards of performance, durability, and safety required for high-temperature applications in industries like aerospace, power generation, and chemical processing.
Superalloy Equiaxed Crystal Casting Applications
Equiaxed crystal casting is a highly effective method for producing high-performance superalloy components that need to withstand extreme conditions. This process is commonly used in industries such as aerospace, power generation, oil and gas, military, and chemical processing. The uniform grain structure provided by equiaxed crystal casting enhances the mechanical properties of critical components, making them reliable for use in challenging environments.
Aerospace and Aviation
In the aerospace and aviation industries, equiaxed crystal casting is employed to produce turbine blades, compressor blades, seals, and other essential engine components. These parts must endure high pressures, temperatures, and mechanical stresses. Nimonic 80A guide vanes, for example, are cast using this method to ensure optimal performance in turbine engines, where reliability and resistance to wear and fatigue are crucial.
Power Generation
In power generation, equiaxed crystal casting is used to produce superalloy components for gas turbines, combustion chambers, and heat exchangers. These parts must perform reliably at high temperatures and under constant mechanical stress. By creating a uniform grain structure, equiaxed crystal casting improves the durability and thermal stability of components used in power plants and energy production facilities.
Oil and Gas
For the oil and gas industry, components such as valves, pumps, and seals benefit greatly from the superior mechanical properties of equiaxed crystal castings. These parts are exposed to extreme conditions, including high pressure and temperature, which can lead to rapid wear and failure. The enhanced durability of equiaxed crystal castings ensures that equipment operates reliably, reducing downtime and maintenance costs in demanding oil extraction and exploration processes.
Military and Defense
In the military and defense sectors, superalloy components produced via equiaxed crystal casting are critical for military engine parts, missile systems, and other high-performance applications. These components must endure extreme operational conditions, including high mechanical stresses and high temperatures. Equiaxed crystal casting ensures the durability and strength needed to meet the stringent requirements of military applications, including Hastelloy X superalloy components used in gas turbines for defense.
Chemical and Pharmaceutical Industries
In chemical and pharmaceutical industries, corrosion-resistant superalloy components are necessary for equipment such as reactors, heat exchangers, and pumps. Equiaxed crystal casting is particularly well-suited for these applications because it enhances the strength and durability of parts that must perform at elevated temperatures and in aggressive environments. These castings maintain their structural integrity, even in harsh chemical conditions, ensuring long-lasting performance and minimal maintenance needs.
FAQs
What is the primary difference between equiaxed crystal casting and single crystal casting for superalloys?
How does equiaxed crystal casting enhance the performance of turbine blades?
Why is Inconel 718 a preferred choice for equiaxed crystal casting?
What are the typical post-processing techniques used after equiaxed crystal casting?
Can equiaxed crystal casting be applied to all superalloy materials or just a select few?
