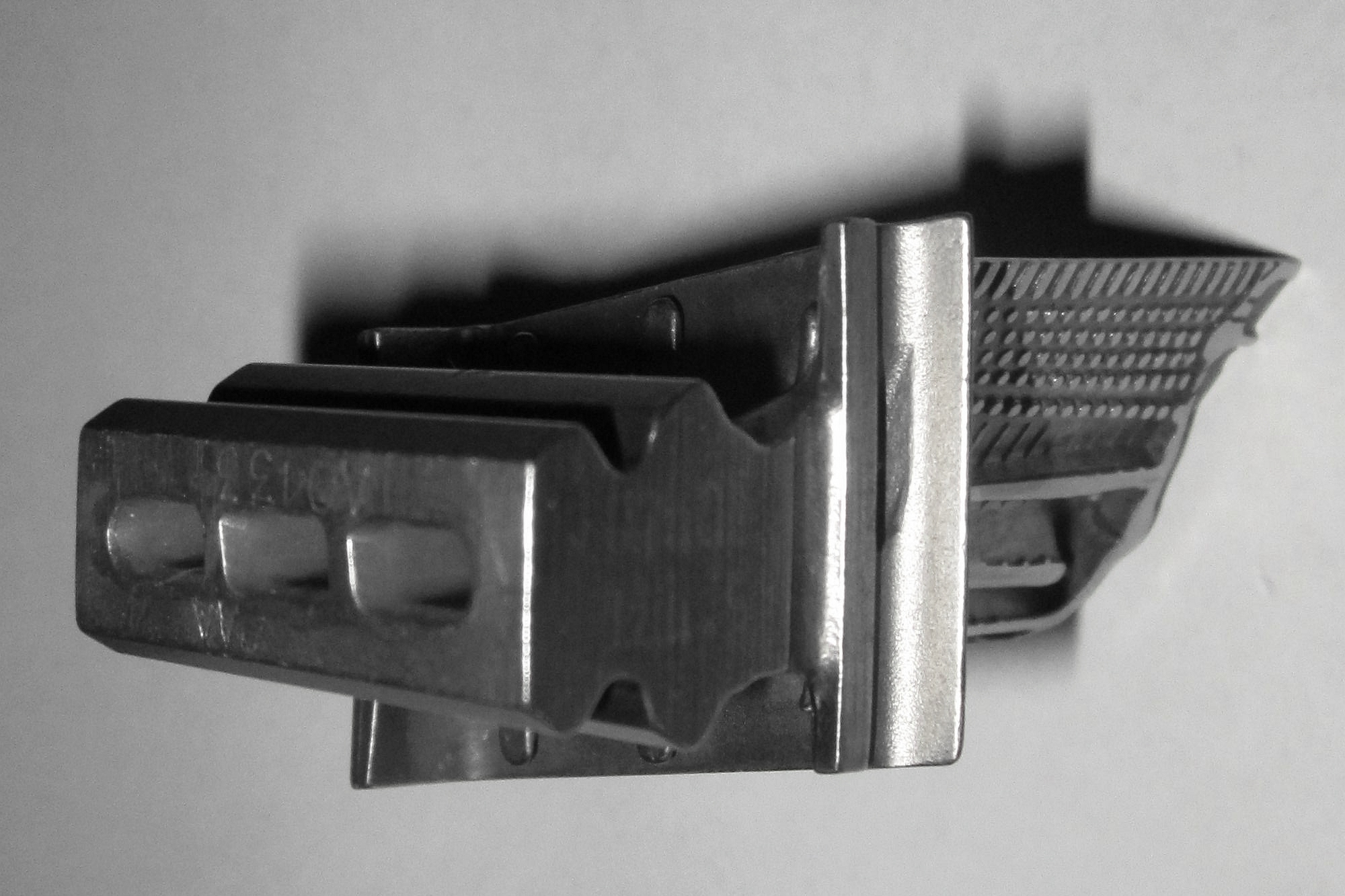

Inconel 718 Superalloy Components Produced by Directional Casting Manufacturer

Overview of Inconel 718 Superalloy

Inconel 718 is a nickel-based superalloy renowned for its excellent high-temperature strength and resistance to oxidation and corrosion. This material is specifically designed to withstand extreme operating conditions in industries like aerospace and aviation, power generation, and oil and gas. Its unique composition allows it to maintain its structural integrity at temperatures exceeding 700°C (1292°F), which is why it is commonly used in turbine engines, combustion chambers, and other high-stress applications like high-temperature alloy engine components.

The composition of Inconel 718 is primarily based on nickel (50-55%) and chromium (17-21%), along with smaller amounts of elements such as iron, niobium, molybdenum, titanium, and aluminum. These elements work together to provide the alloy with exceptional mechanical properties, including strength, creep resistance, and oxidation resistance, making it ideal for high-performance applications such as superalloy exhaust system parts.

One of the key advantages of Inconel 718 is its ability to resist oxidation and corrosion at high temperatures, making it an ideal choice for components that are exposed to extreme environmental conditions, particularly in the marine and chemical processing sectors. The alloy is also resistant to thermal fatigue, which is particularly important for turbine blades and other components that experience rapid temperature changes during operation. Additionally, Inconel 718 offers good weldability and can be used in complex geometries, further expanding its versatility in critical applications like superalloy transmission component assemblies.

What is Superalloy Directional Casting?

Directional casting is a specialized process used to produce superalloy components like turbine blades that require high strength and performance at elevated temperatures. The goal of this process is to control the solidification direction of the molten metal to optimize the grain structure of the final component. In directional casting, the molten metal is poured into a mold, and the cooling process is controlled in a way that encourages the formation of columnar grains. These grains are aligned in the direction of stress, which enhances the material's mechanical properties, particularly its resistance to fatigue and creep at high temperatures.

The directional solidification process ensures that the grain structure in the cast part is aligned with the expected direction of stress, resulting in enhanced strength, toughness, and thermal stability. The alignment of the grains helps the material better withstand the extreme temperatures and mechanical stresses found in applications like turbine engines, where components are subject to constant thermal cycling and high centrifugal forces.

In addition to improving mechanical properties, directional casting also helps reduce the likelihood of casting defects such as porosity, shrinkage, or inclusions. The controlled solidification process ensures that the molten metal cools in a uniform manner, reducing the risk of defects that could compromise the integrity of the component. This makes directional casting an ideal method for producing high-performance superalloy components like turbine blades, which require exceptional reliability and durability in demanding industries like aerospace and power generation.

More Directional Casting Superalloys

Directional casting is not limited to Inconel 718 but can also be used with other superalloys designed for high-temperature applications. Each of these alloys has unique properties that make them suitable for specific applications, particularly in aerospace, power generation, and other industries requiring high-strength materials.

Superalloy Brand 1: Inconel

Inconel 718: As discussed, Inconel 718 is widely used in gas turbines, jet engines, and other high-temperature applications. The alloy's high strength, resistance to oxidation, and ability to withstand thermal fatigue make it a popular choice for critical components like turbine blades, combustion chambers, and exhaust systems.

Inconel 738: This alloy is another popular choice for turbine applications, offering excellent strength and oxidation resistance at high temperatures. Inconel 738 is used primarily in the hot section of gas turbines and is valued for its ability to retain strength in extreme environments.

Inconel 625: Known for its excellent resistance to oxidation and corrosion, Inconel 625 is commonly used in aerospace and chemical processing industries. It performs well in aggressive environments, such as those found in marine and oil and gas applications.

Superalloy Brand 2: CMSX

CMSX alloys are designed for use in single-crystal and directional casting applications. These superalloys offer exceptional high-temperature strength and oxidation resistance, making them ideal for gas turbines and other high-performance components.

CMSX-4: CMSX-4 is a high-performance superalloy used primarily in turbine blades and other gas turbine components. The alloy’s excellent thermal stability and high-temperature strength make it ideal for use in engines that operate in extreme conditions.

CMSX-6: This superalloy is known for its superior thermal stability and resistance to high-temperature creep. CMSX-6 is used in aerospace applications, particularly in the production of turbine blades for jet engines.

CMSX-10: Offering enhanced oxidation resistance and strength at elevated temperatures, CMSX-10 is used in critical components like turbine blades, combustion chambers, and nozzle guide vanes, where reliability and performance are essential.

Superalloy Brand 3: Nimonic

Nimonic alloys are another family of high-performance superalloys used in high-temperature applications. These alloys offer excellent resistance to creep and oxidation, making them suitable for turbine components and other hot-section parts.

Nimonic 75: This alloy is commonly used in the aerospace and power generation industries for its high-temperature strength and resistance to oxidation. Nimonic 75 is particularly effective in turbine blades and other critical components.

Nimonic 263: Nimonic 263 is known for its outstanding high-temperature strength, particularly in gas turbines. It is used in components that must withstand extreme conditions and offers superior resistance to creep and oxidation.

Nimonic 90: Nimonic 90 is a high-strength alloy used in applications requiring high performance at elevated temperatures. It is commonly used for turbine blades, combustion chambers, and other critical components in gas turbines and aerospace engines.

Inspection for Directional Casting Turbine Blades

Quality control and inspection are critical in the production of turbine blades made via directional casting. These components are exposed to extreme temperatures and mechanical stresses, so ensuring that they are free from defects is essential for ensuring their performance and safety. Several inspection methods are employed to detect defects and confirm the integrity of directional cast turbine blades.

Coordinate Measuring Machine (CMM) Checking is used to measure the precise dimensions of the turbine blades. This ensures that the blades meet the required specifications, particularly for geometries that must fit precisely within turbine engines. Accurate dimensional measurement is essential for quality control and turbine blade production.

X-ray Checking is used to detect internal defects, such as cracks, porosity, or inclusions, that could weaken the turbine blade. This non-destructive testing method is particularly useful for revealing hidden defects that may not be visible to the naked eye. X-ray inspection also plays a key role in ensuring the structural integrity of the castings.

Scanning Electron Microscope (SEM) Checking is used to examine the microstructure of the alloy at a very high magnification. This technique helps identify micro-level defects, such as grain boundary issues, that could affect the blade's performance. SEM analysis is essential in detecting failure mechanisms before they lead to catastrophic failures.

Ultrasonic Testing uses sound waves to detect internal flaws in turbine blades. It is an essential tool for ensuring that the blades are free from defects that could lead to failure during operation. This technique is highly effective in detecting hidden internal flaws such as cracks or voids that are crucial to component safety in demanding applications like aerospace and power generation.

These inspection methods ensure that directional cast turbine blades meet the strict requirements for high-temperature performance, helping to prevent failure in demanding applications. Inspection technologies and rigorous quality control are vital in verifying the reliability and safety of turbine components before they are deployed in critical systems.

Applications of Superalloy Directional Casting

Superalloy directional casting is used in a variety of industries where high-performance components are critical. The unique properties of superalloys like Inconel 718, combined with the advantages of directional casting, make these materials ideal for a wide range of applications in aerospace, power generation, and beyond.

Aerospace

In the aerospace industry, directional casting is essential for producing turbine blades, nozzle guide vanes, and other critical components for jet engines. Superalloys like Inconel 718 are ideal for these applications due to their ability to withstand high temperatures and mechanical stresses during flight. Components such as Inconel 718 Superalloy Directional Casting Turbine Blades offer superior performance and durability in the extreme environments of jet engines.

Power Generation

In power plants, superalloys are used to produce components for gas turbines, steam turbines, and other high-temperature systems. Directional casting superalloys ensure reliable performance and long service life in these demanding applications. For example, CMSX-4 Superalloy Directional Casting is widely used in turbine blades and other critical power generation components, where its thermal stability and mechanical strength are essential for efficient operation.

Oil and Gas

The oil and gas industry requires components that can withstand extreme temperatures and pressures, especially in deep-water drilling and offshore operations. Superalloys produced by directional casting are ideal for pumps, valves, and other equipment that must endure harsh environments. Nimonic 75 is commonly used for high-performance components in gas turbines and other critical oil and gas applications, offering both thermal and corrosion resistance.

Marine and Automotive

Superalloy components are vital in marine engines and automotive turbochargers, where high performance and thermal stability are essential. Directional casting helps produce parts that can handle these applications' high temperatures and stresses. For example, Rene 77 is used in marine propulsion systems, providing excellent thermal stability, while Titanium Superalloy Precision Forging is employed for automotive turbochargers, ensuring high performance under extreme conditions.

Industrial and Military Applications

Superalloy components are also used in various industrial and military applications, such as missile propulsion systems, control rods, and high-performance fuel systems. Directional casting ensures that these components can withstand the extreme conditions they are subjected to during operation. For instance, Rene 80 single crystal casting is used for turbine blades in high-performance military and industrial applications, where extreme temperature resistance and durability are essential.

FAQs

1. What makes Inconel 718 suitable for high-temperature turbine applications?

2. How does the directional casting process enhance the mechanical properties of Inconel 718?

3. What are the advantages of using Inconel 718 over other superalloys in turbine engines?

4. How are defects in directional cast turbine blades detected during inspection?

5. Can Inconel 718 be used in other industries outside of aerospace and power generation?
