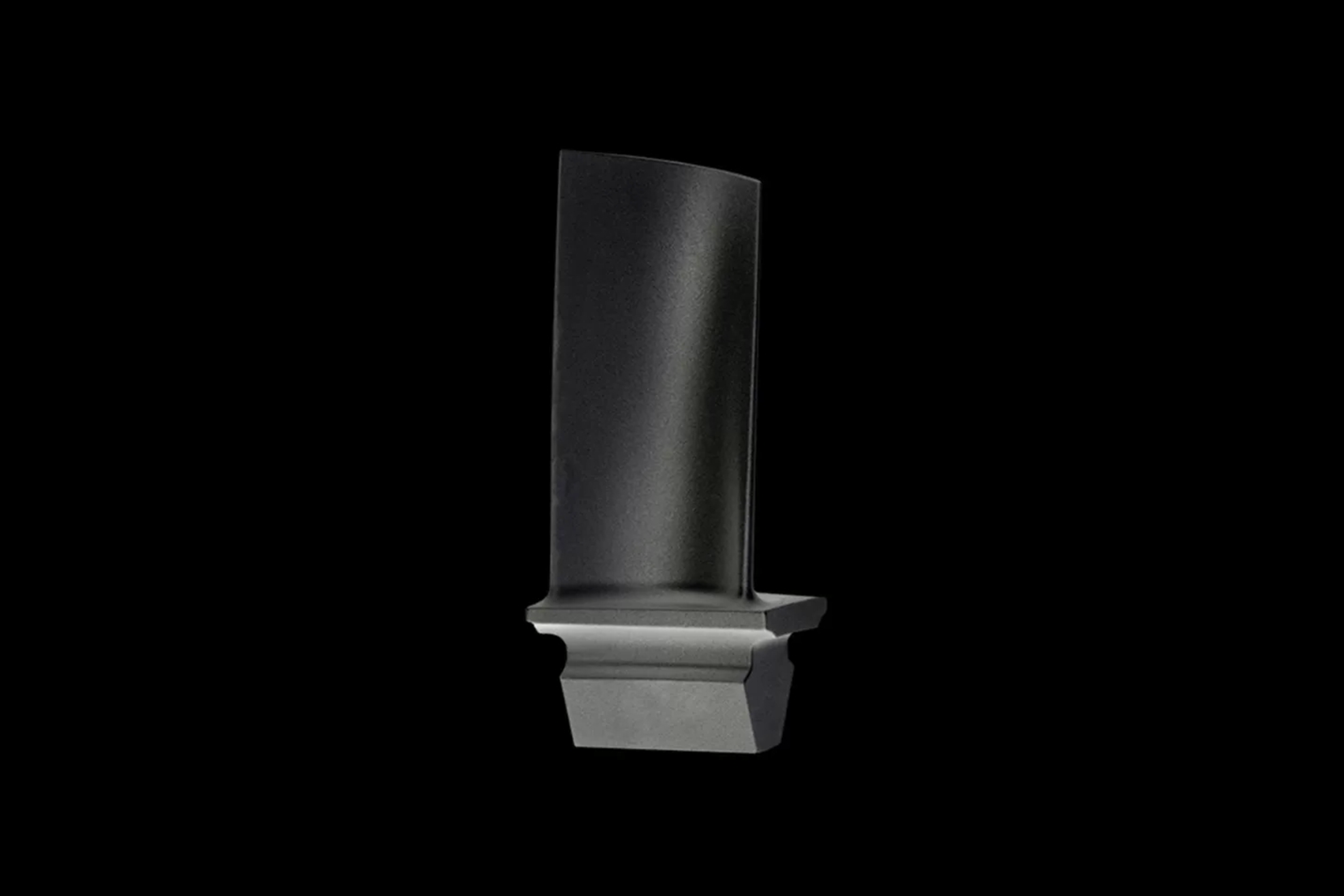

Custom Single Crystal Casting Turbine Blade Manufacturer
Overview of Superalloy Single Crystal Casting Turbine Blades
Turbine blades are among the most critical components in the aerospace, power generation, and defense industries. They need to endure extreme temperatures, high mechanical stresses, and corrosive environments without compromising performance. One of the most advanced manufacturing methods for producing such high-performance turbine blades is single crystal casting, especially when coupled with high-temperature alloys. At NewayAero, we specialize in the design, development, and manufacturing of superalloy single crystal casting turbine blades, leveraging state-of-the-art technologies and materials to meet the most demanding requirements of our clients across diverse industries.
Turbine blades are subjected to some of the harshest operational conditions, where temperature fluctuations, pressure changes, and mechanical stresses can cause fatigue and failure. As a result, turbine blades must be made from materials that exhibit exceptional heat resistance, mechanical strength, and durability.
Single crystal casting is one of the most advanced methods for producing these critical components. Unlike conventional casting techniques, which produce parts with multiple grains, single crystal casting ensures that the turbine blade has a single uninterrupted grain structure, which offers superior mechanical properties and resistance to failure under extreme conditions. By using high-temperature superalloys in the casting process, turbine blades can withstand temperatures exceeding 1,000°C (1,832°F) and continue to perform reliably in jet engines, gas turbines, and other high-performance applications.
At NewayAero, we are committed to delivering turbine blades that meet or exceed the performance requirements for aerospace, power generation, military, and industrial applications. Our focus on single crystal casting technology allows us to produce blades that offer superior fatigue resistance, creep strength, and oxidation resistance, ensuring long-term reliability and efficiency in critical systems.
What Is Single Crystal Casting?
Single crystal casting is a sophisticated manufacturing process that produces turbine blades with a uniform crystal structure, known as a "single crystal." Unlike traditional casting methods, where the metal solidifies into many individual grains with boundaries that can weaken the material, single crystal casting results in a part made from one continuous, uninterrupted grain. This seamless structure improves the material’s mechanical properties, especially at high temperatures, making it ideal for applications like turbine blades, where strength, fatigue resistance, and thermal stability are paramount. The single crystal casting process is critical in ensuring that turbine blades can endure the extreme stresses they encounter in aerospace and defense applications.
The single crystal casting process begins with the creation of a wax pattern, which is coated with a ceramic shell. Once the shell hardens, the wax is melted away, and the shell is filled with a molten superalloy. The key step in the process is directional solidification, where the molten metal is cooled in a controlled manner. This ensures that the solidification begins at the bottom of the mold and moves upward, forming a single continuous crystal. The cooling rate is carefully managed to ensure that no grain boundaries form, which enhances the blade’s resistance to fatigue and stress. By refining casting parameters, manufacturers can improve the properties of single crystal castings, ensuring that turbine blades have optimal performance under high-temperature conditions.
After casting, the turbine blades undergo a series of post-processing steps, including heat treatment and precision machining, to achieve the final dimensions and properties. The result is a turbine blade with a homogeneous, high-strength structure capable of withstanding the extreme conditions encountered in turbines and jet engines. These parts are critical for aerospace, power generation, and other industries that demand reliability and performance in extreme environments.
Typical Superalloys Used in Single Crystal Casting
The choice of material is crucial in single crystal casting. Superalloys, particularly those based on nickel, cobalt, and iron, are the primary materials used for turbine blades. These alloys offer outstanding strength, oxidation resistance, and thermal stability, making them perfect for high-temperature applications. Some of the most commonly used superalloys in single crystal casting for turbine blades include Inconel, CMSX, and Rene alloys.
Inconel
Inconel 718: One of the most widely used superalloys in turbine blades, Inconel 718 provides excellent resistance to oxidation, high-temperature strength, and fatigue resistance. It is particularly suitable for jet engines and gas turbines, where the blades must perform in extreme conditions over extended periods.
Inconel 738: Inconel 738 is another high-performance alloy that offers excellent resistance to creep deformation, making it an ideal choice for turbine blades subjected to high temperatures and mechanical stresses. Its high-temperature strength ensures that it maintains its integrity under challenging operating conditions.
Inconel 713C: This alloy is known for its resistance to high-temperature oxidation and fatigue, making it a reliable choice for turbine blades in both aerospace and power generation applications. It also provides good weldability and casting properties.
CMSX Series
CMSX-4: This alloy is specifically designed for single crystal casting and offers exceptional creep resistance at high temperatures. It is often used in aerospace and turbine applications, where long-term durability and high-temperature performance are critical.
CMSX-486: CMSX-486 is an advanced superalloy that provides excellent fatigue resistance, even at elevated temperatures. It is often used in the manufacture of turbine blades for military and aerospace applications, where the need for long-lasting, high-performance components is essential.
CMSX-10: Known for its superior high-temperature strength and resistance to oxidation, CMSX-10 is used in critical turbine blade applications. Its excellent creep resistance makes it ideal for use in gas turbines, jet engines, and other demanding environments.
Rene Alloys
Rene 104: Rene 104 is a nickel-based superalloy that offers excellent thermal stability, oxidation resistance, and strength at high temperatures. It is used in the production of turbine blades where high mechanical strength is required under extreme heat conditions.
Rene 41: This alloy provides exceptional resistance to thermal fatigue and high-temperature oxidation, making it a preferred choice for turbine blades in aerospace and power generation systems.
Rene 95: Known for its high-temperature strength and resistance to corrosion, Rene 95 is widely used in turbine applications where the blade must endure extreme conditions for extended periods.
Other Single Crystal Superalloys
In addition to Inconel, CMSX, and Rene alloys, other superalloys like PWA alloys, Mar-M alloys, and various proprietary blends are also used for single crystal casting turbine blades. These alloys are engineered for specific applications where extreme performance is required, such as military turbine engines, nuclear power generation, and high-efficiency gas turbines.
Inspection for Crystal Casting Turbine Blades
Due to the critical nature of turbine blades in high-performance applications, rigorous inspection is required to ensure their integrity and reliability. At NewayAero, we employ a variety of advanced inspection techniques to guarantee the highest standards of quality and performance for every turbine blade we produce. Key testing methods, such as Coordinate Measuring Machine (CMM) Checking and X-ray inspection, are essential for verifying geometric accuracy and detecting internal defects.
Coordinate Measuring Machine (CMM) Checking is used to measure the dimensions and geometry of turbine blades to ensure they meet exact specifications. This method is crucial for verifying the blade's fit and functionality within the turbine assembly, ensuring it aligns with CAD models. Accurate CMM inspection contributes to the turbine's overall efficiency and performance.
X-ray Checking is employed to detect internal defects, such as cracks, voids, or inclusions, that could affect the blade's structural integrity. This non-destructive technique allows for early detection of potential issues without damaging the part. Non-destructive testing is crucial in preventing failures during operation and ensuring the reliability of turbine blades in extreme conditions.
Metallographic Microscopy Checking involves examining the microstructure of the superalloy using a microscope to identify any imperfections, such as grain boundaries, inclusions, or porosity, that could compromise the blade's performance. This method ensures that the alloy's quality aligns with the rigorous standards required for high-temperature applications.
Scanning Electron Microscope (SEM) Checking allows for a detailed analysis of the turbine blade at the micro and nano scale. It helps detect surface irregularities, corrosion, and microstructural defects that could affect the blade’s performance. SEM plays a critical role in fracture analysis, identifying failure mechanisms that could jeopardize the turbine blade’s reliability during high-stress operation.
Tensile Testing Machine Checking is performed to measure the material’s strength and ability to withstand stress under high temperatures. This test is critical for ensuring the blade’s resistance to deformation and failure under operational loads. Tensile testing is often coupled with dynamic and static fatigue tests to evaluate the blade’s long-term durability.
These inspection methods, combined with other non-destructive testing techniques, ensure that each turbine blade meets the strictest quality and performance standards, offering unparalleled reliability in aerospace and gas turbine applications.
Applications of Superalloy Single Crystal Castings
Superalloy single crystal castings are used in a wide range of applications where high-performance materials are required. These castings offer superior thermal stability and mechanical strength, making them essential in extreme operational conditions. The primary industries and applications include:
Aerospace Applications
In the aerospace industry, single crystal turbine blades are commonly used in jet engines, where they must withstand extreme temperatures and mechanical stresses. These blades are critical to the performance of modern aircraft engines. The CMSX-10 Vacuum Investment Casting method is often employed to produce high-quality components like turbine blades that meet the stringent requirements of aviation.
Power Generation
In power generation, single crystal castings are integral to the production of turbine blades for gas turbines used in power plants. These blades must perform reliably over extended periods in high-temperature environments. The Nimonic 75 Superalloy Directional Casting technology ensures that these components deliver the strength and thermal stability required for such demanding applications.
Defense and Military
High-performance turbine blades are critical in military jet engines and defense applications. Superalloy single crystal castings ensure that these blades can endure the extreme operational conditions they face. For example, Rene 80 single crystal manufacturing is commonly used for turbine blades that must operate under extreme temperatures and mechanical stresses.
Energy Sector
In the energy sector, single crystal superalloy turbine blades are also used in wind turbines and other renewable energy systems. These components ensure optimal performance and longevity, even under high stress and fluctuating conditions. Rene 77 Equiaxed Crystal Casting is particularly effective in producing parts for marine propulsion systems, where the blades face harsh environmental conditions.
FAQs
What is the difference between single crystal casting and conventional casting methods for turbine blades?
How do superalloys contribute to the performance of turbine blades?
What is the typical lifespan of turbine blades made from single crystal casting?
What are the key challenges in the manufacturing process of single crystal turbine blades?
How does single crystal casting improve the efficiency of gas turbines and jet engines?
