Carbon Sulfur Analyzer: Critical Composion Control in Superalloy Parts Manufacturing
Introduction for This Process
In manufacturing superalloy components, precise control of material composition is a fundamental aspect of ensuring product performance and reliability. Superalloys, especially those used in high-stress environments like aerospace and aviation, power generation, and chemical processing, are designed to withstand extreme temperatures, pressures, and corrosive conditions. Achieving these exceptional properties requires careful control over the elemental composition of the alloys, particularly key elements like carbon and sulfur. Even minute variations in their content can significantly affect the material's mechanical properties, corrosion resistance, and long-term durability. This is crucial for superalloy heat exchanger parts fabrication plant and superalloy jet engine components manufacturer.
The Carbon Sulfur Analyzer (CSA) plays a pivotal role in monitoring and controlling the levels of these critical elements during the manufacturing process. By accurately measuring carbon and sulfur content, CSA helps ensure that superalloy parts meet the stringent requirements for demanding applications. In this blog, we will explore how the CSA works, its role in different stages of superalloy manufacturing, its advantages over other testing methods, and when to choose it for optimal results, particularly in high-temperature alloy pump components production unit and superalloy transmission component assemblies manufacturing hub.
What Is This Process?
A Carbon Sulfur Analyzer (CSA) is an advanced analytical instrument used to measure the concentrations of carbon and sulfur in metals and alloys, especially superalloy components. The precise control of carbon and sulfur content is essential for ensuring the quality and performance of high-temperature materials, as these elements can significantly influence the alloy's properties in demanding environments such as aerospace, power generation, and chemical processing.
Combustion Process
The CSA utilizes a combustion method to oxidize the sample in a high-temperature furnace. The sample is exposed to oxygen, which causes the carbon and sulfur in the material to combust and be released as gaseous compounds. This step is critical for breaking down the sample and converting the elements into measurable gases, ensuring that even trace amounts of carbon and sulfur can be detected.

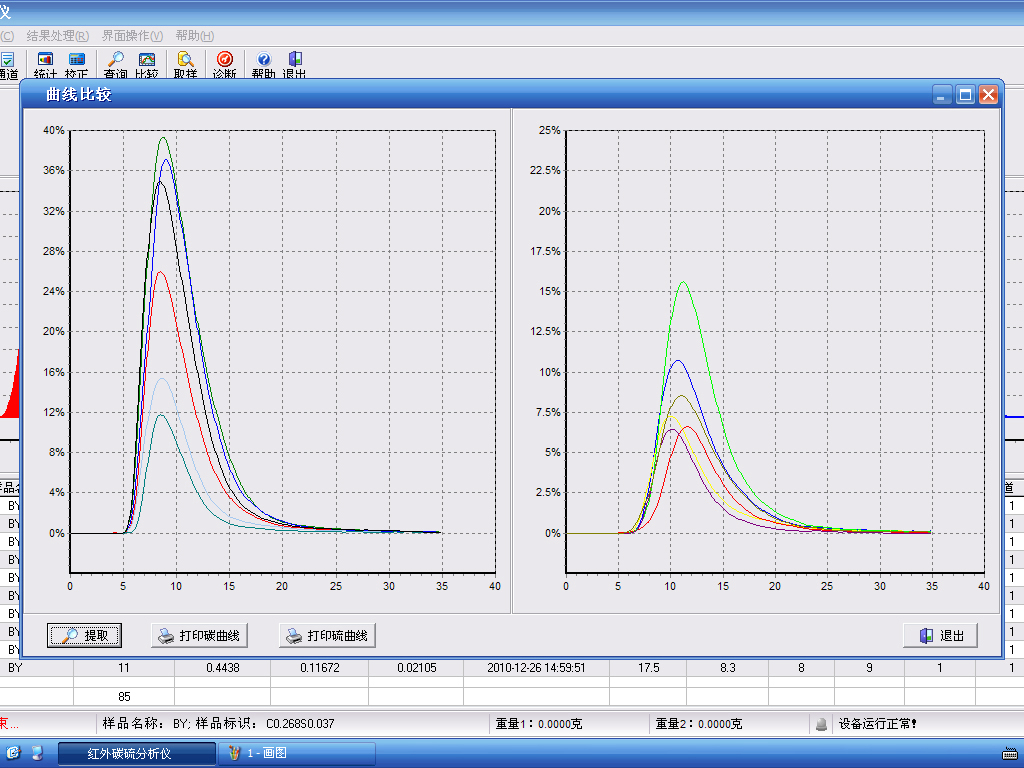

Detection and Measurement
After combustion, the gases are passed through specialized detection equipment, typically infrared (IR) sensors. The gases are absorbed by specific wavelengths of light in the IR spectrum, and the amount of light absorbed is directly proportional to the concentration of carbon and sulfur in the sample. The analyzer uses this data to quantify the exact levels of these elements in the superalloy material.
Results and Applications
The CSA provides highly accurate results, with concentrations of carbon and sulfur reported in weight percentages or parts per million (ppm). These measurements are essential for quality control, particularly in industries like aerospace, where the performance and integrity of superalloys in extreme conditions depend on strict compositional control. By using CSA, manufacturers can ensure that their alloys meet the specific requirements for high-temperature strength and corrosion resistance in critical applications.
This method is critical in ensuring the reliability of superalloy components used in demanding industries, ensuring their performance under stress and in harsh environments.
Role in Superalloy Parts Checking
The Carbon Sulfur Analyzer (CSA) is crucial for ensuring the quality and reliability of superalloy components, particularly in high-performance applications such as aerospace, power generation, and chemical processing. This tool measures the carbon and sulfur content in superalloy parts, critical for maintaining the desired mechanical properties. Let's explore how CSA is applied across different superalloy manufacturing processes.
Checking for Superalloy Castings
Superalloy castings, such as turbine blades, combustion chambers, and impellers, demand stringent control over carbon and sulfur content to avoid defects and maintain optimal performance. Excessive carbon can lead to carbide formation, causing brittleness and reduced fatigue resistance, while insufficient carbon impairs hardening and wear resistance. Similarly, sulfur can induce hot cracking and weaken the material's strength and ductility.
During the casting process, CSA analyzes the carbon and sulfur content in the molten alloy before it is poured into molds. This ensures the alloy meets the required specifications, preventing defects and ensuring high-quality parts. After solidification, CSA is also used to verify the composition of the finished casting, confirming that no contamination or variation in carbon and sulfur levels has occurred during the process. This is especially important for superalloy turbine blades and other critical aerospace components.
Checking for 3D Printed Superalloy Parts
With the growing use of 3D printing in manufacturing superalloy parts, controlling the elemental composition becomes more challenging. The additive manufacturing process, where material is deposited layer by layer, often at high temperatures, can cause carbon and sulfur distribution variations. These variations can affect the mechanical properties and corrosion resistance of the part.
CSA is invaluable for verifying that the final 3D printed superalloy parts meet the desired specifications. The analyzer can be used on the feedstock material (such as powder or filament) and the finished part to ensure that carbon and sulfur levels are within acceptable ranges. For critical components like those used in aerospace applications, controlling sulfur levels is essential to prevent issues like sulfur embrittlement, which could compromise structural integrity.
Checking for CNC Machined Superalloy Parts
After superalloy parts are cast, forged, or 3D printed, CNC machining is often used to achieve precise dimensions. However, due to heat generation and mechanical stress, the machining process can inadvertently alter the material’s composition, particularly at the surface. This makes it necessary to check CNC-machined parts' carbon and sulfur content to ensure they meet specifications and maintain the desired properties.
CSA is an effective method for checking the carbon and sulfur content of CNC machined superalloy parts, ensuring that the machining process hasn’t introduced unacceptable variations. By testing after machining, manufacturers can confirm that the parts retain the required fatigue resistance, creep strength, and oxidation resistance needed for demanding applications such as turbine engines and heat exchangers.
Other Detection Scenarios
In addition to cast, 3D printed, and CNC machined parts, CSA plays a role in several other manufacturing stages:
Heat Treatment and Forging: After heat treatment or forging, CSA verifies that carbon and sulfur levels are within the desired range to ensure the material has the correct microstructure and mechanical properties.
Powder Metallurgy: For superalloy parts produced via powder metallurgy, CSA helps confirm that the carbon and sulfur content in the powder feedstock is appropriate to achieve the desired properties in the final sintered part.
Post-Processing: After surface treatments like coating or plating, CSA inspects the final superalloy components to ensure that carbon and sulfur levels remain within acceptable limits.
In each scenario, CSA ensures that superalloy parts are manufactured with the correct material properties, which is critical for their performance in high-stress applications.
Compare with Other Checking Methods
While Carbon Sulfur Analyzers (CSA) are indispensable for controlling carbon and sulfur levels, they are just one tool among many in the quality assurance toolbox. Let's compare CSA with other standard checking methods used in superalloy manufacturing.
Comparison with GDMS (Glow Discharge Mass Spectrometry)
Glow Discharge Mass Spectrometry (GDMS) is a more comprehensive technique used to analyze the elemental composition of materials, including trace elements. GDMS can detect various elements, including those present in minute concentrations. However, it is not explicitly optimized for carbon and sulfur analysis. While GDMS is highly effective for elemental profiling, CSA is the preferred choice when carbon and sulfur levels are the primary concern, as it is more direct, cost-effective, and accurate for these specific elements. GDMS excels in providing a broader analysis of alloy composition, making it ideal for quality control of high-temperature alloys like Inconel and CMSX series in aerospace and energy applications.
Comparison with ICP (Inductively Coupled Plasma)
Inductively Coupled Plasma (ICP) is another method for elemental analysis that is beneficial for detecting elements in low concentrations. While ICP is valuable for determining the overall elemental composition of alloys, it typically requires liquid samples, making it less suitable for solid superalloy parts or requiring on-site, real-time analysis. CSA, in contrast, is designed to analyze solid metal samples directly and provides faster carbon and sulfur analysis results. ICP-OES (Inductively Coupled Plasma Optical Emission Spectrometer) is more suitable for general composition analysis for solid superalloy parts, but CSA remains the most reliable for sulfur and carbon detection.
Comparison with XRF (X-ray Fluorescence)
X-ray Fluorescence (XRF) is a non-destructive testing method used primarily for surface analysis. While it can detect the presence of various elements, it is not ideal for measuring carbon and sulfur, as these elements have low atomic numbers and are difficult to detect via XRF. CSA offers a more reliable and accurate solution for measuring carbon and sulfur, especially in bulk materials and throughout the thickness of the sample. For surface integrity checks of superalloy parts, XRF can be helpful. Still, CSA is the preferred method for accurate carbon and sulfur levels, which is crucial for superalloy casting in aerospace and energy applications.
When to Choose a Carbon Sulfur Analyzer (CSA)
Choosing when to use a Carbon Sulfur Analyzer (CSA) depends on the specific requirements of the manufacturing process and the performance characteristics needed from the final superalloy component. Here are some scenarios in which CSA should be chosen:
High-Performance Applications
CSA is essential for superalloy components used in critical applications such as aerospace, power generation, and chemical processing, where carbon and sulfur content can directly affect performance and safety. Components like turbine blades and heat exchanger parts require strict control over impurities such as carbon and sulfur to ensure their integrity under high stress, temperature, and corrosive conditions.
Quality Control and Certification
CSA plays a critical role in quality assurance when precise material composition control is required at each production stage, from initial casting or powder preparation to final part machining or finishing. Ensuring that the superalloy pump components meet stringent material specifications can help guarantee that the final product complies with international standards and certification requirements.
High-Temperature and Corrosive Environments
When superalloy parts are designed to operate in extreme environments, controlling carbon and sulfur is essential to prevent sulfur embrittlement and carbide formation. Components used in high-temperature environments, such as superalloy reactor vessel components or jet engine components, benefit from CSA to ensure their mechanical properties are not compromised by excessive carbon or sulfur content.
Additive Manufacturing
For 3D-printed superalloy parts, CSA is crucial to verify that the powder feedstock and finished parts adhere to strict composition standards. Preventing defects in the printed layers, such as improper bonding or compromised strength, requires ensuring that the carbon and sulfur content of the superalloy heat exchanger parts or superalloy pump system assemblies are within the desired limits for optimal performance and quality.
Using CSA at these stages helps ensure that superalloy components meet the required mechanical properties, operational efficiency, and safety standards across various industries.
