Whole Process Simulation of Superalloy Parts Manufacturing Service
Superalloys are high-performance materials that maintain strength and integrity under extreme temperatures and stresses. These alloys are essential in aerospace, defense, energy, and chemical processing industries, where parts are exposed to harsh operating conditions. The ability to simulate the entire manufacturing process of superalloy parts allows manufacturers to optimize production, reduce costs, and improve the performance and reliability of these critical components. This blog will explore the entire process simulation for superalloy parts manufacturing, detailing the various manufacturing processes, suitable superalloys, post-processing techniques, testing procedures, and the industries and applications where these parts are used.
Manufacturing Process
Manufacturing superalloy parts involves several sophisticated processes, each designed to achieve specific material properties required for high-performance applications. The simulation of these processes ensures that the final product meets the necessary specifications and quality standards while minimizing material waste and processing time.

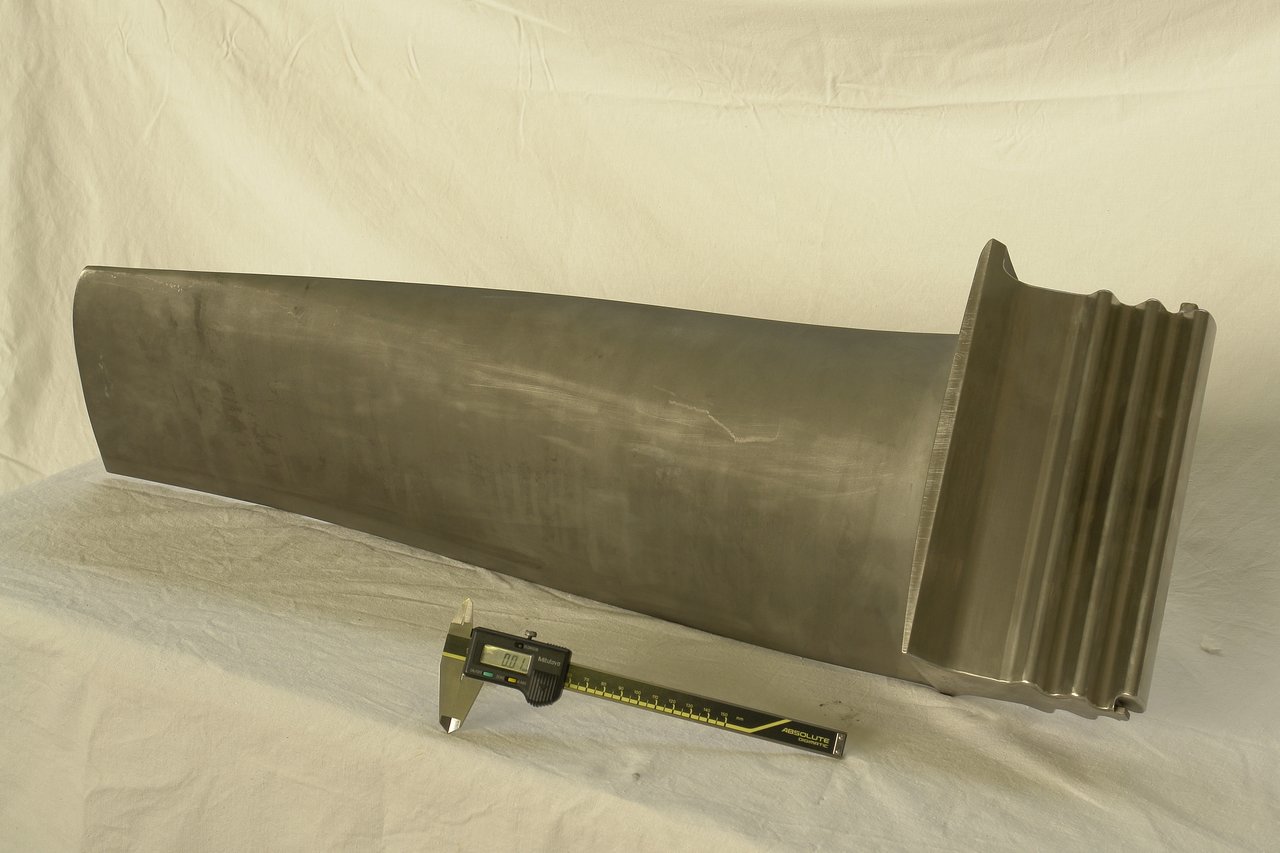

Vacuum Investment Casting is one of the most common methods for producing complex superalloy parts, particularly for turbine blades and other critical engine components. The process involves melting the superalloy in a vacuum and pouring it into a mold typically made from a ceramic shell. The simulation of this process focuses on optimizing the pouring temperature, mold material, and cooling rate to reduce the risk of casting defects like porosity or cracks.
Single Crystal Casting is a specialized casting technique for creating parts with exceptional resistance to creep and fatigue, such as turbine blades for gas turbines. In this process, the alloy is poured into a mold and then subjected to controlled cooling conditions to allow the formation of a single crystal structure. Simulating this process helps predict grain growth patterns and control defects that can arise from improper cooling rates, ensuring uniformity in the crystal structure.
Equiaxed Crystal Casting is another technique used for superalloy parts. Unlike single crystal casting, equiaxed casting results in part with a more uniform grain structure. This process is often used for parts that do not require the extreme strength of single crystal components. The simulation of equiaxed casting focuses on achieving uniform cooling to prevent internal stresses and improve the overall material properties.
Directional Casting is a process used to control the orientation of the grain structure in the superalloy. By cooling the material in a controlled manner, manufacturers can achieve the desired grain alignment, which improves the part's mechanical properties. This process is beneficial in the production of high-performance turbine blades. Simulations of directional casting allow manufacturers to optimize cooling rates to ensure the proper grain orientation.
Powder metallurgy (PM) is often used in superalloy parts manufacturing to create components like turbine discs and other intricate geometries. In this process, metal powders are compacted and sintered at high temperatures to form the desired part. The simulation of powder metallurgy helps optimize powder properties, sintering temperatures, and cooling cycles to minimize defects like porosity and ensure that the parts have the desired mechanical properties.
Forging is another critical process for superalloy parts, including precision, rough, accessible, and isothermal forging. Each process produces parts with superior mechanical properties by shaping the material through controlled deformation. Simulating the forging process helps to optimize the temperature, force, and die design to minimize defects and achieve the desired part characteristics.
CNC Machining is typically used to finish superalloy parts after they have undergone casting or forging. This process involves removing material from the workpiece using computer-controlled machines to achieve the required dimensions and surface finish. Simulating the machining process helps optimize tool paths, cutting speeds, and material removal rates to reduce machining time and improve part accuracy.
3D Printing is increasingly used to produce superalloy parts, particularly for rapid prototyping and low-volume production. 3D printing allows manufacturers to produce highly complex geometries that are difficult or impossible to achieve through traditional manufacturing methods. The simulation of 3D printing processes helps to control factors such as layer bonding, material properties, and thermal effects during the printing process.
Suitable Superalloys
The selection of superalloys for manufacturing processes is crucial in ensuring the performance and durability of the final product. Different superalloys are suitable for different applications and manufacturing methods based on their composition and material properties.
Inconel Alloys
Inconel alloys, such as Inconel 718 and Inconel 625, are widely used in aerospace and turbine applications due to their excellent high-temperature strength, corrosion resistance, and oxidation resistance. These alloys are well-suited for casting processes like vacuum investment and single crystal casting. Their resistance to thermal expansion makes them ideal for use in turbine blades, combustion chambers, and other high-temperature environments.
CMSX Series Alloys
CMSX Series alloys, such as CMSX-10 and CMSX-4, are specifically designed for single crystal casting applications. These alloys offer superior creep and fatigue resistance at high temperatures, making them ideal for critical components in turbine engines. The single crystal structure minimizes grain boundary weaknesses, ensuring optimal performance in extreme conditions.
Hastelloy Alloys
Hastelloy alloys, including Hastelloy X and Hastelloy C-276, are known for their high resistance to corrosion and oxidation, especially in chemical processing applications. These alloys are suitable for powder metallurgy and CNC machining processes, requiring high precision.
Monel Alloys
Monel alloys, like Monel 400 and Monel K500, are ideal for applications requiring high strength and excellent corrosion resistance. These alloys are often used in marine, chemical, and oil and gas applications. They can be successfully processed using forging and CNC machining techniques.
Nimonic Alloys
Nimonic alloys, such as Nimonic 80A and Nimonic 901, are used in aerospace and power generation applications. These alloys offer high tensile strength and resistance to creep at elevated temperatures. Nimonic alloys are typically processed using casting, forging, and machining methods.
Rene Alloys
Rene alloys, such as Rene 41 and Rene 142, are high-performance alloys designed for extreme high-temperature environments. These alloys are used in the most demanding aerospace applications, including turbine blades and engine components. Rene alloys are well-suited for casting, forging, and CNC machining processes.
Post-Processes
Once superalloy parts are manufactured through casting, forging, or 3D printing, they often require additional post-processing to enhance their properties and performance.
Heat treatment is one of the most common post-processing techniques for superalloy parts. This process involves heating the parts to a specific temperature and then cooling them at a controlled rate to alter their microstructure and improve mechanical properties like hardness, strength, and flexibility.
Hot Isostatic Pressing (HIP) eliminates porosity in cast parts and improves their density and overall strength. The part is subjected to high pressure and temperature in an inert gas environment to compact the material and close any internal voids. HIP is commonly used in parts produced by vacuum investment casting or powder metallurgy.
Superalloy welding is another critical post-processing step used to join superalloy components. Welding can be challenging due to the high temperatures and specific alloy compositions. Special welding techniques are required to maintain material properties and minimize defects during welding.
Thermal Barrier Coating (TBC) is applied to superalloy parts to improve their resistance to high temperatures and protect them from oxidation and corrosion. TBC is commonly used on turbine blades and other high-temperature components in aerospace and power generation applications.
CNC Machining and Deep Hole Drilling are essential post-processing steps to achieve precise dimensional accuracy and surface finishes. These processes refine cast or forged parts, ensuring they meet tight tolerances and are suitable for their intended application.
Electrical Discharge Machining (EDM) creates complex shapes and delicate features that cannot be achieved with conventional machining methods. EDM benefits intricate geometries in superalloy parts, such as turbine blades or fuel nozzles.
Testing
Testing is a crucial step in the superalloy parts manufacturing process to ensure that the components meet the required performance standards. Various testing methods are used to assess the superalloy parts' mechanical properties, durability, and integrity.
Tensile testing is used to evaluate the strength and flexibility of superalloy materials at both room and elevated temperatures. This test helps determine how the material will behave under different loads, which is crucial for components that experience high stresses, such as turbine blades.
Fatigue testing is another critical test for superalloy parts, particularly those used in high-cycle applications like turbines. This test evaluates the material's ability to withstand repeated loading and unloading without failure. Fatigue tests are critical for ensuring the longevity and reliability of components in demanding environments.
Metallographic microscopy and Scanning Electron Microscopy (SEM) are used to analyze the microstructure of superalloy parts and identify any defects such as porosity, cracks, or inclusions. These tests help ensure the parts have the required microstructure for optimal performance. Advanced methods like EBSD analysis can provide additional insights into grain boundaries and crystallographic orientation.
X-ray inspection detects internal defects in cast parts, such as voids or cracks that may not be visible on the surface. This non-destructive testing method is essential for ensuring the integrity of high-performance superalloy parts. Additionally, techniques like ultrasonic testing provide further capabilities in detecting internal flaws.
X-ray Fluorescence (XRF) spectrometry is used to confirm the chemical composition of superalloy parts, ensuring they conform to the specified alloy requirements. This is particularly important for aerospace and power generation applications, where strict material specifications must be met to ensure the reliability and safety of components.
Industry and Application of Superalloy Parts

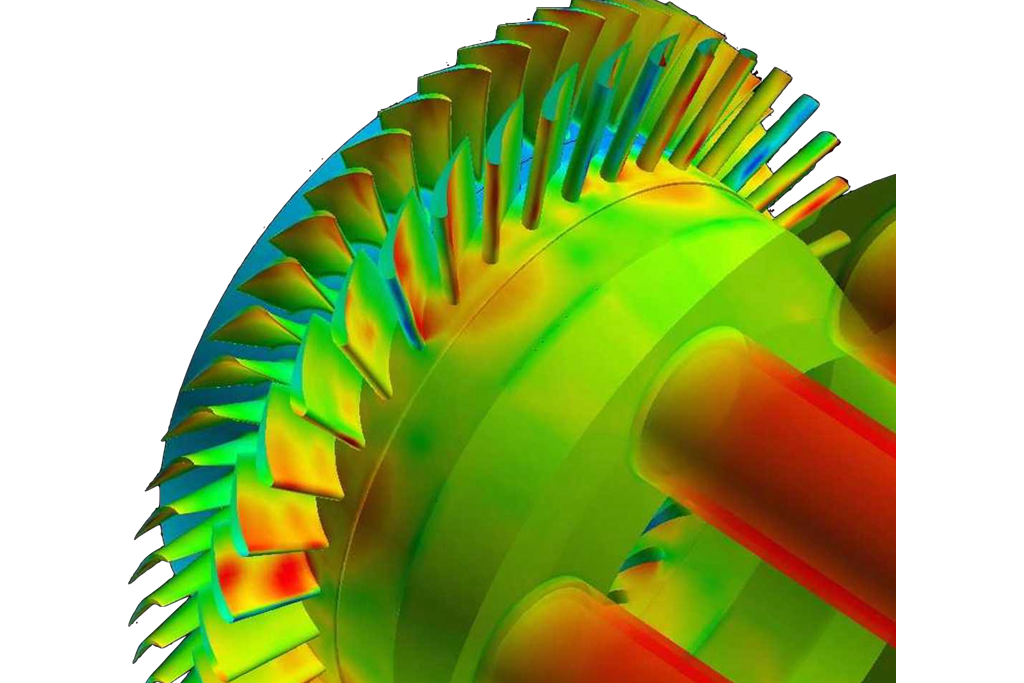

Superalloy parts are critical components in many industries where performance under extreme conditions is required. Whole process simulation enhances the ability to predict, test, and refine superalloy parts for these applications.
Aerospace and Aviation
Superalloy turbine blades, combustion chambers, and heat exchangers are essential for jet engines and spacecraft. Simulation ensures these parts are optimized for high temperatures, stresses, and fatigue resistance, contributing to improved safety and performance in demanding aerospace applications.
Power Generation
In Power Generation, components used in gas turbines, steam generators, and nuclear reactors must withstand high temperatures and pressure. Simulation helps ensure that superalloy turbine blades and reactor vessel parts meet these stringent demands, enabling reliable energy production.
Oil and Gas
Superalloy parts are critical in Oil and Gas drilling equipment and refining processes, where high pressures and temperatures are the norm. Simulation helps optimize the manufacturing process for these demanding applications, ensuring that high-temperature alloy pump components maintain their performance under severe operating conditions.
Defense and Military
Defense and Military applications require superalloy components in missile technology, weapons systems, and military engines to meet the highest reliability standards. Process simulation helps ensure these parts can withstand extreme operating conditions, enhancing the operational effectiveness and longevity of superalloy armor system parts.
Marine
From propulsion systems to exhaust systems, superalloy parts are essential for marine applications. Simulating the entire manufacturing process ensures that these parts can perform effectively in corrosive, high-pressure marine environments, typical in naval ships and offshore platforms.
Automotive and Chemical Processing
Superalloys are used in Automotive high-performance engines and in Chemical Processing reactors where durability and resistance to oxidation are critical. Whole process simulation ensures that superalloy components, such as superalloy transmission component assemblies, meet these demanding requirements for efficient and long-lasting performance.
FAQs
What are the advantages of using whole process simulation in superalloy parts manufacturing?
Which superalloys are most suitable for single crystal casting and why?
How does Hot Isostatic Pressing (HIP) improve the quality of superalloy parts?
What is the role of thermal barrier coatings in enhancing superalloy parts performance?
How does metallographic microscopy contribute to quality assurance in superalloy manufacturing?
