What Is Single Crystal Casting Dendrite Microstructure Refinement Technique?

Single crystal casting is a specialized manufacturing process that produces high-performance components that require outstanding mechanical properties, especially under high temperatures and extreme conditions. This technique, primarily used in aerospace and aviation, power generation, and defense industries, is vital for creating parts that demand superior strength, fatigue resistance, and thermal stability. The refinement of dendrite microstructure plays a crucial role in improving these material properties.

In this blog, we will explore the intricacies of the single crystal casting process, the techniques for refining dendrite microstructure, the suitable superalloys used, and the post-processing steps and testing methods that ensure quality.

Introduction to Single Crystal Casting

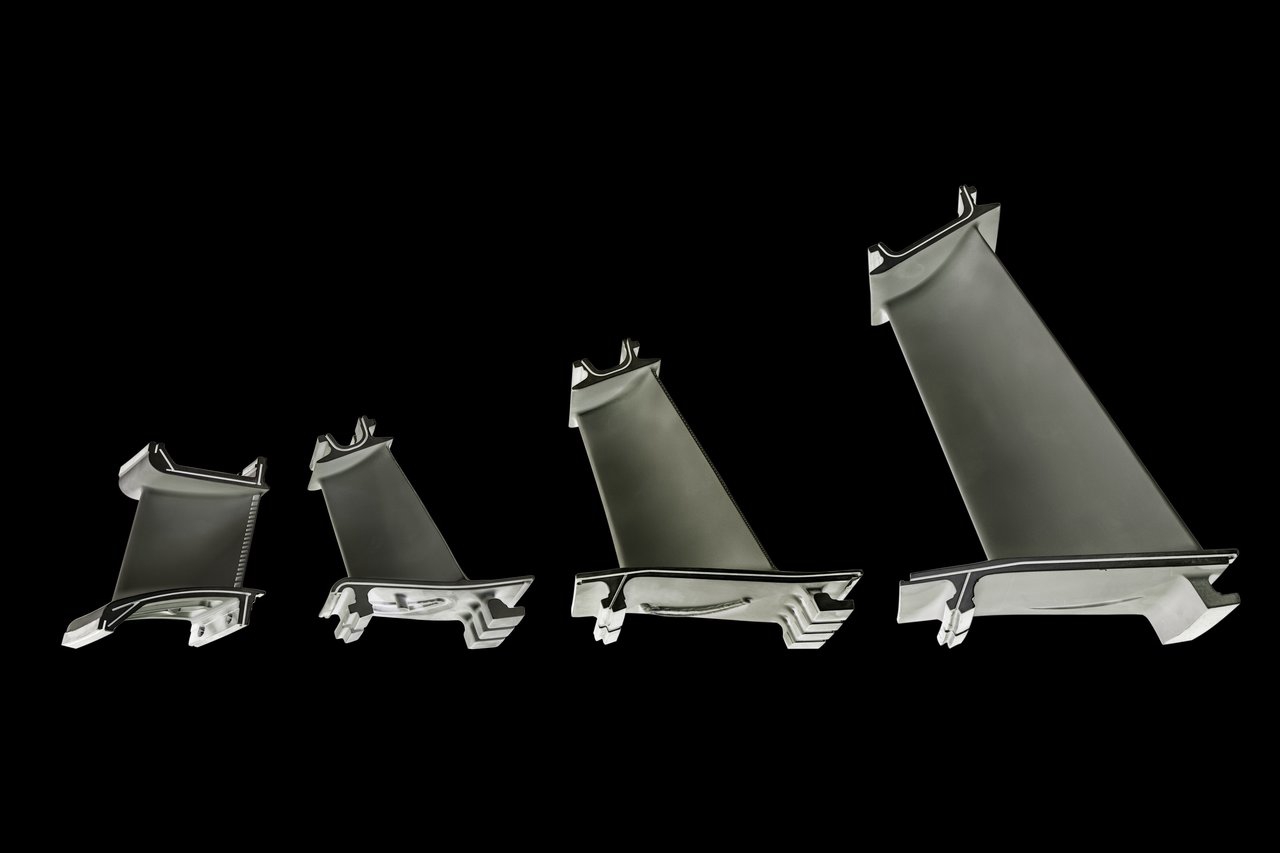

Single crystal casting involves solidifying molten metal into a single, uninterrupted crystal structure. This process is essential for high-temperature superalloys used in turbine blades, engine components, and other critical parts exposed to extreme thermal and mechanical stresses. Unlike conventional casting techniques that create polycrystalline structures, single-crystal casting eliminates grain boundaries, which are the weak points in many alloys.

This method allows manufacturers to create components that exhibit improved resistance to creep, fatigue, and thermal cycling, critical characteristics for parts used in jet engines, gas turbines, and other high-performance applications. The refined microstructure, including the absence of grain boundaries, provides increased resistance to high-stress environments, particularly at elevated temperatures. As a result, these high-performance components are integral to industries such as aerospace and aviation, where precision and durability are paramount.

The Dendrite Microstructure in Single Crystal Casting

Dendritic structures in metals are tree-like branching patterns that form during solidification. These structures are typically observed in alloys that solidify from the liquid state, where the metal solidifies in a branched pattern as the temperature drops. In single crystal casting, dendrites can form during the cooling of the molten metal, depending on the cooling rate and alloy composition.

The microstructure of the cast metal plays a significant role in its mechanical properties. While naturally occurring, dendritic structures can produce undesirable material properties such as reduced tensile strength, fatigue resistance, and toughness. This is because dendrites are less effective in withstanding the typical directional stresses in high-temperature and high-stress applications. Therefore, controlling the formation of these dendrites and refining their size and distribution is critical to improving the material's performance. For example, using advanced processes like superalloy directional casting can help minimize the formation of dendrites, ensuring more uniform solidification and enhancing the overall material properties.

Post-processing techniques such as hot isostatic pressing (HIP) can be applied to further improve the cast metal's properties. HIP helps reduce residual porosity and defects, providing a more uniform and dense microstructure that leads to better mechanical performance, especially in demanding applications like turbine blades or high-temperature components.

Single Crystal Casting Process

Single crystal casting is complex and requires precise control of several factors to ensure the resulting component meets strict material specifications. The steps in this process are designed to promote the growth of a single, continuous crystal from the molten metal.

The process begins with preparing a metal alloy, often a superalloy such as Inconel, CMSX, or Rene, which is poured into a mold. The mold is often made of a material that can withstand high temperatures, such as ceramic. Once the molten metal is poured into the mold, the temperature is controlled for gradual cooling and solidification.

A directional solidification technique is employed during solidification. This technique directs the heat away from a specific part of the mold to encourage the growth of a single crystal, ensuring that the crystal grows in a specific direction. This directional cooling is critical for achieving the desired single-crystal structure. Sometimes, a seed crystal may be introduced to control the crystal growth direction.

As the metal solidifies, the dendritic microstructure begins to form. However, the cooling rate and mold design can influence the dendrite growth, with faster cooling rates generally leading to finer dendritic structures. By carefully controlling the cooling rates and other solidification parameters, the growth of dendrites can be minimized, leading to a refined microstructure and improved mechanical properties. In cases where refinement is required, post-processing techniques such as superalloy CNC machining can be employed to achieve the desired precision and surface finish.

Dendrite Microstructure Refinement Techniques

Refining the dendritic microstructure in single crystal casting is essential to ensuring the desired material properties. Several techniques are employed to control dendrite formation and improve the mechanical characteristics of the material.

Grain Refinement: One of the primary methods of controlling dendritic structures is grain refinement. Manufacturers can achieve a more uniform and finer dendrite structure by introducing elements promoting uniform solidification or controlling the cooling rate during casting. The finer the dendrites, the more uniform the material's properties will be, leading to improved strength and resistance to thermal fatigue. This can be achieved through superalloy directional casting, where heat is controlled to guide the solidification process in a desired direction, minimizing dendrite formation.

Modifiers and Alloying Elements: In some cases, alloying elements or modifiers may be added to the molten metal to reduce the formation of coarse dendritic structures. These elements can help refine the grain size and enhance the overall mechanical properties of the cast material. For example, elements like titanium or boron are often used in superalloy casting to control grain growth and improve the strength and durability of the component.

Control of Cooling Rates: Cooling rates are critical in dendrite formation. Controlling the cooling speed during casting can influence the size and shape of the dendrites. Slow cooling can promote the growth of coarse dendrites, whereas rapid cooling can result in finer structures. Advanced techniques, such as electromagnetic stirring or controlled solidification, manipulate cooling rates and refine the microstructure. These techniques can be combined with post-processing methods like hot isostatic pressing (HIP) to achieve a defect-free, uniform microstructure.

Suitable Superalloys for Single Crystal Casting

Due to their excellent high-temperature properties, single-crystal casting is used with high-performance superalloys, typically nickel-based alloys. The following alloys are commonly used in single crystal casting due to their superior strength, oxidation resistance, and creep resistance:

CMSX Series

The CMSX Series is specifically designed for single crystal casting and is widely used in turbine blades and other critical aerospace and power generation components. CMSX-10, CMSX-4, and CMSX-486 are commonly used in gas turbine applications due to their excellent high-temperature performance and resistance to thermal cycling.

Rene Alloys

Rene alloys are another family of nickel-based superalloys, such as Rene 41 and Rene 104, designed for single crystal casting. These alloys offer high strength at elevated temperatures and are commonly used in aerospace applications, particularly in turbine engine components.

Inconel Alloys

Inconel 718 and Inconel 738 are popular alloys in single-crystal casting, known for their excellent oxidation and corrosion resistance at high temperatures. These alloys are used in applications such as turbine blades and other components subjected to extreme environments.

Single Crystal Alloys

In addition to the CMSX and Rene series, other single-crystal alloys like PWA 1480 and CMSX-2 are used for applications requiring enhanced thermal and mechanical properties. These alloys offer the superior properties needed for demanding environments such as aerospace engines and power generation turbines.

Each superalloy is carefully selected based on the application's specific requirements, such as temperature resistance, mechanical strength, and fatigue resistance. The choice of alloy depends on the performance needs of the component and the operational environment to which it will be exposed.

Post-Processing of Single Crystal Castings

Once the single crystal casting has been produced, several post-processing techniques are employed to enhance the material's properties further. These processes include:

Hot Isostatic Pressing (HIP)

HIP is a post-processing technique that eliminates any residual porosity in the casting. This process involves subjecting the casting to high pressure and temperature in an inert atmosphere. HIP helps improve the density of the material and enhances its mechanical properties, making it more resistant to fatigue and thermal damage. Hot Isostatic Pressing is essential for ensuring the high-quality performance of high-temperature alloys.

Heat Treatment

Heat treatment processes such as aging and solution heat treatment are used to modify the alloy's microstructure. These treatments can improve strength, hardness, and resistance to creep. In the case of single-crystal alloys, heat treatment is carefully controlled to avoid damaging the crystal structure. Superalloy heat treatment optimizes material properties to meet demanding application requirements.

Superalloy CNC Machining

After casting, the parts are often machined to achieve the required shape and dimensions. CNC machining ensures high precision in creating the final part, which is crucial for components that need to meet strict dimensional tolerances. Superalloy CNC machining allows for fine-tuning parts with tight tolerances and complex geometries.

Thermal Barrier Coating (TBC)

Thermal barrier coatings (TBC) are often applied to single crystal castings in high-temperature applications, such as gas turbines. These coatings help protect the material from extreme temperatures, extending the component's lifespan. Thermal barrier coating (TBC) is crucial for improving the longevity and performance of components exposed to high thermal stresses.

Testing and Quality Control

A range of testing methods is employed throughout the manufacturing process to ensure that the single crystal castings meet the required standards.

Non-destructive Testing (NDT)

Techniques like X-ray and ultrasonic testing detect any internal defects or porosity within the casting. Metallographic microscopy is also used to examine the microstructure of the alloy. These methods ensure that internal defects are detected without damaging the component.

Tensile Testing

Tensile tests are conducted to evaluate the strength and flexibility of the cast component, ensuring that it meets the required mechanical properties. Tensile Testing is essential to understand how the material will perform under stress and whether it can withstand the conditions it will encounter in service.

Scanning Electron Microscopy (SEM)

Scanning Electron Microscopy (SEM) is used to examine the microstructure of the casting in detail. This technique can identify defects at the microscopic level and assess the quality of the single crystal structure, ensuring that the material's integrity meets high standards for critical applications.

Dimensional Inspection

Coordinate Measuring Machine (CMM) testing to ensure the component meets the required dimensional specifications. Ensuring that the final product fits precisely within the intended system and complies with the design tolerances is crucial.

Industry Applications of Single Crystal Castings

Single crystal castings are used in many industries where high-performance materials are required. Some of the critical applications include:

Aerospace

Single crystal turbine blades and engine components are used in jet and gas turbines, where high strength and resistance to thermal cycling are critical. Aerospace applications such as these rely heavily on the durability and performance of single-crystal alloys to ensure the efficiency of flight systems in extreme conditions.

Power Generation

Gas turbines and combustion chambers used in power plants benefit from single-crystal castings due to their superior high-temperature performance. Power generation industries often require these components for optimal operation in high-stress, high-temperature environments, increasing the lifespan of critical equipment.

Marine

Components such as naval ship modules and missile segments require single crystal castings to enhance high stress and corrosion resistance. Marine applications depend on these advanced materials to ensure long-lasting performance in harsh maritime environments.

Oil & Gas

Single crystal castings are used in pump systems and heat exchangers in the oil and gas industry, where they must withstand extreme conditions. For example, parts used in oil and gas pumps and heat exchangers benefit from the ability of single-crystal alloys to maintain structural integrity under high pressure and temperature.

Military & Defense

Components for missile systems and armor benefit from the superior strength and toughness of single-crystal alloys. The military and defense sector relies on these advanced materials for applications where performance under extreme stress and heat is crucial.

Automotive

Single crystal casting is used in high-performance engine components and exhaust systems, where heat resistance and strength are crucial. In the automotive sector, single crystal castings ensure the long-term performance of critical engine parts, particularly in high-performance or racing vehicles.

FAQs

1. What is the difference between single crystal casting and traditional casting techniques?

2. How does dendrite microstructure affect the mechanical properties of alloys?

3. What is the role of HIP in the post-processing of single crystal castings?

4. What superalloys are commonly used in single crystal casting?

5. How does single crystal casting improve the performance of turbine blades?
