What Are the Benefits of Fine-Crystal Technology In Single Crystal Casting?
Fine-Crystal Technology in Single Crystal Casting
Single crystal casting is a cutting-edge manufacturing process that produces components with superior mechanical properties, particularly for high-temperature applications. The process is vital in aerospace and aviation, power generation, and defense, where reliability and strength are critical. A significant advancement in this process is the application of fine-crystal technology, which enhances the quality and performance of castings by refining the grain structure at a microscopic level.
Fine-crystal technology is crucial in selecting superalloys, ensuring the materials are optimized for strength, fatigue resistance, and high-temperature performance. Fine-crystal technology improves the casting process and ensures that components exhibit reduced porosity, increased uniformity, and enhanced mechanical properties. Post-processing techniques such as heat treatment and hot Isostatic Pressing (HIP) further improve the overall performance of the parts.
Testing methods, including metallographic microscopy and tensile testing, ensure these castings meet stringent quality standards. These advancements in single-crystal casting and fine-crystal technology are essential for creating high-performance parts for aerospace, energy, and military defense applications.
Introduction to Single Crystal Casting Technology
Single crystal casting is a specialized technique to produce high-performance alloy components. Unlike conventional casting, which forms parts with a polycrystalline structure, single crystal casting produces parts with a single, uninterrupted grain structure. This unique arrangement of atoms allows the component to exhibit superior mechanical properties, including higher fatigue resistance, greater strength at high temperatures, and improved thermal stability. These properties are essential for applications where performance and durability are crucial, such as turbine blades in jet engines and gas turbines.
Fine-crystal technology, a refinement of the single-crystal casting process, further improves the casting’s quality by controlling the crystallization process at the microstructural level. This technique leads to finer and more consistent grain boundaries, enhancing the overall material performance. By improving the precision of the crystal structure, fine-crystal technology allows for the production of components with greater strength and resistance to high-stress environments. It is critical for industries such as aerospace, where parts must withstand extreme conditions without compromising reliability or performance.
The Role of Fine-Crystal Technology in Single Crystal Casting
Fine-crystal technology is a method that focuses on producing a finer, more uniform crystal structure during the directional solidification process. In traditional casting, the grain structure can be irregular, which leads to weak points in the material where cracks or fatigue can develop. Fine-crystal technology addresses this issue by ensuring that the grain structure is uniform throughout the casting.
The key benefit of fine-crystal technology is its ability to optimize material properties. By controlling the cooling rate and solidification conditions, manufacturers can achieve smaller and more refined grains, improving tensile strength, creep resistance, and thermal fatigue resistance. These finer grains reduce the potential for defects and create a more durable part that can withstand the extreme conditions commonly encountered in high-performance environments. In addition, this refinement process can be further enhanced by combining it with advanced methods like superalloy precision forging, which refines the material at a macro scale to improve its mechanical properties.
Moreover, fine-crystal technology reduces the occurrence of macrosegregation, a phenomenon where impurities or alloying elements separate from the matrix during solidification. It leads to more homogeneous material properties across the entire part, further enhancing its reliability and strength. It is particularly critical for applications in high-stress environments, such as superalloy turbine discs, where uniformity and strength are essential for performance and longevity.
Suitable Superalloys for Fine-Crystal Single Crystal Casting
Certain high-temperature alloys are particularly well-suited for single-crystal casting with fine-crystal technology. These alloys are designed to operate in extreme conditions, offering both strength and thermal resistance. Some of the most commonly used alloys in this process include CMSX series, Rene alloys, Inconel alloys, and other specialized single-crystal alloys.
CMSX Series
The CMSX alloys, such as CMSX-10, CMSX-11, and CMSX-4, are widely regarded as some of the most advanced single-crystal alloys. These materials are designed for applications requiring high-temperature strength, oxidation, and creep resistance. The CMSX alloys exhibit excellent mechanical properties at elevated temperatures, making them ideal for turbine blades, stators, and other aerospace and power generation components.
Rene Alloys
Rene alloys, such as Rene 104, Rene 108, and Rene 142, are some well-known alloys in the Rene series, formulated explicitly for high-temperature applications. These alloys offer excellent strength and resistance to creep, making them suitable for turbine blades, nozzles, and other critical aerospace components. Fine-crystal technology helps enhance their inherent properties, improving their fatigue resistance and lifespan.
Inconel Alloys
Inconel alloys, such as Inconel 718, Inconel X-750, and Inconel 713, are extensively used in single-crystal casting for their exceptional resistance to oxidation and corrosion at high temperatures. These alloys are particularly suitable for components in gas turbines and jet engines. Fine-crystal technology is essential in ensuring these alloys maintain strength and reliability under extreme conditions.
Single Crystal Alloys
Other specialized alloys, such as PWA 1480, CMSX-2, and TMS-75, are tailored for single crystal casting to optimize high-temperature performance. Gas turbine blades, compressor rotors, and exhaust system parts use these materials. The fine-crystal casting process enhances the mechanical properties of these alloys, allowing them to operate efficiently in high-stress and high-temperature environments.
Single Crystal Casting Process Overview
The single crystal casting process involves several key steps, each ensuring the final product is of the highest quality. Fine-crystal technology is integrated into this process at various stages, particularly during the solidification and cooling.
Pattern Preparation and Material Selection:
The first step in the single crystal casting process is preparing the pattern, forming the basis for the final casting. The alloy material is carefully chosen based on the intended application. Fine-crystal alloys are selected for their ability to withstand high temperatures and maintain their structural integrity.
Investment Casting Mold Creation:
A ceramic mold is created around the pattern, typically made of a high-temperature-resistant material like wax. The mold is built in layers, each hardened to ensure it can withstand the intense heat during the casting process. Investment casting is a common technique to create precise molds for high-performance parts.
Directional Solidification and Fine-Crystal Formation:
Directional solidification is a key technique used in single-crystal casting. The mold is carefully cooled to promote the growth of a single crystal from one end of the mold to the other. Fine-crystal technology is applied during this phase to control the crystal formation, ensuring that the crystals are smaller and more uniform, improving the final part's mechanical properties. This process is especially critical when working with high-temperature alloys such as Inconel and CMSX alloys.
Cooling Techniques:
Once the material has solidified, cooling is carefully controlled to prevent the formation of defects such as cracks or porosity. Combined with fine-crystal principles, the cooling process helps produce a uniform grain structure and minimizes internal stresses. Techniques like superalloy CNC machining may be employed afterward to ensure the part meets precision requirements.
Post-Processing Techniques for Fine-Crystal Castings
After the single crystal part has been cast, a series of post-processing steps are required to ensure that it meets the stringent performance standards required for high-temperature applications. Some of the most common post-processing techniques used for fine-crystal castings include:
Hot Isostatic Pressing (HIP)
HIP is a process that eliminates any residual porosity in the casting, improving material density and overall strength. By subjecting the casting to high pressure and temperature, HIP helps to consolidate the material, ensuring that it is free from internal defects that could compromise its integrity. Hot Isostatic Pressing (HIP) is crucial for achieving the high mechanical properties required in demanding applications like turbine components.
Heat Treatment
Heat treatment is a crucial step in optimizing the microstructure of the material. It enhances the cast component's strength, toughness, and mechanical properties. For fine-crystal castings, precise heat treatment is required to ensure that the crystal structure remains intact and that the component exhibits the desired properties. Superalloy heat treatment methods ensure the material properties are optimized for high-temperature performance and reliability.
Superalloy Welding and Surface Treatments
In some cases, welding or surface treatments are necessary to repair defects or enhance the material properties. These processes are critical for parts that must withstand high-stress levels, such as turbine blades and combustion chambers. Superalloy welding and advanced surface treatments improve the durability and performance of parts exposed to extreme operating conditions.
Thermal Barrier Coating (TBC)
TBCs are applied to single crystal castings, particularly in gas turbines, to protect the material from high-temperature oxidation and thermal fatigue. The coating helps extend the component's life, allowing it to function efficiently in extreme conditions. Thermal barrier coatings (TBC) enhance parts' thermal protection and longevity in gas turbines and other high-temperature applications.
Testing and Quality Assurance for Fine-Crystal Castings
Given the critical nature of components produced by single crystal casting, rigorous testing is essential to ensure that the parts meet the required standards. Several advanced testing methods are employed to assess the quality of fine-crystal castings:
X-ray and Metallographic Microscopy
These techniques examine the cast part's internal integrity and grain structure. X-ray inspections can reveal hidden defects, while metallographic microscopy helps assess the uniformity and quality of the crystal structure. These tests ensure the material is free from internal flaws that could compromise its performance.
Tensile Testing and Fatigue Testing
Tensile testing measures the material’s strength under tensile stress, while fatigue testing assesses how the material behaves under repeated loading conditions. These tests ensure that the part will perform well in real-world applications, especially under cyclic stress environments like those in aerospace or turbine engines.
Scanning Electron Microscope (SEM) and EBSD
These advanced microscopy techniques are used to study the microstructure in detail, identifying potential defects or inconsistencies in the crystal structure. Scanning Electron Microscopy (SEM) and Electron Backscattering Diffractometer (EBSD) allow for high-resolution crystal orientation analysis, helping to identify flaws that could affect the part's performance in critical applications.
Non-Destructive Testing (NDT)
Non-destructive testing (NDT) methods, such as ultrasonic testing and industrial CT scanning, identify hidden defects or structural weaknesses without damaging the part. These methods ensure that the internal structure of the fine-crystal castings is sound and free of defects that could compromise performance.
Industries and Applications of Fine-Crystal Single Crystal Castings
Fine-crystal single-crystal casting is used across various industries, requiring components capable of withstand extreme conditions. These industries rely on the superior properties of single-crystal alloys to deliver high-performance parts.
Aerospace and Aviation

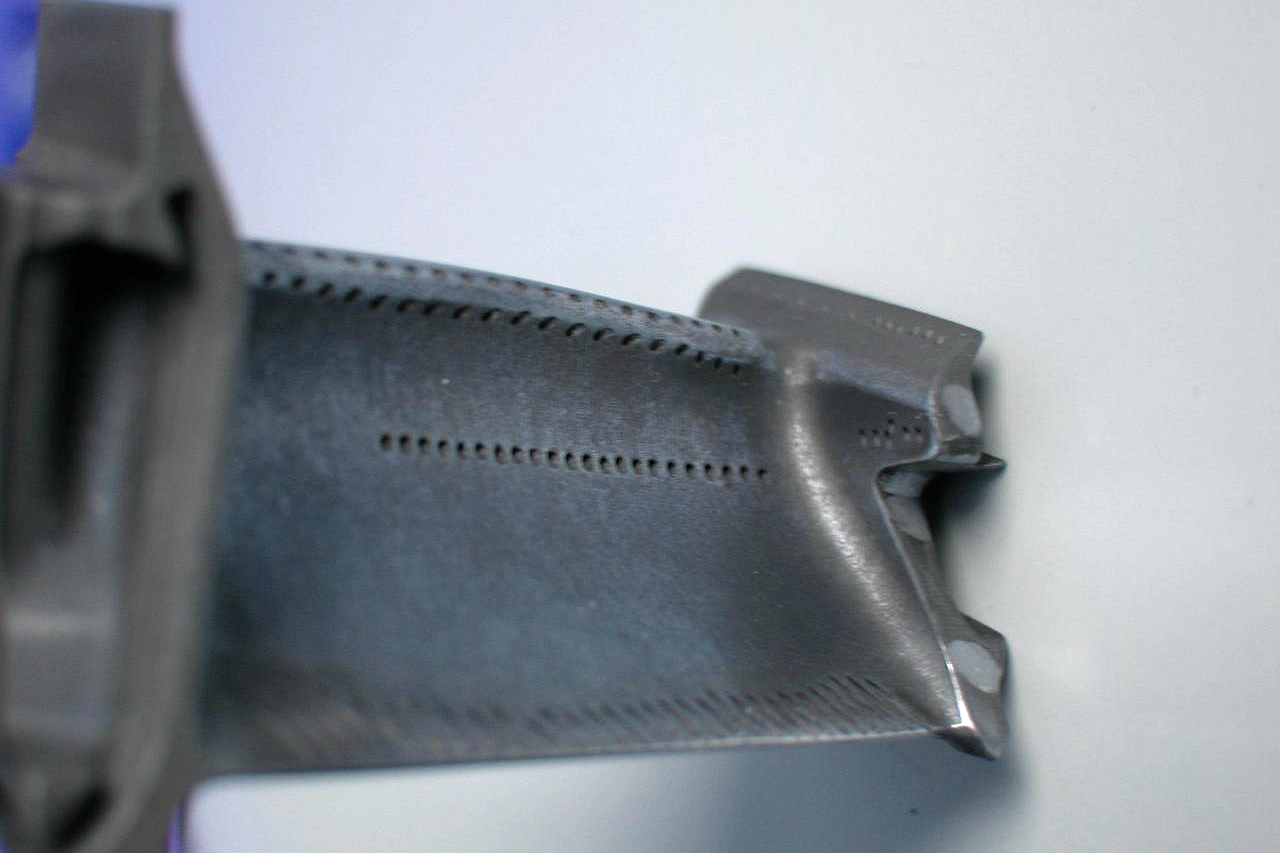

Fine-crystal casting is widely used for turbine blades, nozzle rings, and engine components that must endure high temperatures and mechanical stresses. In the aerospace and aviation sector, these components are critical for ensuring the longevity and performance of jet engines and other high-performance systems.
Power Generation
Gas turbines and other high-temperature components benefit from fine-crystal alloys due to their resistance to thermal fatigue and high creep strength. For power generation industries, fine-crystal casting provides the durability required for critical components like combustion chambers and turbine blades.
Oil & Gas and Marine
Offshore platforms, subsea components, and marine engines require parts made from fine-crystal castings for their corrosion resistance and ability to perform under extreme pressure and temperature. Oil and gas industries use these advanced alloys to create long-lasting components for pumps and heat exchangers. At the same time, marine applications benefit from the ability of fine-crystal castings to resist both corrosion and wear in harsh environments.
Defense and Military
Fine-crystal technology produces parts for advanced missile systems, armor plating, and weaponry, ensuring durability and reliability under combat conditions. In demanding applications, the military and defense sectors rely on these high-performance materials to maintain superior strength and resistance to heat and stress.
Nuclear and Chemical Processing
Components used in nuclear reactors and distillation and filtration systems benefit from the strength and corrosion resistance provided by fine-crystal casting. In the nuclear and chemical processing industries, fine-crystal alloys are essential for ensuring the safe and efficient operation of reactors and chemical systems exposed to extreme conditions.
