WAAM 3D Printing for Large Stainless Steel Structural Parts
Wire Arc Additive Manufacturing (WAAM) has become one of the most transformative technologies for producing large, high-performance parts, especially in the aerospace, automotive, power generation, and marine industries. WAAM offers a more flexible and cost-effective solution for producing sizeable stainless steel structural components, unlike traditional manufacturing techniques that require expensive tooling and long production times. The combination of additive manufacturing's layer-by-layer precision with welding techniques' speed and material properties opens new possibilities in industrial part production.
Wire Arc Additive Manufacturing (WAAM) is a form of additive manufacturing that uses welding to deposit metal wire onto a substrate to build up parts layer by layer. The process begins with a metal wire (typically stainless steel or other alloys) being fed into a welding arc, where the arc's heat melts the material. This molten material is then deposited onto the substrate, solidifying and bonding with the layer beneath. The process repeats in layers until the part is fully built, creating a robust, high-strength component.
The main advantage of WAAM over traditional additive manufacturing technologies, such as laser sintering or electron beam melting, is its ability to handle large parts efficiently. WAAM is ideal for producing sizeable stainless steel structural components that require high strength, durability, and precise geometries. The process allows for the direct fabrication of parts without needing expensive molds, making it a cost-effective solution for custom and low-volume manufacturing. It also supports using a range of materials commonly used in industrial applications, including high-performance alloys such as Inconel, Monel, Hastelloy, and titanium.
The WAAM process begins with preparing the substrate, which can be a plate or a pre-formed part. The substrate is usually pre-heated to reduce the risk of thermal shock or cracking during deposition. Next, the wire feedstock is fed into the welding arc, where the heat generated by the arc melts the wire and fuses it with the substrate. The operator or machine controls the speed and direction of the welding arc, along with the deposition rate, to build up the part layer by layer.
As each material layer is deposited, it is allowed to cool and solidify. Because the material is deposited directly where needed, WAAM minimizes material waste and is highly efficient regarding time and resources. The result is a part with high mechanical strength, excellent dimensional accuracy, and relatively low distortion compared to other additive manufacturing methods.
Suitable Materials for WAAM 3D Printing of Stainless Steel Parts
One of the key advantages of WAAM is its ability to work with a range of materials suitable for high-performance structural applications. For stainless steel parts, WAAM can handle both standard stainless steel grades and more specialized alloys that are used in high-temperature, corrosion-resistant, or high-stress environments. The material selection depends on the part's application and the operating conditions it will face.
Inconel Alloys
Inconel alloys are often used in WAAM for high-temperature and corrosion-resistance applications. Inconel 625 and Inconel 718 are known for their ability to withstand extreme heat, oxidation, and pressure conditions. These alloys are commonly used in the aerospace and power generation industries for turbine blades, engine components, and exhaust systems. In WAAM, Inconel alloys provide the strength and durability required for high-stress applications while maintaining resistance to environmental degradation.
Monel Alloys
Monel alloys (e.g., Monel 400) are nickel-copper alloys known for their excellent corrosion resistance, particularly in marine environments and chemical processing applications. Monel alloys are also used in oil and gas industries for parts exposed to seawater or harsh chemical conditions. When used in WAAM, Monel alloys allow manufacturers to produce large parts that can withstand corrosion without needing expensive coatings or treatments.
Hastelloy Alloys
Hastelloy alloys, such as Hastelloy C-276 and Hastelloy C-22, are another excellent choice for WAAM applications requiring both high-temperature and corrosion resistance. Hastelloy alloys are frequently used in the chemical processing industry for valves, pumps, and reactors that need to resist aggressive chemicals at elevated temperatures. The ability to repair or manufacture these complex components using WAAM reduces the need for extensive lead times and expensive replacements.
Titanium Alloys
Titanium alloys, including Ti-6Al-4V, are widely used in aerospace, medical, and marine industries due to their high strength-to-weight ratio and excellent corrosion resistance. Titanium alloys are precious in applications requiring lightweight yet durable structural components. WAAM offers an efficient way to manufacture large titanium parts without casting, reducing production time and costs while maintaining high-quality standards.

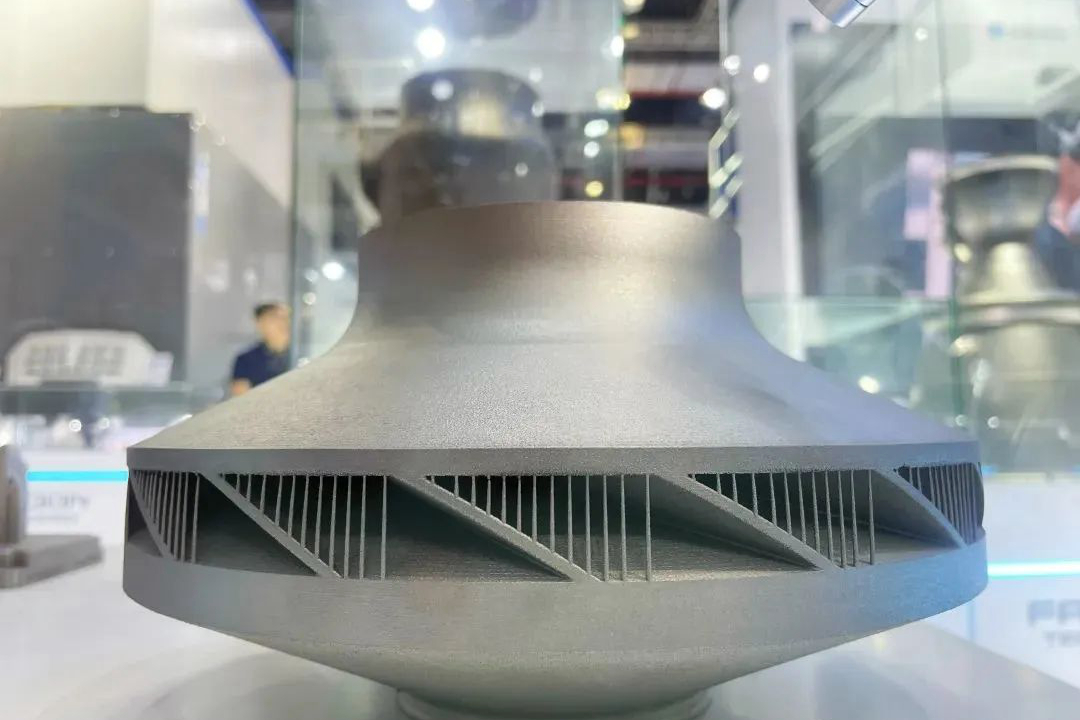

Stainless Steel Grades
In addition to these alloys, Stainless Steel grades such as 17-4 PH, 15-5PH, 18Ni300 (1.2709), 304, 316L, and duplex stainless steel are often used for general industrial applications. These materials offer a good balance of strength, corrosion resistance, and cost-effectiveness, making them ideal for producing significant structural components, tanks, piping systems, and frames.
Post-Processing of WAAM 3D Printed Stainless Steel Parts
While WAAM is effective for producing large, durable stainless steel parts, post-processing is essential to ensure that the parts meet the required specifications and have the desired mechanical properties. Post-processing methods vary depending on the material used, the part's application, and the required tolerances. The most common post-processing steps for WAAM 3D-printed stainless steel parts include heat treatment, machining, stress relief, and surface finishing.
Heat Treatment
Heat treatment is often used after the WAAM process to relieve residual stresses in the part. Residual stresses are generated during the welding process due to the rapid heating and cooling of the material. Heat treatment processes such as annealing or solution heat treatment can help reduce these stresses and improve the part's mechanical properties. Heat treatment also allows manufacturers to achieve the desired hardness and strength for the part. For high-temperature applications, the proper heat treatment process is crucial to achieving maximized strength and ensuring long-term durability.
Machining
CNC machining is frequently required to refine the geometry and surface finish of the WAAM-produced part. While WAAM provides good dimensional accuracy, the layer-by-layer deposition process can leave some roughness on the surface. Superalloy CNC machining, grinding, or milling may be used to achieve the final tolerances and surface finish required for the part. This step is crucial for parts fitting precisely into a larger assembly. Electrical Discharge Machining (EDM) can also be employed for more complex geometries.
Stress Relief
Stress relief is another vital post-processing step, especially for high-performance alloys like Inconel and titanium. The cooling rates and thermal cycles during the WAAM process can induce stresses that, if left untreated, may cause the part to warp or crack under load. Stress relief annealing helps to reduce these risks and ensures the part maintains its integrity during service. This process is vital for improving dimensional stability and extending the component's life.
Surface Finishing
Surface finishing is often necessary to improve the aesthetic qualities of the part, as well as its performance in specific applications. Techniques such as shot blasting, polishing, or coating with corrosion-resistant layers can improve the surface properties and protect the part from environmental degradation. Thermal barrier coatings and other specialized coatings can also be applied to enhance the part's resistance to high temperatures and wear.
Testing and Quality Control for WAAM 3D Printed Parts
Testing and quality assurance are critical components of the WAAM process to ensure that the manufactured parts meet the stringent requirements of the industries in which they are used. Various testing methods are employed to assess the mechanical properties, integrity, and performance of the stainless steel parts produced by WAAM.
Non-Destructive Testing (NDT)
Non-destructive testing (NDT) is commonly used to detect internal defects such as voids, cracks, or inclusions that may not be visible on the surface. Techniques like ultrasonic testing, X-ray inspection, and computed tomography (CT) scanning are widely used to assess the internal structure of WAAM parts without damaging the part.
Mechanical Testing
Mechanical testing is essential to verify that the part has the strength and durability for its intended application. Tensile testing, fatigue testing, and hardness testing are standard methods used to evaluate the part's mechanical properties. These tests ensure that the WAAM-produced part can withstand the stresses and environmental conditions it will be exposed to during service.
Microstructure Analysis
Microstructure analysis is another vital part of the quality control process. Scanning electron microscopy (SEM) and optical microscopy examine the material's microstructure, ensuring the deposition process results in a uniform and high-quality bond between layers. These techniques also help to verify the material composition and detect any defects that could affect the part's performance.
Dimensional Verification
Dimensional verification ensures that the WAAM-produced part meets the required specifications in terms of size and geometry. Coordinate Measuring Machines (CMM) and 3D scanning technologies inspect the part's dimensional accuracy, ensuring that it fits within the assembly and performs as expected.
Industry Applications of WAAM 3D Printing for Stainless Steel Parts
WAAM 3D printing of stainless steel structural parts is revolutionizing various industries by enabling the creation of significant, high-performance components. Some of the critical industries benefiting from this technology include:
Aerospace
WAAM is used to manufacture significant aerospace components such as structural parts for aircraft, engine parts, and support brackets. The ability to quickly print large, complex parts reduces lead times for prototype and spare part production while ensuring that components can withstand the demanding flight conditions. For instance, superalloy jet engine components can be fabricated with WAAM, enhancing efficiency in aerospace production processes.
Automotive
The automotive industry uses WAAM to produce large parts like car frames, chassis, and structural components for high-performance vehicles. The technology allows lightweight designs without compromising strength and safety, improving fuel efficiency and vehicle performance. For example, brake system accessories can be optimized using WAAM for better performance and reduced weight.
Marine
WAAM fabricates significant structural components for ships, offshore platforms, and underwater vehicles in the marine industry. The ability to produce parts with complex geometries and high corrosion resistance makes WAAM ideal for marine applications. Superalloy naval ship modules are just one example of how WAAM enhances the durability of marine structures exposed to harsh environments.
Oil and Gas
WAAM produces large components for pipelines, offshore rigs, and refineries. The ability to rapidly produce durable parts helps improve maintenance and reduce downtime. Components such as corrosion-resistant pump system assemblies can be fabricated using WAAM, ensuring optimal performance in challenging oil and gas environments.
Power Generation
WAAM is also used to fabricate components for turbines, heat exchangers, and other power generation equipment, where high strength and resistance to heat and corrosion are essential. The rapid production capabilities of WAAM help streamline the manufacturing process of components like superalloy turbine blades, improving efficiency and reliability in power plants.
