Validating Heat Treatments in Superalloy Castings: Metallographic Microscopy Inspection
Metallographic microscopy is a crucial technique for validating heat treatments in superalloy castings. It offers a detailed examination of the material's microstructure, allowing manufacturers to assess the effectiveness of heat treatments. In superalloy casting applications, especially those used in aerospace, power generation, and defense industries, validating the heat treatment process ensures that the material will perform optimally under demanding conditions.
Metallographic microscopy provides insights into the outcome of heat treatment processes, such as annealing, solution treatment, or aging, by examining the changes in grain structure, phase formation, and the distribution of carbides or precipitates. This is particularly important for superalloy components that withstand high temperatures and stress, like high-temperature alloy engine components or turbine blades. Proper heat treatment enhances the material's strength, fatigue resistance, and overall durability, ensuring that the casting meets industry performance standards.
Metallographic microscopy allows manufacturers to identify any potential issues with the heat treatment process, such as improper phase transformations or uneven grain growth, which could compromise the performance of the superalloy in critical applications. This detailed inspection ensures that each casting is structurally sound and capable of performing reliably over its intended service life.
What is Metallographic Microscopy Inspection?
Metallographic microscopy inspection involves the study of a material's microstructure by preparing thin slices of the material and examining them under a microscope. The process is essential for understanding the material's behavior under stress, heat, or wear. In the context of superalloy castings, metallographic microscopy is used to examine the microstructure of alloys after they undergo heat treatment processes such as annealing, solution treatment, aging, and precipitation hardening.
Superalloys, known for their high strength and resistance to heat and corrosion, require precise heat treatments to optimize their mechanical properties. For example, turbine blades, combustion chambers, and other high-performance parts undergo these treatments to meet specific mechanical and thermal demands. Metallographic microscopy enables engineers to inspect how the heat treatment has affected the alloy's grain structure, phase distribution, and precipitate formation.
The Function of Metallographic Microscopy Inspection in Heat Treatment Validation
Metallographic microscopy is critical in validating heat treatments by providing a detailed view of the material's internal structure. The microscopic structure changes when superalloy castings undergo heat treatments, such as solution heat treatment or aging. Metallographic microscopy can verify whether the intended microstructural changes have occurred and the material can withstand extreme conditions. This is especially important for casting processes like vacuum investment casting, where achieving the right microstructure post-treatment is essential for the alloy's performance in high-stress applications.
During the heat treatment, the superalloy’s microstructure may undergo several changes, such as the precipitation of secondary phases, grain boundary movement, or the dissolution and redistribution of alloying elements. Metallographic microscopy allows inspectors to examine these changes at various magnifications to confirm the material’s homogeneity and uniformity. Key features examined include:
Grain Boundaries: The boundaries between different crystallites or grains in the alloy. The distribution and size of these grains are crucial to the alloy's strength and fatigue resistance. By analyzing grain boundaries through techniques like single crystal casting, manufacturers can ensure that the grain structure is uniform and optimized for the intended application.
Phase Distribution: Superalloys are often composed of different phases resulting from the heat treatment process. These phases' size, shape, and uniformity can significantly impact the material’s mechanical properties. Metallographic inspection after processes like superalloy directional casting can help verify phase distribution and ensure the alloy’s performance under high temperatures.
Precipitate Formation: Precipitates are tiny particles within the alloy during heat treatment. Their distribution and morphology influence the material's strength, hardness, and ability to resist thermal creep. By examining the precipitates formed during powder metallurgy turbine disc processes, inspectors can ensure that the alloy’s properties meet the required specifications for aerospace or energy applications.
By using metallographic microscopy to verify these features, manufacturers can ensure that their superalloy castings have undergone the correct heat treatments and that the parts fit their intended high-performance applications. This is particularly important in aerospace and power generation industries, where components are subjected to extreme conditions such as high temperatures and mechanical stresses. Equiaxed crystal casting is often combined with heat treatment validation to ensure the material is optimized for these demanding environments, ensuring long-term performance and durability.
Metallographic inspection helps confirm that the alloy’s microstructure aligns with design specifications, allowing engineers to make any necessary adjustments before the parts are used in critical applications like turbine blades, engine components, and reactor vessel parts.
Superalloy Parts That Require Heat Treatment and Inspection
Heat treatment plays a vital role in enhancing the performance and durability of superalloy parts, especially those used in high-performance industries like aerospace, energy, and defense. These parts are often exposed to extreme conditions, where their ability to withstand heat, stress, and fatigue is crucial for operational safety and efficiency. Heat treatment, followed by metallographic inspection, ensures that superalloy components meet stringent requirements for strength, toughness, and resistance to wear and oxidation.
Superalloy Castings

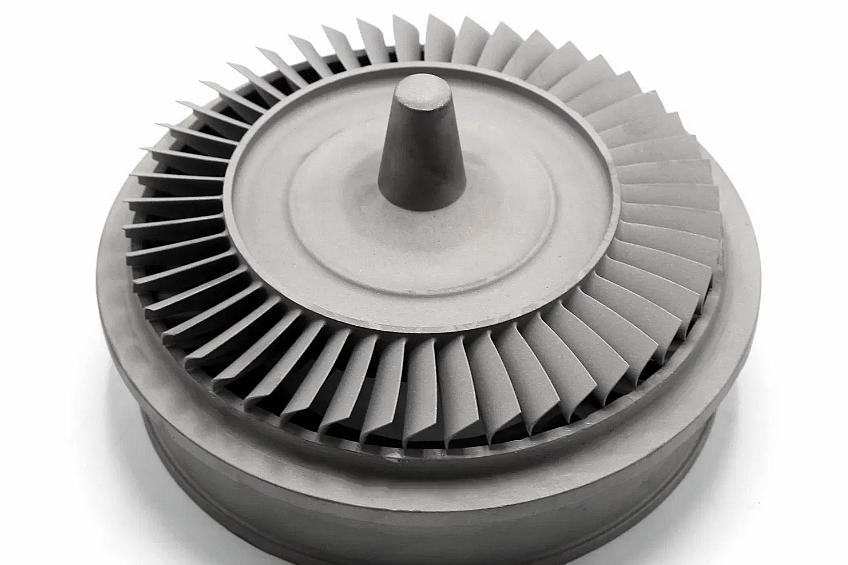

Superalloy castings, including turbine blades, combustion chambers, and complex geometries, often undergo heat treatment to enhance mechanical properties like tensile strength, fatigue resistance, and oxidation resistance. Vacuum investment casting is commonly used to produce high-precision castings. After casting, heat treatment ensures that these parts achieve the desired microstructural changes. Metallographic microscopy is then used to inspect the heat-treated parts, confirming that the microstructure meets the required specifications for high-performance applications such as aerospace and power generation.
Superalloy Forgings
Superalloy forgings, such as turbine discs, shafts, and impellers, are often subjected to heat treatment to optimize their mechanical properties. Heat treatment is used to refine the grain structure, reduce internal stresses, and improve overall toughness. After the forging process, the parts undergo metallographic inspection to verify the effectiveness of the heat treatment. The inspection ensures that these components meet the required strength and fatigue resistance specifications, particularly for critical applications like aerospace and energy generation.
CNC Machined Superalloy Parts
After CNC machining, superalloy parts such as brackets, housings, and seals may undergo heat treatment to relieve residual stresses and enhance material properties. This post-machining treatment ensures the final product achieves the required strength and dimensional accuracy. Metallographic microscopy inspects these machined parts, verifying that the heat treatment process has resulted in uniform phase distribution and a stable microstructure, ensuring optimal performance in applications requiring high precision.
3D Printed Superalloy Parts
Additive manufacturing (3D printing) is increasingly used to produce intricate superalloy parts for industries like aerospace and defense. 3D printed superalloy parts often require post-processing heat treatments to improve strength, fatigue resistance, and overall microstructural integrity. Since 3D printing creates parts layer by layer, heat treatment is essential to solidify the microstructure and enhance material properties. Metallographic microscopy is employed to inspect the heat-treated 3D printed parts, ensuring that the microstructure is uniform and that the material meets the required performance standards for critical applications such as turbine engines and military systems.
In all cases, thorough inspection after heat treatment ensures that superalloy parts, whether cast, forged, machined, or 3D printed, are optimized for their intended high-performance environments.
Metallographic Microscopy Inspection vs. Other Heat Treatment Validation Processes
Metallographic microscopy is a powerful tool for heat treatment validation, but it is not the only method available. Other techniques like X-ray diffraction (XRD), scanning electron microscopy (SEM), and hardness testing are also used for material inspection. Each method has its strengths and limitations, and comparing them to metallographic microscopy can help highlight the benefits of this approach.
X-ray Diffraction (XRD)
X-ray diffraction (XRD) is a non-destructive technique used to analyze the crystal structure of materials. While it is helpful in determining phase composition and crystallinity, it cannot visually examine the microstructure and grain boundaries. This is where metallographic microscopy excels, offering a more detailed examination of the material’s internal structure. XRD is excellent for identifying phases but does not provide the visual resolution for detailed microstructural analysis.
Scanning Electron Microscopy (SEM)
Scanning electron microscopy (SEM) provides high-resolution imaging of the surface morphology and can be used to identify phases and precipitates. However, SEM is often more expensive, and sample preparation can be more time-consuming than metallographic microscopy. While SEM provides excellent detail, it may not always be necessary for routine inspections where metallographic microscopy offers sufficient resolution for assessing the material's heat-treated state.
Hardness Testing
Hardness testing is commonly used to assess the effectiveness of heat treatment. Still, it only provides surface-level information and does not give insight into the material's internal structure or phase distribution. Metallographic microscopy allows for a deeper analysis of how heat treatment has affected the entire microstructure, not just the surface. This makes metallographic microscopy a more comprehensive tool for validating heat treatment results at a microscopic level, especially in complex superalloys.
Conclusion
While these methods can complement metallographic microscopy offers a more comprehensive view of a material’s microstructure. It is often preferred for its ability to validate the success of heat treatment at a microscopic level. It provides essential insights into grain structure, phase distribution, and internal defects, making it a crucial method for high-temperature alloy inspections.
Industry and Application of Heat Treatment Validation in Superalloy Castings
Heat treatment is crucial for optimizing superalloy castings' mechanical properties and performance. The validation of heat treatments through metallographic microscopy is essential in industries that demand high-performance materials capable of withstanding extreme environmental conditions. Below are key industries and applications where heat treatment validation plays a vital role:
Aerospace and Aviation
In the aerospace and aviation industries, components like turbine blades, combustion chambers, and jet engine parts must be heat-treated to endure high temperatures and mechanical stresses during flight. Metallographic microscopy ensures that the heat treatment process has optimized these superalloy components' grain structure, phase distribution, and durability. The ability to validate heat treatments ensures the reliability of critical parts, such as turbine blades and jet engine components, which must perform under extreme conditions.
Power Generation
In power generation, turbine blades, reactor components, and heat exchangers experience thermal and mechanical stresses. The heat treatment of these parts is essential for improving their strength, resistance to creep, and fatigue resistance. Metallographic microscopy helps verify that heat treatment has optimized the microstructure, ensuring that these components can withstand the high temperatures and pressures in power plants. Components like superalloy heat exchangers and gas turbine blades undergo rigorous heat treatment validation to ensure long-term performance.
Oil and Gas
Superalloy components used in the oil and gas industry, including valves, pumps, and downhole tools, must resist high temperatures and corrosive environments. The heat treatment process is validated using metallographic microscopy to ensure that the superalloy material has been tailored to perform optimally in these challenging conditions. For instance, parts like superalloy pumps and valve systems undergo heat treatment verification to ensure they can withstand high-pressure and corrosive conditions in the field.
Defense and Military
In the defense and military sectors, superalloys are used for components like missile systems, armor plating, and high-performance engine parts. These parts are subjected to extreme temperatures and mechanical loads. Heat treatment validation using metallographic microscopy ensures that the materials meet stringent performance standards, providing the necessary strength, toughness, and resistance to failure. Key parts such as missile segments and armor systems undergo careful heat treatment validation to ensure mission success.
Marine
In marine applications, superalloy castings, such as heat exchangers, turbine components, and corrosion-resistant piping, must perform reliably in harsh seawater environments. Metallographic microscopy is used to verify that these parts have been heat-treated to optimize their performance and resistance to corrosion, ensuring their longevity and reliability in marine conditions. For example, parts like marine heat exchangers and corrosion-resistant piping undergo rigorous heat treatment validation to ensure their durability.
Conclusion
The ability to validate heat treatments in superalloy castings using metallographic microscopy is essential in industries where components must endure extreme operational conditions. By ensuring that heat treatment processes have been effectively optimized, industries like aerospace, power generation, oil and gas, defense, and marine can rely on the structural integrity and long-term performance of critical superalloy parts. This process ensures safety, reliability, and cost-effectiveness in high-performance applications.
