Understanding Heat Capacity Measurement for Superalloy Parts
Understanding Heat Capacity Measurement for Superalloy Parts
Heat capacity measurement is a critical process in the manufacturing and performance assessment of high-temperature materials, especially superalloys used in aerospace, power generation, and defense industries. As materials are subjected to extreme thermal conditions, understanding their ability to store and release heat is fundamental to predicting their behavior in real-world applications. Heat capacity is a material property that measures the amount of heat required to change the temperature of a substance by a given amount, and in the case of superalloys, this knowledge is critical to ensuring durability, performance, and reliability at high temperatures.
Heat capacity measurements are essential for components used in jet engine turbines and nuclear reactors to ensure that these parts perform as expected under prolonged exposure to thermal stress. The ability of a superalloy to absorb and release heat efficiently affects its thermal cycling resistance and overall longevity in demanding applications. By accurately measuring heat capacity, manufacturers can optimize alloy compositions for applications such as superalloy exhaust system parts or turbine blades, ensuring they withstand the thermal stresses encountered in high-performance environments.
What is Heat Capacity Measurement?
Heat capacity is a property that dictates how much heat a material can absorb or release per unit change in temperature. Specifically, the heat capacity of a superalloy indicates how much energy is required to increase its temperature by one degree Celsius. This measurement is critical because it provides insights into how the material will respond to varying thermal conditions, including rapid temperature fluctuations and long-term exposure to high heat.
In superalloy parts, designed for extreme conditions—such as those found in jet engines, gas turbines, and heat exchangers—heat capacity is vital for understanding how the material will perform in real-world applications. By measuring heat capacity, manufacturers can ensure that the alloys used in these parts will maintain their integrity under thermal stresses, helping to optimize design and performance. This is especially crucial in superalloy casting processes where thermal properties ensure the material's stability during and after casting.
The measurement process typically involves methods like differential scanning calorimetry (DSC), where a material sample is subjected to a controlled heat flow, and the temperature response is measured to determine heat capacity. Simultaneous Thermal Analysis (STA) Checking can also assess thermal properties, providing a more detailed understanding of how superalloys behave in high-temperature environments.
By accurately measuring heat capacity, engineers can predict how superalloy components will perform during thermal cycling and extreme conditions, ensuring optimal performance in critical applications like turbines, aerospace components, and other high-heat environments.
The Function of Heat Capacity Measurement in Superalloy Parts
In superalloy manufacturing, heat capacity measurement serves several essential functions. At a basic level, engineers can understand how a material will behave when subjected to high temperatures. This is crucial for designing components that can withstand extreme operating conditions. Superalloys are designed for applications with everyday thermal cycling, high thermal gradients, and thermal shock. As a result, measuring heat capacity provides essential data to predict the material's thermal stability. This is particularly important in processes like superalloy directional casting, where managing heat distribution during solidification is critical for achieving the desired microstructure and material properties.

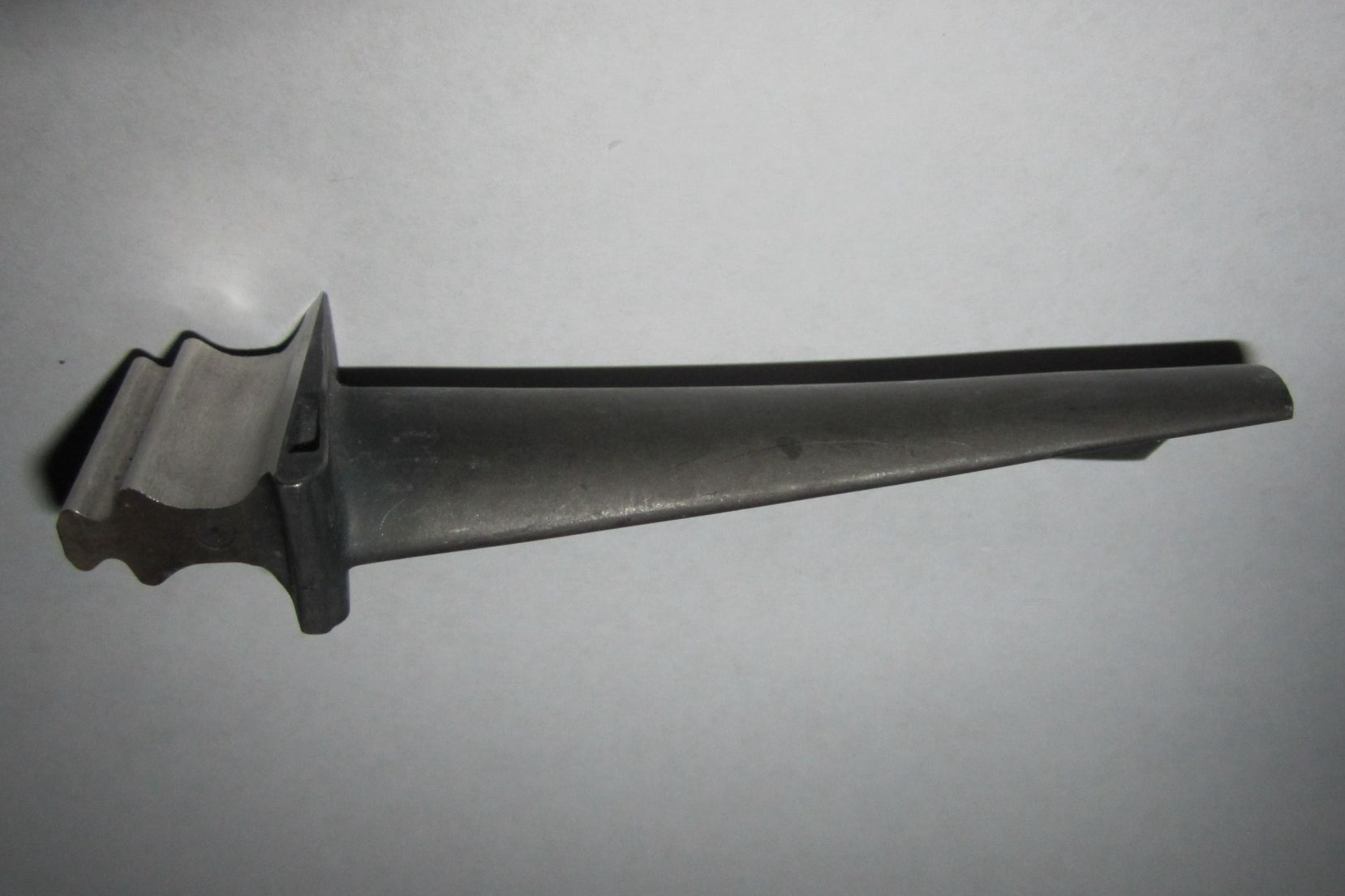

For example, in aerospace applications, turbine blades and other high-performance engine components are subjected to intense heat during operation. A component with a high heat capacity can absorb more heat before experiencing a significant temperature rise, which can help prevent thermal damage. Similarly, materials with low heat capacity are quicker to heat up, which could benefit applications where rapid thermal response is needed. This type of thermal behavior is essential in superalloy CNC machining, where precision is required to create parts that can withstand extreme conditions without failing.
Additionally, heat capacity measurements allow manufacturers to optimize the design of superalloy parts by ensuring that they maintain the appropriate thermal behavior throughout their service life. This is especially important in complex thermal loading applications, where parts are subject to high temperatures and thermal cycling, such as in jet engines, power generation turbines, and heat exchangers. Accurate heat capacity data ensures that these parts will operate efficiently and last longer without experiencing failures due to thermal expansion or contraction. Superalloy free forging is another process that benefits from heat capacity measurements, as it helps to ensure that components can maintain structural integrity during high-temperature forging operations.
Superalloy Parts That Benefit from Heat Capacity Measurement
Heat capacity measurement is a vital thermal analysis technique for various superalloy parts used across aerospace, energy, and chemical processing industries. This method helps optimize the thermal behavior of materials during various stages of production, ensuring that components maintain their integrity under thermal stresses. Below are the key superalloy components that benefit from heat capacity measurement.
Superalloy Castings

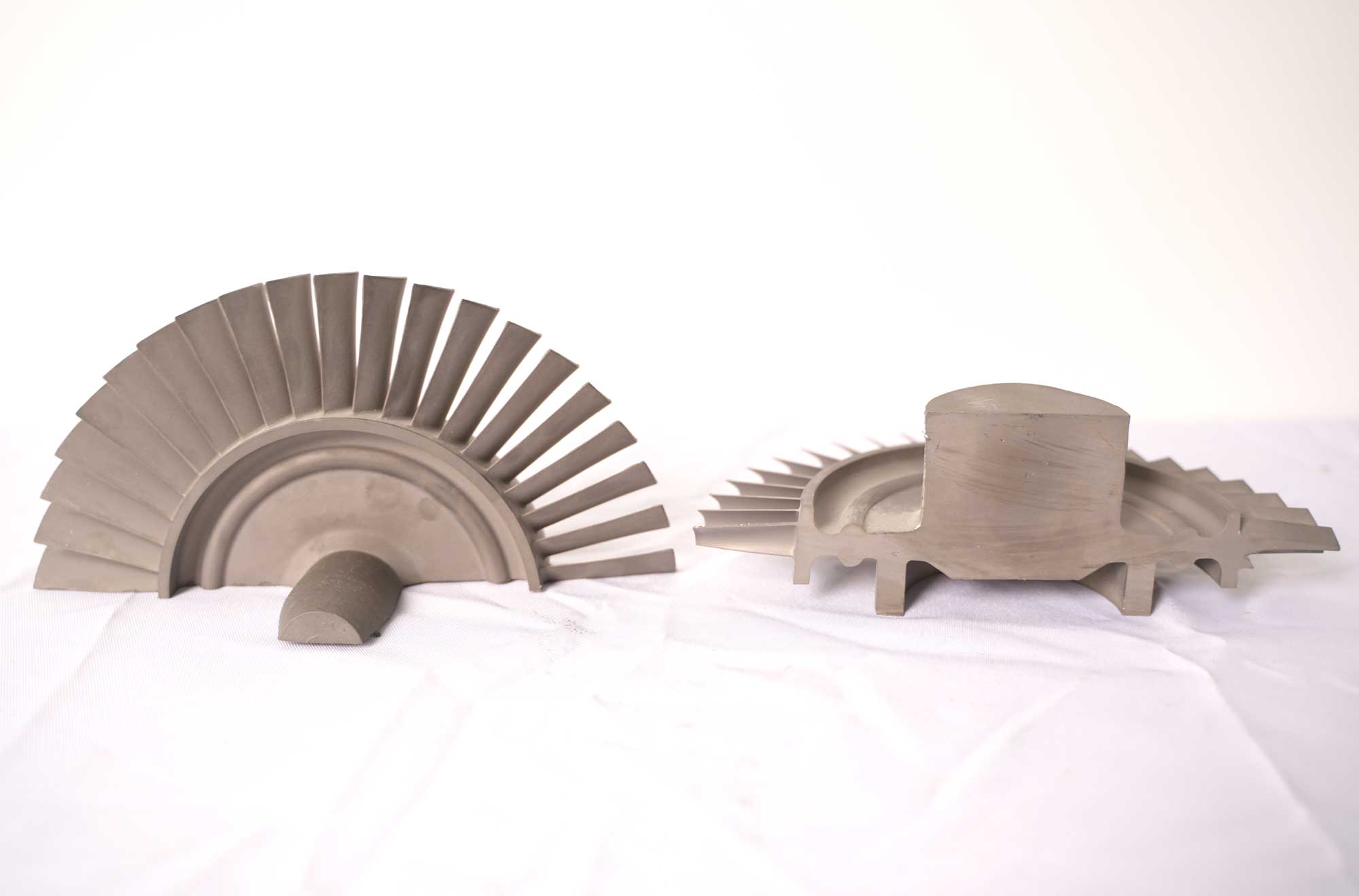

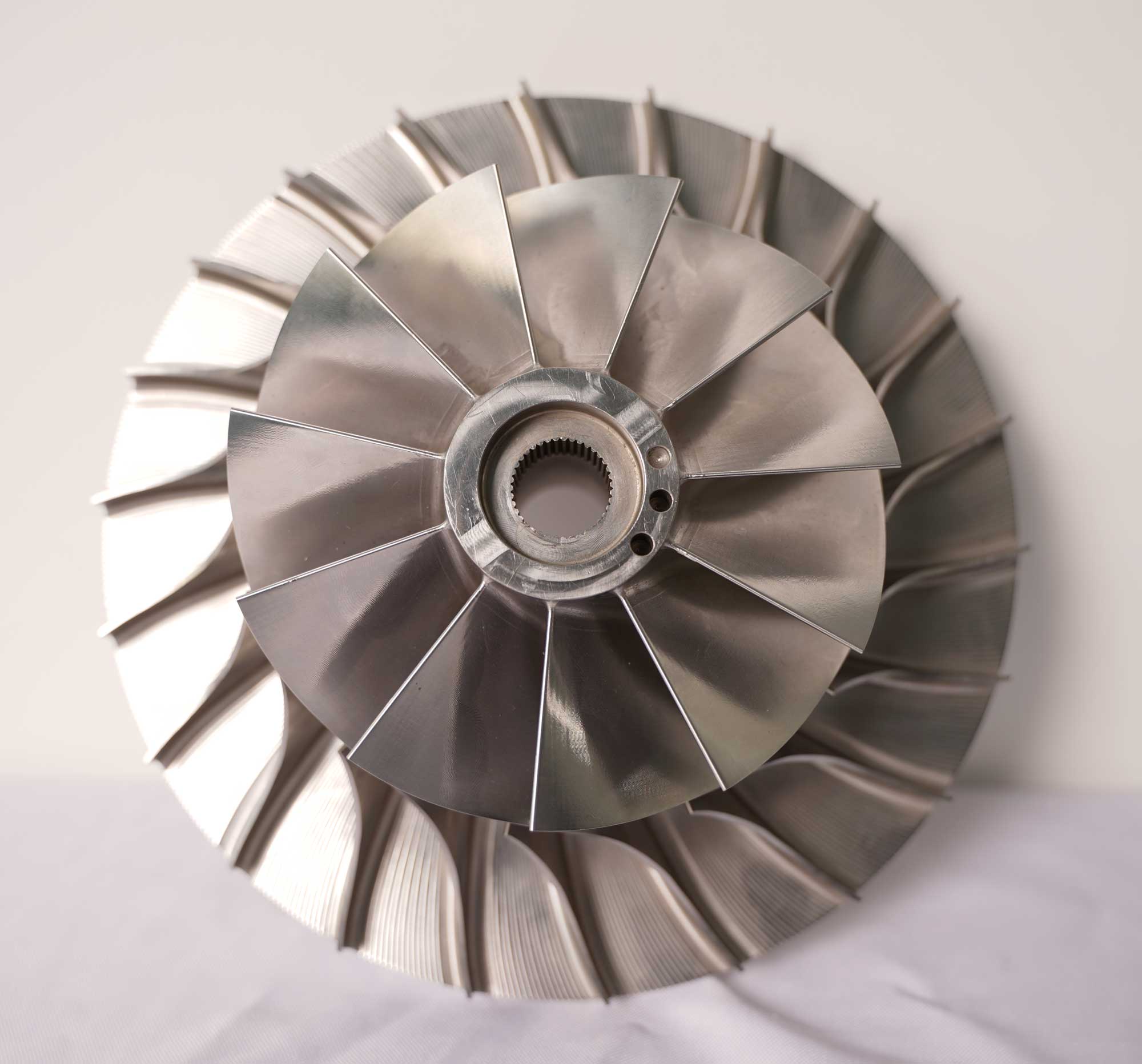

Superalloy castings, such as turbine blades, impellers, and combustion chambers, are highly sensitive to thermal changes during cooling and heating. Heat capacity measurements ensure that these parts solidify uniformly, essential for preventing thermal stresses like cracking or warping. For example, Inconel alloys, CMSX series, and Rene alloys are commonly used for high-performance applications such as gas turbines, where precise control over thermal properties is crucial to achieve desired performance. These measurements help determine optimal cooling rates, ensuring that the final cast part is thermally stable and mechanically sound.
Superalloy Forgings
Heat capacity measurement is equally vital in superalloy forgings, especially for materials like Nimonic alloys, Hastelloy, and Stellite, which undergo high-temperature forging processes to shape components like turbine discs and compressor blades. Accurate heat capacity data helps ensure the material reaches the right thermal state during the forging process, preventing distortion, cracking, or premature failure. Additionally, heat capacity measurements help optimize the forging time and temperature, contributing to better mechanical properties and overall durability of the forged parts.
CNC Machined Superalloy Parts
CNC machined superalloy parts, often made from high-temperature alloys, require heat capacity measurement to prevent undesirable thermal effects during machining. Parts with thin sections or complex geometries are susceptible to localized heating, which could lead to thermal distortion. By measuring the heat capacity, machinists can adjust machining parameters to minimize these effects, ensuring that the part maintains its structural integrity and performance. This is especially critical for aerospace components like turbine blades or engine parts, where precision is paramount.
3D Printed Superalloy Parts
In the realm of 3D printing, heat capacity measurements are essential for optimizing the material properties of superalloy components. Superalloy 3D printing methods, such as selective laser melting (SLM) and electron beam melting (EBM), involve rapid heating and cooling cycles. Understanding how the material absorbs and releases heat ensures that the printed parts maintain optimal mechanical properties, such as strength, toughness, and thermal shock resistance. Heat capacity measurement helps fine-tune printing parameters, preventing defects like warping or cracking, which could compromise the part’s performance, particularly in high-stress applications like turbine engines.
Comparison with Other Thermal Measurement Processes
Heat capacity measurement is just one part of the overall thermal analysis of superalloy materials. Other thermal measurements, such as thermal conductivity and thermal expansion, are vital in understanding how superalloys will behave under high-temperature conditions. These additional properties must be carefully evaluated for accurate thermal physical properties testing to ensure the superalloy's reliability in extreme environments.
Thermal Conductivity:
Unlike heat capacity, which measures the total heat absorbed by a material, thermal conductivity measures how well heat is transferred through a material. While heat capacity is concerned with the ability of a material to store heat, thermal conductivity is about how efficiently that heat is distributed across the material. In the case of superalloy components like turbine blades, heat capacity and thermal conductivity are essential for understanding the part’s ability to handle high thermal gradients. Simultaneous Thermal Analyzer (STA) can help assess both heat capacity and thermal conductivity simultaneously, offering a more comprehensive understanding of material performance under thermal stress.
Thermal Expansion:
Thermal expansion refers to the change in the material's volume as it is heated. It’s essential to assess how much a superalloy part will expand or contract during temperature fluctuations, and understanding thermal expansion is essential for designing components that fit together correctly under varying temperature conditions. While heat capacity provides insights into how the material absorbs heat, thermal expansion data helps engineers predict how a component will physically change in size during operation. Coordinate Measuring Machines (CMM) are used to verify the geometrical dimensions of parts during manufacturing, especially when dealing with high-temperature materials to ensure precision and dimensional stability.
Comparing heat capacity measurement to other processes, such as Differential Scanning Calorimetry (DSC), highlights the unique benefits of this testing method. While DSC focuses on the heat flow into or out of a sample as it undergoes temperature changes, heat capacity measurement provides a more direct insight into how the material responds to and retains heat over time, making it a vital tool for high-temperature material testing. For accurate material chemical analysis, a Glow Discharge Mass Spectrometer (GDMS) can ensure alloy compositions align with required thermal properties for superalloy applications.
Industry and Application of Heat Capacity Measurement
Heat capacity measurement is essential for ensuring superalloys' high-temperature performance and reliability across several industries. By accurately measuring heat capacity, manufacturers can optimize materials to withstand extreme thermal conditions, improving performance and longevity. Below are key industries where heat capacity measurement plays a critical role in ensuring the durability and efficiency of superalloy components.
Aerospace and Aviation
In the aerospace and aviation industries, components like turbine blades, engine nozzles, and combustion chambers operate under extreme temperatures. Superalloys such as Inconel, CMSX, and Rene alloys are used to manufacture these high-performance parts. Heat capacity measurement is crucial for optimizing the thermal properties of these materials, ensuring better performance, higher efficiency, and a longer service life. By understanding how a material responds to heat, manufacturers can predict its behavior under high-temperature conditions in jet engines and gas turbines. For example, superalloy turbine blades are designed to withstand thermal stresses and optimize heat dissipation.
Power Generation
In power generation, superalloys are used for components like turbines, heat exchangers, and boilers, all exposed to extreme thermal conditions and repeated thermal cycles. Heat capacity measurement helps ensure these parts can handle these conditions without undergoing material fatigue or thermal stress, which can cause premature failure. This is especially important for critical parts such as turbine blades, where heat capacity measurement ensures they retain their strength and performance throughout their operational lifespan, improving efficiency and safety in power plants.
Oil and Gas
In the oil and gas industry, superalloys are used in pumps, valves, and pressure vessels that must perform in high-temperature and corrosive environments. Heat capacity measurement is used to select materials that will perform reliably under these harsh conditions, ensuring these components last longer and operate efficiently. For example, superalloy pump components are optimized for thermal performance and corrosion resistance, ensuring they function under extreme pressure and temperature conditions in offshore drilling and refining operations.
Marine and Defense
The marine and defense sectors rely on superalloys for high-performance components like naval engine parts, missile components, and armor plating, which must endure extreme temperatures and thermal shock. Heat capacity measurement helps design materials that can withstand high thermal stresses while maintaining structural integrity. For instance, superalloy missile components must resist both heat from the engine and thermal shock during high-speed flight or combat conditions, making heat capacity an essential factor in ensuring reliability and safety.
Automotive and Chemical Industries
In the automotive industry, superalloys are used for parts like exhaust systems, engine components, and brakes exposed to high temperatures during operation. Heat capacity measurement ensures that these components can withstand the thermal conditions they face without failure, helping optimize their performance and durability. Similarly, in the chemical processing industry, superalloys are used in reactors and heat exchangers operating under high heat and pressure. Heat capacity measurement ensures the stability of these materials, optimizing their resistance to thermal degradation in demanding chemical environments.
Using heat capacity measurement, industries such as aerospace, power generation, oil and gas, marine, defense, automotive, and chemical processing can ensure that their superalloy components perform at their highest potential under extreme thermal conditions. This enhances the performance and safety of critical systems and extends the service life of essential parts, reducing downtime and increasing overall efficiency.
FAQs
How does heat capacity measurement impact the performance of superalloy turbine blades?
What are the main differences between heat capacity and thermal conductivity measurement in superalloys?
Why is heat capacity measurement crucial for 3D-printed superalloy components?
What industries rely most on heat capacity data for superalloy materials?
How can heat capacity measurements be used to improve the manufacturing process of superalloy castings?
