Understanding and Avoiding Freckle Defects in Casting

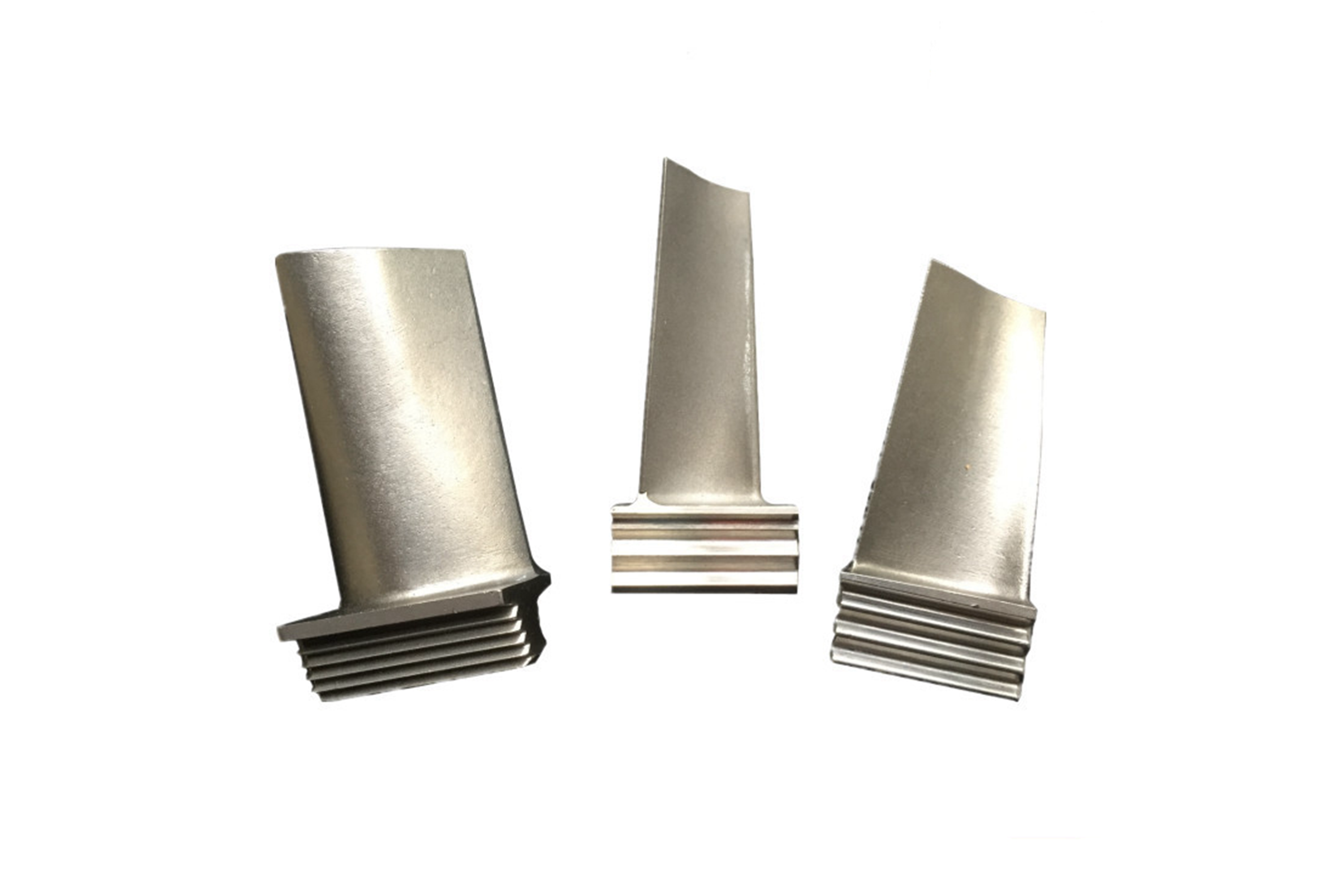

Freckle defects are a common challenge faced in producing single crystal castings, particularly in high-performance components such as turbine blades used in Aerospace, power generation, and other demanding industries. These defects can significantly impact the final product's mechanical properties, compromising its reliability and longevity. Understanding how freckles form and how to prevent them is essential to producing defect-free single-crystal components that meet the rigorous demands of these applications.
Freckle defects are caused by instabilities during casting, precisely due to interactions between thermal gradients and fluid dynamics. When uncontrolled, these defects introduce non-uniformities into the crystal structure, leading to weak points that can result in premature component failure. By employing advanced techniques and a deeper understanding of the casting process, manufacturers can mitigate these issues and improve the quality of their products, ensuring they meet stringent industry standards.
Understanding Freckle Defects in Single Crystal Casting
Freckle defects are characterized by the formation of localized regions with different microstructures compared to the surrounding material. These defects are typically visible as dark, irregular streaks or clusters within the cast part. Freckles form during solidification due to density-driven fluid flow within the molten metal. As molten alloy flows within the mold, some regions experience different cooling rates, forming freckles. Techniques like directional solidification aim to control thermal gradients and prevent such defects.
Several factors, including the thermal gradient, solidification rate, and alloy composition, heavily influence the formation of freckle defects. When there is a steep thermal gradient, the molten alloy can rise through channels, resulting in non-uniform crystal growth. This leads to the segregation of alloying elements and the formation of a secondary, unintended crystal structure. Additionally, the choice of alloy and mold design can impact the likelihood of freckle formation. Advanced mold materials and design principles, such as those in vacuum investment casting, can help mitigate freckle formation by providing more consistent cooling rates.
Freckle defects can have a detrimental effect on the material's mechanical properties. Grain boundaries formed by these defects act as stress concentrators, reducing the component's resistance to creep, fatigue, and thermal stresses. In applications such as jet engines and power turbines, where reliability is crucial, freckle defects can lead to catastrophic failures if not properly controlled. Processes like single crystal casting focus on minimizing these imperfections to produce defect-free components that can withstand extreme operating conditions.
Addressing the formation of freckle defects requires careful control over casting parameters, including thermal management, alloy composition, and mold geometry. Innovations in casting technology, such as advanced cooling systems and real-time monitoring, enhance the ability to control solidification and reduce the risk of freckles. Correctly applying these techniques ensures high-quality, reliable components for demanding industries like Aerospace and power generation.
Techniques for Avoiding Freckle Defects
Preventing freckle defects requires careful casting process control, including solidification parameters, mold design, and alloy selection. By optimizing these factors, manufacturers can significantly reduce the occurrence of freckles and produce higher-quality cast components.
Optimized directional solidification is a key approach to avoiding freckle formation. The solidification process must be carefully controlled to ensure that the molten metal cools in a uniform direction without inducing convective flow that can lead to freckling. Modern casting furnaces with precise temperature control are essential for maintaining consistent thermal gradients. These advanced furnaces use controlled cooling rates and temperature zones to minimize fluid movement within the molten metal, which helps prevent freckle formation. Directional solidification casting is integral to achieving defect-free single-crystal structures.
Thermal gradient control is crucial for avoiding freckles. The cooling rate must be managed to prevent excessive fluid flow, which is often the root cause of freckle defects. Improved cooling systems, such as chill plates and optimized mold cooling designs, help maintain a uniform temperature distribution throughout the mold, reducing the risk of density-driven flows that cause freckling. Methods like vacuum investment casting provide precise control over the casting environment, ensuring minimal temperature variation and consistent solidification.
The design of the casting mold also plays a significant role in freckle prevention. Modifications to mold geometry, such as the addition of insulating or heat-sinking features, can ensure a uniform cooling rate throughout the part. Proper mold design minimizes the formation of localized hot spots that can lead to freckle defects. The choice of materials for the mold is also critical; high-quality ceramic molds with appropriate thermal conductivity are essential for achieving uniform solidification. Advances in special alloy casting ensure that mold design and materials are tailored to specific alloy characteristics, further reducing freckle risks.
Alloy selection is another critical factor. Some alloys are more prone to freckle formation due to their composition and melting characteristics. Choosing superalloys with properties conducive to controlled solidification can help reduce the risk of freckles. Additionally, modifying alloy composition to adjust fluid dynamics and solidification behavior can make the casting process less susceptible to freckle formation. The use of single crystal casting allows for careful consideration of alloy properties to ensure optimal performance and minimal defects.
Suitable Superalloys for Freckle Defect Prevention
Different superalloys exhibit varying susceptibilities to freckle formation, making alloy selection an essential aspect of the defect prevention strategy.
Inconel Alloys
Inconel alloys, such as Inconel 713, Inconel 718, and Inconel 738, are often used in single crystal castings. These alloys are known for their excellent resistance to oxidation and high-temperature strength, which makes them ideal for demanding applications. Inconel alloys have demonstrated reduced susceptibility to freckle defects with optimized casting processes. The use of precise directional solidification techniques ensures that these materials maintain a uniform crystal structure without unwanted defects.
CMSX Series
The CMSX series of superalloys, including CMSX-4, CMSX-10, and CMSX-486, is specifically engineered for high-temperature applications. These alloys offer excellent creep resistance and mechanical strength. However, their complex composition can make them challenging to cast without defects like freckles. Advances in casting techniques, such as enhanced control of solidification parameters and cooling rates, have made it possible to cast CMSX alloys with fewer defects.
Rene Alloys
Rene alloys, including Rene 104 and Rene 88, are also commonly used in high-performance applications where freckle defects can be detrimental. These alloys are designed for excellent high-temperature performance, making them ideal for turbine blades and other critical components. Casting techniques tailored to Rene alloys focus on minimizing convection within the molten metal and controlling the solidification rate, significantly reducing the likelihood of freckle defects.
Specialized single-crystal alloys
Specialized single crystal alloys, such as PWA 1480 and CMSX-2, are used in the most demanding environments. These alloys are formulated to provide superior thermal and mechanical properties, making them highly suitable for single-crystal casting applications. Advanced casting processes and precise temperature control are essential for producing defect-free parts from these materials.
Post-Processing Approaches for Addressing Freckle Defects
While preventing freckles during the casting process is the primary goal, post-processing techniques can be used to address any residual issues and further enhance component quality.
Hot Isostatic Pressing (HIP) is a common post-processing method to improve cast components' density and structural integrity. HIP involves subjecting the part to high pressure and temperature in a controlled environment, which helps eliminate porosity and other microstructural defects. Although HIP cannot wholly remove freckle defects, it can enhance the overall microstructure by compressing and refining the material, improving the component's mechanical properties. Utilizing advanced HIP techniques helps achieve a more consistent and refined microstructure, mitigating the adverse effects of freckles.
Heat treatment is another crucial post-processing step for addressing residual defects. Customized heat cycles optimize the material's properties, including relieving stress and homogenizing the microstructure. By carefully controlling temperature and time during precision heat treatment, manufacturers can reduce the impact of any residual freckle defects, enhancing the component's overall performance and durability.
Surface treatments and refinements are also important for addressing freckle-related surface issues. Techniques such as polishing and surface finishing can help remove superficial imperfections caused by freckles. Additionally, applying thermal barrier coatings (TBC) provides additional protection against oxidation and thermal fatigue. Modern TBC application methods ensure that coatings are applied uniformly, minimizing the impact of surface defects and improving overall durability.
Testing and Analysis for Freckle Defect Detection
Rigorous testing is essential to identify and evaluate freckle defects in single crystal castings. Advanced testing methods detect these defects without causing damage to the component, ensuring that the parts meet the required standards before being put into service.
Non-destructive testing (NDT) methods, such as high-resolution X-ray inspection, CT scanning, and ultrasonic techniques, are commonly used to detect internal defects, including freckles. These technologies provide detailed imaging of the internal structure, allowing manufacturers to identify defects that may not be visible on the surface. CT scanning, in particular, is highly effective for detecting freckles, as it can generate a complete 3D representation of the part, highlighting areas of microstructural inconsistency.
Electron Backscatter Diffraction (EBSD) is another powerful tool for analyzing single crystal castings' microstructure. EBSD can detect variations in crystal orientation, providing detailed insights into the presence and distribution of freckles. This technique is particularly useful for understanding freckles' formation mechanisms and refining casting processes to reduce their occurrence.
Mechanical testing is also essential for evaluating the impact of freckles on material properties. Tensile testing and fatigue testing simulate real-world operational conditions, revealing how freckles can affect the strength and durability of the component. These tests are critical for ensuring that components can perform reliably in their intended applications, even with minor defects.
Industry Applications and the Importance of Freckle-Free Components
Freckle-free single crystal castings are essential for ensuring the reliability and performance of components in industries where failure is not an option. These components are designed to operate in extreme environments where their structural integrity is critical for safety and efficiency.
Aerospace and Aviation
In Aerospace and aviation, freckle-free turbine blades are used in jet engines, which must endure high temperatures, mechanical stress, and exposure to oxidative environments. Freckle defects can significantly reduce these components' mechanical strength and creep resistance, compromising engine efficiency and safety. Aerospace and aviation applications depend on freckle-free materials to ensure consistent performance and safety in high-stress environments.
Power Generation
In power generation, single crystal castings are used in gas and steam turbines to enhance energy efficiency and operational reliability. Defect-free components are crucial for maintaining consistent performance under high-temperature and high-pressure conditions, reducing the risk of unplanned outages, and extending service life. Power generation facilities rely on freckle-free castings to ensure turbines perform efficiently and withstand the demands of continuous operation.
Oil and Gas
In the oil and gas industry, single-crystal castings are used in high-pressure pumping systems and other critical applications. Freckle defects can lead to failures in these systems, posing safety risks and costly downtime. Ensuring that components are defects-free is essential for maintaining operational safety and reliability. Oil and gas operations require high-quality materials to endure extreme conditions without compromising safety or performance.
Military and Defense
In military and defense applications, single-crystal components are used in propulsion systems, advanced weaponry, and other mission-critical technologies. Preventing freckle defects is essential for maintaining performance standards and ensuring the safety and reliability of these components in demanding environments. The military and defense sector depends on freckle-free components to ensure mission success, particularly in high-stress, high-risk applications.
