The Importance of Temperature Control in Titanium Alloy Casting

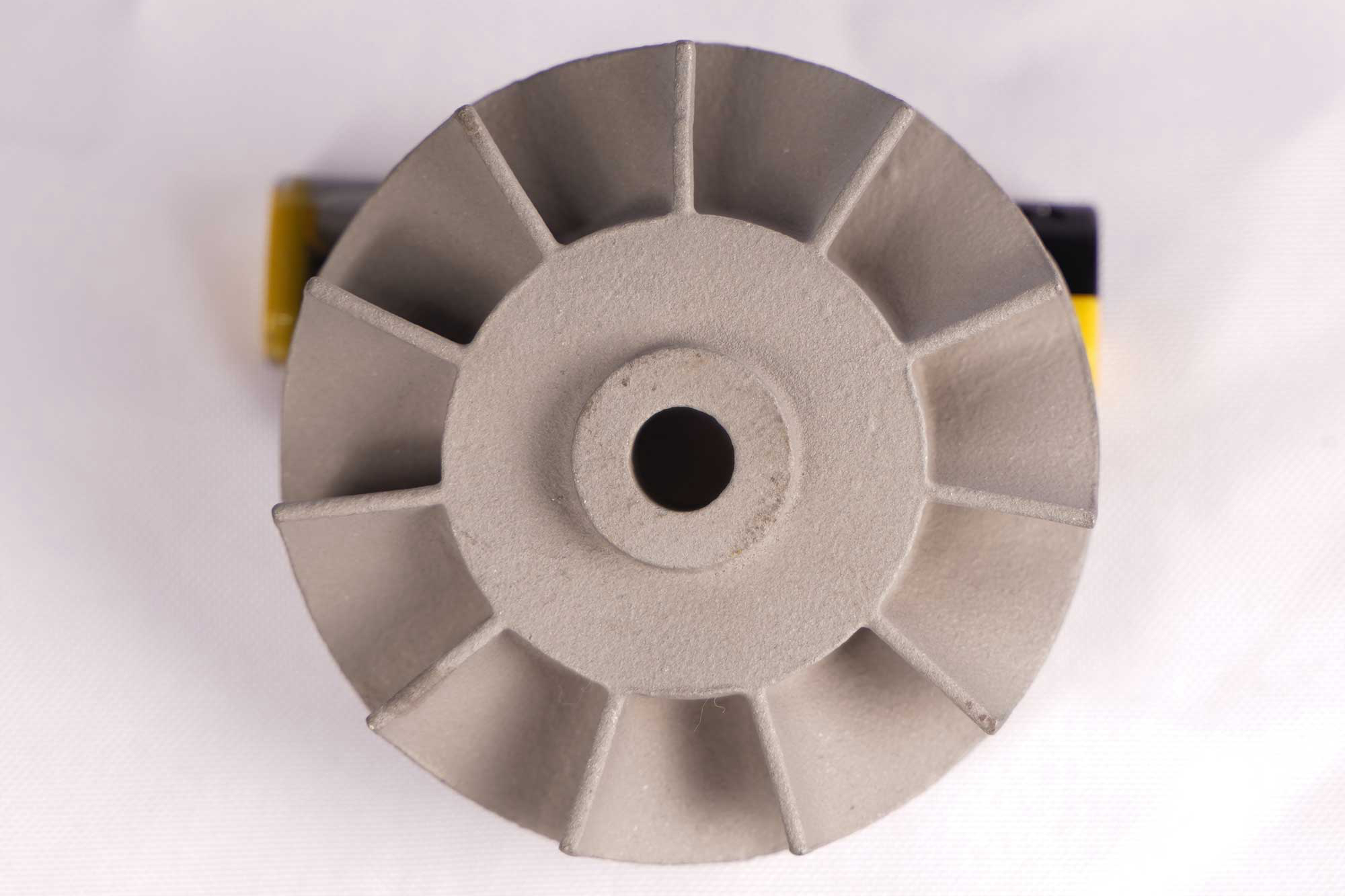

Titanium alloy casting is critical in manufacturing components for high-performance industries like aerospace, energy, and automotive. The strength, durability, and precision required for these applications make titanium ideal. However, the quality of cast titanium parts heavily depends on precise temperature control throughout the manufacturing process. From melting to solidification, maintaining optimal temperature ensures the final product's desired microstructure, mechanical properties, and dimensional accuracy. Superalloy casting techniques similarly rely on temperature regulation to achieve the high standards required in these industries.
Manufacturing Process in Titanium Alloy Casting
Casting titanium alloys involves several steps where temperature control plays a vital role. It begins with preparing a mold, typically made using a wax pattern or advanced 3D-printed patterns for high precision. This mold is then coated with ceramic materials to create a durable shell capable of withstanding the high temperatures required for melting titanium. Precision wax pattern creation and advanced casting techniques are employed at this stage to ensure the mold can handle extreme conditions during casting.
Titanium’s melting process is carried out in a vacuum or inert gas environment to prevent contamination from oxygen or other reactive elements. The material’s high melting point (approximately 1,660°C) requires furnaces with precise temperature regulation. Even slight variations can lead to defects like porosity or improper grain structure in the final component. Vacuum induction melting is commonly used to ensure consistent and clean melting, avoiding contamination from external elements.
Pouring the molten titanium into the mold requires a controlled temperature to avoid turbulence and oxidation, which can introduce defects. Once poured, the solidification and cooling phases are equally critical. Rapid or uneven cooling can lead to residual stresses or cracking, while slow cooling can affect the part's mechanical properties and dimensional accuracy. This is where precise pouring techniques are critical to maintain the integrity of the titanium alloy and avoid any defects during solidification.
Vacuum investment casting, a preferred method for titanium, ensures minimal contamination and allows for precise control over each step of the process. This high precision level makes titanium casting viable for demanding applications like jet engines and heat exchangers. By utilizing vacuum investment casting techniques, manufacturers can maintain the highest material integrity and performance standards.
Typical Superalloys Used in Casting
Due to their unique properties, titanium alloys are among the most widely used materials in high-performance casting. Common titanium alloys include Ti-6Al-4V, Ti-6Al-2Sn-4Zr-6Mo, and Ti-5Al-5V-5Mo-3Cr.
Ti-6Al-4V is known for its excellent strength-to-weight ratio and corrosion resistance, making it a staple in aerospace and automotive applications. Ti-6Al-2Sn-4Zr-6Mo offers superior high-temperature performance, making it suitable for components like turbine blades and heat exchangers. Ti-5Al-5V-5Mo-3Cr provides enhanced mechanical properties and is often used in military and defense applications.
Comparatively, nickel-based superalloys like Inconel 718 and Rene alloys, such as in turbine components, are used when extreme temperature resistance is required. While nickel-based alloys excel at high temperatures, titanium’s lightweight nature is a significant advantage for applications where weight reduction is critical.
Temperature control is vital for all these alloys to prevent defects like shrinkage, improper grain structure, or contamination. Maintaining optimal temperatures during melting, pouring, and cooling is critical for achieving the desired properties of the cast part.
Post-Processes: Ensuring Performance and Durability
Once the casting process is complete, post-processing steps are necessary to refine the properties and ensure the performance of titanium alloy components. Hot Isostatic Pressing (HIP) is a common post-process used to eliminate porosity and improve the material’s density and mechanical properties. This process relies on precise temperature and pressure conditions to achieve optimal results. HIP’s role in enhancing component lifespan ensures high integrity and performance.
Heat treatments are another essential post-process step. These treatments enhance properties like strength, flexibility, and fatigue resistance. For titanium alloys, heat treatments are tailored to the specific alloy and application. Proper temperature control during these treatments ensures consistent and reliable results. Heat treatment for optimizing alloy durability helps achieve the required mechanical properties in critical applications.
Surface finishing techniques, including CNC machining and polishing, are employed to meet tight tolerances and surface quality requirements. CNC machining is particularly effective for achieving high dimensional accuracy, while polishing improves the aerodynamic performance of components like turbine blades and engine parts. Achieving tight tolerances is crucial for parts used in high-performance environments.
When comparing post-processing for titanium alloys to nickel-based superalloys, titanium often requires more stringent temperature controls to prevent distortions or thermal damage during finishing. These post-processes are crucial for delivering components that meet industry standards for safety and performance.
Testing to Validate Casting Quality
The rigorous demands of industries like aerospace and defense necessitate comprehensive testing to validate the quality of titanium alloy castings. X-ray and CT scanning are indispensable for detecting internal defects, such as porosity or inclusions, which can arise from temperature fluctuations during casting.
Ultrasonic testing evaluates the material's structural integrity, while tensile and fatigue testing assesses its mechanical performance under stress. These tests are critical for ensuring that the cast parts can withstand the harsh conditions of their intended applications.
Metallographic analysis is another vital testing method. It examines the alloy's microstructure to verify grain structure, phase composition, and uniformity. Deviations in temperature control during casting can lead to microstructural anomalies, which were identified through this analysis.
Thermal analysis tools, such as Differential Scanning Calorimetry (DSC) or Simultaneous Thermal Analysis (STA), are also employed to validate the thermal properties of the casting. These tools help manufacturers ensure that the component meets the thermal performance requirements of its application.
Prototyping Process: CNC Machining and 3D Printing
Prototyping is crucial in developing titanium alloy components, allowing manufacturers to refine designs and address potential challenges before full-scale production. Utilizing Superalloy CNC Machining and Superalloy 3D Printing, manufacturers can enhance the efficiency and quality of their prototypes, ensuring the final design meets all performance and durability standards.
Superalloy CNC Machining
CNC machining is widely used for creating high-precision prototypes. This subtractive process involves removing material from a solid block to achieve the desired shape and dimensions. Temperature control during machining is critical to prevent thermal distortions, particularly for thin or intricate components. CNC Machining offers excellent repeatability and precision, making it ideal for aerospace prototypes that require tight tolerances. Additionally, the ability to perform complex geometries ensures that manufacturers can meet the stringent requirements for components subjected to high-temperature conditions.
Superalloy 3D Printing
Additive manufacturing, or 3D printing, is increasingly used to prototype titanium alloy parts. This method builds components layer by layer, allowing for rapid production and design flexibility. Temperature-controlled environments are essential during printing to ensure consistent material properties and avoid defects like warping or incomplete fusion. Superalloy 3D Printing enables the creation of complex geometries that would be difficult or impossible to achieve with traditional methods, making it ideal for prototypes that demand intricate structures.
CNC machining is better suited for parts with critical tolerances, while 3D printing excels in producing complex geometries and reducing lead times. By combining these technologies, manufacturers can optimize the prototyping process and accelerate the development of high-performance components.
FAQs
Why is temperature control critical during the melting phase of titanium alloy casting?
How does vacuum investment casting improve the quality of titanium components?
What are the most common defects caused by improper temperature control in titanium casting?
How do post-processing techniques like HIP and heat treatments enhance titanium alloy properties?
What are the benefits of combining CNC machining and 3D printing for prototyping titanium alloy parts?
