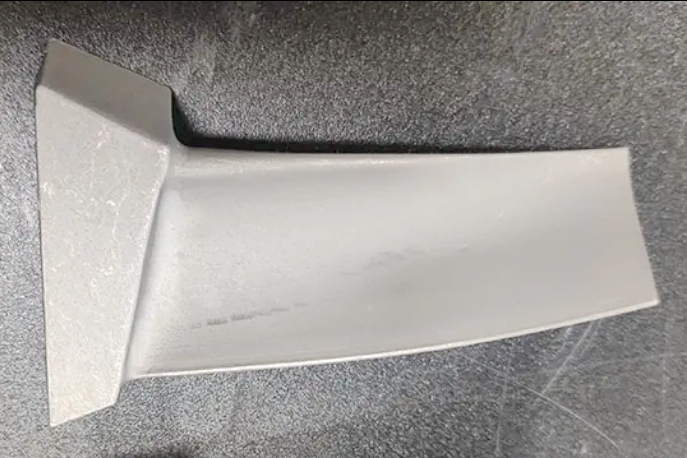

The Crucial Role of Vacuum Processing in Superalloy Purity for Turbine Blades
Turbine blades are critical components in various high-performance systems, including jet engines, gas turbines, and power plants. These blades endure extreme temperatures and mechanical stresses, which require them to be made from materials with exceptional properties, particularly superalloys. The purity of these materials is paramount, as even minute impurities can significantly impact their performance, leading to premature failure. One of the most essential processes in achieving the high purity needed for turbine blades is vacuum processing.
In this blog, we’ll explore the role of vacuum processing in turbine blade manufacturing, its benefits in terms of material purity, the typical superalloys used in these applications, post-processing techniques, testing methods, and the prototyping process. We’ll also discuss how these advancements benefit industries that rely on turbine blades for their high-performance needs.
The Manufacturing Process: Vacuum Processing and Its Role in Purity
The production of turbine blades involves several complex steps, with the casting process being a crucial one. Superalloy turbine blades are typically made using investment casting, which involves creating a wax model of the blade, coating it with a ceramic shell, and then removing the wax to leave behind a hollow mold. Molten metal is poured into this mold, which solidifies into the desired shape. Vacuum investment casting ensures high-quality, defect-free components by minimizing contamination during the melting and solidification.
The purity of the superalloy used in turbine blade casting directly affects the mechanical properties and performance of the blade. Vacuum induction melting (VIM) and vacuum arc remelting (VAR) are the primary techniques to refine superalloys. These processes occur in a vacuum or inert atmosphere, which helps to reduce the presence of atmospheric contaminants such as oxygen, nitrogen, and sulfur. The vacuum environment minimizes introducing these elements, which can lead to defects in the final product. Vacuum induction melting ensures the material’s purity by providing controlled conditions during the melting process.
In VIM, the metal is melted using an induction coil in a vacuum chamber, allowing precise control over the melting temperature and eliminating impurities. This method also helps to reduce the occurrence of gas porosity in the molten metal. Similarly, VAR is used to refine the alloy further by re-melting it under a vacuum, improving its chemical composition and reducing impurities. Controlling the molten metal’s environment, these processes help achieve a more homogeneous material, ensuring that the final turbine blade is free from defects like inclusions and contamination. Vacuum arc remelting enhances the overall purity and consistency of the alloy, making it ideal for high-performance components.
Vacuum processing is essential because it produces an alloy free of harmful impurities, ensuring that the final turbine blades can withstand the extreme conditions encountered during operation. Without the controlled environment provided by vacuum processing, maintaining the material's consistency and performance would be challenging, especially for critical applications such as jet engines and power turbines. Precision pouring plays a significant role in maintaining the structural integrity of these components.
Typical Superalloys Used in Turbine Blades
The selection of the right superalloy is vital for ensuring the reliability and longevity of turbine blades. Nickel-based superalloys are the most commonly used materials in turbine blade production because of their excellent high-temperature strength, oxidation resistance, and creep resistance. Some of the most popular superalloys used in turbine blades include:
Inconel 718
This alloy is known for its high strength, excellent fatigue and thermal fatigue strength, and good weldability. It is widely used in turbine blades for jet engines and gas turbines, especially for components exposed to high temperatures and stress.
Inconel X-750
Known for its ability to resist high-temperature oxidation and corrosion, this alloy is commonly used in aerospace and power generation applications. Its resistance to thermal creep also makes it suitable for turbine blades subjected to constant high-temperature conditions.
CMSX-10
A single-crystal superalloy designed specifically for high-performance turbine blades. It offers exceptional thermal fatigue resistance and can operate at higher temperatures than many other superalloys, making it ideal for aerospace and power generation turbine applications.
Rene 41
Another popular nickel-based superalloy, Rene 41, is known for its high strength and resistance to creep at elevated temperatures. It is used in critical aerospace applications where turbine blades must perform under extreme conditions.
In addition to nickel-based superalloys, cobalt-based superalloys like Rene 41 are used in some applications where specific thermal properties or high-temperature strength are required. The purity of these superalloys, achieved through vacuum processing, is crucial to maintaining their integrity under the high thermal and mechanical stresses turbine blades endure.
Post-Processing Comparison: Heat Treatment, HIP, and TBC
After casting, turbine blades often undergo various post-processing treatments to enhance their mechanical properties further and ensure they meet the required performance standards. Three of the most critical post-processing steps include heat treatment, hot isostatic pressing (HIP), and the application of thermal barrier coatings (TBC).
Heat Treatment
Heat treatment is essential for optimizing the mechanical properties of superalloy turbine blades. This process involves heating the blade to a specific temperature, followed by controlled cooling. Heat treatment enhances the blade’s strength, flexibility, and resistance to fatigue, making it capable of performing under extreme conditions. The vacuum environment in which the melting and refining processes occur also helps minimize oxidation, ensuring the heat treatment process is as effective as possible. The benefits of heat treatment are particularly evident in improved creep resistance and microstructure refinement, which are critical for high-performance turbine applications.
Hot Isostatic Pressing (HIP)
HIP is a post-casting process that uses high pressure and temperature to consolidate the material and eliminate internal porosity. During HIP, the turbine blade is placed under pressure in an inert gas atmosphere, typically argon. This process removes microscopic voids or inclusions within the material, improving its density and overall mechanical properties. Vacuum processing is essential here as it ensures the alloy's purity before HIP, making the process more effective at eliminating defects. HIP is particularly beneficial in eliminating gas porosity, which can compromise the blade’s integrity under operational stresses.
Thermal Barrier Coatings (TBC)
Thermal barrier coatings are applied to turbine blades to protect them from the extreme temperatures encountered during operation. These coatings, which are often ceramic-based, help insulate the blade and reduce the heat that reaches the underlying material. The application of TBCs helps extend the service life of turbine blades, and the vacuum processing of the superalloy ensures that the blade has a uniform microstructure, which aids in the adequate adhesion of the TBC layer. The application of thermal barrier coatings can significantly improve the blade’s resistance to oxidation and thermal fatigue, critical factors in prolonging the blade’s operational lifespan.
Each of these post-processing steps works synergistically to enhance the performance of turbine blades. Vacuum processing ensures that the alloy used in turbine blades has a high degree of purity, which is essential for the effectiveness of the heat treatment, HIP, and TBC application.
Testing: Ensuring Purity and Quality of Turbine Blades
Given the critical nature of turbine blades, it is essential to perform rigorous testing to ensure that each blade meets the highest standards of purity and quality. The testing methods employed for turbine blades include non-destructive testing (NDT), scanning electron microscopy (SEM), tensile testing, and fatigue testing.
Non-Destructive Testing (NDT):
NDT methods such as X-ray inspection, ultrasonic testing, and industrial CT scans detect internal defects, porosity, or cracks that may have formed during the casting process. These techniques ensure the turbine blade is free from flaws that could affect its performance or lead to failure during operation.
Scanning Electron Microscopy (SEM):
SEM is used to analyze the surface and microstructure of the turbine blade at high magnifications. This helps engineers examine the grain structure and detect imperfections that may compromise the material's integrity. Electron Backscatter Diffraction (EBSD) further enhances the analysis by providing detailed information on the crystal orientation and phase composition of the alloy, ensuring that the blade meets the required standards for purity and mechanical properties.
Tensile and Fatigue Testing:
Tensile testing measures the material's ability to withstand stretching or pulling forces, while fatigue testing simulates the stresses the blade will endure during long-term use. These tests are crucial for assessing the strength, flexibility, and fatigue resistance of the superalloy material used in turbine blades. The purity of the superalloy, enhanced by vacuum processing, is a key factor in ensuring that the blade performs well under these tests.
The vacuum processing of the superalloy plays an essential role in ensuring that the material passes these rigorous testing procedures, providing confidence that the turbine blade will perform reliably in real-world conditions.
Prototyping Process: Superalloy CNC Machining and 3D Printing
Once a turbine blade has been cast and subjected to post-processing, it often undergoes precision machining to meet the required specifications. Two standard methods used in the prototyping and finalizing of turbine blades are superalloy CNC machining and superalloy 3D printing.
Superalloy CNC Machining
CNC machining allows for precisely shaping turbine blades to the required tolerances. It is beneficial for fine details such as cooling channels and intricate geometries often found in turbine blades. The purity of the material, achieved through vacuum processing, ensures that the machining process is as effective as possible, allowing for the production of high-precision parts with superior mechanical properties.
Superalloy 3D Printing
3D printing, or additive manufacturing, is increasingly used to prototype turbine blades. This method creates highly complex geometries that are difficult to achieve through traditional casting or machining processes. 3D printing also facilitates rapid prototyping, which is essential in industries like aerospace, where design iterations need to be tested quickly. The integration of vacuum processing with 3D printing ensures that the printed parts maintain the same level of purity and performance as traditionally cast turbine blades.
Industry and Application of High-Purity Superalloy Turbine Blades
High-purity superalloy turbine blades are critical components in industries where performance, reliability, and safety are paramount. These blades are particularly essential in applications that require materials capable of withstanding extreme temperatures and mechanical stresses. Some of the key industries and their applications include:
Aerospace and Aviation
In the aerospace and aviation industry, turbine blades used in jet engines are exposed to extreme temperatures and high mechanical stresses. Using high-purity superalloys, achieved through vacuum processing, ensures these blades can maintain their strength and integrity over thousands of flight cycles. This high purity enhances fatigue resistance, thermal stability, and overall reliability, which is crucial for maintaining the performance and safety of both commercial and military aircraft engines. The quality of these blades directly contributes to the efficiency and safety of jet engine components.
Power Generation
In power generation, particularly in gas turbines used for electricity production, high-purity superalloy turbine blades are essential for ensuring efficient operation at high temperatures. These blades enable turbines to operate at optimal performance levels, improving fuel efficiency and reducing emissions in power plants. High-purity alloys are necessary to withstand the extreme thermal and mechanical conditions found in turbines. Vacuum-processed superalloys are crucial for achieving the performance levels required in gas turbines and enhancing overall energy efficiency.
Military and Defense
In military and defense applications, turbine blades in fighter jet engines and missile propulsion systems must withstand extreme operational conditions, including high speeds and temperatures. High-purity superalloys ensure these blades maintain their structural integrity and strength under the harshest environments. Vacuum processing improves the purity and performance of these materials, making them suitable for high-stress applications in military aircraft engines and advanced missile systems, where reliability and safety are critical.
Marine and Other Applications
In the marine industry, high-purity turbine blades are used in naval propulsion systems, such as those found in ships and submarines. These blades must operate reliably under high mechanical stresses and corrosive seawater environments. Using vacuum-processed superalloys ensures that the blades maintain their strength, corrosion resistance, and durability, providing long-term reliability in naval ship components and other marine propulsion systems. Their high purity also contributes to better performance and longevity in marine environments where reliability is critical.
