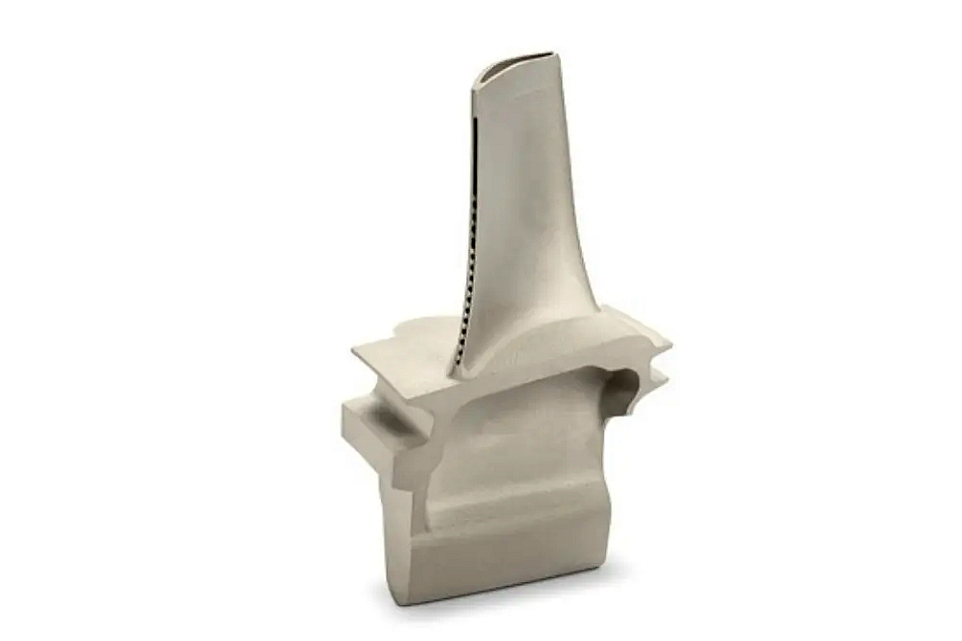

Temperature Control in Single Crystal Casting: Avoiding Defects for Turbine Components
Temperature control in single crystal casting is a pivotal factor in ensuring the performance and longevity of turbine components. Turbine blades, particularly those used in aerospace and power generation applications, must withstand extreme high heat, pressure, and mechanical stress. Single crystal casting is a manufacturing method that enables the production of high-performance turbine components with superior properties, such as excellent creep resistance, thermal stability, and minimal susceptibility to fatigue.
However, to achieve these properties, precise temperature control during the casting process is crucial in avoiding defects that could compromise the component's functionality. Proper temperature management ensures uniform solidification, promotes optimal grain structure, and prevents issues like porosity, cracks, or misalignment, ultimately improving the blade’s resistance to high-temperature deformation and enhancing its durability during operation.
Manufacturing Process of Single Crystal Casting for Turbine Components
Single crystal casting begins with the preparation of a high-quality superalloy, typically a nickel-based alloy like Inconel or Rene, which is poured into a mold designed to facilitate the growth of a single crystal. The process is highly controlled, with particular attention paid to factors such as mold design, cooling rates, and thermal gradients to ensure that the casting solidifies to promote the growth of a continuous crystal structure without forming unwanted defects. Vacuum Heat Treatment plays a vital role in enhancing the mechanical properties of these components, especially in refining the microstructure.
The process begins with creating a small seed crystal, often in the form of a carefully selected single crystal grain introduced into the mold. The seed crystal serves as the foundation for the entire structure, guiding the formation of a single crystal throughout the cooling process. From this point, the mold and the molten metal are cooled precisely to promote the desired crystal growth. The temperature gradients within the mold must be controlled to ensure that the cooling is uniform and the solidification process is gradual, thereby preventing defects such as misorientation or segregation. Post Process Heat Treatment further enhances the strength and reliability of the single crystal casting by optimizing its creep resistance.
Using vacuum investment casting in producing turbine blades is also a key component in achieving high precision and defect-free solidification. The vacuum environment helps reduce the chances of oxidation and other impurities that could negatively affect the material’s mechanical properties. The cooling process in the mold needs to be very slow and well-controlled to prevent the formation of grain boundaries, as any misalignment or variation in the crystal structure can severely impact the strength and durability of the finished component. Superalloy CNC Machining ensures the high precision of the final part, maintaining tight tolerances required for complex geometries.
Typical Superalloys for Single Crystal Casting
The success of the single crystal casting process largely depends on the selection of appropriate superalloys that can withstand the extreme conditions encountered by turbine components, such as high temperatures and mechanical stresses. Nickel-based superalloys are the most commonly used materials for single-crystal casting due to their excellent high-temperature strength, corrosion resistance, and ability to retain their mechanical properties under thermal stress. More about Neway Aerotech's superalloy casting services can be found on their website.
Some of the typical superalloys used for single crystal casting in turbine components include:
Inconel 718: One of the most widely used alloys in turbine blade production, Inconel 718 is known for its good balance of strength, elasticity, and oxidation resistance. This alloy also exhibits exceptional fatigue resistance, making it ideal for turbine blades exposed to cyclic loading.
Rene 104 and Rene 142: These are nickel-based alloys commonly used for turbine components requiring superior creep resistance and high-temperature performance. They are designed to withstand extreme conditions, such as high thermal and mechanical stresses.
CMSX-486: A high-performance single crystal superalloy, CMSX-486 features excellent thermal fatigue and creep resistance, making it a popular choice in advanced turbine applications.
The composition of these alloys is carefully tailored to optimize their performance at high temperatures. For example, adding elements like rhenium and cobalt enhances the alloy’s resistance to thermal degradation. At the same time, aluminum and titanium strengthen the microstructure by promoting the formation of gamma prime precipitates, which are essential for strengthening the material.
The selection of superalloy for single crystal casting is based on several factors, including the specific operating conditions of the turbine, the temperature range, the mechanical stress expected, and the need for oxidation resistance. The right superalloy ensures that the turbine blades can operate at peak efficiency for extended periods with minimal risk of failure.
Post-Processing Techniques for Single Crystal Turbine Components
Once the turbine component has been cast as a single crystal, several post-processing steps are required to enhance its properties further and ensure its functionality in extreme conditions. These post-processing techniques include heat treatment, hot isostatic pressing (HIP), surface coating, and sometimes specialized welding for repairs, all of which contribute to optimizing performance in industries like aerospace and energy.
Heat Treatment is vital in improving the mechanical properties of single crystal turbine components. It typically involves a series of steps where the component is heated to a specific temperature to achieve the desired phase distribution and relieve stresses induced during casting. Heat treatment can also promote the formation of fine gamma prime precipitates that strengthen the material, enhancing its creep resistance. This process is essential for maintaining the integrity and operational efficiency of turbine components under high-stress conditions. Heat treatment enhances alloy durability and increases the blade's strength and resistance to deformation at elevated temperatures.
Hot Isostatic Pressing (HIP) is another key post-processing step used to eliminate any remaining porosity in the casting and enhance the material's density. This process involves simultaneously applying high pressure and temperature to the turbine component, effectively "closing" any pores and ensuring the component's structural integrity. HIP is critical for improving the material's fatigue resistance and extending the service life of turbine blades. By removing internal defects and densifying the material, HIP improves the mechanical properties, enhancing the reliability of single crystal turbine components in demanding applications.
Surface Coating is an essential part of the post-processing stage for turbine blades, as these components are often exposed to extreme thermal environments that can cause oxidation and degradation over time. Thermal barrier coatings (TBCs) are applied to protect the surface of the turbine blades from high temperatures. These coatings act as a thermal insulation layer, allowing the component to operate at higher temperatures without experiencing damage. TBCs help to reduce the thermal stresses on the underlying superalloy, thus enhancing the performance and longevity of the turbine blades. TBCs boost performance by providing a critical barrier against thermal cycling and oxidation in high-temperature environments.
In addition to these common post-processing steps, turbine blades may require specialized welding techniques for repairs. Since the microstructure of single crystal materials is susceptible, welding must be done with great care to avoid disrupting the crystal structure. Advanced welding methods such as laser beam welding and electron beam welding ensure that repairs are made without compromising the material’s performance. Superalloy welding techniques are crucial for restoring the mechanical integrity of turbine components while preserving their high-temperature performance.
Testing and Quality Assurance for Single Crystal Castings
Given the critical nature of turbine components, testing, and quality assurance are integral to producing single crystal castings. Several testing methods are used to ensure that the components meet the required mechanical performance, safety, and reliability standards.
Tensile and Creep Testing
Tensile and creep testing are among the most common methods used to assess the strength and resistance of turbine components. Tensile tests measure how much force a material can withstand before breaking, while creep testing evaluates the material’s ability to resist deformation under stress at high temperatures. These tests help to ensure that the turbine blades can maintain their structural integrity during prolonged operation.
Non-Destructive Testing (NDT)
Non-destructive testing (NDT) methods like X-ray and CT scanning identify internal defects such as porosity, cracks, and inclusions that could weaken the turbine component. These methods allow for early detection of potential issues without damaging the part, ensuring that only defect-free components are used in turbine assembly.
Metallographic Analysis
Metallographic analysis, including electron backscatter diffraction (EBSD), is used to analyze the material's microstructure and verify the crystal lattice's alignment. This is essential for confirming that the casting process has resulted in a single crystal structure. Microscopic examination also helps identify misorientations that could lead to premature failure during service.
Fatigue Testing
Fatigue testing is another critical quality assurance method, especially for turbine components exposed to cyclic loading. Dynamic and static fatigue testing measures the material’s response to repeated stress and strain, helping to determine its lifespan under operational conditions.
Prototyping of Single Crystal Turbine Components
Prototyping of turbine components made from superalloys typically involves advanced manufacturing techniques such as CNC machining and 3D printing. These methods enable the creation of highly detailed, accurate prototypes that can be tested and evaluated before moving to full-scale production.
Superalloy CNC machining is commonly used to achieve precise geometries and surface finishes on single crystal turbine components. CNC machines are capable of high-precision cutting and shaping, essential for creating complex geometries required for turbine blades. This process often produces small batches or custom parts that require fine tolerances.
In recent years, 3D printing has become an increasingly popular method for prototyping turbine components. While traditional 3D printing methods are often limited in achieving the material properties required for high-performance turbine components, advancements in metal 3D printing have made it possible to print complex superalloy parts with excellent mechanical properties. Superalloy 3D printing allows for producing geometrically complex components that would be difficult or impossible to manufacture using traditional methods.
Both CNC machining and 3D printing have their advantages and limitations. CNC machining offers high precision and a well-established process for producing parts with stringent tolerance requirements. However, producing complex parts with intricate geometries can be time-consuming and costly. 3D printing, on the other hand, offers greater design flexibility and faster turnaround times, though it may require additional post-processing steps to improve surface quality and material properties.
Industry Applications of Single Crystal Turbine Components
Single crystal turbine components are used across various industries, notably aerospace, power generation, and oil and gas. These industries rely on the superior mechanical properties of single crystal materials to meet the demanding operational conditions of turbines.
Aerospace
In the aerospace and aviation industry, turbine blades are exposed to high temperatures and mechanical stress, making single crystal casting an ideal method for manufacturing components that must operate efficiently for extended periods. Single crystal blades are used in jet engines, whose ability to withstand extreme temperatures and resist deformation under load is critical for performance. These components help improve engine efficiency, fuel consumption, and overall operational lifespan by offering superior creep resistance and thermal stability.
Power Generation
Power generation is another industry in which single-crystal turbine components are essential. Gas turbines used in power plants require blades that can perform under high thermal and mechanical stress. Single crystal casting enables the production of blades that maintain their strength and durability even after years of continuous operation. This makes them ideal for gas turbines, where high-temperature resistance and long-term reliability are essential to maximize efficiency and minimize maintenance.
Oil and Gas
The oil and gas industry also benefits from using single-crystal turbine components. Turbines used in offshore drilling rigs or in petrochemical plants need to operate reliably in challenging environments, making the properties of single crystal castings ideal for these applications. These components must withstand high temperatures, aggressive chemical exposure, and mechanical stresses, making single crystal turbine blades critical for maintaining performance and reducing downtime in high-stress operations.
