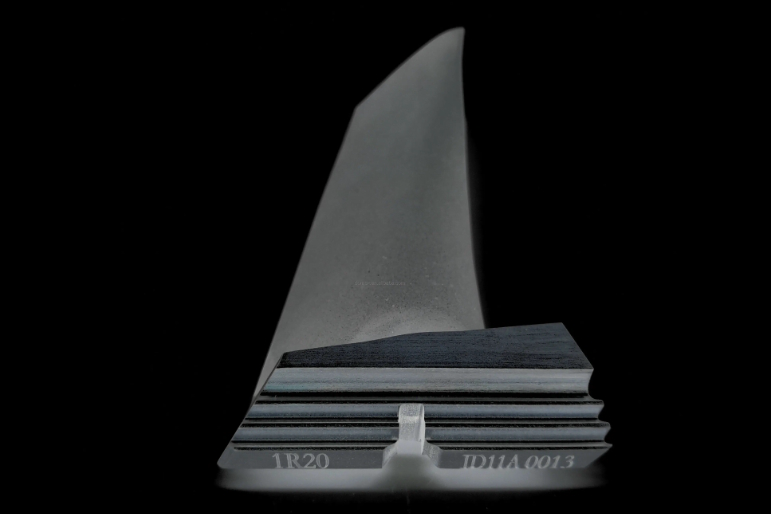

Superalloy Turbine Components Failure Analysis Service
Superalloys play an essential role in manufacturing turbine components due to their high strength, resistance to thermal fatigue, and ability to withstand extreme environmental conditions. These alloys are used in critical components such as turbine blades, discs, and nozzles, which operate under immense pressure and temperature. However, despite their advanced properties, turbine components can still experience failures due to various factors, including design flaws, material defects, thermal cycling, and operational stresses. Failure analysis is a critical service for identifying the root causes of these issues, optimizing material performance, and improving component durability. This blog explores the different processes used to manufacture superalloy turbine components, the benefits of various superalloys, post-processing techniques, testing methods, and the industries that rely on these high-performance materials.
Different Process Superalloy Parts
Under extreme conditions, turbine components undergo various advanced manufacturing processes to ensure the required strength, durability, and performance. Each process has specific advantages depending on the type of part being manufactured and the operational demands placed on it.
Vacuum investment casting is one of the most common production methods for turbine components. It involves the creation of a wax pattern of the component, which is then coated with a ceramic shell and melted away to form a mold. The mold is then filled with molten superalloy to produce the final part. This process is exact, making it ideal for complex geometries in turbine blades and nozzles, where dimensional accuracy is paramount.
Single crystal casting is an advanced technique used to produce turbine blades that exhibit superior thermal fatigue and creep resistance. The method involves controlling the cooling rate of the molten alloy to allow for the formation of a single crystal structure throughout the component. This results in stronger blades and more resistance to the stresses encountered in gas turbines, where high-temperature gradients can lead to material failure.
Equiaxed crystal casting involves cooling the molten metal to promote the formation of equiaxed crystals, which are uniformly sized and randomly oriented. This process is typically used for components that do not experience the extreme directional stresses that single crystal components do but still require excellent strength and fatigue resistance, such as specific turbine casings and discs.
Directional casting creates components where the material’s grain structure needs to be aligned in a specific direction for enhanced mechanical properties. This is particularly beneficial for turbine blades and disks, where directional casting ensures that the grains are aligned along the component's axis, allowing it to withstand high thermal and mechanical stresses without cracking or failure.
Powder metallurgy is a technique in which fine metal powders are mixed, compacted, and sintered at high temperatures to form solid components. This process allows for the precise control of the material’s composition, enabling the creation of turbine discs and other components that require high strength, thermal stability, and oxidation resistance.
Forging is another method for manufacturing turbine components, particularly shafts and other high-stress parts. In forging, a billet of superalloy is heated and shaped by applying compressive forces. The result is a material with superior mechanical properties, including improved grain structure, strength, and fatigue resistance, making it ideal for components subjected to high forces and stresses.
CNC machining is often used after casting or forging to achieve precise tolerances and finish on turbine components. Using computer-controlled machines, parts are cut, drilled, and shaped to exact specifications, ensuring the final component meets stringent performance requirements and tolerances for fit and function.
3D printing, or additive manufacturing, is an emerging technology that is revolutionizing the production of turbine components. It allows for creating highly complex and lightweight parts that would be difficult or impossible to manufacture using traditional methods. Superalloy 3D printing enables the production of turbine components with intricate geometries, reducing material waste and increasing efficiency.
Benefits to Different Superalloys
Superalloys are engineered to withstand the extreme conditions that turbine components are subjected to, including high temperatures, high mechanical stresses, and corrosive environments. Each type of superalloy offers unique benefits depending on the application and the specific demands of the turbine components.
Inconel Alloys
Inconel alloys are some of the most commonly used superalloys in turbine applications. These nickel-based alloys offer excellent resistance to oxidation and corrosion, as well as exceptional high-temperature strength. Alloys such as Inconel 718 and Inconel 625 are commonly used for turbine blades, discs, and nozzles in both aerospace and power generation applications. Their high strength and resistance to thermal fatigue make them ideal for components that operate in extreme conditions.
CMSX Series
CMSX Series alloys, such as CMSX-10 and CMSX-486, are single-crystal superalloys designed explicitly for high-performance turbine blades. These alloys offer superior resistance to creep and fatigue, making them ideal for the harsh environments of jet engines and gas turbines. The single crystal structure of these alloys enhances their ability to withstand high thermal gradients and extreme mechanical stresses.
Monel and Hastelloy Alloys
Monel alloys and Hastelloy alloys are used in turbine components that must withstand corrosive environments, such as chemical processing or marine applications. These alloys provide excellent resistance to corrosion and oxidation, making them ideal for components exposed to harsh chemicals, seawater, or high-sulfur environments.
Titanium Alloys
Titanium alloys are used in turbine components where a balance of strength, lightness, and corrosion resistance is needed. Titanium alloys, such as Ti-6Al-4V, are commonly used in low-pressure turbine sections or auxiliary components. They are highly resistant to oxidation and corrosion, and their lightweight nature helps reduce the overall weight of turbine engines.
Rene Alloys
Rene alloys, including Rene 104 and Rene 88, are high-performance superalloys designed for use in aerospace and industrial turbine components. These alloys are known for their excellent high-temperature strength, oxidation resistance, and ability to maintain structural integrity under extreme conditions. They are often used in critical components such as turbine blades and discs in high-performance jet engines.
Post-Process Comparison
After manufacturing turbine components using casting, forging, or additive methods, post-processing plays a critical role in ensuring that the final part performs optimally. Several post-processing techniques are used to enhance the material properties of superalloy components.
Hot Isostatic Pressing (HIP) is a post-processing technique used to remove internal porosity and improve the density of the material. By applying high temperature and pressure, HIP treatment helps to close any voids in the superalloy, resulting in a more uniform and more substantial material. This process is essential for turbine components exposed to high stresses, reducing the risk of failure due to material defects.
Heat Treatment is another crucial post-processing step for optimizing the microstructure of superalloy turbine components. Heat treatment involves heating the material to a specific temperature and then cooling it in a controlled manner. This process can improve turbine components' strength, toughness, and resistance to thermal fatigue. Heat treatment is essential for materials like Inconel and CMSX alloys, which are prone to thermal stresses during operation, helping to improve their performance in high-temperature environments.
Superalloy Welding is often required to repair and maintain turbine components. It allows for joining damaged parts or adding material to improve the structural integrity of components. Welding techniques are carefully controlled to prevent thermal distortion or material degradation, ensuring that the welded part maintains the necessary mechanical properties for high-performance applications like gas turbines.
Thermal Barrier Coating (TBC) is applied to turbine blades and other high-temperature components to protect them from extreme heat. TBC coatings are ceramic layers that help insulate the superalloy from the heat generated by the turbine engine, thereby reducing the thermal fatigue rate and extending the component's lifespan.
CNC Machining and EDM (Electrical Discharge Machining) often finish turbine components after casting or forging. These processes ensure that the parts meet tight tolerances and surface finish requirements, which are crucial for the performance and reliability of turbine engines. CNC machining is especially useful for complex geometries, while EDM is employed for intricate features and deep-hole drilling.
Testing
Testing is an essential part of the failure analysis process, allowing engineers to assess the mechanical properties and performance of superalloy turbine components.
Tensile Testing measures the material's ability to withstand stretching forces and is used to determine the yield strength, ultimate tensile strength, and elongation of turbine components. This test is critical for ensuring that the material can handle the operational loads it will encounter.
Fatigue testing simulates the cyclic loading and thermal cycling turbine components experienced during operation. It helps engineers assess the material’s resistance to crack propagation and failure under repetitive stresses.
X-ray and Ultrasonic Testing are non-destructive testing methods used to inspect turbine components for internal defects, such as cracks or voids, that could lead to failure. These techniques provide valuable insights into the integrity of the components without causing any damage.
Scanning Electron Microscopy (SEM) allows for a detailed examination of the surface structure of turbine components, enabling engineers to analyze fracture mechanisms and identify the root causes of failure.
Electron Backscatter Diffraction (EBSD) is used to analyze turbine components' microstructure and grain orientation. This technique helps understand how the material behaves under stress and identifies potential weaknesses in the structure.
Industry and Application
Superalloy turbine components are critical in various industries that require high-performance materials for their operations. These include:
Aerospace
Superalloy turbine components are essential for the manufacturing of jet engines, where they must operate under extreme temperatures and pressures. Materials like Inconel alloys and CMSX alloys are commonly used in aerospace turbines to ensure optimal performance and reliability. Superalloy turbine blades and combustion chambers must withstand the high thermal and mechanical stresses encountered during flight, making them crucial for jet engine efficiency and safety.
Power Generation
Power plant gas turbines rely heavily on superalloy components to maintain efficiency and withstand the high temperatures generated during energy production. Superalloys are used in turbine blades, discs, and other critical components to ensure long-lasting performance. Components like superalloy heat exchanger parts play a key role in ensuring efficient heat transfer and minimizing downtime in power generation systems.
Oil and Gas
Turbine components in the oil and gas industry are exposed to harsh environments, including corrosive substances and extreme temperatures. Superalloys are used in pumps, compressors, and gas turbines to ensure durability and resistance to corrosion. For example, high-temperature alloy pump components are designed to withstand the demanding conditions of offshore platforms and drilling operations.
Chemical Processing
Superalloy turbine components are used in chemical processing plants with ordinary high temperatures and corrosive environments. Alloys like Hastelloy and Monel are often used for components in these industries due to their excellent resistance to corrosion and high-temperature stability. These superalloys are essential in maintaining the performance of turbines and other critical systems in chemical production.
Marine
Superalloys are also used in marine turbine engines, where resistance to corrosion and high temperature is vital. Turbine components for naval ships and offshore platforms require superalloys to ensure reliability in demanding conditions. Components like superalloy naval ship modules are designed to withstand both the mechanical stresses of propulsion and the corrosive nature of seawater.
Superalloys are indispensable in these industries, ensuring turbine components' reliability, efficiency, and longevity across a wide range of demanding applications.
FAQs
What are the common causes of turbine component failure in superalloys?
How does the failure analysis process improve turbine performance?
What role does directional casting play in turbine component durability?
How is 3D printing changing the manufacturing of turbine components?
What are the advantages of superalloys over other materials in turbine components?
