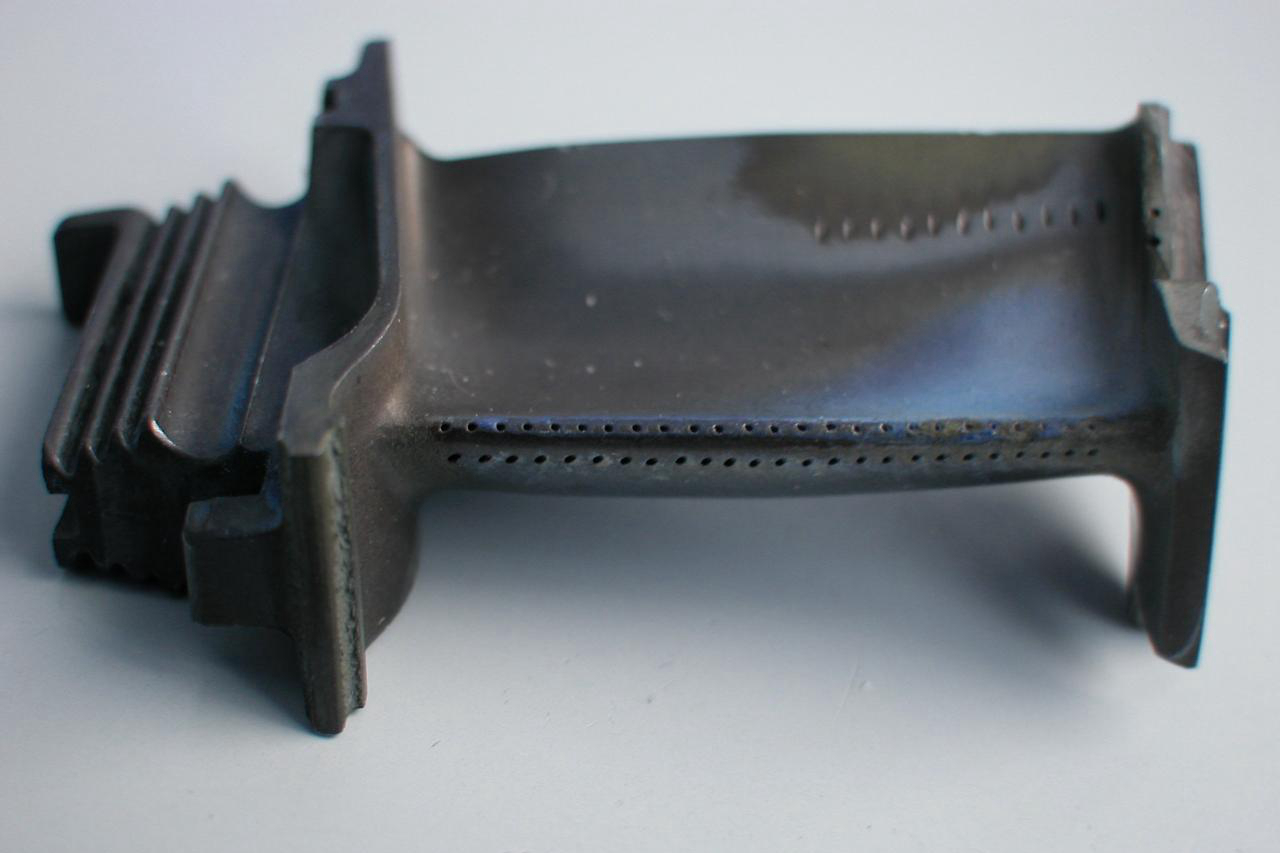

Superalloy Single Crystal Casting Blades Component Life Extension
Turbine blades, found in jet engines, gas turbines, and other high-performance systems, are critical components designed to withstand extreme conditions. These components are subjected to high temperatures, mechanical stresses, and corrosive environments, which can lead to material degradation over time. In industries like aerospace, power generation, and military defense, the need for turbine blades to operate with minimal downtime, maximum efficiency, and exceptional reliability is paramount. One of the most effective ways to optimize turbine blade performance and extend its operational life is through superalloy single crystal casting technology.
The Benefits of Superalloy Single Crystal Casting for Turbine Blades
Superalloys are designed to withstand high temperatures and stresses while maintaining strength and resistance to corrosion. The single crystal casting process eliminates grain boundaries, which can become points of weakness in turbine blades. As a result, single crystal turbine blades offer superior mechanical properties, such as enhanced fatigue resistance and creep strength, making them ideal for high-temperature environments found in aerospace and power generation systems. This process is critical in ensuring the longevity and reliability of turbine blades in demanding applications.
Using single crystal casting also allows for greater precision in design. The ability to control the alignment and orientation of the crystal structure during the casting process leads to turbine blades with tailored properties for specific operational requirements, ensuring optimal performance under varying stress and temperature conditions.
In addition, the casting process, which can include vacuum investment casting or other specialized methods, helps to reduce material defects and enhances the overall integrity of the turbine blades. This makes it an essential technology for industries that require parts with exceptionally high performance, such as the aerospace, military defense, and power generation sectors.
The Superalloy Single Crystal Casting Process
The production of turbine blades using single crystal casting technology differs significantly from conventional casting methods. Polycrystalline materials are formed in traditional casting, meaning the final part contains multiple grain boundaries. These grain boundaries are weak points where cracks can initiate under high stress or extreme temperatures. In contrast, the single crystal casting process produces a blade made from one continuous crystal structure, without grain boundaries, enhancing its mechanical properties and durability under stress.
The process begins with the preparation of a mold that is specially designed for directional solidification. The mold contains a tapered shape, known as the starter rod, used to control the solidification process. The molten superalloy is poured into the mold, and the cooling rate is carefully controlled. As the material cools, the crystal structure grows from the starter rod in a uniform, directional manner. This ensures that the final part has a single continuous crystal structure, eliminating the weak grain boundaries that are common in traditional casting methods.
The cooling process is precisely managed to ensure that the crystal structure grows consistently and without disruptions. This requires strict control of temperature gradients; any variations in these gradients can result in defects in the final product. The casting process is also susceptible to environmental factors, requiring a controlled atmosphere to minimize oxidation and contamination.
Compared to polycrystalline counterparts, the result is a turbine blade with superior mechanical properties, such as increased creep resistance, fatigue strength, and thermal stability. The lack of grain boundaries also prevents the formation of cracks, common failure points in turbine blades subjected to high temperatures and stresses.
Choosing the Right Superalloys for Single Crystal Casting Blades
Material selection plays a crucial role in determining the performance and longevity of single-crystal turbine blades. The superalloys used for casting must exhibit exceptional strength at high temperatures, resistance to oxidation and corrosion, and the ability to withstand mechanical stresses over extended periods. Several superalloys are specifically designed for single crystal casting, each with unique properties tailored to different applications.
CMSX Series
These alloys, including CMSX-10, CMSX-4, and CMSX-486, are widely used in the aerospace and power generation industries due to their excellent high-temperature strength and resistance to creep. The CMSX series is known for retaining strength at temperatures above 1,000°C, making them ideal for turbine blades operating in extremely hot environments.
Rene Alloys
Alloys such as Rene 41, Rene 65, and Rene 104 are used in turbine blades that must endure both high temperatures and mechanical stress. These alloys offer high thermal stability, excellent creep resistance, and good oxidation resistance, making them a popular choice for aerospace and industrial gas turbine applications.
Inconel Alloys
Inconel 718, Inconel 738, and Inconel X-750 are some of the most commonly used superalloys in turbine blade manufacturing. These alloys are known for their high-temperature strength, resistance to thermal fatigue, and excellent oxidation resistance, which is essential for the harsh conditions turbine blades face in jet engines and power plants.
Single Crystal Alloys
Single crystal alloys such as PWA 1480, Rene N5, and CMSX-2 are often selected for the most demanding applications. These materials are specifically designed to perform under extreme conditions, offering exceptional thermal stability, fatigue resistance, and high tensile strength, even at temperatures exceeding 1,200°C.
Post-Processing Techniques to Enhance Blade Longevity
The casting process is just one part of ensuring the turbine blades' performance and longevity. Once cast, the blades undergo several post-processing treatments to improve their mechanical properties, eliminate defects, and ensure they are ready for high-stress operation. These post-processing steps are essential for optimizing the material properties of the blades and extending their service life.
Heat Treatment: Heat treatment is crucial for improving the mechanical properties of single-crystal turbine blades. This process involves subjecting the blade to specific temperature cycles that relieve residual stresses, promote grain growth, and enhance the alloy’s strength. Solution heat treatment and aging processes are used to achieve the desired microstructure and material properties, such as improved tensile strength, fatigue resistance, and creep resistance.
Hot Isostatic Pressing (HIP): Turbine blades may contain small voids or porosity after casting, which can weaken the material. Hot Isostatic Pressing (HIP) is a process that applies high pressure and temperature to the blade, eliminating these imperfections. HIP helps to densify the material and improve its uniformity, enhancing its overall strength and resistance to thermal and mechanical stresses.
Superalloy Welding: In some cases, turbine blades may require repair or joining during manufacturing. Superalloy welding techniques ensure that the welded joints maintain the same high performance as the base material. This process is crucial in industries like aerospace and defense, where blade failure could have catastrophic consequences.

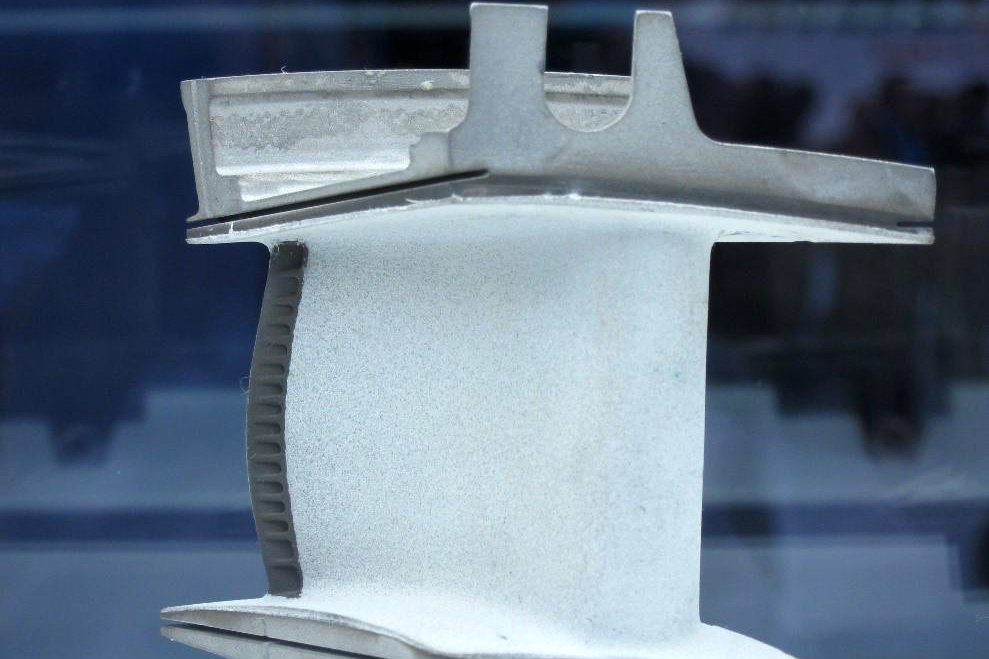

Thermal Barrier Coating (TBC): One of the most effective methods for extending the life of turbine blades is the application of a thermal barrier coating (TBC). These coatings protect against high temperatures, preventing oxidation and thermal degradation. The coatings can also reduce the heat transferred into the underlying blade material, allowing the blade to operate at higher temperatures without experiencing damage.
Surface Treatment and Coatings: In addition to thermal barrier coatings, turbine blades may undergo other surface treatments to improve wear resistance, corrosion resistance, and overall durability. Techniques such as shot peening, coating with corrosion-resistant materials, and applying anti-wear coatings help to enhance the blade’s resistance to surface degradation, which is essential for prolonging its operational life.
By leveraging these advanced post-processing techniques, turbine blades can be optimized for high-performance applications, ensuring they maintain their strength and functionality throughout their operational life.
Testing and Quality Control for Life Prediction
To ensure the longevity and reliability of single-crystal turbine blades, rigorous testing is carried out throughout the manufacturing process. These tests help detect defects, evaluate the material’s mechanical properties, and predict how the blades perform under real-world operating conditions. The following testing methods are commonly used:
Non-Destructive Testing (NDT): X-ray, ultrasonic testing, and CT scanning are widely used to detect internal defects, such as cracks, voids, or inclusions, that may compromise the blade's integrity. Non-Destructive Testing in Superalloy Castings allows manufacturers to inspect the blades without causing any damage, ensuring they meet quality standards before being put into service.
Tensile and Fatigue Testing: Tensile testing measures the material’s strength and ability to withstand stress without breaking, while fatigue testing simulates the cyclical loads turbine blades experience during operation. Both tests are essential for evaluating how the blades perform over time and under various stress conditions. Fatigue Testing for Superalloy Castings helps assess the endurance of turbine blades.
Creep Testing: Creep testing simulates the long-term high-temperature stress turbine blades experience during operation. It measures the blade’s deformation under a constant load over an extended period, helping manufacturers understand how the material will behave under prolonged exposure to high temperatures. Creep Testing in Superalloy Materials offers insights into material behavior under extreme stress.
Thermal Cycling and Corrosion Testing: Given the high temperatures and corrosive environments that turbine blades operate in, it is crucial to test their resistance to thermal cycling (repeated temperature changes) and corrosion. These tests ensure that the blades maintain integrity throughout their service life, even when subjected to extreme conditions. Thermal Cycling Testing for Superalloy Castings ensures the material can withstand severe operational environments.
Microstructural Analysis: Manufacturers can analyze the microstructure of the turbine blades using advanced tools such as scanning electron microscopy (SEM) and metallographic techniques. These techniques help identify defects, such as grain boundary misalignment or microcracks, which could affect the blade’s performance and lifespan. For microstructural analysis, SEM provides high-resolution insights into component integrity.
Simulation and Life Cycle Modeling: Computational methods, including Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD), are used to simulate the operating conditions of turbine blades. These simulations help manufacturers predict how the blades will perform under various conditions, including thermal and mechanical stresses, and assist in optimizing the design to maximize their service life. FEA in Superalloy Castings is integral in optimizing performance and longevity.
Industry Applications for Single Crystal Turbine Blades
Single-crystal turbine blades are used in various industries that require components capable of operating under extreme conditions. These include:
Aerospace and Aviation
In the aerospace and aviation industry, turbine blades are essential components in jet engines, where they are exposed to extremely high temperatures and mechanical stresses. Single crystal casting technology ensures that these blades can withstand the harsh operating conditions of jet propulsion systems, as seen in superalloy jet engine components.
Power Generation
Gas turbines used in power plants rely on turbine blades to efficiently convert thermal energy into mechanical energy. Single crystal turbine blades offer improved thermal efficiency and longer service life, making them ideal for these critical applications in power generation, where performance under extreme conditions is paramount.
Military and Defense
In military and defense applications, turbine blades are used in aircraft engines, missile propulsion systems, and naval turbines. The extreme reliability and performance requirements make single crystal casting an essential technology for defense-related turbine components, including superalloy missile segments and armor system parts.
Oil & Gas and Marine
Turbine blades are also used in offshore and marine turbines, where they must operate under corrosive and extreme environmental conditions. Single crystal alloys provide the strength and resistance to these harsh environments, ensuring reliable operation in marine and oil and gas systems.
Energy and Renewable Applications
With the rise of renewable energy, turbine blades are used in wind and geothermal power systems. The longevity and durability of single crystal turbine blades help increase these renewable energy systems' efficiency and reliability, ensuring continued high energy generation performance.
