Superalloy Rough Forging: Precision Meets Strength for Extreme Environments
Introduction to Superalloy Rough Forging
Superalloy rough forging is a foundational process in manufacturing high-performance components in aerospace and aviation, power generation, chemical processing, and oil & gas. Known for enhancing a component's strength, rough forging involves shaping superalloys, specialized alloys designed to withstand extreme temperatures, high stress, and corrosion. Unlike traditional materials, superalloys retain their structural integrity under extreme conditions, making them ideal for applications where safety, durability, and performance are paramount.

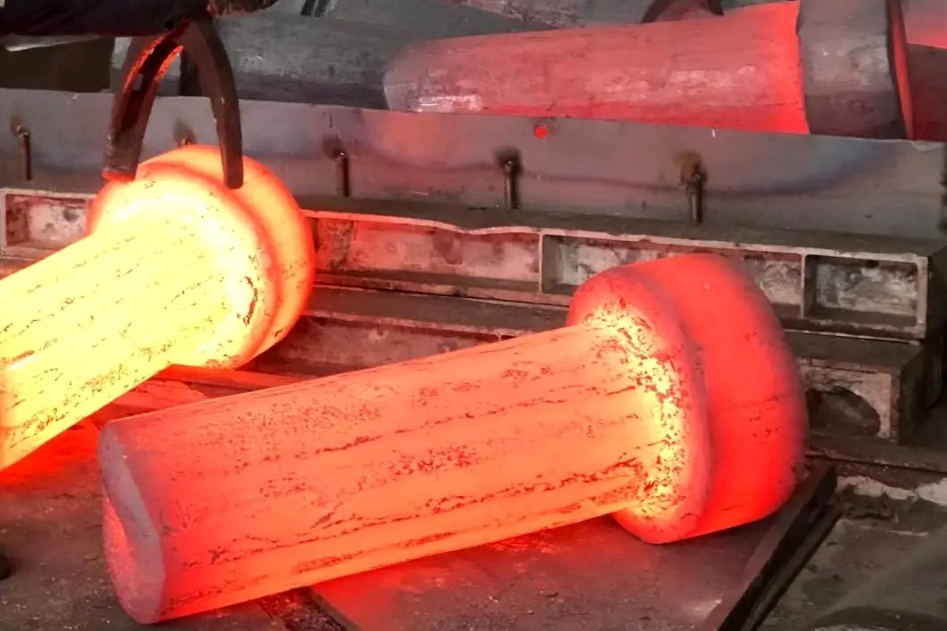

In rough forging, the superalloy is heated to an optimal temperature and then subjected to force, creating a rough form of the final component. This process helps establish the part's core shape while preserving its essential structural properties. Although rough forging doesn't produce the final detailed shape, it provides an initial form that can be refined through precision methods like CNC machining. This combination enables manufacturers to create exceptional strength, grain alignment, and scalability components.
This blog explores the intricacies of superalloy rough forging, examining its stages, benefits, types of superalloys used, and quality control measures that ensure the reliability of components destined for extreme environments.
What is Superalloy Rough Forging?
Definition and Process Overview
Superalloy rough forging is a high-temperature, high-pressure manufacturing process that shapes superalloys into preliminary forms. Unlike precision forging or isothermal forging, rough forging primarily focuses on establishing a component's fundamental shape without requiring the tight tolerances of near-net-shape processes. Typically, the first step in a multi-stage manufacturing sequence, it provides durability and resistance to harsh conditions.
The rough forging process generally includes the following:
Heating: Superalloy billets are heated to temperatures suited to each alloy, ranging from 1000°C to over 1200°C. This heating stage is crucial as it increases the alloy's malleability, making it easier to shape.
Shaping: Once heated, the superalloy undergoes substantial compressive forces from industrial presses or hammers. This stage roughly forms the component, aligning the grain structure to enhance mechanical properties.
Initial Cooling: After shaping, the component undergoes controlled cooling to stabilize its structure and reduce residual stresses. Careful management of this cooling phase prevents unwanted phase changes or structural weaknesses.
Through these stages, rough forging produces a component with enhanced material properties and a strengthened grain structure, ensuring that it can later undergo further refinement without compromising its integrity.
Critical Benefits of Rough Forging for Superalloy Parts
Rough forging offers unique advantages in manufacturing, particularly with high-strength superalloys:
Enhanced Strength: Rough forging increases the material's toughness by aligning the internal grain structure with the direction of applied force. This grain alignment strengthens the material, making it more resistant to deformation and stress.
Material Efficiency: Rough forging optimizes material usage by minimizing waste, making it economical for creating high-performance components. Minimal scrap conserves valuable superalloy materials, which are often costly.
Scalability: Rough forging can be applied to components of various sizes, from small parts to large, heavy-duty structures, making it a flexible option that meets diverse industry demands.
By starting with rough forging, manufacturers can produce parts with a robust foundational structure that can be refined later to achieve precision and intricate details.
Superalloys Used in Rough Forging
The choice of superalloy is crucial in rough forging, as each has specific properties suited to particular environments and stress conditions. The three commonly used brands in rough forging are Inconel, Hastelloy, and Rene, each featuring specific grades that excel in different applications:
Inconel
Known for its high resistance to oxidation and corrosion, especially at elevated temperatures, Inconel is widely used in aerospace and chemical processing.
Grades: Inconel 718, Inconel 625, Inconel 600, and Inconel 939.
Applications: These grades are ideal for turbine blades, gas turbine discs, and components in high heat and corrosive environments.
Hastelloy
Characterized by its superior resistance to oxidation, stress corrosion, and acid corrosion, Hastelloy is popular in the chemical processing and oil & gas sectors.
Grades: Hastelloy X, Hastelloy C-276, Hastelloy S, and Hastelloy N.
Applications: Hastelloy components are commonly used in high-temperature reactors, heat exchangers, and pressure vessels where they endure harsh chemical conditions.
Rene
Developed for high-temperature stability and resistance to creep, Rene alloys are specifically used in the aerospace industry for turbine engine components.
Applications: These alloys suit jet engine parts, turbine discs, and other high-performance components that experience prolonged high-temperature exposure.
Each brand and grade of superalloy used in rough forging offers a unique combination of properties. It enables manufacturers to match material selection with specific application requirements, ensuring optimal performance and durability.
CNC Machining and Forging Combination
While rough forging provides a superalloy component's essential shape and strength, additional refinement is often required to achieve the tight tolerances and complex geometries needed for high-performance applications. CNC machining is commonly used with rough forging, allowing manufacturers to enhance the component's precision and detail.
In this process, the rough-forged component is machined to exact specifications. CNC machines are equipped with high-precision tools that can handle the hardness and toughness of superalloys. Manufacturers can create intricate features by using CNC machining after rough forging, such as cooling channels in turbine blades or precise surface finishes required for assembly with other components.
This combined approach maximizes strength and precision, producing components that meet the stringent demands of aerospace and power generation industries. CNC machining adds value to rough-forged parts by providing accuracy for complex applications, ensuring each component performs reliably under extreme conditions.
Strength and Durability Through Grain Structure Control
Grain Flow in Forging and Its Impact on Mechanical Properties
The control of grain flow during rough forging is critical in enhancing a component's mechanical properties. When a superalloy is forged, the grains align with the applied force, creating a directional grain structure that improves the material's ability to withstand stress. Aligned grain structures contribute to the following:
Toughness: Forged components with aligned grain structures are less likely to fracture, as the grains can absorb and dissipate stress more effectively.
Fatigue Resistance: Rough forging's grain alignment enhances the component's fatigue resistance, which is vital for parts that undergo repeated loading cycles, such as turbine blades and power generation components.
Overall Durability: Grain structure alignment ensures that superalloy parts maintain strength and structural integrity under extreme temperature and pressure conditions.
Temperature Management During Forging
Temperature control is a critical aspect of the rough forging process. Heating and cooling must be carefully managed to prevent the formation of undesirable phases within the alloy. The alloy's malleability increases by achieving optimal temperatures during heating, facilitating the forging process. Controlled cooling prevents phase transformations that could weaken or reduce the component's corrosion resistance.
Maintaining precise temperatures ensures that the superalloy retains its structural integrity, avoiding defects such as cracking, warping, or grain boundary weakening. This careful temperature management results in a strong and resilient component capable of withstanding the operational challenges in industries like aerospace and power generation.
Testing and QC for Rough-Forged Superalloy Parts
Quality control and rigorous testing are essential for verifying the performance and reliability of rough-forged superalloy components. Due to the demanding environments in which these parts are used, thorough testing ensures that each part meets the required safety, durability, and mechanical strength standards.
Key Testing Methods
Coordinate Measuring Machine (CMM): CMMs precisely measure a component's dimensions, ensuring it meets specified tolerances. Parts need to fit seamlessly with other components in complex assemblies.
3D Scanning and SEM (Scanning Electron Microscopy): These technologies enable the examination of surface integrity, identifying microscopic flaws that could weaken the component under stress.
Tensile Testing: Tensile testing measures a material's ability to withstand pulling forces, providing data on strength, elongation, and elasticity.
X-ray and Ultrasonic Inspection: These non-destructive testing methods detect internal defects such as porosity, cracks, and voids, ensuring the component's structural integrity without damaging it.
Importance of Testing in Extreme Environments Applications
Industries such as aerospace, power generation, and chemical processing expose components to high temperatures, pressures, and corrosive environments. Rigorous testing and quality control are essential to ensure that each part will withstand these demanding conditions, reducing the risk of failure and enhancing operational safety. Testing gives manufacturers and end-users confidence in the performance and durability of rough-forged superalloy components.
Applications of Superalloy Rough-Forged Components in Extreme Environments
Aerospace
In aerospace, rough-forged superalloy components are crucial for constructing turbine blades, discs, and structural elements. These parts endure extreme rotational forces and temperatures, making structural integrity and durability essential for safe operation. The grain alignment achieved through rough forging enhances the component's resistance to fatigue, cyclic stresses, and thermal fluctuations, common in jet engines.
Power Generation
In power generation, superalloy rough-forged parts are used in turbines that operate at high temperatures and pressures. These components, such as turbine discs and blades, must withstand oxidation, heat, and mechanical wear while maintaining operational efficiency. The rough forging process improves the grain structure and material strength, allowing these parts to perform reliably over extended periods.
Chemical Processing and Oil & Gas
Superalloy components produced through rough forging are widely used in the chemical processing and oil & gas industries, where equipment is exposed to corrosive environments and elevated temperatures. These components, including valves, pumps, and reactors, provide dependable performance under extreme conditions due to their corrosion resistance and structural stability, enhanced by rough forging.
FAQs for Rough Forging
What are the key differences between rough forging and precision forging?
Which superalloys are most commonly used in rough forging for aerospace components?
How does CNC machining enhance the performance of rough-forged parts?
What quality control tests are essential for ensuring the integrity of rough-forged components?
Why is temperature management crucial in the rough forging of superalloys?
Superalloy rough forging is a vital process that enhances the strength, durability, and reliability of components used in the most demanding industrial applications. From aerospace turbine blades to power plant components and chemical processing equipment, rough-forged superalloy parts are designed to perform in extreme conditions. Through careful control of grain structure, temperature management, and thorough testing, rough forging produces components that meet the highest standards for quality and operational efficiency, providing unparalleled resilience and performance in critical applications.
