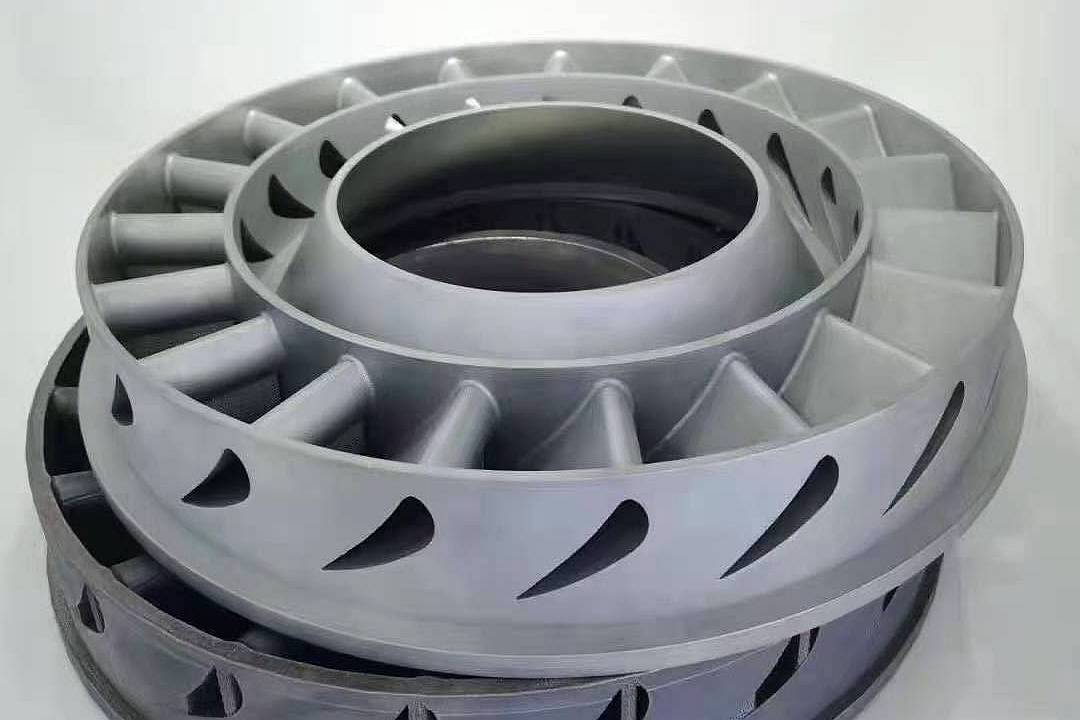

Superalloy Parts Manufacturing: Laser Cladding (LC) 3D Printing Service

Laser Cladding (LC) has become a prominent technology in additive manufacturing for producing high-performance, wear-resistant superalloy components. Known for its ability to deposit metal layers with precision and accuracy, LC allows for creating robust superalloy parts that can withstand extreme conditions. Industries such as aerospace, power generation, and chemical processing rely on superalloy components due to their exceptional resistance to heat, corrosion, and mechanical stress. Laser Cladding stands out as a 3D printing process because it is used to build parts from scratch and enhance surfaces with durable coatings, making it a versatile solution for various applications.

This blog explores suitable materials for LC, the manufacturing and post-processing steps, quality testing, and the industries that benefit from LC-produced superalloy parts.

Suitable Materials for Laser Cladding 3D Printing

Inconel

Inconel is a nickel-chromium superalloy known for its high temperature and oxidation resistance. It is widely used in high-stress environments where reliability and durability are paramount, such as in aerospace and power generation. Inconel alloys like Inconel 625 and Inconel 718 are compatible with LC due to their heat stability and capacity to form a tough oxide layer that protects against corrosion. LC enables precise application of Inconel, ensuring the creation of dense, high-integrity components that perform well under cyclic heating and cooling conditions.

Hastelloy

Hastelloy alloys are renowned for their outstanding corrosion resistance and durability in chemically aggressive environments. Hastelloy C-276 and Hastelloy X are commonly used grades in LC printing. Hastelloy parts produced via LC are ideal for equipment and components in chemical processing plants where exposure to harsh chemicals, acids, and chlorides is everyday. The LC process ensures that Hastelloy components have excellent resistance to stress corrosion cracking and oxidation, making them reliable in both high-temperature and corrosive environments.

Titanium Alloys

Titanium alloys, especially Ti-6Al-4V, are highly valued for their strength-to-weight ratio and corrosion resistance. Titanium alloys are commonly used in industries where weight savings and durability are crucial, such as aerospace and automotive. LC allows for precise deposition of titanium alloy layers, facilitating the creation of complex shapes and custom components with a robust and lightweight structure. The titanium parts produced through LC are corrosion-resistant and exhibit excellent fatigue properties, making them suitable for high-performance applications in the aerospace and medical industries.

Other Superalloys

Additional materials like Stellite and Rene alloys are also commonly used in LC applications. Stellite, a cobalt-based superalloy, is especially effective in providing wear resistance and is frequently used in mining, oil, and gas sectors. Rene alloys are primarily used in the aerospace industry due to their strength and thermal stability. LC offers a flexible and precise approach to manufacturing with these superalloys, allowing for the production of components with tailored properties for high-stress environments.

Manufacturing Process of Superalloy Parts Using Laser Cladding 3D Printing

Laser Cladding operates by focusing a high-energy laser beam onto a metal substrate while feeding superalloy powder or wire into the molten pool created by the laser. This process allows for high-precision deposition of metal layers, creating a dense, well-bonded structure that retains the integrity of the superalloy. The LC process can be used to build entire parts layer by layer or to apply surface coatings to enhance existing components.

One of the primary benefits of LC in superalloy manufacturing is the ability to produce complex geometries with minimal material waste. As LC deposits material only where needed, it optimizes superalloy usage, which is crucial given the high costs of materials like Inconel and Hastelloy. The process is highly customizable, allowing engineers to adjust parameters such as laser power, powder feed rate, and scan speed to achieve the desired mechanical and structural properties in the final part.

Laser Cladding also provides a significant advantage in applications that require surface coatings. For example, LC can apply wear-resistant or corrosion-resistant coatings on industrial equipment to extend the life of parts that undergo constant mechanical or chemical stress. LC minimizes distortion by precisely controlling the heat input, which is particularly important for components requiring tight tolerances and dimensional accuracy.

While LC offers numerous benefits, it also presents particular challenges, particularly in heat management. The intense heat generated by the laser can lead to thermal distortion or residual stresses within the part. Achieving the ideal balance of laser power, feed rate, and layer thickness is essential to avoid defects such as porosity or cracking, especially in materials with high thermal conductivity, like titanium. Precise control of these parameters ensures a consistent, reliable output that meets industry standards for high-performance applications.

Post-Processing Techniques for Laser Cladding 3D-Printed Superalloy Parts.

Heat Treatment

Heat treatment is a crucial post-processing step for LC-printed superalloy parts. This process involves subjecting the component to controlled heating and cooling cycles to relieve residual stresses, improve mechanical properties, and refine the microstructure. Heat treatment can enhance tensile strength, hardness, and ductility for superalloys like Inconel and Hastelloy, allowing the parts to withstand high stress and temperature conditions.

Hot Isostatic Pressing (HIP)

Hot Isostatic Pressing (HIP) is used to eliminate micro-porosity and enhance the density of LC-printed superalloy parts. HIP uniformly applies high temperature and pressure to the part in an inert gas environment, ensuring that any internal voids are removed. This process significantly improves components' fatigue resistance and overall strength, making HIP essential for parts used in critical applications such as aerospace and power generation.

Surface Finishing (Machining and Polishing)

Surface finishing is often necessary to achieve LC-printed parts' required dimensions, tolerances, and surface smoothness. Machining and polishing are commonly used to remove surface roughness and create precise geometries, which are critical in aerospace industries where drag reduction and corrosion resistance are paramount. Polishing also improves the aesthetic quality of the part, making it suitable for applications that require a smooth finish.

Coating Application

In some cases, additional coatings, such as Thermal Barrier Coatings (TBC) or corrosion-resistant layers, are applied to enhance the durability of LC-printed superalloy parts further. TBCs are particularly useful in high-temperature applications, providing a layer of insulation that reduces heat transfer to the base material. For parts used in chemical or marine environments, anti-corrosion coatings can extend the lifespan and reliability of components, especially when exposed to harsh chemicals or saltwater.

Testing and Quality Assurance for Laser Cladding 3D-printed Superalloy Parts.

Metallographic and Microstructure Analysis

Microstructure analysis is essential for ensuring the quality and consistency of LC-printed superalloy components. This analysis examines the grain structure, phase distribution, and potential defects within the part to ensure that the LC process has achieved the desired material characteristics. A uniform, defect-free microstructure is critical to the part’s performance and longevity for high-stress applications.

Mechanical Testing (Tensile and Fatigue Testing)

Mechanical testing assesses LC-printed superalloy parts' strength, durability, and resistance to mechanical stress. Tensile testing measures the ultimate strength and elongation of the part, while fatigue testing evaluates its ability to withstand cyclic loading. These tests are critical in aerospace and power generation industries, where components are subjected to extreme mechanical stresses over extended periods.

Non-Destructive Testing (NDT)

Non-destructive testing (NDT) methods, such as X-ray and ultrasonic testing, allow for thorough inspection of LC-printed components without damaging the part. NDT identifies internal flaws, such as porosity or cracks, that could compromise the integrity of the component. For critical applications where safety and reliability are paramount, NDT is indispensable in maintaining the quality and performance of superalloy parts.

Dimensional Accuracy and Surface Roughness Testing

Dimensional and surface roughness testing is essential to ensure LC-printed parts meet the exact design specifications and quality standards required for their application. These tests ensure that each component conforms to tight tolerances, especially for engine components, pumps, and aerospace structural parts where precision is critical.

Industries Leveraging Laser Cladding 3D-Printed Superalloy Parts.

Aerospace and Aviation

In aerospace and aviation, LC-printed superalloy parts are used for critical components that require high strength, heat resistance, and corrosion protection. Materials like Inconel, Hastelloy, and titanium alloys are commonly used in turbine blades, exhaust systems, and structural parts. The precision and flexibility of LC allow for the creation of lightweight, durable parts that contribute to improved fuel efficiency and high-altitude performance in aircraft.

Power Generation

The power generation industry relies on superalloy components for turbines, heat exchangers, and other equipment exposed to extreme temperatures and mechanical stresses. Hastelloy and Inconel are particularly valuable in these applications due to their ability to maintain mechanical integrity in harsh environments. LC enhances the durability of power generation equipment by producing dense, heat-resistant components that reduce maintenance frequency and operational downtime.

Chemical Processing and Marine

Hastelloy’s resistance to aggressive chemicals in chemical processing makes it ideal for components such as pumps, valves, and containment vessels. LC-printed Hastelloy parts can withstand exposure to harsh acids, chlorides, and other chemicals. Marine applications also benefit from LC-produced corrosion-resistant superalloy parts, essential for equipment exposed to saltwater and other corrosive elements.

Automotive and Motorsports

High-performance automotive and motorsport applications benefit from lightweight, vital superalloy parts that can endure high stresses. Inconel and titanium alloys printed with LC are often used in engines, exhausts, and suspension systems to enhance vehicle speed and durability. LC’s ability to produce custom and small-batch components makes it ideal for motorsport applications where rapid design iterations are essential for performance optimization.

Applications of Laser Cladding 3D-Printed Superalloy Parts.

Turbine and Engine Components

LC-printed Inconel and Hastelloy parts are used in turbine and engine components that must endure high temperatures and mechanical stress. These materials retain their integrity under extreme heat, making them ideal for use in aerospace and power generation turbines, combustors, and engine exhaust systems.

Pump and Valve Components

LC-printed Hastelloy parts are ideal for pump and valve components in chemical and marine applications. These parts resist corrosion and maintain structural integrity when exposed to harsh chemicals or saltwater, making them essential for reliable operation in challenging environments.

Wear-resistant coatings for Industrial Equipment

LC’s precision allows wear-resistant coatings to be applied using materials like Stellite. This capability benefits components in mining, manufacturing, and oil and gas industries, where equipment is exposed to abrasive environments. LC’s flexibility enables coating new and existing parts to extend their operational life.

Heat Exchanger and Containment Parts

In chemical processing and energy industries, superalloy components in heat exchangers and containment vessels require high thermal and chemical degradation resistance. LC-printed Hastelloy and Inconel parts are well-suited for these applications, providing enhanced durability and performance in extreme conditions.

FAQs

1. What are the primary benefits of using Laser Cladding (LC) 3D printing for superalloy parts manufacturing?

2. How does LC technology differ from other additive manufacturing methods for producing high-temperature alloys?

3. What post-processing techniques are necessary to ensure the quality and durability of LC-printed superalloy parts?

4. What industries benefit most from LC-printed superalloy components, and what applications are typical?

5. How does laser cladding improve superalloy parts' wear and corrosion resistance in challenging environments?
