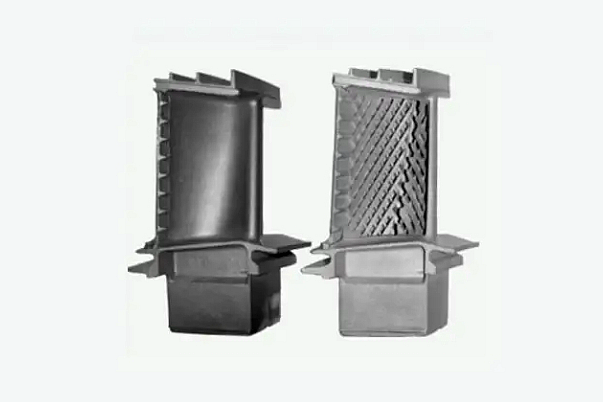

Single Crystal Growth: How Solidification Control Enhances Creep Resistance in Turbine Blades
Turbine blades are pivotal in high-performance applications, particularly in aerospace, power generation, and other industrial sectors. These components are exposed to extreme conditions, such as high temperatures, mechanical stress, and thermal cycling, making them critical to the safety and efficiency of the systems they power. One of the most important properties that turbine blades need is creep resistance, or the ability of the material to resist deformation under long-term stress at high temperatures. Single crystal growth, achieved through precise solidification control, is one of the most effective methods to enhance creep resistance and improve the performance of turbine blades.
This process allows the turbine blades to be made from superalloys that maintain their mechanical integrity and thermal stability, even under extreme operational conditions.
Manufacturing Process of Single Crystal Turbine Blades
Manufacturing single-crystal turbine blades is an intricate process, requiring precise control over several variables to ensure optimal performance under extreme conditions. The key to this process lies in directional solidification, which involves cooling molten superalloy to solidify the material into a single, continuous crystal structure. This single crystal configuration minimizes grain boundaries, typically the weakest points in a material. Post Process Heat Treatment and Vacuum Heat Treatment are crucial for improving the mechanical properties of the casted blades and ensuring their durability under high-stress conditions.
The primary method used for manufacturing these blades is vacuum investment casting. A ceramic mold is created around a wax pattern, which is later removed by heating. To prevent contamination, the mold is then heated and filled with molten metal under vacuum. Manufacturers can create turbine blades with a single crystal structure by carefully controlling the cooling rates and temperature gradients within the mold. The solidification is guided to encourage the crystal's growth in a specific direction, significantly enhancing the blade’s resistance to creep and fatigue under high temperatures and stress. Superalloy Precision Forging and Hot Isostatic Pressing (HIP) are often employed post-casting to refine the material’s microstructure further and ensure component integrity.
Solidification control is a critical aspect of this process. In turbine blade production, the cooling rate must be precisely controlled to ensure that the superalloy solidifies in a manner that favors the growth of a single crystal. Seed crystals, which act as the nuclei for growth, are introduced at the base of the mold to encourage this process. These crystals grow upward, forming the final blade structure. CNC Machining of Superalloys is essential for refining the blade’s precision, ensuring tight tolerances and superior surface finish.
Additionally, temperature gradients are managed by manipulating the thermal environment within the mold. This ensures the molten metal solidifies in the desired direction, with controlled cooling to maintain a uniform structure. Such precision in the solidification process enhances the creep resistance of the final product by ensuring that no interruptions occur in the crystal lattice. Thermal Barrier Coating (TBC) plays a key role in further improving the performance of turbine blades by providing additional protection against high temperatures.
Typical Superalloys Used for Single Crystal Turbine Blades
The selection of materials for single-crystal turbine blades is another critical factor in achieving high performance and durability. Typically, nickel-based superalloys are chosen due to their exceptional resistance to high-temperature oxidation, corrosion, and creep.
Popular superalloys used for turbine blade manufacturing include alloys like Inconel 718, Inconel X-750, CMSX-486, and Rene 104. These alloys contain a combination of nickel, chromium, and other elements like molybdenum, tantalum, and aluminum, significantly enhancing the material’s thermal stability and creep resistance.
Inconel 718 is particularly favored for its high-temperature strength and ease of manufacturing. It is a precipitation-hardened alloy that performs well in turbine engines, where resistance to oxidation and high-temperature fatigue is critical.
CMSX-486 and Rene 104 are superalloys explicitly designed for single crystal casting. These alloys feature a high concentration of elements like rhenium, tantalum, and cobalt, which enhance their high-temperature creep resistance, making them ideal for use in the hottest sections of turbine engines.
The choice of alloy depends on the specific application, the temperature range the blade will be exposed to, and the mechanical stresses the blade must withstand. Manufacturers can tailor the turbine blades for maximum performance in different industrial environments by choosing the appropriate superalloy.
Post-Processing for Enhanced Performance
After the single crystal turbine blades are cast, they undergo various post-processing steps to enhance their mechanical properties and performance further. These steps ensure the blades meet the demanding requirements of industries such as aerospace and energy, where high performance and reliability are essential.
Heat treatment is one of the most critical post-processes for single-crystal turbine blades. The heat treatment process involves heating the cast blades to a specific temperature and then cooling them in a controlled manner. This process helps relieve residual stresses from casting and promotes the formation of a fine microstructure that improves the blade's overall strength and flexibility. Heat treatment also contributes to the alloy’s precipitation hardening, where specific phases (like gamma prime) form to increase the material’s resistance to deformation at high temperatures. Heat treatment enhances alloy durability, extending the lifespan of turbine blades used in high-temperature environments.
Hot Isostatic Pressing (HIP) is another essential post-process. HIP removes any porosity and ensures that the material is free of internal defects. HIP enhances the material's density, strength, and overall performance by subjecting the cast blade to high pressure and temperature in an inert gas environment. This process ensures that the blades are free of internal voids or gas pockets, which could lead to premature failure during operation. HIP boosts strength and increases the reliability of superalloy components, making it indispensable for turbine blade manufacturing.
Surface coatings are also applied to improve the blade's resistance to oxidation and thermal cycling. One of the most common coatings used in turbine blade manufacturing is the thermal barrier coating (TBC). TBCs are applied to the surface of the blades to provide an additional layer of protection against the extreme temperatures in a turbine engine. These coatings act as an insulative barrier, reducing the heat transfer to the underlying superalloy, thereby extending the blade's life. The application of TBC significantly improves high-temperature performance, contributing to the blade's overall operational efficiency.
Welding and repair are also crucial parts of the post-processing stage. For turbine blades that experience damage or wear, superalloy welding techniques can be used to repair the blade without compromising its single-crystal structure. Unique welding methods, such as laser or electron beam welding, ensure that the repaired areas retain their mechanical properties and crystal orientation. Welding techniques are essential for maintaining component integrity and ensuring the blades continue performing under demanding conditions.
Testing and Quality Assurance
Quality control is a critical part of the manufacturing process for single-crystal turbine blades. Several tests are conducted to ensure that the blades meet the required standards for high-temperature performance, creep resistance, and overall structural integrity.
Tensile Testing and Creep Testing
Tensile testing and creep testing are commonly used to evaluate a material’s ability to withstand long-term stress under high temperatures. The blade is stressed in tensile testing to determine its strength and flexibility. In contrast, creep testing measures the material’s resistance to deformation over time under constant stress and temperature.
X-ray Inspection and CT Scanning
X-ray inspection and CT scanning are non-destructive testing (NDT) methods to detect internal defects, such as cracks, voids, or inclusions. These testing methods help ensure that the final product is free of structural flaws that could lead to failure in service.
Metallographic Analysis
Metallographic analysis involves examining the blade’s microstructure to ensure that the single crystal structure has been achieved and that the grain orientation is consistent with the desired pattern. This is typically done using electron backscattering diffraction (EBSD), which provides detailed information on the crystallography of the material and helps identify any imperfections in the crystal structure.
High-Temperature Testing
In addition to these methods, high-temperature testing is performed to simulate the actual operating conditions the turbine blades will face in engines or power generation systems. Dynamic and static fatigue testing helps evaluate the material’s response to thermal cycling and mechanical loading, ensuring that the blades can perform reliably over extended periods.
Prototyping Process for Single Crystal Turbine Blades
Prototyping is a critical part of the turbine blade design process. Advanced manufacturing techniques like CNC machining and 3D printing are increasingly used to produce high-quality prototypes of single crystal turbine blades.
Superalloy CNC machining is used to refine and finish the turbine blades after they have been cast. CNC machines can achieve exact dimensions and surface finishes, ensuring the blades meet stringent specifications. CNC machining in the prototyping phase helps manufacturers evaluate the performance of the blade design and make necessary adjustments before full-scale production begins.
Superalloy 3D printing is another emerging technology for turbine blade prototyping. 3D printing allows manufacturers to create highly complex geometries that would be difficult or impossible to produce using traditional casting or machining methods. This technology enables faster iteration of designs, reducing the time it takes to produce prototypes and allowing for more innovative and optimized blade geometries.
Both CNC machining and 3D printing have their advantages and disadvantages. CNC machining is highly accurate and well-suited for producing parts with tight tolerances but is limited in geometric complexity. On the other hand, 3D printing offers greater design flexibility but may not consistently achieve the same level of accuracy as CNC machining.
Industry Applications and Benefits
Single crystal turbine blades are critical components in various industries, particularly those that rely on high-performance turbines for energy generation, propulsion, and industrial processes.
Aerospace and Aviation
In aerospace and aviation, turbine blades are essential for the operation of jet engines. The ability of single crystal turbine blades to withstand high temperatures and stress is crucial for the performance and safety of aircraft. These blades contribute to improved fuel efficiency and extended engine life, ensuring that engines can perform optimally for long durations while minimizing maintenance requirements.
Power Generation
In the power generation sector, single crystal turbine blades are used in gas and steam turbines, which are crucial in improving efficiency and reducing maintenance costs. The exceptional creep resistance of these blades allows them to operate for longer periods without significant degradation, which is critical for power plants that run continuously. High-performance superalloy heat exchanger parts also rely on similar high-temperature alloys, further enhancing the overall efficiency and durability of power generation systems.
Oil and Gas
Oil and gas applications also rely heavily on high-temperature alloy turbine blades for compressors, pumps, and other critical components in extreme conditions. The durability and resistance to thermal cycling offered by single crystal blades make them ideal for these applications, especially in pump components where high wear resistance and consistent performance are essential in the demanding environments of oil extraction and processing.
Military and Defense
In military and defense, the performance of jet engines and propulsion systems is critical for national security. Single crystal turbine blades provide the strength, stability, and reliability required in military aircraft engines, where performance under extreme conditions is non-negotiable. These blades ensure military aircraft can operate efficiently, even under high stress and temperature variations. They are an integral part of the propulsion systems used in defense operations and military equipment for various high-tech machinery.
