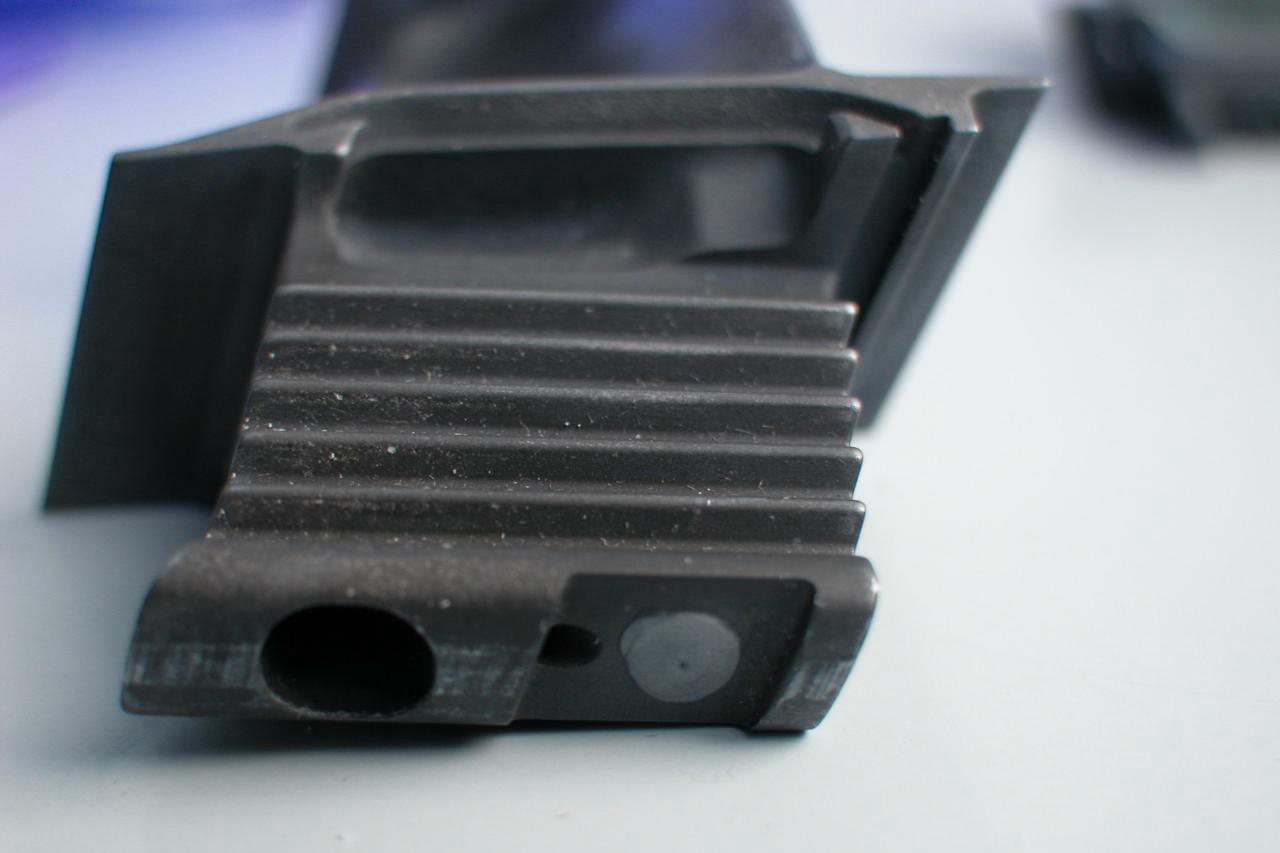

Single Crystal Casting Turbine Blade Life Prediction Service
Turbine blades play a critical role in ensuring the efficiency and reliability of engines used in aerospace, power generation, and various other high-performance applications. These components operate under extreme conditions, subjected to high temperatures, mechanical stresses, and corrosive environments. The longevity and performance of turbine blades are crucial to minimizing downtime, maximizing fuel efficiency, and ensuring the safety of operations. One of the most effective methods for optimizing turbine blades' durability is using single-crystal casting technology. This advanced casting technique eliminates grain boundaries within the material, enhancing the turbine blades' mechanical properties and high-temperature resistance. By employing high-performance superalloys like Inconel and CMSX, manufacturers can ensure the reliability of turbine blades even in the harshest environments.
Introduction to Single Crystal Casting for Turbine Blades
The turbine blades in jet engines, gas turbines, and industrial power plants are subjected to some of the harshest operating conditions. High temperatures that exceed 1,000°C, intense centrifugal forces, and corrosive environments can cause material degradation over time, leading to potential failure. As such, turbine blades must have an exceptionally high tolerance to these stresses.
Single crystal casting is a critical technology that significantly enhances turbine blade performance. Unlike conventional casting methods, which produce polycrystalline materials (with multiple grain boundaries), single crystal casting involves the creation of a uniform crystalline structure. This process eliminates grain boundaries and common sites for cracks and stress fractures, thus significantly improving the material's ability to withstand high temperatures and mechanical stresses.
In aerospace, power generation, and military defense, where reliability and performance are paramount, single-crystal turbine blades are preferred due to their superior durability and mechanical properties.
The Single Crystal Casting Process
The single crystal casting process begins with the preparation of the mold. Unlike traditional casting, which allows for the growth of multiple crystal grains, single crystal casting controls the cooling and solidification of the molten metal to form one continuous crystal structure. This process begins with the melted superalloy being poured into a mold, where the solidification process is carefully controlled.
The mold is designed to promote directional solidification, which controls the temperature gradient during cooling. The mold typically has a tapered shape, known as a starter rod, which guides the molten material into a solid, directional structure. The crystal begins to grow from the starter rod in a controlled manner, with the alloy gradually solidifying in a single crystal pattern.
After solidification, the turbine blade is removed from the mold, but the process doesn’t end there. The single crystal casting process involves several steps to ensure the component is free from internal stresses, defects, and material inconsistencies.
Suitable Superalloys for Single Crystal Casting
Selecting the right material is a crucial part of the single crystal casting process. Superalloys are specifically engineered to retain their strength and structural integrity at high temperatures, making them ideal for turbine blades. Various alloys are used depending on the application, and some of the most commonly used superalloys include:
CMSX Series
This family of superalloys is widely used for single-crystal casting, particularly in turbine blades for jet engines. Alloys like CMSX-10, CMSX-2, and CMSX-4 are designed to offer exceptional creep and fatigue resistance while maintaining good oxidation and corrosion resistance at extreme temperatures.
Rene Alloys
Rene alloys such as Rene 41, Rene 65, and Rene 104 are known for their ability to withstand high-temperature environments and maintain mechanical strength. Due to their superior thermal stability and resistance to creep and oxidation, these alloys are often used in turbine blades for aerospace and power generation applications.
Inconel Alloys
Inconel alloys like Inconel 718, Inconel 738C, and Inconel X-750 are widely used in aerospace and power generation due to their excellent high-temperature properties. These alloys exhibit good fatigue and thermal-fatigue strength, which are critical for components exposed to cyclic thermal loads in turbine engines.
Single Crystal Alloys
The most advanced single crystal alloys, such as PWA 1480, CMSX-10, and Rene N5, are specifically engineered to perform under the harshest operating conditions. These alloys can withstand thermal cycling and are designed for the high-stress, high-temperature environments that turbine blades face.
Post-Processing Techniques for Enhanced Performance
After the single crystal turbine blade has been cast, several post-processing steps are required to optimize its properties for use in turbine engines. These post-processes help to improve material performance, eliminate defects, and increase the overall reliability of the blades.
Heat Treatment: One of the most essential post-processing steps is heat treatment. The heat treatment process involves subjecting the blade to specific temperature cycles to relieve residual stresses that may have been introduced during the casting process. This process also ensures the material reaches its desired mechanical properties, including optimal strength, flexibility, and creep resistance.
Hot Isostatic Pressing (HIP): HIP is a process used to remove internal porosity and improve the uniformity of the microstructure. The blade is subjected to high-pressure gas and temperature, which helps to close any remaining pores within the material, thus enhancing its strength and durability.
Superalloy Welding: In some cases, turbine blades may require repair or joining during manufacturing. Superalloy welding techniques ensure the welded joints maintain the same high-performance characteristics as the base material. This is particularly important in the aerospace and military sectors, where reliability and safety are critical.
Thermal Barrier Coating (TBC): One of the most effective ways to protect turbine blades from thermal degradation is by applying thermal barrier coatings (TBC). These coatings are applied to the surface of the blades to provide a layer of protection against high temperatures, oxidation, and corrosion, thereby extending the operational life of the blades.
Material Testing and Analysis: Following post-processing, extensive testing is carried out to ensure that the turbine blades meet the required material specifications. This includes tests for hardness, tensile strength, fatigue resistance, and thermal conductivity. Advanced techniques such as X-ray and electron microscopy identify microscopic defects and ensure the blades are flaws-free.
Testing and Quality Control for Turbine Blade Durability
Predicting the lifespan of turbine blades is essential to maintaining engine performance and avoiding unexpected failures. Several testing and quality control measures are employed to evaluate single-crystal turbine blades' mechanical properties and performance characteristics.
Non-destructive Testing (NDT): Non-destructive testing methods such as X-ray, ultrasonic testing, and CT scanning are used to inspect the internal structure of turbine blades for any cracks, voids, or other defects that could compromise their integrity during operation. NDT is crucial in ensuring the turbine blades remain free of harmful internal defects.
Tensile and Fatigue Testing: Tensile testing assesses the material's strength and ability to withstand stress under load, while fatigue testing simulates the cyclic stresses that the blades will experience over their operational lifespan. This helps identify potential failure points and predict how long the blades will last. Tensile and fatigue testing ensures that turbine blades can endure the mechanical demands in real-world conditions.
Thermal and Corrosion Resistance Testing: Since turbine blades are exposed to extreme temperatures and potentially corrosive environments, testing their resistance to thermal cycling and corrosion is essential. This ensures that the blades can operate under these conditions without significant degradation. Thermal resistance testing is vital for assessing the high-temperature performance of turbine blades.
Simulation and Life Cycle Modeling: Advanced computational methods such as Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) are employed to simulate the operating conditions of turbine blades and predict their performance over time. This modeling can help identify weak points in the design and optimize the material selection and manufacturing processes. Life cycle modeling is key to understanding how turbine blades will perform throughout their operational lifespan.
Industry Applications for Single Crystal Turbine Blades
Single-crystal turbine blades are used in many industries that require high-performance components capable of operating in extreme conditions. Some of the key industries and applications include:
Aerospace and Aviation
In the aerospace industry, turbine blades are crucial components in jet engines. The need for lightweight, high-strength materials capable of withstanding high temperatures makes single crystal turbine blades the optimal choice for jet propulsion systems. For example, superalloy jet engine components are designed to withstand the demanding conditions of modern aircraft engines, ensuring high performance and safety.
Power Generation
Gas turbines used in power plants rely on turbine blades to efficiently convert fuel energy into mechanical power. Single crystal turbine blades offer improved efficiency, greater longevity, and reduced maintenance costs for these critical power-generation systems. In the power generation sector, these blades help optimize turbine efficiency, vital for maintaining consistent energy output and minimizing downtime.
Military and Defense
In military applications, turbine blades are used in aircraft engines, missile propulsion systems, and naval turbines. The demanding nature of military operations, where performance and reliability are paramount, makes single crystal casting essential for these high-stakes applications. Military and defense industries rely on the superior strength and resistance to thermal fatigue provided by single crystal turbine blades to ensure mission-critical systems remain operational.
Marine and Oil & Gas
Turbine blades used in marine propulsion systems and offshore drilling equipment must endure harsh environmental conditions, including corrosion and high temperatures. Single crystal turbine blades are well-suited to these applications due to their durability and resistance to wear. In the marine and oil & gas industries, these components play a crucial role in ensuring that turbines continue to operate efficiently despite exposure to corrosive environments and high operational stresses.
Energy
Renewable energy systems, including wind turbines and advanced energy generation systems, require turbines to operate efficiently under demanding conditions. Single crystal turbine blades provide the strength and reliability needed for these systems. In the energy sector, these blades are vital for ensuring the long-term efficiency and performance of turbines used in renewable energy production, contributing to more sustainable energy systems.
FAQs
What are the key advantages of using single crystal casting for turbine blades compared to polycrystalline materials?
How does the selection of superalloy material impact the performance of a single crystal turbine blade?
What role does Hot Isostatic Pressing (HIP) play in the post-processing of turbine blades?
How are computational tools like Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) used to predict turbine blade lifespan?
What are the most common industry applications for single-crystal turbine blades?
