Reverse engineering analyzes an existing part or assembly to recreate a detailed digital model that reflects its original design or adapts it for future improvements. In the context of turbine vanes made from high-temperature superalloys, reverse engineering is critical in ensuring the accurate reproduction of complex geometries required for optimal engine performance, particularly in aerospace and power generation industries.

3D scanning technology is integral to reverse engineering in turbine vane production. It scans a physical object and converts its shape into a digital model using lasers or light sensors. These 3D scans capture the fine details of an object’s geometry, including intricate features such as cooling channels, surface texture, and aerodynamic contours that would be difficult to measure accurately with traditional methods. The resulting point cloud data is processed into a 3D CAD model, which can be used for inspection, replication, or improvement.

The application of 3D scanning in turbine vane reverse engineering allows for precise replicating of existing parts, mainly when original CAD data is unavailable. This is especially useful in industries like aerospace, where parts may need to be reproduced for repairs, modifications, or redesigns. By recreating a digital model from a scanned part, engineers can examine and modify the design as necessary, ensuring the new parts align with the original or improved specifications.

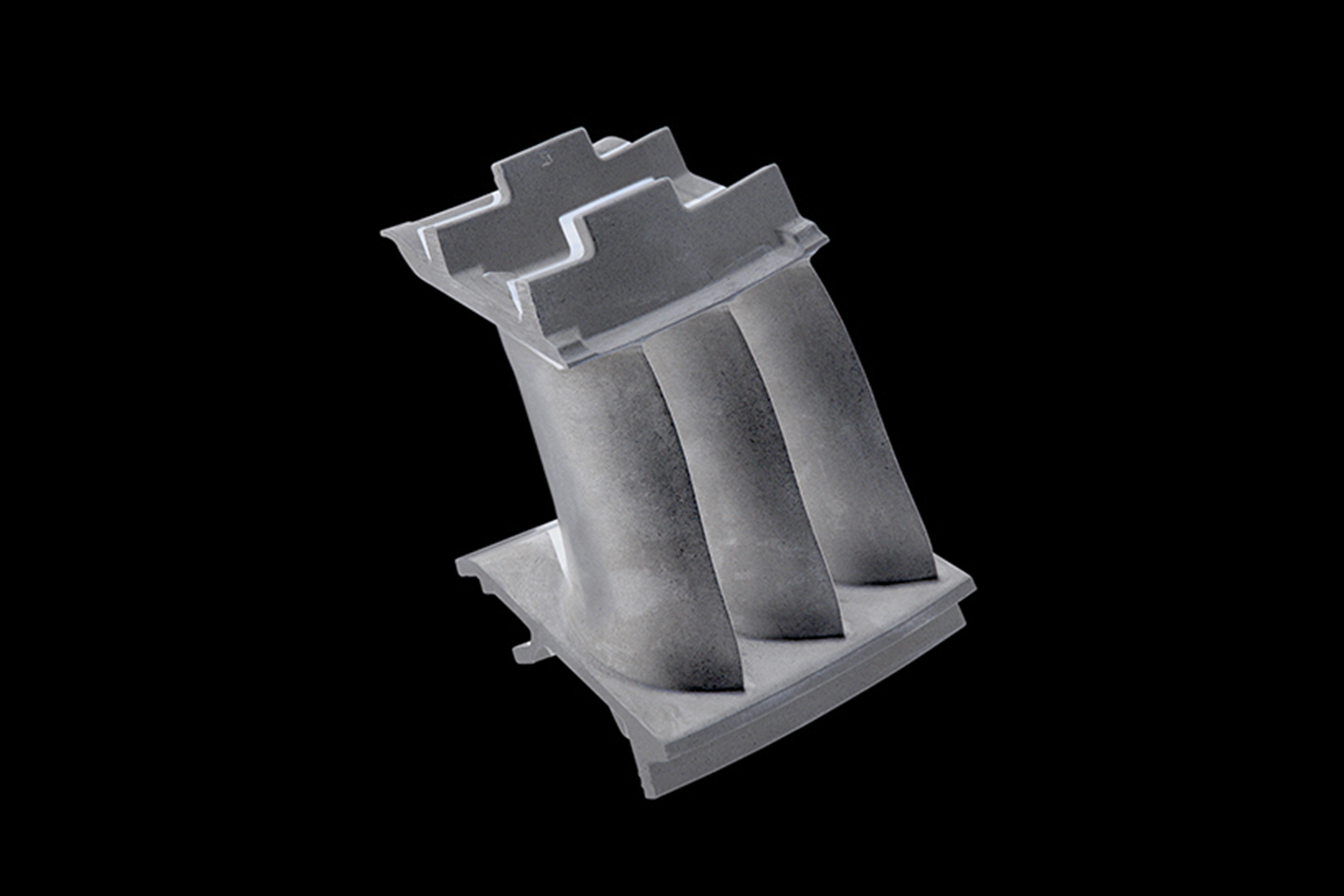

reverse-engineering-superalloy-turbine-vanes-utilizing-3d-scanning-to-recreate-casting-parts

The Function of This Process

The primary function of reverse engineering using 3D scanning is to recreate complex turbine vanes with high precision. This is crucial in aerospace and power generation industries, where turbine vanes made from high-temperature superalloys, such as Inconel and Rene alloys, must withstand extreme conditions while maintaining dimensional accuracy and structural integrity. In applications like these, where single crystal casting is often used to achieve superior mechanical properties, 3D scanning ensures that each part meets exacting standards.

One of the key benefits of 3D scanning in reverse engineering is its ability to provide highly accurate measurements of a physical part without requiring direct contact. This non-contact scanning method is ideal for turbine vanes, which often have delicate or finely detailed surfaces that traditional inspection methods could damage. The high precision provided by 3D scanning is essential when working with superalloys that undergo processes like superalloy precision forging, which demand tight tolerances.

Additionally, using traditional measurement methods, 3D scanning can detect deviations in shape or material that might be difficult to notice. For example, turbine vanes may experience thermal distortion during the casting or forging process, and 3D scanning can identify these inconsistencies early, ensuring that the final part meets the required standards. In vacuum investment casting, this capability helps maintain the part's integrity throughout the manufacturing process.

Once the part is scanned, the data generates a digital model, which can be compared with the original design or adjusted to correct flaws or optimize performance. Engineers can assess various aspects of the part’s geometry, including wall thickness, cooling passages, and aerodynamic efficiency. This allows for precise replication of the part or, if necessary, refinement of the design for better performance or easier manufacturability. This approach is critical when optimizing turbine vanes for high-performance turbine disc manufacturing.

Another key function of reverse engineering with 3D scanning is improving maintenance and repair processes. For example, when a turbine vane in an engine or turbine needs to be replaced, a scanned model of the worn-out part can be used to create an identical replacement or a part that addresses specific wear issues. In the case of critical components like turbine vanes, the ability to quickly and accurately produce replacement parts without the need for original manufacturing drawings can reduce downtime and ensure that machinery operates at peak efficiency, benefiting industries like aerospace and power generation.

Which Superalloy Parts Are Needed?

Reverse engineering with 3D scanning is particularly beneficial for superalloy turbine vanes, often made from advanced, high-temperature alloys designed to withstand the extreme environments of jet engines, gas turbines, and other power generation systems. These materials include:

Superalloy Castings

Turbine vanes are often produced through casting processes such as investment casting or single-crystal casting. In these processes, a mold creates a vane pattern, and molten superalloy is poured into it. 3D scanning can be used to verify the accuracy of the casting, ensuring that all features—such as cooling passages and intricate blade contours—are correctly formed. With superalloy casting, the precision required for high-performance turbine vanes is crucial, especially for parts that operate under extreme thermal and mechanical stress.

Forging Parts

Turbine vanes can also be made from forged superalloys, where a billet of metal is heated and shaped under high pressure. The forging process often results in a denser and more durable part. 3D scanning can inspect the forged vanes to ensure that they meet the dimensional requirements and detect any internal defects, such as cracks or voids, that may not be visible externally. For superalloy forging, 3D scanning is essential to verify that complex geometries are accurately forged, minimizing waste and ensuring the part performs as designed in its final application.

CNC Machined Superalloy Parts

After casting or forging, turbine vanes are often subject to CNC machining to refine their shapes, improve surface finish, and ensure precision. 3D scanning is vital in verifying that the machined parts meet the CAD model specifications. Any deviations in dimensions or geometry can be detected before moving forward with assembly or further processing. This is especially critical for superalloy parts conforming to tight tolerances for demanding applications, such as in superalloy turbine discs and gas turbine components.

3D Printed Superalloy Parts

With the increasing use of additive manufacturing (AM), 3D scanning is also employed to inspect and reverse engineer parts produced through 3D printing. Superalloy 3D printing allows for producing complex geometries that traditional methods cannot achieve. 3D scanning provides a quick, non-contact method of assessing these parts, which is critical for ensuring that the printed parts are functional and fit for their intended purpose. This technology is beneficial for inspecting 3D printed superalloy parts in aerospace and turbine applications where precision is paramount.

In combination with 3D scanning, reverse engineering enables the creation of exact replicas of these superalloy parts, which is especially important for industries where turbine vanes undergo high levels of wear and need to be replaced or repaired quickly. In cases where the original part is unavailable or a more efficient design is required, 3D scanning can help produce replacement parts or provide insights into design optimizations.

Which Superalloy Parts Are Needed?

Reverse engineering with 3D scanning is particularly beneficial for superalloy turbine vanes, often made from advanced, high-temperature alloys designed to withstand the extreme environments of jet engines, gas turbines, and other power generation systems. These materials include:

Superalloy Castings

Turbine vanes are often produced through casting processes such as investment casting or single-crystal casting. In these processes, a mold creates a vane pattern, and molten superalloy is poured into it. 3D scanning can be used to verify the accuracy of the casting, ensuring that all features—such as cooling passages and intricate blade contours—are correctly formed. With superalloy casting, the precision required for high-performance turbine vanes is crucial, especially for parts that operate under extreme thermal and mechanical stress.

Forging Parts

Turbine vanes can also be made from forged superalloys, where a billet of metal is heated and shaped under high pressure. The forging process often results in a denser and more durable part. 3D scanning can inspect the forged vanes to ensure that they meet the dimensional requirements and detect any internal defects, such as cracks or voids, that may not be visible externally. For superalloy forging, 3D scanning is essential to verify that complex geometries are accurately forged, minimizing waste and ensuring the part performs as designed in its final application.

CNC Machined Superalloy Parts

After casting or forging, turbine vanes are often subject to CNC machining to refine their shapes, improve surface finish, and ensure precision. 3D scanning is vital in verifying that the machined parts meet the CAD model specifications. Any deviations in dimensions or geometry can be detected before moving forward with assembly or further processing. This is especially critical for superalloy parts conforming to tight tolerances for demanding applications, such as in superalloy turbine discs and gas turbine components.

3D Printed Superalloy Parts

With the increasing use of additive manufacturing (AM), 3D scanning is employed to inspect and reverse engineer parts produced through 3D printing. Superalloy 3D printing allows for producing complex geometries that traditional methods cannot achieve. 3D scanning provides a quick, non-contact method of assessing these parts, which is critical for ensuring that the printed parts are functional and fit for their intended purpose. This technology is beneficial for inspecting 3D printed superalloy parts in aerospace and turbine applications where precision is paramount.

Reverse engineering, in combination with 3D scanning, enables the creation of exact replicas of these superalloy parts, which is especially important for industries where turbine vans undergo high levels of wear and need to be replaced or repaired quickly. In cases where the original part is unavailable or a more efficient design is required, 3D scanning can help produce replacement parts or provide insights into design optimizations.

Compared with Other Processes

Traditional reverse engineering methods, such as manual measurement or photogrammetry, are often less accurate and slower than 3D scanning. Manual methods rely on tools like calipers, micrometers, and height gauges to measure the part. These techniques can be time-consuming, especially for complex geometries like turbine vanes, and they are prone to human error. Additionally, manual measurement can only be applied to easily accessible surfaces, which limits its effectiveness when inspecting parts with complex internal features. For non-destructive analysis, 3D scanning offers a clear advantage over traditional methods.

In comparison, 3D scanning provides a fast, highly accurate alternative. Laser or light-based scanners can capture data from all part surfaces, including intricate internal cooling channels and geometries that would be difficult to measure manually. The non-contact nature of 3D scanning means it won’t damage the part, ensuring that delicate surfaces are not compromised during inspection. Moreover, 3D scanning can capture the entire part in a single scan, providing a comprehensive dataset that can be used for further analysis.

Coordinate Measuring Machines (CMM) are another traditional method for reverse engineering, especially for measuring parts with less complex geometries. CMMs use a probe to contact specific points on the part and then calculate its dimensions. While effective for certain parts, CMMs have limitations when measuring the intricate features of turbine vanes. In contrast, 3D scanning captures the full geometry without requiring contact, providing more detailed and accurate data in less time.

The main advantage of 3D scanning is its ability to provide a complete digital model that can be used for analysis, modification, or duplication. It enables engineers to create accurate CAD models quickly and efficiently, significantly speeding up the reverse engineering process while minimizing errors. This technology enhances precision in superalloy parts manufacturing and drives greater efficiency.

Industry and Application of Reverse Engineering and 3D Scanning

Reverse engineering and 3D scanning play essential roles in several industries, particularly those where turbine vans are a critical component of high-performance systems. Some of the key sectors where 3D scanning and reverse engineering are applied include:

Aerospace and Aviation

Turbine vanes are key components of jet engines and are subjected to extreme thermal and mechanical stresses. Reverse engineering allows for the reproduction of turbine vanes for new builds and the maintenance of aging engines. By using 3D scanning, manufacturers can replicate the original design or optimize the vane for improved performance and reliability. This is especially critical for older aircraft, where replacement parts may be challenging to source. Through reverse engineering, engineers can extend the lifespan of aging engines by ensuring that replacement turbine vanes are an exact match to the original components or are improved for better efficiency and durability.

Power Generation

In gas turbines used in power plants, turbine vanes are critical for efficiency and longevity. Reverse engineering with 3D scanning ensures that vanes can be reproduced quickly for repairs or replacements, ensuring minimal downtime and preventing power loss. 3D scanning enables power generation companies to inspect, replicate, and optimize turbine vanes worn or damaged. This capability is vital for maintaining the continuous operation of power plants, where extended downtime can be costly and disruptive.

Oil and Gas

Turbine vanes are also vital in offshore and subsea applications, where extreme conditions put additional pressure on turbine components. 3D scanning enables the precise inspection and reproduction of these parts, reducing maintenance costs and extending the operational life of turbines. In these industries, where components are often exposed to high pressure, corrosive environments, and intense mechanical forces, reverse engineering ensures that turbine vanes are accurately reproduced to maintain system integrity and performance.

Military and Defense

In military and defense applications, such as fighter jets and missile propulsion systems, turbine vanes must meet exacting standards for performance and safety. Reverse engineering with 3D scanning supports the rapid development of replacement parts for these high-value systems, ensuring that critical defense components are always operational. This technology allows for the swift reproduction of parts when they are no longer readily available, ensuring that military aircraft, missiles, and defense systems remain operational and effective in combat scenarios.

Automotive and Marine

While not as prevalent as in aerospace or power generation, turbine vanes also play a role in specific automotive and marine applications, particularly in turbochargers and marine engines. Reverse engineering with 3D scanning helps improve design accuracy and allows for efficient production of replacement parts. In automotive turbochargers, where performance is paramount, the ability to rapidly reproduce precise turbine vanes ensures continued high performance and reliability in engine systems. In the marine industry, where engines must withstand harsh conditions, reverse engineering ensures that turbine vanes are optimized for longevity and reliability.

Through reverse engineering and 3D scanning, industries can replicate and replace turbine vanes and enhance them for improved performance, safety, and cost-effectiveness. This technology is vital for minimizing downtime, extending the lifespan of high-value systems, and ensuring the reliability of critical components in sectors where precision and durability are essential.

FAQs

  1. How does 3D scanning improve the reverse engineering of turbine vanes?

  2. What are the advantages of using 3D scanning over traditional reverse engineering methods?

  3. What types of superalloy turbine vanes are typically reverse engineered using 3D scanning?

  4. How does 3D scanning support the maintenance of turbine vanes in aerospace applications?

  5. Can 3D scanning be used to reverse engineer turbine vanes made from 3D-printed superalloys?
