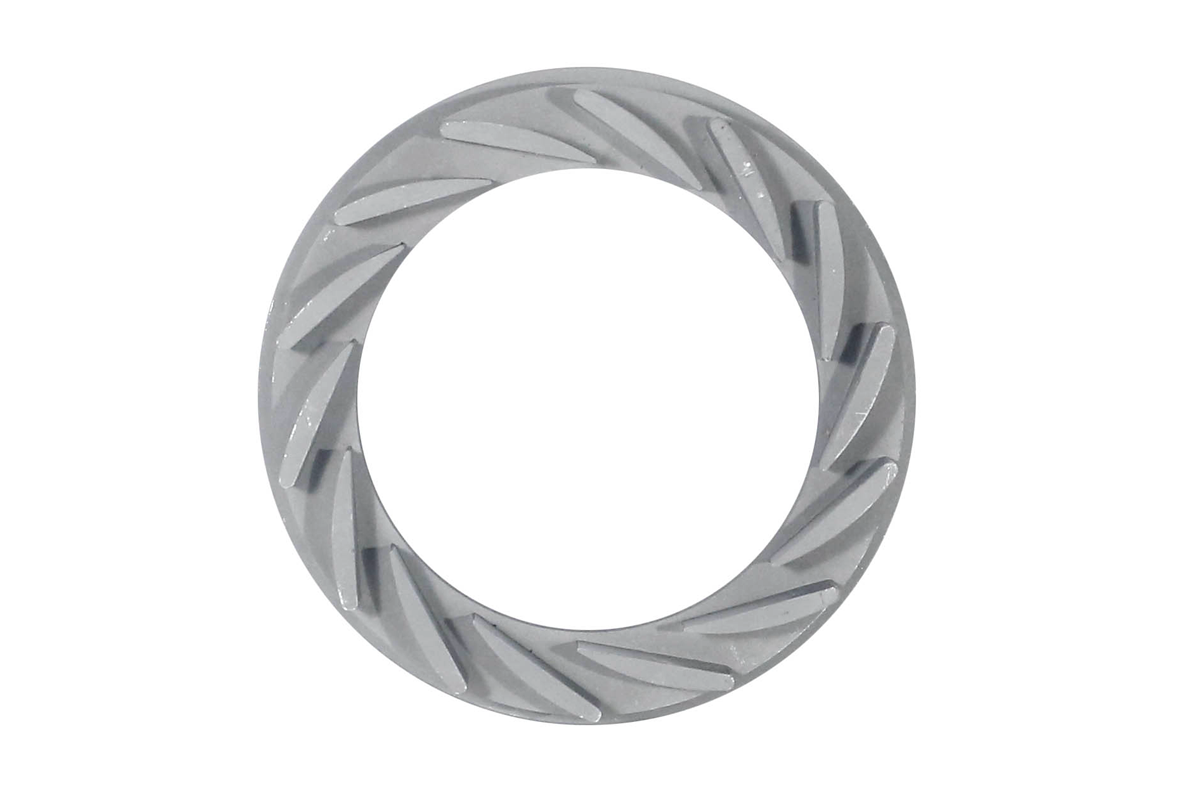

Reducing Castings Defects: Controlled Environments in Preventing Porosity and Micro-Cracks

In manufacturing high-temperature alloy castings, achieving high-quality, defect-free components is paramount. Superalloy castings must meet the highest mechanical performance standards, especially those used in critical applications such as aerospace, power generation, and oil and gas. Even minor defects such as porosity and micro-cracks can compromise the components' strength, durability, and longevity, making them unsuitable for demanding environments.

Using controlled environments during the casting process is a key strategy in preventing these defects. High vacuum casting is vital in minimizing impurities and preventing oxidation, while inert gas atmospheres can further safeguard against contamination. Additionally, precise temperature control throughout the solidification process helps optimize the superalloy's microstructure, reducing the likelihood of defects like shrinkage and surface irregularities.

By maintaining these controlled conditions, manufacturers can achieve the consistency and quality needed for components that will perform reliably under extreme conditions. This approach improves the final product's quality. It enhances efficiency in subsequent post-processing and testing phases, ensuring that the superalloy castings meet the rigorous standards required in high-performance industries.

Manufacturing Process

The manufacturing process of high-temperature alloy castings plays a crucial role in determining the product's final quality. A controlled casting environment is essential for superalloys, which are often used in extreme applications. One of the most effective methods is high vacuum casting, where the mold is placed under a vacuum or controlled atmosphere to reduce contaminants in the molten metal. This environment minimizes the risks of oxidation and gas entrapment, common porosity causes in superalloy turbine blades and other critical components.

In addition to vacuum casting, using inert gases, such as argon or nitrogen, helps create a stable atmosphere for the casting process. These gases prevent unwanted reactions with the molten metal, further reducing the likelihood of defects. Furthermore, the dynamic jacketed equipment employed in many high-temperature alloy casting processes ensures that the temperature remains uniform throughout the mold. By controlling thermal gradients, these systems prevent uneven cooling, which is one of the primary causes of defects like micro-cracking and internal stresses, particularly in high-performance aerospace parts.

Combining vacuum conditions and precise temperature control creates an ideal environment for the alloy to solidify without gas inclusions or thermal shocks. This results in a smoother, more uniform microstructure and significantly reduces the chance of defects like porosity or micro-cracks forming in superalloy turbine discs or jet engine components.

Porosity and Micro-Cracks in Superalloy Castings

Porosity and micro-cracks are two of the most common defects found in superalloy castings, and they both have significant implications for the material’s mechanical properties. Porosity refers to small gas pockets within the casting, which can compromise the material’s strength, flexibility, and fatigue resistance. Conversely, micro-cracks are tiny fractures that form due to thermal stresses during the cooling and solidification process. These cracks can propagate under mechanical loading, leading to premature failure of the component, especially in high-stress applications such as gas turbines or jet engine parts.

In the case of superalloys designed to operate under high temperatures and mechanical stresses, the presence of these defects is particularly detrimental. They can lead to localized weakening, reduced fatigue life, and increased vulnerability to environmental degradation. Even minor defects can cause catastrophic failure, especially in mission-critical applications like jet engine turbine blades or power plant reactor components.

By addressing these issues during the casting process, manufacturers can produce more robust, more reliable, and longer-lasting parts. Controlled environments, such as vacuum casting and inert gas atmospheres, play a critical role in minimizing the formation of these defects from the outset, improving the overall quality and performance of the casting.

Preventing Porosity in Superalloy Castings

Porosity is one of the most common defects in superalloy castings, and it occurs when gas becomes trapped in the molten metal during solidification. In high-temperature alloy casting, porosity is typically caused by the entrapment of air, moisture, or other gases during the pouring or cooling process. This can happen when the mold is not sealed correctly or when temperature fluctuations cause the molten metal to release gases as it solidifies.

High vacuum casting addresses this issue by eliminating air and moisture in the environment. The vacuum environment reduces the pressure on the molten metal, allowing dissolved gases to escape before they can solidify into pores. The result is a much denser, more robust casting less prone to forming voids.

In addition to vacuum casting, degassing techniques are often employed during the melting process to remove any unwanted gases from the molten metal before pouring it into the mold. Techniques such as using a degassing rotor or inert gas bubbling can help achieve a gas-free alloy, reducing the chances of porosity in the final casting.

Another critical factor in preventing porosity is controlling the atmospheric pressure during the casting process. In conventional casting, the pressure fluctuations during the cooling process can cause gases to form, leading to the development of pores. Manufacturers can prevent these fluctuations by maintaining a stable atmosphere and ensuring a uniform, pore-free structure.

Preventing Micro-Cracks in Superalloy Castings

Micro-cracks are another common defect during casting, particularly in high-performance superalloys that withstand high temperatures. Thermal stresses usually cause these cracks during solidification. When molten metal cools, it contracts, and if the cooling rate is not uniform, the material can experience internal stresses that lead to the formation of cracks.

The cooling rate of the casting is critical in determining whether or not micro-cracks will form. Rapid cooling can cause significant temperature gradients within the material, creating areas of high internal stress. These stresses can cause micro-cracks to form, propagating under mechanical loading, weakening the material and reducing its lifespan.

Controlled environments help mitigate the risk of micro-cracks by regulating the cooling rate of the casting. High vacuum casting and inert gas environments allow for more gradual and uniform cooling, reducing the thermal stresses contributing to crack formation. Dynamic jacketed equipment further enhances this process by ensuring that the mold remains at a consistent temperature throughout the solidification process, preventing thermal shock.

Manufacturers can create castings with a uniform microstructure and fewer internal stresses by controlling the cooling rate and minimizing thermal gradients. This results in more cracking-resistant parts and higher mechanical strength, making them ideal for high-temperature, high-stress applications.

Post-Processing Comparison

One of the significant benefits of using controlled environments in the casting process is the reduction in the need for extensive post-processing treatments. In traditional casting methods, defects like porosity and micro-cracks often require costly and time-consuming post-processing techniques such as Hot Isostatic Pressing (HIP) or heat treatment to improve the material's mechanical properties.

However, with controlled casting environments, the occurrence of these defects is minimized from the beginning, reducing the need for additional treatments. For example, when castings are made in high vacuum environments, the material is less likely to have porosity, so the need for HIP, which is used to close internal voids, is significantly reduced. This not only saves time but also reduces the overall production costs.

In addition to reducing the need for HIP, controlled casting environments also minimize the occurrence of other common defects, which reduces the need for further quality control processes. The result is a more streamlined manufacturing process with fewer steps and less risk of errors. Superalloy CNC machining and deep hole drilling can still be used as part of the finishing process, but they are less likely to be required for defect correction, making the process both more efficient and cost-effective.

Testing

Testing is an essential part of ensuring the quality of superalloy castings. Non-destructive testing methods typically detect porosity and micro-cracks, allowing manufacturers to identify defects without damaging the component. One standard method is X-ray inspection, which reveals internal voids or inclusions within the casting. With controlled environments, the likelihood of defects like porosity is significantly reduced, which means the castings are more likely to pass these tests. The absence of contaminants, often achieved through techniques like high vacuum casting, further enhances the clarity and accuracy of X-ray results.

Metallographic microscopy is another vital testing method used to inspect the internal microstructure of castings. This technique allows manufacturers to examine the grain structure and detect any signs of cracking or other imperfections. Castings in controlled environments typically have more uniform grain structures and fewer defects, making them more likely to pass these inspections. Metallographic microscopy is essential for evaluating the overall integrity of the material and confirming that the casting process has resulted in the desired microstructural properties.

Advanced testing techniques like Scanning Electron Microscopy (SEM) and Glow Discharge Mass Spectrometry (GDMS) can also be used to analyze the chemical composition and microstructure of superalloy castings. These methods help confirm the quality and purity of the material, ensuring that the final product meets the required standards. GDMS, for example, detects trace elements and impurities, ensuring that the superalloy is free from contaminants that could compromise its performance in high-temperature applications. SEM provides detailed, high-resolution images of the material's surface and internal features, offering a deeper understanding of its structural properties.

Prototyping Process

The prototyping process for superalloy components is critical in ensuring that the final product meets the precise specifications required for high-performance applications. High-quality castings made in controlled environments contribute to the efficiency and accuracy of the prototyping process.

Superalloy CNC machining is commonly used to create prototypes with high precision. Since controlled environments help produce castings with fewer defects, such as porosity and micro-cracks, the material is more accessible to machines. The reduced presence of internal flaws ensures that machining tools experience less wear and that the components can be machined to tighter tolerances.

Similarly, superalloy 3D printing is gaining popularity in prototyping, especially for complex or low-volume parts. Controlled casting processes ensure that the material used in 3D printing is of high quality, with minimal defects, which results in better performance during additive manufacturing. This is particularly important in aerospace and automotive industries, where complex, high-performance parts are often required.

Combining high-quality castings and advanced prototyping techniques enables manufacturers to produce superalloy components that meet the rigorous demands of aerospace, energy, and defense industries.
