Precision Repositioning in Laser Cladding for Alloy Repairs
Laser cladding has emerged as a critical technology for repairing and enhancing superalloy parts, offering unparalleled precision and efficiency. This advanced method involves the application of a high-powered laser to melt a coating material, which then solidifies onto the surface of the workpiece. It is widely used in industries where superalloy parts, known for their high strength and resistance to heat, wear, and corrosion, play a critical role.
Understanding Laser Cladding for Superalloy Repairs
Laser cladding, sometimes referred to as laser surface alloying or laser deposition, is a form of additive manufacturing (AM) that involves the deposition of a material onto the surface of a part in a controlled environment. A laser beam melts the cladding material, which can be a powder or wire, onto the surface of the substrate. The laser heats the material to such a degree that it forms a metallurgically bonded layer.
The precision of the laser allows for excellent control over the deposition process, ensuring that only the desired areas of the part are repaired, with minimal heat-affected zones (HAZ). This is particularly crucial when dealing with superalloy parts that require repairs to their intricate, high-precision surfaces.
The laser cladding process is well-suited for high-value, critical components often used in aerospace, energy, oil and gas, and defense industries. These industries typically rely on high-performance alloys, like Inconel, Hastelloy, and Titanium alloys, for components that must withstand extreme temperatures, pressures, and harsh environments.
Sure, here is the content with the appropriate anchor links inserted for the materials and their brands:
Suitable Materials for Laser Cladding in Superalloy Repairs
Inconel Alloys
Inconel alloys are a family of nickel-chromium-based superalloys commonly used in high-temperature environments. Due to their excellent resistance to oxidation, high-temperature strength, and resistance to thermal fatigue, Inconel alloys are widely used in aerospace and energy applications, including turbine blades, combustion chambers, and exhaust systems.
In laser cladding, Inconel alloys such as Inconel 718, Inconel 625, and Inconel 738 are frequently used. These materials offer excellent bonding properties and are well-suited for repairing parts that operate in high-temperature environments. For instance, Inconel 718 is often used in turbine engines due to its high strength and resistance to thermal cracking, making it an excellent choice for laser cladding repairs to restore turbine blade surfaces.
Hastelloy Alloys
Hastelloy is a family of nickel-based alloys known for their superior resistance to corrosion and high-temperature stability. These alloys are often used in extreme environments, such as chemical processing, nuclear power, and aerospace applications. When repairing parts exposed to harsh environments, Hastelloy C-276 and Hastelloy C-22 are commonly used in laser cladding repairs. These materials provide exceptional corrosion resistance and are ideal for restoring the integrity of components subjected to extreme temperatures and aggressive environments.
Stellite Alloys
Stellite alloys are a family of cobalt-based alloys known for their wear resistance, high-temperature strength, and corrosion resistance. These materials are commonly used in applications that require exceptional hardness and wear resistance, such as valve seats, turbine blades, and other critical components.
In laser cladding, Stellite 6 and 12 are often used to repair parts exposed to wear, corrosion, and high temperatures. Stellite 6 offers excellent wear and oxidation resistance, making it ideal for laser cladding repairs on components such as turbine blades, where surface integrity is crucial.
Titanium Alloys
Titanium alloys are lightweight materials known for their excellent strength-to-weight ratio and corrosion resistance. These alloys are commonly used in aerospace, automotive, and marine applications, where low weight and high strength are essential.
Ti-6Al-6V-2Sn and Ti-6Al-7Nb are frequently used in laser cladding to repair titanium components exposed to high temperatures and mechanical stress. Ti-6Al-6V-2Sn is mainly known for its excellent strength and fatigue resistance, making it suitable for aerospace components.
Rene Alloys
Rene alloys are high-performance superalloys that are designed to operate in extreme environments. These alloys offer exceptional resistance to oxidation, creep, and thermal fatigue, making them ideal for turbine engines, industrial gas turbines, and other high-temperature applications.
In laser cladding, Rene 104 and Rene 108 are commonly used for repairing turbine blades and other critical components exposed to high-stress and high-temperature conditions. These materials are known for their excellent mechanical properties and long-term durability under harsh operating conditions.
Manufacturing Process for Laser Cladding with Precision Repositioning
The manufacturing process for laser cladding with precision repositioning involves several key stages: preparation, deposition, and post-cladding. Each stage requires careful consideration of the material properties, cladding parameters, and precision techniques.
Preparation
Before beginning the cladding process, the superalloy part must be thoroughly prepared. This involves cleaning the surface to remove any contaminants, such as dirt, oil, or oxidation, which could compromise the quality of the bond. The surface may also be preheated in some cases to minimize thermal shock and ensure consistent results.
Laser Cladding Deposition

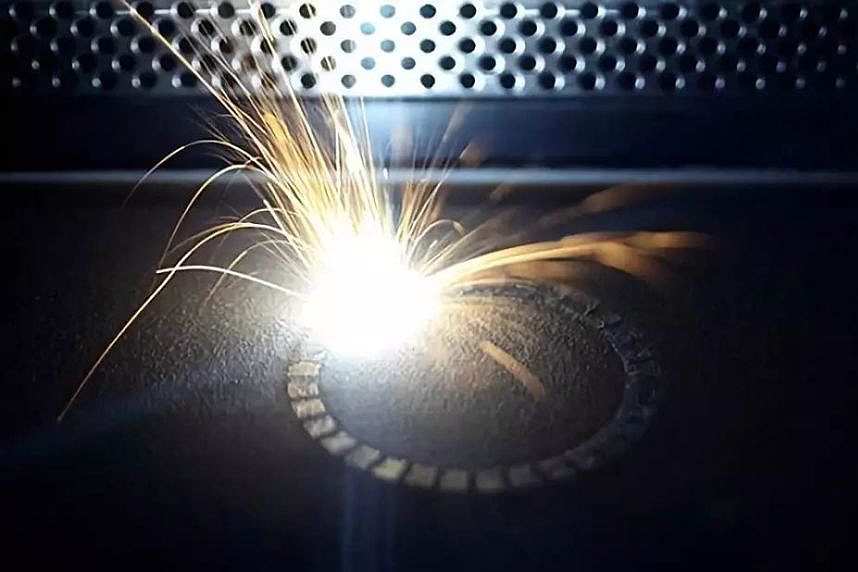

A high-powered laser is directed onto the part's surface during deposition. The laser energy melts the material, while the cladding material (usually in powder form) is introduced into the melt pool. The laser's precision allows for a focused beam, enabling fine deposition and minimal distortion.
Precision Repositioning
One of the key benefits of laser cladding is the ability to reposition the laser beam with high precision. This allows material deposition on areas requiring repair without affecting the surrounding substrate. Precision repositioning can be achieved by combining CNC control and automated scanning techniques, enabling the laser to follow a predetermined path and create uniform coating thickness.
Post-Processing for Laser Cladding Repairs
Once the laser cladding process is complete, several post-processing steps are required to ensure the repaired part meets the necessary standards for performance and durability.
Heat Treatment
Heat treatment is a critical post-processing step for superalloy parts, especially when working with materials like Inconel, Hastelloy, or titanium. Heat treatment helps relieve stresses caused by the cladding process and ensures the part retains its mechanical properties. Standard heat treatment processes include solution annealing and aging, which optimize the material's microstructure and enhance its strength and resistance to fatigue.
Hot Isostatic Pressing (HIP)
The HIP is another post-processing technique often used for laser-cladded parts. This process involves subjecting the part to high-pressure gas at elevated temperatures. This helps eliminate porosity, improve the bonding strength between the cladding and substrate, and enhance overall material properties. HIP ensures that the part's structural integrity is restored to the highest standards for critical applications.
Superalloy CNC Machining and Surface Finishing
Once the part has undergone heat treatment and HIP, it is often subjected to CNC machining to achieve the required dimensions and surface finish. CNC machining is used to refine the cladded surface, remove excess material, and ensure the part meets the specified tolerances.
Welding and Other Surface Coatings
In some cases, additional welding may be used to ensure the repair is fully integrated and structurally sound. Additionally, thermal barrier coating (TBC) or other surface coatings may be applied to improve the part's resistance to extreme temperatures, wear, and corrosion, ensuring longevity and high performance in demanding applications.
Testing and Quality Assurance
Testing is vital to ensuring that the repaired superalloy parts meet the necessary standards for performance and safety. Several advanced techniques are used to verify the integrity of the cladding, including:
Metallographic Microscopy: Used to inspect the microstructure of the cladding material and ensure proper bonding.
X-ray Testing: Checks for internal defects, such as porosity or cracks.
Scanning Electron Microscopy (SEM): Provides detailed images of the surface to identify any issues at a microscopic level.
Tensile Testing: Verifies the mechanical properties of the repaired component, such as strength and elasticity.
Fatigue Testing: Ensures the component can withstand cyclic loading without failure.
These tests ensure that the repaired superalloy parts meet the quality standards for high-performance applications.
Industry Applications for Laser Cladding Repairs
Laser cladding with precision repositioning is used extensively across various industries where superalloy parts are critical for performance and safety.
Aerospace and Aviation
Laser cladding is frequently used in aerospace and aviation to repair turbine blades, engine components, and exhaust systems. The high temperatures and extreme stress encountered in aerospace applications make restoring parts to their original performance specifications essential. Laser cladding ensures that these components maintain their durability and reliability, which is crucial for aircraft performance.
Power Generation
Components such as heat exchangers, pumps, and reactors are exposed to harsh environments in power plants. Power generation relies on laser cladding to extend the service life of these components, reducing downtime and maintenance costs. Laser cladding contributes to the ongoing efficiency of power generation systems by restoring worn or damaged parts.
Oil and Gas
In the oil and gas industry, laser cladding is used to repair critical equipment, such as drill bits, pumps, and valves, which are subjected to high wear and corrosion. The application of superalloy cladding enhances the durability and performance of these components, reducing the need for costly replacements and improving operational longevity.
Military and Defense
Laser cladding repairs superalloy parts used in weapons systems, armor, and missile components in the military and defense sector. The precision and durability of these repairs are vital for ensuring the reliability and performance of defense equipment, which must operate under extreme conditions.
FAQs
What are the primary benefits of using laser cladding for repairing superalloy parts?
How does precision repositioning in laser cladding improve the repair process?
Which superalloy materials are most suitable for laser cladding repairs, and why?
