Precision Measurement with Water Immersion Ultrasonic Inspection: Meeting Stringent Tolerances
In aerospace, power generation, and defense, the demand for precision in high-performance components is at an all-time high. Superalloy parts, known for their strength, heat resistance, and corrosion resistance, are central to the function of many critical systems, such as turbine engines, reactors, and military hardware. Achieving the required performance from these parts relies heavily on detecting and correcting any internal defects, even those that are not visible to the naked eye.
Manufacturers must ensure that their superalloy components meet exacting safety, durability, and performance standards. For this reason, advanced non-destructive testing (NDT) methods, such as water immersion ultrasonic inspection, are essential. This method guarantees that the parts are free from internal flaws that could compromise their structural integrity or functionality.
Water immersion ultrasonic inspection (WUI) provides a highly accurate means of detecting subsurface defects, ensuring that superalloy components meet the rigorous demands of industries like aerospace and military defense. Identifying and correcting such flaws early in the production process is crucial in preventing costly failures, improving operational safety, and maximizing the performance of critical components in extreme conditions.
What is Water Immersion Ultrasonic Inspection?
Water immersion ultrasonic inspection is an advanced form of ultrasonic testing (UT) that uses water as a coupling medium for sound waves to travel through superalloy parts. In traditional ultrasonic testing, sound waves are introduced into the material through a transducer, typically placed directly onto the part's surface. In water immersion UT, the part is submerged, and the ultrasonic transducer is placed in contact with the water rather than the part’s surface. This method ensures better transmission of sound waves, which results in higher sensitivity and more accurate detection of internal defects.
Water immersion ultrasonic inspection is particularly beneficial for testing large or complex parts, as the water helps to create a uniform coupling that allows for deeper and more precise penetration of sound waves. This technique is commonly used to inspect superalloy parts undergoing high-stress conditions, such as aerospace, power generation, and defense applications.
The Function of Water Immersion Ultrasonic Inspection in Superalloy Parts
Water immersion ultrasonic inspection is used to detect internal flaws such as cracks, voids, inclusions, and porosity within superalloy materials. The critical function of this process is to ensure the structural integrity of the parts by identifying any defects that could compromise their performance in service. The ultrasonic waves are directed through the superalloy material, and any discontinuities within the part cause reflections of the sound waves. These reflections are then captured by the system and analyzed to determine the location and size of the defects.
The water medium enhances the efficiency of this process by eliminating air gaps between the transducer and the surface of the part, which is especially important for parts with complex geometries. This feature is crucial when inspecting superalloy parts manufactured through processes like superalloy precision forging, where precision is paramount. The waves penetrate deeper into the material, making it easier to detect subsurface issues, even in parts with thick or intricate cross-sections.
The precision measurement capabilities of water immersion ultrasonic inspection help ensure that superalloy parts meet stringent dimensional tolerances. Even the slightest flaw can lead to failure for critical components like turbine blades, engine parts, and heat exchangers. By using this method, manufacturers can guarantee that the parts will perform optimally in demanding environments, such as those encountered in the aerospace and power generation sectors, where high strength and reliability are essential.
Which Superalloy Parts Require Water Immersion Ultrasonic Inspection?
Water immersion ultrasonic inspection (WUI) is critical for detecting internal and subsurface defects in superalloy components used across industries. This technique effectively ensures that parts used in high-stress, high-performance applications meet the necessary integrity and safety standards. Below are the superalloy parts that benefit from water immersion ultrasonic inspection:
Superalloy Castings

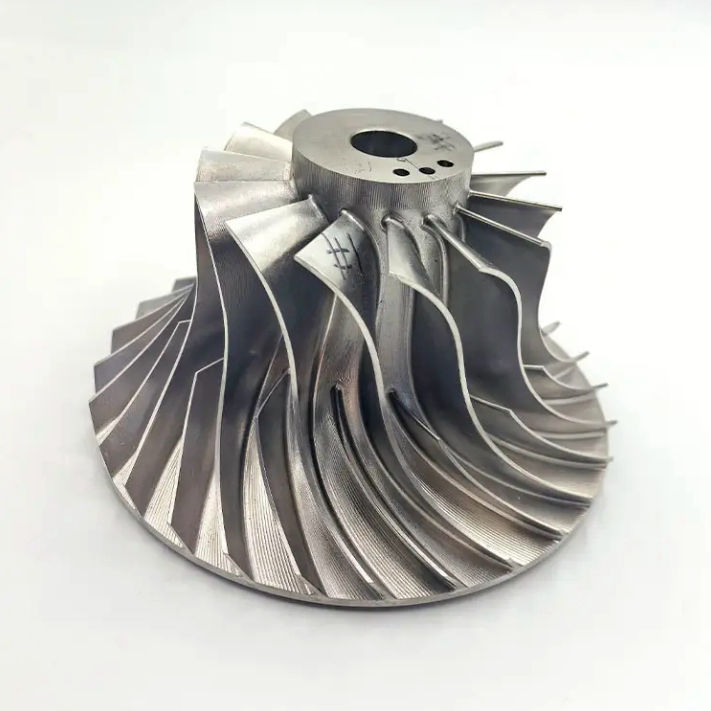

Superalloy castings, such as turbine blades, vanes, and impellers, are vital in aerospace, power generation, and other high-performance industries. During casting, imperfections like porosity, shrinkage, or inclusions can form, undermining the part’s strength and performance. Water immersion ultrasonic inspection is highly effective in identifying these internal defects, ensuring that the castings meet the stringent standards required for demanding applications like aerospace turbine blades or gas turbine components. By detecting these flaws early in manufacturing, WUI ensures that only structurally sound parts are used in critical systems.
Forged Parts
Superalloy forged parts, such as turbine discs, shafts, and gears, undergo extreme stresses during forging, leading to cracks, voids, or other internal flaws. These parts are designed to withstand high mechanical forces and thermal cycles, making the detection of internal defects essential. Water immersion ultrasonic inspection helps identify these flaws, ensuring the integrity of forged parts used in critical aerospace, defense, and energy applications. For example, forged turbine discs and compressor blades must meet rigorous strength and durability standards, making WUI a crucial tool in ensuring their reliability.
CNC Machined Superalloy Parts
After superalloy parts are CNC machined to precise geometries, they may still contain microfractures, internal porosity, or inclusions that can compromise their performance. Engine components, seals, and structural components require tight tolerances and flawless structural integrity. Water immersion ultrasonic inspection provides a reliable method for detecting these internal defects, ensuring that the CNC machined parts meet the required specifications for strength and functionality in demanding applications like aerospace and energy.
3D Printed Superalloy Parts
Additive manufacturing, or 3D printing, allows for creating complex geometries, but it also introduces unique challenges such as internal porosity, layer bonding issues, and microstructural inconsistencies. These issues can undermine the strength and performance of 3D printed superalloy parts used in aerospace, medical, and energy applications. Water immersion ultrasonic inspection is particularly effective in identifying these defects, helping ensure that 3D-printed superalloy parts meet the same rigorous standards as traditionally manufactured components.
By incorporating water immersion ultrasonic inspection into the quality control process, manufacturers can identify and address potential issues in superalloy castings, forged parts, CNC machined components, and 3D printed parts. This non-invasive technique helps maintain the high standards required for components used in critical, high-performance applications.
Comparison with Other Measurement and Inspection Processes
Water immersion ultrasonic inspection offers several advantages over other testing methods used for superalloy parts. However, each inspection method has its strengths depending on the nature of the part and the type of defects being sought. For high-performance materials, selecting the appropriate inspection method is crucial for ensuring surface and subsurface defect detection.
Standard Ultrasonic Testing (Without Water Immersion):
In traditional ultrasonic testing, a transducer is placed directly on the material's surface, and sound waves are introduced to detect internal flaws. While this method is effective, it is less sensitive than water immersion UT, especially when dealing with complex geometries or larger parts. Water immersion ultrasonic inspection ensures better coupling and deeper penetration of sound waves, making it a more reliable option for precision measurements. This technique is essential when assessing creep and fatigue resistance in superalloy turbine blades subjected to extreme conditions.
X-ray Inspection:
X-ray inspection is a widely used for detecting internal defects in superalloy parts, particularly in castings and welds. While X-ray inspection provides excellent imagery for flaw detection, it can be costly and time-consuming, especially for larger parts. Water immersion ultrasonic inspection offers a more cost-effective and faster alternative for routine quality checks, with the benefit of detecting surface and subsurface defects. For internal structural analysis, choosing an inspection method that balances cost, time, and thoroughness is essential.
Eddy Current Testing:
Eddy current testing is commonly used for detecting surface cracks and other surface anomalies in conductive materials. While it is highly effective for surface defects, it is unsuitable for detecting internal flaws like voids or cracks deep within superalloy parts. On the other hand, water immersion ultrasonic inspection can detect surface and internal flaws, making it a more versatile solution for high-performance parts. This ability to inspect external and internal features is crucial in superalloy turbine components used in aerospace and power generation applications.
Magnetic Particle Inspection (MPI):
MPI is another standard NDT method, but it is limited to ferromagnetic materials. Since many superalloy materials are non-ferromagnetic, MPI is not applicable. Water immersion ultrasonic inspection can be used for a broader range of superalloy materials, making it more suitable for various industries and applications, including those in the aerospace and marine sectors where non-ferromagnetic materials are frequently used. This versatility is critical when assessing materials for high-temperature alloy applications.
Dye Penetrant Testing:
Dye penetrant testing effectively detects surface cracks and porosity but does not provide information about subsurface defects. In contrast, water immersion ultrasonic inspection can identify surface and subsurface issues, making it a more comprehensive inspection technique for superalloy parts. This capability is significant for detecting inclusion defects in single crystal castings, where internal voids can significantly impact performance in high-stress environments like turbine engines.
Industry and Application of Water Immersion Ultrasonic Inspection in Superalloy Parts
Water immersion ultrasonic inspection plays a vital role in several industries where superalloy parts are subjected to extreme conditions. Its ability to detect internal defects with high accuracy ensures that critical components meet the stringent requirements for performance and safety.
Aerospace and Aviation
In the aerospace and aviation industry, components such as turbine blades, combustion chambers, and engine parts are subject to high stress and extreme temperatures. Water immersion ultrasonic inspection ensures that these parts are free from internal defects that could lead to catastrophic failures. This process is essential for parts like turbine blades subjected to continuous thermal cycling and mechanical stresses, ensuring the superalloy jet engine components maintain their integrity and reliability over time.
Power Generation
Superalloy components used in power generation, such as turbine discs, heat exchangers, and compressor blades, must perform reliably under harsh operating conditions. Water immersion ultrasonic testing helps detect internal flaws that could compromise the strength and durability of these critical components, ensuring the safe operation of power plants and gas turbines. Parts like superalloy heat exchanger components rely on this technology to maintain optimal performance and reduce the risk of unplanned downtime.
Oil and Gas
In the oil and gas industry, superalloy parts like valves, pumps, and pressure vessels must withstand aggressive environments, including high pressure, temperature, and corrosive materials. Water immersion ultrasonic inspection is used to verify the structural integrity of these parts, ensuring they can perform reliably in demanding conditions. Critical components like high-temperature alloy pump parts benefit from this non-destructive testing to detect flaws early and maintain operational safety.
Military and Defense
Superalloy components used in military and defense applications, such as missile segments, armor systems, and weaponry, must meet the highest standards of quality and reliability. Water immersion ultrasonic inspection ensures these components are free from defects that could affect their performance in critical defense applications. Parts like superalloy armor system components undergo a rigorous inspection to meet stringent durability and safety requirements for defense applications.
Nuclear
In the nuclear industry, superalloy components like reactor vessel components and corrosion-resistant piping are subject to extreme conditions, including high radiation and temperatures. Water immersion ultrasonic inspection helps ensure these parts are accessible from internal flaws that could lead to safety concerns or operational failures. Components such as superalloy reactor vessel parts are critical in maintaining the structural integrity of nuclear facilities, ensuring long-term safety and operational efficiency.
By employing water immersion ultrasonic inspection across these industries, manufacturers can detect and address potential flaws in superalloy components, ensuring the highest levels of quality and reliability in mission-critical applications.
