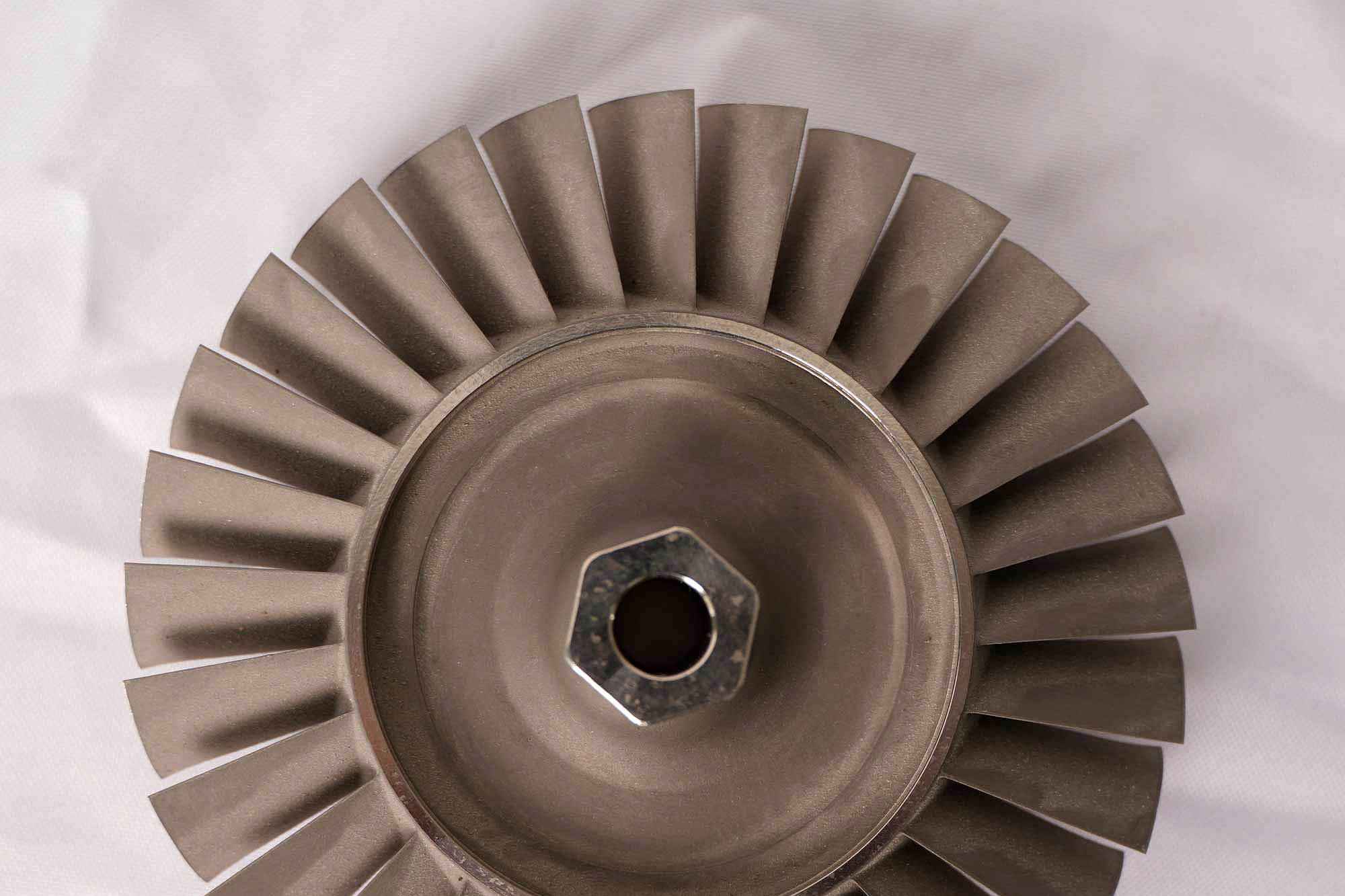

Precision Coating Techniques for Enhanced Superalloy Component Integrity

Achieving durability and reliability is essential in high-performance applications where superalloy components are exposed to extreme environments. Precision coatings play a crucial role in enhancing the longevity and integrity of these components, especially in industries like aerospace, power generation, defense, and more. The suitable coating can distinguish between a component that withstands harsh conditions and one that fails prematurely.

This blog will explore various precision coating techniques, the types of superalloys typically used, the post-processes involved, testing methodologies, and the specific industries that benefit from coated superalloy components.

Manufacturing Process

In superalloy manufacturing, coatings protect the base material from harsh operating environments, increase thermal resistance, prevent oxidation, and improve corrosion resistance. The coatings can be applied through various advanced techniques, each carefully chosen based on the application's requirements. Precision coating methods and thermal barrier coatings ensure component reliability and performance.

Precision coatings are typically applied to superalloy components that must function at high temperatures or resist wear and corrosion. The coatings are carefully selected to match the environmental conditions the part will face. Some of the most widely used coating techniques include thermal spraying, Chemical Vapor Deposition (CVD), Physical Vapor Deposition (PVD), and Electron Beam Physical Vapor Deposition (EB-PVD). These methods help create layers that improve performance and ensure that components can meet the strict requirements of industries such as aerospace, power generation, and defense. Integrating automated coating systems and advanced surface preparation techniques further enhances the precision of these processes.

Thermal spraying is one of the most common techniques for coating superalloy components. Methods such as plasma spray and High-Velocity Oxy-Fuel (HVOF) are used to apply coatings like Thermal Barrier Coatings (TBCs), which improve the thermal resistance of components. The coating material is melted and sprayed onto the component's surface using high-speed gas during this process. The result is a robust, uniform layer that can endure high temperatures and mechanical stress. Controlled deposition techniques and consistent material preparation enhance this process.

Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) are other critical techniques for applying coatings to superalloy components. These methods involve depositing a thin film of coating material onto the component by vaporizing it under controlled conditions. CVD and PVD are widely used for their ability to produce coatings with excellent adhesion and precise thickness control, making them particularly useful for parts that require intricate protection against corrosion or wear. By employing advanced deposition control and surface integrity monitoring, manufacturers can improve the efficiency and reliability of these processes.

Electron Beam Physical Vapor Deposition (EBPVD) is a technique primarily used in the aerospace industry for coating turbine blades with thermal barrier coatings. In this process, an electron beam vaporizes the coating material, which is then condensed onto the component. The result is a highly adhesive coating with a columnar structure, which allows it to expand and contract without cracking during rapid temperature changes. The columnar coatings' role and structural flexibility benefits are key to their use in extreme environments.

Another technique is Sol-Gel Coating, which is used to apply a ceramic coating layer on superalloy parts. This technique involves preparing a sol, applying it to the part, and then converting it to a ceramic gel that adheres tightly to the surface. Sol-gel coatings help provide additional thermal protection or corrosion resistance to the part. Combining this with automation in coating preparation and precision surface treatments ensures consistent quality.

The surface preparation of the component before coating is critical for ensuring adhesion and uniformity. Cleaning and surface roughening (e.g., grit blasting) are usually performed before applying the coating to ensure that the surface is free from contaminants and has the appropriate texture for adhesion. Once the component is cleaned, the coating is applied under controlled conditions to achieve a consistent thickness and ensure the coating adheres properly. Manufacturers can achieve superior adhesion and performance by focusing on surface preparation techniques and advanced material handling.

Automation plays a significant role in precision coatings, as robots and automated systems ensure repeatability and accuracy in the application. Automation allows for the exact control of the coating thickness, temperature, and speed, vital for achieving the desired performance in high-stress applications. Utilizing automated systems for precision coatings and robotic applications in manufacturing ensures both scalability and consistency.

Typical Superalloys

Precision coatings are often applied to superalloy components to protect them from the harsh environments they face in operation. Superalloys, typically nickel, cobalt, or iron-based, are selected for their ability to maintain their mechanical properties at high temperatures. However, these alloys still require additional protection to extend their life in extreme environments, which is where precision coatings come in.

Nickel-Based Superalloys

Nickel-based superalloys such as Inconel, Rene alloys, and CMSX series are commonly used in high-temperature environments. These alloys are used to manufacture turbine blades, combustion chambers, and other critical components in aerospace and power generation. Despite their high strength and resistance to thermal fatigue, these components benefit significantly from coatings such as Thermal Barrier Coatings (TBCs). TBCs help insulate the component from extreme heat, reducing thermal fatigue and enhancing operational life.

Cobalt-Based Superalloys

Cobalt-based superalloys, like Stellite, are known for their exceptional resistance to wear and corrosion. These alloys are used in high-wear environments, such as valve seats, turbine blades, and other components exposed to erosion and corrosion. Applying a coating to cobalt-based superalloys further enhances their durability, making them ideal for high-temperature strength and wear resistance applications.

Iron-Based Superalloys

Iron-based superalloys, such as Nimonic, are often used in applications where the requirement for high-temperature performance is less extreme, but cost-effectiveness is essential. Coatings applied to iron-based superalloys help protect them from oxidation and corrosion, thus extending the component’s lifespan and reducing maintenance needs.

Benefits of Coatings in Demanding Applications

With precision coatings, these superalloys are used in various demanding applications, including jet engines, power turbines, chemical processing equipment, and high-performance exhaust systems. The coatings significantly enhance their resistance to oxidation, corrosion, and thermal fatigue, making them more reliable in challenging operating conditions.

Post-Processes Comparison

Coated superalloy components undergo different post-processing steps compared to their non-coated counterparts. These post-processes aim to ensure that the coating is properly adhered to and that the final component meets all required specifications. For example, thermal barrier coatings (TBC) are vital in enhancing superalloy components' thermal and oxidation resistance, making them ideal for extreme environments.

Coated vs. Non-Coated Components

The key difference between coated and non-coated superalloy components is their performance in harsh environments. Non-coated superalloy parts are more susceptible to oxidation, corrosion, and thermal fatigue, especially when exposed to high temperatures for extended periods. In contrast, components with precision coatings are more resilient to environmental damage, reducing the need for maintenance and prolonging their operational lifespan. Post-processing methods like Hot Isostatic Pressing (HIP) can significantly enhance the strength and longevity of coated and non-coated superalloy components.

Post-Coating Treatments and Quality Assurance

Certain post-coating treatments are performed to ensure that the coating remains effective throughout the component. For example, heat treatment is often applied to help the coating adhere more effectively. This process can also relieve residual stresses in the coating, further enhancing its durability. This approach ensures the protective layer remains intact even under extreme operating conditions, thereby maintaining the part's performance.

Surface Finishing Techniques

After the coating is applied, additional surface finishing steps, such as shot peening or grinding, may be performed. Shot peening helps increase the fatigue strength of the coated component by introducing compressive stresses on the surface, while grinding is used to smooth out the surface and ensure dimensional accuracy. These finishing steps ensure that the coating provides uniform protection and that the component fits correctly within the larger assembly. Post-processing using precision machining ensures that the surface characteristics meet all the specified requirements for reliable performance in demanding applications.

The precision coating of superalloys also helps to reduce the need for rework, as the coatings provide a higher quality, more consistent finish than could be achieved with uncoated components. By reducing the number of defects and improving component performance, coatings also reduce the long-term costs associated with maintenance and part replacement.

Testing

Testing ensures that coated superalloy components meet the stringent requirements for high-performance applications. Various testing methods are employed to verify the coatings' quality, adhesion, and integrity.

Non-Destructive Testing (NDT)

Non-Destructive Testing (NDT) is used extensively to ensure that the coating is of the correct thickness and that there are no defects, such as voids or cracks. Techniques such as ultrasonic testing, X-ray inspection, and Eddy current testing are commonly used to inspect the coating without damaging the component.

Thermal Cycling Tests

Thermal cycling tests are also performed to determine how well the coating can withstand high temperatures and rapid temperature changes. These tests are essential for components used in gas turbines, which are exposed to extreme heat and must endure constant thermal cycling during operation.

Oxidation and Corrosion Testing

Oxidation and Corrosion Testing ensures that the coatings resist harsh environmental conditions. By exposing coated components to corrosive environments and elevated temperatures, manufacturers can verify that the coating will effectively protect the underlying superalloy material throughout its operational life.

Metallographic Examination

Metallographic Examination examines the bond between the coating and the substrate. A well-adhered coating is essential to ensure it does not delaminate during service. The metallographic examination provides detailed insights into the microstructure of the coating and helps detect any areas where the coating may be poorly bonded.

Stress and Fatigue Testing

Stress and Fatigue Testing are conducted to assess how the coating affects the overall mechanical properties of the superalloy component. Coatings must not negatively impact the part's ability to withstand mechanical loads or fatigue cycles. Stress and fatigue testing helps ensure that the coated component can meet the mechanical demands of its intended application without failure.

Industry and Application

Precision coatings for superalloys are critical in industries where parts must perform under extreme conditions. These coatings offer protection against heat, corrosion, and mechanical stresses, enhancing the performance and lifespan of components in various sectors. The industries that benefit most from these coatings include aerospace, power generation, oil and gas, defense, automotive, and marine.

Aerospace and Aviation

Precision coatings are used extensively in the aerospace and aviation industry to protect components such as turbine blades, combustion chambers, and afterburners. These parts must operate at very high temperatures while maintaining structural integrity. Thermal barrier coatings (TBCs) are applied to reduce the heat transferred to the metal, extending the component's life and improving engine efficiency. For instance, components like superalloy jet engine parts benefit significantly from these coatings, ensuring reliable performance even under extreme thermal conditions.

Power Generation

In power generation, components such as gas turbine blades, steam turbines, and heat exchangers benefit from coatings that help them withstand harsh combustion and heat transfer conditions. Precision coatings improve the thermal efficiency of these systems, reduce downtime, and enhance overall plant productivity. These components can achieve better durability by applying protective layers to superalloy heat exchanger parts, ensuring they maintain efficiency while resisting thermal stresses over extended operational periods.

Oil and Gas

The oil and gas industry relies heavily on superalloy components for pumps, valves, and drilling equipment, often exposed to corrosive fluids and high pressures. Coatings such as anti-corrosion layers protect these components, ensuring they maintain their performance over long operational periods. Components like superalloy pump system assemblies benefit from such coatings by extending their lifespan in challenging environments with high wear and chemical degradation risks.

Defense and Military

In the defense and military sector, precision coatings are crucial for components that must withstand extreme environments, such as high-velocity impacts and exposure to harsh elements. Superalloys with protective coatings are used in armor, missile components, and naval systems that require enhanced durability and reliability. Superalloy missile segments and superalloy armor system parts are examples of components that use specialized coatings to maintain performance even in extreme combat and operational conditions.

Automotive

In the automotive industry, high-performance turbochargers and exhaust systems often receive coatings to improve their durability and heat resistance. Coated components can operate at higher temperatures, improving efficiency and performance. For example, superalloy exhaust system parts benefit from heat-resistant coatings, which help them withstand the harsh conditions of exhaust gases while maintaining structural integrity and enhancing fuel efficiency.

Marine

In marine applications, superalloy components are exposed to saltwater corrosion, which can significantly degrade their performance over time. Precision coatings, such as anti-corrosion layers, help protect these components, ensuring they remain operational and corrosion-resistant for extended periods. Superalloy naval ship modules benefit from such coatings by maintaining their structural integrity and performance despite constant exposure to a harsh marine environment.

Precision coatings for superalloys are a key factor in enhancing critical components' performance, reliability, and lifespan across several demanding industries. These coatings ensure that parts operate effectively under extreme conditions by reducing wear, resisting corrosion, and providing thermal protection. This capability is essential for aerospace, power generation, defense, automotive, and marine industries, where the costs of component failure can be extraordinarily high.
