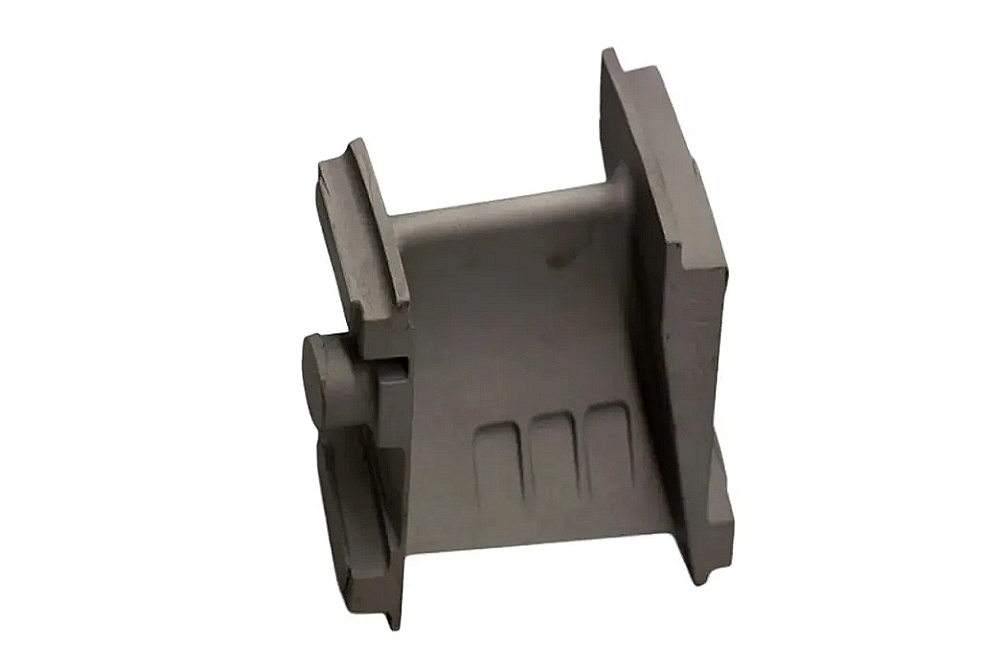

Precise Composition Control in Turbine Blade Casting
Turbine blades are among the most critical components in aerospace, power generation, and other high-performance applications where operational reliability and longevity are paramount. These blades operate in extreme environments, enduring high temperatures, mechanical stresses, and corrosive conditions that can degrade their performance over time. As such, manufacturers must carefully control the composition of the materials used to make these turbine blades to ensure they can withstand these harsh conditions.
Precise composition control is integral to the single crystal casting process, which produces turbine blades with superior mechanical properties, including enhanced fatigue resistance, creep resistance, and high-temperature stability. Manufacturers can achieve turbine blades that meet the stringent demands of industries like aerospace, power generation, and military defense by ensuring that the alloy's composition is consistent and finely tuned. Materials like Inconel and Hastelloy are often used to produce these blades due to their outstanding performance in extreme environments.
The composition control process in single crystal casting is essential for producing high-performance turbine blades that deliver optimal results in the most demanding applications. By refining the alloy’s composition to ensure uniformity and precision, manufacturers can prevent material degradation and enhance the blade's ability to withstand high temperatures, mechanical fatigue, and other stresses. As industries continue to evolve, the need for innovative manufacturing techniques like precision forging and post-processing methods will remain critical in advancing turbine blade technology.
Casting Process and the Role of Composition Control
The process of creating single crystal turbine blades begins with the selection of the right superalloy. Unlike conventional polycrystalline casting methods, single crystal casting forms a continuous, uniform crystal structure throughout the blade, eliminating grain boundaries vulnerable to cracks and stress fractures. Achieving this uniformity is critical to ensuring the turbine blade can perform at its highest potential for extended periods.
Precise composition control during casting is essential for maintaining this uniform structure. The alloy composition influences the physical properties of the turbine blade, such as its creep resistance (the ability to resist deformation under high stress over time), oxidation resistance (the ability to withstand high-temperature environments), and fatigue resistance (resistance to failure due to repeated stress).
The alloy must be carefully mixed to achieve the desired chemical composition, ensuring uniformity at every stage of the casting process. Composition control starts as early as selecting the superalloy material. By carefully selecting and blending the right elements, manufacturers can tailor the alloy's properties to meet specific performance requirements.
Once the alloy is chosen, the casting process involves directional solidification, which uses controlled cooling to guide the formation of a single continuous crystal throughout the blade. This directional solidification ensures the grain structure is aligned to optimize the blade's strength and resistance to high temperatures and mechanical stress.
Suitable Superalloys for Single Crystal Casting
Several superalloys are engineered explicitly for single crystal casting, each offering unique properties that make them suitable for use in turbine blades. The choice of alloy is critical because it directly impacts the blade’s performance and lifespan in extreme conditions.
CMSX Series
The CMSX series of alloys are among the most widely used materials for single crystal casting in turbine blades, especially in jet engines. Alloys like CMSX-10, CMSX-2, and CMSX-4 are designed to offer superior high-temperature strength, creep resistance, and resistance to thermal fatigue. These alloys are primarily nickel, with elements like chromium, cobalt, and aluminum added to enhance strength and oxidation resistance. Precisely controlling elements like rhenium and tantalum in the CMSX alloys enables exceptional performance under extreme conditions, making them ideal for high-performance turbine applications.
Rene Alloys
René alloys, such as Rene 41, Rene 65, and Rene 104, are known for their superior high-temperature strength and long-term durability. Rene alloys are typically based on a nickel-chromium matrix with additions of elements like tungsten, molybdenum, and titanium, all carefully controlled to achieve optimal high-temperature properties. The precise composition of these alloys ensures excellent thermal stability and minimal creep under constant high-temperature stress. Rene alloys are commonly used in aerospace and power generation turbine blades, where both high strength and oxidation resistance are critical.
Inconel Alloys
The Inconel alloys family, including Inconel 718, Inconel X-750, and Inconel 738C, are also commonly used in turbine blade manufacturing due to their excellent high-temperature performance. These nickel-based superalloys exhibit good oxidation, corrosion, and creep resistance, making them suitable for aerospace and power generation applications. Inconel alloys are known for retaining strength at elevated temperatures, with the precise control of elements like aluminum and titanium providing excellent high-temperature oxidation resistance.
Single Crystal Alloys
In addition to the widely used CMSX and Rene alloys, other advanced single-crystal alloys such as PWA 1480, Rene N5, and CMSX-10 are increasingly used in turbine blades. These alloys offer the best of both worlds: excellent creep resistance, high-temperature stability, and thermal fatigue and oxidation resistance. The precise compositional adjustments in these alloys ensure that turbine blades made from them can endure extreme thermal cycling, oxidation, and high mechanical stress, making them ideal for advanced aerospace and power generation applications.
The exact composition of these superalloys is carefully tailored to achieve specific properties, such as improved resistance to thermal shock, increased strength at high temperatures, and enhanced durability over time. By maintaining precise control over the alloy composition, manufacturers can achieve optimal performance in turbine blades that will endure under extreme operational conditions.
Post-Processing Techniques to Optimize Composition
After the turbine blade is cast and solidified into a single crystal structure, several post-processing steps are employed to optimize its mechanical properties and ensure its composition meets the required performance specifications.
Heat Treatment
Heat treatment is one of single crystal turbine blades' most important post-processing steps. This process involves subjecting the blade to specific temperature cycles to relieve any residual stresses that may have developed during the casting process. Heat treatment also allows the alloy to reach its desired mechanical properties, including creep resistance, oxidation resistance, and strength. By carefully controlling the temperature and duration of the heat treatment process, manufacturers can achieve a uniform and optimal composition across the entire blade.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) is used to refine the material's composition further and eliminate any internal porosity that may have formed during the casting process. HIP involves applying high-pressure gas and heat to the turbine blade, which helps to densify the material, improving its uniformity and mechanical properties. This process ensures that the composition of the material is homogeneous and free from defects that could compromise the blade's performance.
Thermal Barrier Coating (TBC)
Another important post-processing step is the application of a thermal barrier coating. These coatings provide a protective layer that shields the turbine blade from the extreme heat it is exposed to during operation. By controlling the composition of the coating material, manufacturers can increase the blade's resistance to oxidation and thermal fatigue, extending its lifespan. The TBC also helps to maintain the integrity of the alloy’s composition by preventing the formation of damaging oxide layers on the surface.
Superalloy Welding and Repair
In some cases, turbine blades may require repairs during their service life. Superalloy welding techniques join or repair damaged areas while maintaining the alloy’s composition. Careful control of the welding process is essential to avoid disrupting the material’s composition, which could lead to weaknesses in the repaired area. Welding procedures must be carefully matched to the composition of the base alloy to preserve the blade's original strength and durability.
Testing and Quality Control for Composition Accuracy
Once the turbine blade has undergone post-processing, extensive testing is conducted to ensure that the material composition is accurate and that the blade will meet the performance standards required for its intended application.
Non-Destructive Testing (NDT)
Non-destructive testing methods such as X-ray, CT scanning, and ultrasonic testing are used to inspect the turbine blades for internal defects. These tests help to ensure that the composition of the material is consistent and free from voids or cracks that could compromise the blade’s structural integrity. X-ray and CT scans provide detailed images of the internal structure, while ultrasonic testing is used to detect any flaws in the material.
Glow Discharge Mass Spectrometer (GDMS)
The GDMS technique is employed for precise chemical composition analysis. GDMS can detect trace elements within the alloy, allowing manufacturers to verify that the correct elements are in the proper proportions. This ensures that the alloy’s composition matches the specifications required for the turbine blade’s performance in high-temperature environments. Material Testing in Superalloy Castings validates alloy composition at a detailed level.
Tensile and Fatigue Testing
Tensile testing measures the material’s ability to resist mechanical stress, while fatigue testing simulates the cyclic stresses the blade will experience over time. These tests help to evaluate how the blade’s composition will perform under real-world conditions. By testing the blade's strength and fatigue resistance, manufacturers can predict its operational lifespan and identify potential areas of failure. Fatigue Resistance in Superalloy Components plays a vital role in determining the long-term reliability of turbine blades.
Scanning Electron Microscopy (SEM)
SEM is used to analyze the microstructure of the turbine blade at the microscopic level. This allows manufacturers to examine the uniformity of the composition and ensure that the grain structure is consistent throughout the blade. SEM also helps identify any potential material defects that could affect the blade’s performance over time. Microstructural Analysis Using SEM is essential for quality control and performance optimization.
Industry Applications and the Need for Composition Control
Precise composition control is essential in various industries where turbine blades are exposed to extreme conditions. The need for high-performance materials has driven innovation in the development of alloys and casting techniques.
Aerospace and Aviation
In the aerospace and aviation industries, turbine blades must operate under high-speed, high-stress, and high-temperature conditions. Single crystal turbine blades made from carefully controlled alloys ensure maximum performance and reliability in jet engines. The precise composition of these alloys allows them to withstand the harsh conditions encountered during flight, including thermal cycling and extreme mechanical loads. For instance, superalloy jet engine components are crafted using precise composition control to meet performance standards.
Power Generation
In power generation, turbine blades are exposed to high temperatures and mechanical stresses. By carefully controlling the composition of the material, manufacturers can ensure that turbine blades for gas turbines, steam turbines, and other power generation systems can operate efficiently and reliably for extended periods. For example, superalloy heat exchanger parts are designed with precise composition control to ensure high thermal and mechanical stress durability.
Military and Defense
Turbine blades in military aircraft and defense systems require unparalleled strength and durability. The ability to control the composition of these blades is critical in ensuring they meet the rigorous standards for performance and reliability. Military and defense applications, including superalloy missile segments and armor system parts, depend on advanced composition control to maintain strength under extreme operating conditions.
Marine and Oil & Gas
Turbine blades in marine propulsion systems and offshore oil platforms must resist mechanical stress and corrosion. Precise composition control ensures these components endure harsh marine environments while maintaining high performance. Oil and gas systems, such as superalloy pump systems, also rely on composition control to ensure longevity and reliable operation in extreme conditions.
Energy and Renewable Systems
In renewable energy systems, such as wind turbines, single crystal turbine blades made from precisely controlled alloys can withstand the mechanical loads and environmental stresses they encounter, ensuring long-term performance. Energy generation, including superalloy furnace assemblies, benefits from precise material control to enhance system reliability and efficiency over time.
FAQs
What are the benefits of single crystal casting for turbine blades?
How does composition control affect the performance of turbine blades in high-temperature environments?
What are the most common superalloys used in turbine blade casting, and how are they chosen?
What role does heat treatment play in optimizing the composition of turbine blades?
How do non-destructive testing methods ensure the accuracy of turbine blade composition during manufacturing?
