Precise Alloy Composition Control for Optimized High-temperature Components

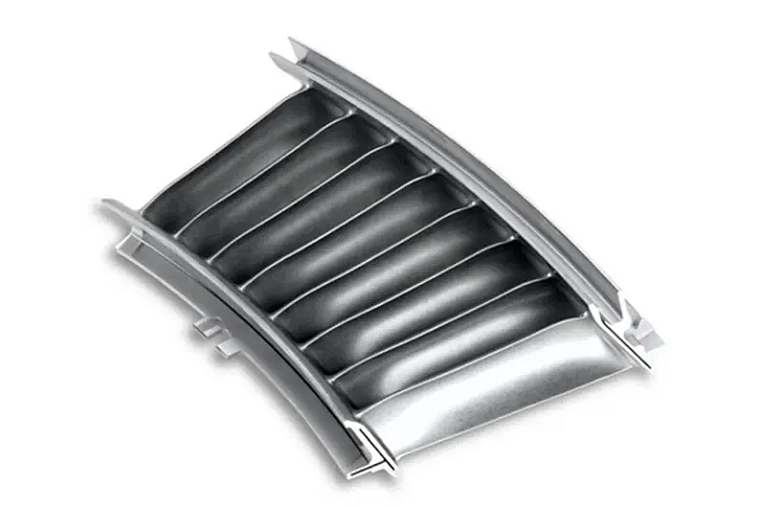

Manufacturing high-temperature components used in critical industries, such as aerospace, power generation, and defense, demands high-performance materials. Superalloys—materials engineered for high strength, excellent fatigue resistance, and exceptional thermal stability—are essential in these applications. A key to achieving these superior material properties is precise control of the alloy composition throughout manufacturing.
Variations in alloy composition can lead to defects, reduced mechanical properties, and even failure in service. As such, understanding how to achieve and maintain precise alloy compositions is crucial in ensuring the reliability and durability of high-temperature components. This can be achieved through advanced manufacturing processes such as vacuum induction melting, casting, and 3D printing, coupled with strict quality control and material testing methods.
Different Process Superalloy Parts Requiring Precise Alloy Composition Control
High-performance superalloy parts are produced using several advanced manufacturing processes, each with specific needs for alloy composition control to ensure optimal material properties.
Vacuum Investment Casting: This method is widely used to produce complex components like turbine blades and nozzles. During casting, precise alloy composition control ensures that the metal solidifies uniformly, preventing defects like porosity or grain boundary separation. Any variation in the composition of the molten metal can result in impurities or inconsistent microstructures, impacting the mechanical properties of the final part. Therefore, maintaining the correct alloy composition is essential for producing high-quality superalloy components with the required performance characteristics.
Single Crystal Casting: Single crystal casting produces high-performance turbine blades and other components that require superior mechanical properties at high temperatures. In this process, the alloy composition must be carefully controlled to prevent the formation of secondary phases that can disrupt the formation of a continuous crystal structure. The absence of grain boundaries enhances the component's resistance to creep and fatigue under extreme operating conditions, making precise composition control essential for producing highly reliable parts.
Equiaxed Crystal Casting: In equiaxed crystal casting, the alloy is solidified to create multiple grains. The composition must be carefully controlled to ensure uniform grain formation, which directly affects the strength and toughness of the part. Poor control of the alloy composition can lead to non-uniform grain structures, weakening the material and making it susceptible to failure under stress.
Directional Casting: Directional casting is used to control the grain structure's alignment to improve the superalloy's mechanical properties. In this process, precise composition control ensures that the cooling rates are consistent and that the alloy solidifies in the desired orientation. Achieving the desired directional grain structure is crucial for components subjected to high-stress environments, such as turbine blades and jet engine components.
Powder Metallurgy Turbine Disc: Powder metallurgy is a process that involves creating superalloy parts from metal powders. The composition of the powder must be carefully controlled to achieve uniformity in the final part. Powder metallurgy allows for the production of highly dense components with a fine, controlled microstructure. Any variation in powder composition can lead to defects in the sintering or densification process, resulting in parts with compromised mechanical properties.
Superalloy Precision Forging: The forging process involves shaping heated superalloy materials under pressure. For this method to be successful, alloy composition must be controlled to ensure that the forged parts exhibit uniform strength and toughness. Variations in the composition of the raw material can result in non-uniform mechanical properties, making the part more prone to cracks or failure under high stresses.
Superalloy CNC Machining: Precision CNC machining shapes superalloy components into their final form. Since machining can expose the material to heat, it’s essential to have a consistent alloy composition to avoid structural weaknesses or defects in the final part. Components with inconsistent alloy composition may suffer from issues like tool wear, dimensional inaccuracies, or reduced performance in service.
Superalloy 3D Printing: Additive manufacturing, or 3D printing, is an emerging method to produce complex superalloy components directly from digital models. Like traditional casting and forging, the composition of the superalloy powder used in 3D printing must be precisely controlled. Inconsistencies in powder composition can lead to printing defects, poor bonding between layers, or material weaknesses that reduce the performance of the final part.
Typical Superalloys Used in High-Temperature Applications
The choice of superalloy used in a given application depends on the required performance characteristics, such as high strength at elevated temperatures, oxidation resistance, and fatigue resistance. Several superalloys are commonly used in high-temperature applications, each with unique properties that make them ideal for specific industrial uses.
Inconel Alloys
Inconel alloys, particularly Inconel 718, Inconel 625, and Inconel X-750, are frequently used in aerospace and power generation applications due to their excellent high-temperature strength and corrosion resistance. These alloys contain a combination of nickel, chromium, and other elements that provide strength and resistance to oxidation, making them ideal for high-temperature environments. Precise control of the alloy composition ensures that the parts retain their mechanical properties even under extreme operating conditions.
CMSX Series
The CMSX series, including CMSX-4 and CMSX-486, are single-crystal superalloys primarily used for turbine blades and other high-performance components in the aerospace industry. The control of alloy composition in these materials is crucial for achieving the desired single-crystal structure, which provides superior resistance to creep and fatigue at elevated temperatures. These alloys also require precise control during the casting process to avoid the formation of defects that can undermine their performance.
Hastelloy Alloys
Hastelloy alloys, such as Hastelloy C-276 and Hastelloy X, are known for their excellent resistance to corrosion and high-temperature strength. These alloys are often used in chemical processing and other harsh environments where high temperatures expose materials to corrosive substances. The composition of Hastelloy alloys must be controlled to ensure optimal corrosion resistance, particularly in applications where failure could lead to hazardous consequences.
Titanium Alloys
Titanium alloys, including Ti-6Al-4V and Ti-6Al-4V ELI, are used in aerospace and automotive applications due to their lightweight and high-strength properties. These alloys are ideal for components that require strength and durability at elevated temperatures but must remain light. The alloy composition must be carefully controlled to maintain the desired strength-to-weight ratio and resistance to fatigue at high temperatures.
Rene Alloys
Rene alloys, such as Rene 104 and Rene 80, are high-performance materials used primarily in turbine engines. These alloys are designed for high-temperature applications and offer exceptional creep and fatigue resistance. Achieving a suitable alloy composition is critical in ensuring that these materials can withstand the stresses of turbine engine operations without degradation over time.
Post-Processes Comparison
After superalloy parts are manufactured using casting, forging, or powder metallurgy, several post-processes are applied to enhance the material properties and performance.
Heat Treatment
Heat treatment processes like solution annealing, aging, and stress relieving are critical for improving superalloy components' strength and fatigue resistance. The alloy composition significantly determines the heat treatment parameters, such as temperature and time. If the alloy composition is off, it can lead to undesirable microstructures that reduce the material’s performance. Through heat treatment, manufacturers can refine microstructures to enhance strength and durability, reducing the risk of defects.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) eliminates porosity and defects in cast or sintered superalloy parts. The alloy composition impacts the effectiveness of HIP because certain elements may behave differently under high-pressure and high-temperature conditions. Precise composition control ensures that the material can withstand the conditions of HIP processing and achieve optimal densification. HIP is significant for eliminating internal porosity and improving the mechanical properties of components used in high-stress applications like gas turbines.
Surface Treatments
Surface treatments like coating, shot peening, and polishing are applied to superalloy components to improve surface hardness, wear, and corrosion resistance. The alloy composition directly affects the performance of these treatments, as some alloying elements may interact differently with coatings or coatings processes. Thermal barrier coatings (TBC), for example, help improve thermal insulation and oxidation resistance, which is crucial for components exposed to extreme temperatures. Shot peening, on the other hand, introduces beneficial residual stresses that increase fatigue resistance and enhance the longevity of the components.
Cold Working
Cold working processes like rolling and drawing are used to improve the mechanical properties of superalloys by manipulating the material at room temperature. The success of these processes depends on the uniformity of the alloy composition, as inconsistencies can result in undesirable deformation or failure during the cold working process. Cold working helps achieve the desired mechanical properties and microstructural changes necessary for applications in demanding industries like aerospace and energy.
Testing for Composition and Material Integrity
Verifying the composition and integrity of superalloy components is a crucial step in ensuring the materials meet the performance standards required for high-temperature applications.
Spectrometric Testing: Techniques such as direct reading spectrometry and ICP-OES (Inductively Coupled Plasma Optical Emission Spectroscopy) are used to analyze the composition of superalloys during and after production. These tests provide quick and accurate measurements of alloy elements, helping to confirm that the material conforms to the required specifications. Spectrometric testing ensures that superalloy castings meet quality compliance standards for high-performance applications.
Metallographic Analysis: Metallography involves examining the microstructure of superalloy parts under a microscope to identify grain boundaries, phase structures, and any inclusions or defects. This testing is critical for verifying that the alloy composition was controlled during manufacturing and that no undesirable microstructural features are present. Metallographic analysis helps assess the overall quality of the material and ensures optimal phase distribution.
Tensile and Fatigue Testing: Tensile and fatigue testing are essential for evaluating superalloy components' strength and resistance to failure under high-temperature and high-stress conditions. Variations in alloy composition can significantly affect these properties, so precise composition control is essential for ensuring that parts meet the required performance standards. These tests help to assess how the material will perform under cyclic loading.
Scanning Electron Microscopy (SEM) and EBSD: SEM and Electron Backscatter Diffraction (EBSD) are used to examine the surface and microstructure of superalloy parts in great detail. These techniques can identify microstructural defects, such as misalignment of grains or inclusions, which may result from poor composition control during manufacturing. SEM analysis plays a key role in ensuring grain boundary optimization.
X-ray Diffraction (XRD) and X-ray Fluorescence (XRF): XRD and XRF are non-destructive testing methods used to examine superalloys' crystalline structure and elemental composition. These techniques are invaluable for verifying the composition and ensuring the material is free of defects caused by improper alloying. XRF, in particular, ensures that superalloys meet the precise alloy grade requirements for superalloy casting.
FAQs
How does precise alloy composition control affect the performance of superalloy components?
What are the most commonly used superalloys in high-temperature applications?
How do different manufacturing processes, like casting and forging, require different levels of alloy composition control?
What testing methods are used to ensure the composition of superalloy components meets specifications?
How do post-processes like heat treatment and HIP impact the properties of superalloy components?
