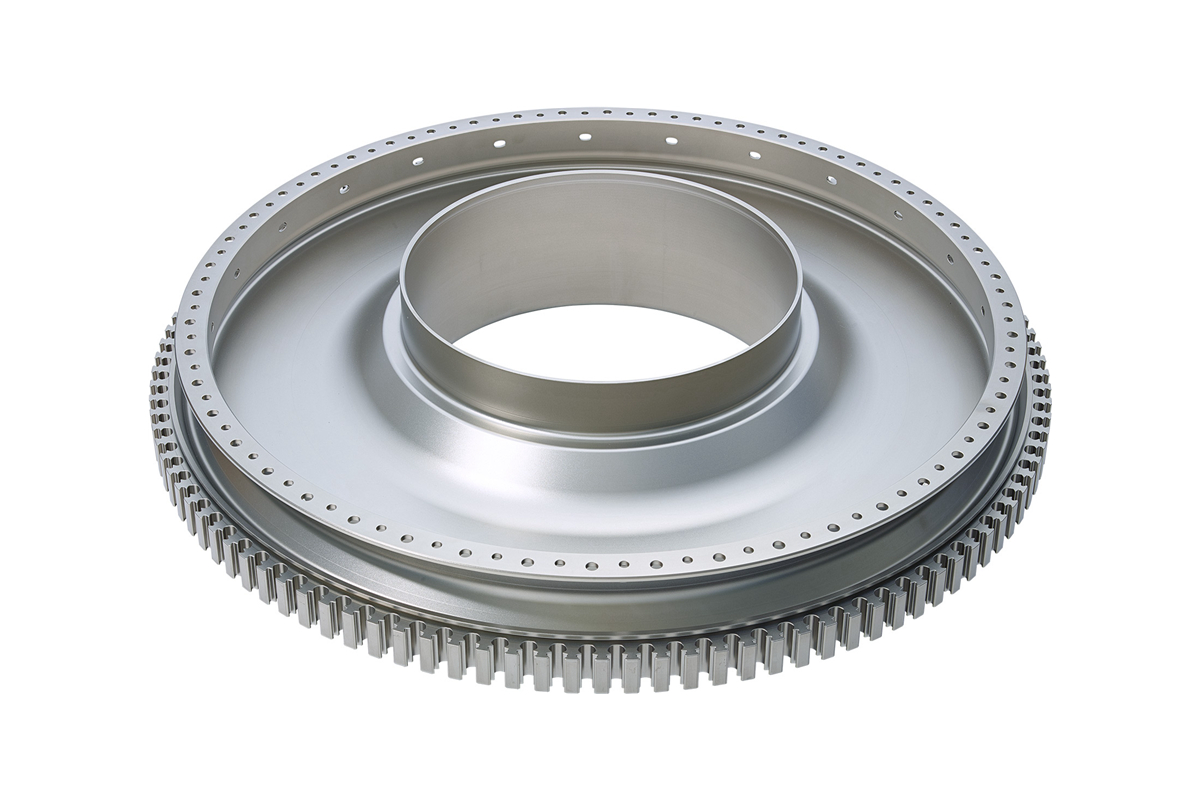

Powder Production for Turbine Discs: Argon Atomizing Pulverizing in Superalloy Manufacturing
Powder metallurgy (PM) has become an essential manufacturing technique for producing high-performance components, especially in aerospace, energy, and automotive industries, where parts are subjected to extreme temperatures, mechanical stresses, and wear. Among the most critical components in these industries are turbine discs, which play a vital role in the operation of jet engines, gas turbines, and power plants. These components must withstand high stresses, resist oxidation, and retain their mechanical properties under extreme conditions. Using superalloys and advanced manufacturing techniques, such as powder metallurgy, is critical to achieving these performance requirements.
An essential aspect of powder metallurgy is the production of metal powders through atomization. One of the most advanced methods for producing high-quality powder is an Argon atomizing pulverizing furnace. This process plays a crucial role in creating fine, uniform metal powders from molten superalloys, which are then used to manufacture turbine discs that meet the rigorous demands of aerospace and energy applications.
What is Argon Atomizing Pulverizing?
Argon atomizing pulverizing is a sophisticated powder production process that involves high-pressure Argon gas to atomize molten metal into fine droplets. These droplets then solidify into small metal particles, which are collected and processed into powder. The process occurs inside a specially designed furnace that uses Argon gas as the atomizing medium. Argon is an inert gas, meaning it does not chemically react with the molten metal, which is critical for ensuring the purity and quality of the produced powder.
During the atomization process, molten metal is poured into the atomizing chamber and subjected to a high-pressure flow of Argon gas. The Argon stream disrupts the molten metal, breaking it into tiny droplets. These droplets cool rapidly as they solidify into powder particles. Argon is crucial because it prevents oxidation and contamination of the metal, which would degrade the powder quality and affect the properties of the final turbine disc. The result is a high-purity metal powder ideal for powder metallurgy processes, particularly in manufacturing turbine discs.
The Process of Atomization in Superalloy Powder Production
The atomization process begins with melting the chosen metal alloy, typically a high-temperature superalloy such as Inconel, CMSX, or Rene alloys. Once the metal has reached a molten state, it is directed into the atomization chamber, which is subjected to a high-pressure stream of Argon gas. This stream of Argon causes the molten metal to break apart into fine droplets.
The size of the droplets produced during the atomization process is determined by the pressure and flow rate of the Argon gas, as well as the temperature of the molten metal. These parameters are carefully controlled to produce powders with specific characteristics, such as a narrow particle size distribution, which is critical for achieving high-quality, uniform turbine discs. The smaller the powder particles, the higher the packing density and the finer the microstructure of the resulting part.
As the molten metal droplets are cooled, they rapidly solidify into fine, spherical particles. Cooling is critical because it ensures the powder retains the desired microstructure and material properties. The solidified powder particles are then collected and sorted according to their size. The ideal powder particles for turbine disc manufacturing are fine, spherical, and have a narrow distribution, ensuring they flow easily and compact efficiently during the subsequent powder metallurgy processes.
Superalloys Used in Turbine Disc Manufacturing
Turbine discs used in high-temperature applications are typically made from superalloys, specially designed alloys with excellent performance properties at elevated temperatures. These alloys are typically based on nickel, cobalt, or iron, and they include elements like chromium, molybdenum, and aluminum to enhance strength, oxidation resistance, and creep resistance at high temperatures.
Some of the most commonly used superalloys in turbine disc manufacturing include:
Inconel Alloys
Inconel alloys, such as Inconel 718, Inconel 625, and Inconel X-750, are some of the most widely used nickel-chromium-based superalloys in turbine disc production. These alloys are known for their high strength, excellent oxidation resistance, and ability to withstand extreme temperatures. Inconel 718, for example, is commonly used in gas turbines due to its ability to perform at temperatures up to 1300°F (704°C) without losing strength.
CMSX Series
The CMSX series, including CMSX-2 and CMSX-486, consists of single-crystal nickel-based superalloys designed for high-performance turbine discs. These alloys offer superior resistance to creep and fatigue thanks to their single-crystal structure that minimizes grain boundary-related failures. CMSX-2 is often used in applications with high mechanical stresses and elevated temperatures, such as aerospace turbine blades and discs.
Rene Alloys
Rene alloys, such as Rene 104 and Rene 80, are nickel-based superalloys renowned for their excellent thermal stability and resistance to high-temperature degradation. These alloys are commonly used in aerospace and energy applications, where high thermal stability is required for components like turbine discs exposed to extreme operational conditions.
Powder Properties and Their Impact on Turbine Disc Performance
The properties of the powder produced during the atomization process are crucial for the final performance of the turbine disc. One of the most important properties is the particle size. Smaller, uniform particles generally produce better packing densities and help to achieve higher final densities in the sintered part. This, in turn, leads to better mechanical properties, including higher strength and fatigue resistance.
Another important property is particle morphology. Spherical powder particles, commonly produced using Argon atomization, are preferred for powder metallurgy processes because they flow more easily and pack more efficiently than irregularly shaped particles. The uniformity of particle shape also helps achieve a more uniform microstructure in the final part, reducing the risk of defects.
Powder purity is also a critical factor in determining the performance of the final turbine disc. High-purity powders, like those produced using Argon atomization, ensure that the turbine disc has the necessary mechanical properties, such as resistance to creep and fatigue, and can withstand the extreme conditions of high-temperature operation without degradation.
Advantages of Using Argon Atomized Powders in Superalloy Manufacturing
There are several key advantages to using Argon atomized powders in superalloy manufacturing, particularly for turbine disc production.
Purity and Oxidation Resistance: Argon’s inert nature ensures that the molten metal does not react with the atomizing gas, preventing oxidation and contamination. This is especially important when working with high-temperature alloys like Inconel, where even small amounts of contamination can significantly degrade the material properties.
Control Over Particle Size and Distribution: Argon atomization allows for precise control over the size and shape of the powder particles. Fine control of the atomizing gas pressure and temperature allows manufacturers to produce powders with the desired particle size distribution, which ensures uniformity and consistency in the final part.
Improved Powder Flowability and Packing Density: The spherical shape of the powder particles produced through Argon atomization leads to better flowability and more efficient packing during the compaction and sintering processes. This results in higher-density turbine discs with improved mechanical properties, such as increased fatigue resistance.
Enhanced Material Properties: By producing high-quality powders with uniform size and shape, Argon atomization helps achieve superior mechanical properties in the final turbine discs, including improved creep strength and oxidation resistance, making them ideal for high-performance applications in demanding industries like aerospace and power generation.
Comparison with Other Powder Production Methods
While Argon atomization is one of the most commonly used methods for producing high-quality superalloy powders, there are other atomization techniques, such as gas atomization and water atomization.
Gas atomization uses gases like nitrogen or oxygen to break up molten metal into droplets. While it can produce fine powders, it is more prone to contamination due to the reactive nature of gases like oxygen.
Water atomization uses high-pressure water jets to atomize molten metal. While this method can produce relatively large particle sizes, it is less effective at producing fine, uniform powders, especially for high-performance alloys like superalloys.
In contrast, Argon atomization offers several advantages, including better control over particle size and distribution and higher purity due to the inert nature of Argon. This makes it the preferred method for producing powders for manufacturing turbine discs, where material properties like strength, fatigue, and oxidation resistance are critical.
Integration of Argon Atomized Powders in Turbine Disc Production
After the Argon atomized powders are produced, they are typically consolidated through Hot Isostatic Pressing (HIP) or sintering. In HIP, the powder is subjected to high temperature and high pressure, which causes the powder particles to bond and form a dense, solid material. The uniformity of the powder produced through Argon atomization ensures that the resulting turbine discs have a consistent microstructure and minimal porosity, essential for achieving the desired mechanical properties.
Once the powder is consolidated, the turbine disc undergoes further processing, including precision machining and surface finishing, to achieve the final shape and surface properties. Using Argon atomized powders helps ensure that the final turbine disc has the required strength, fatigue resistance, and resistance to high-temperature degradation, making it suitable for demanding applications in aerospace, energy, and other industries.
Applications of Argon Atomized Powders in Aerospace and Energy Sectors
Argon atomized superalloy powders are widely used in the aerospace and aviation and energy industries, where turbine discs are critical components in engines, turbines, and power generation systems. In aerospace, turbine discs made from high-performance superalloys are subjected to extreme temperatures and mechanical stresses. Argon atomized powders' high purity and uniformity ensure that these components have the strength and durability needed to perform reliably in jet engines and other high-performance applications.
In the energy sector, turbine discs are used in gas turbines for power generation, where they must withstand high temperatures and pressure. The ability of Argon atomized powders to produce high-density, high-strength turbine discs makes them ideal for these applications, where performance and reliability are paramount.
