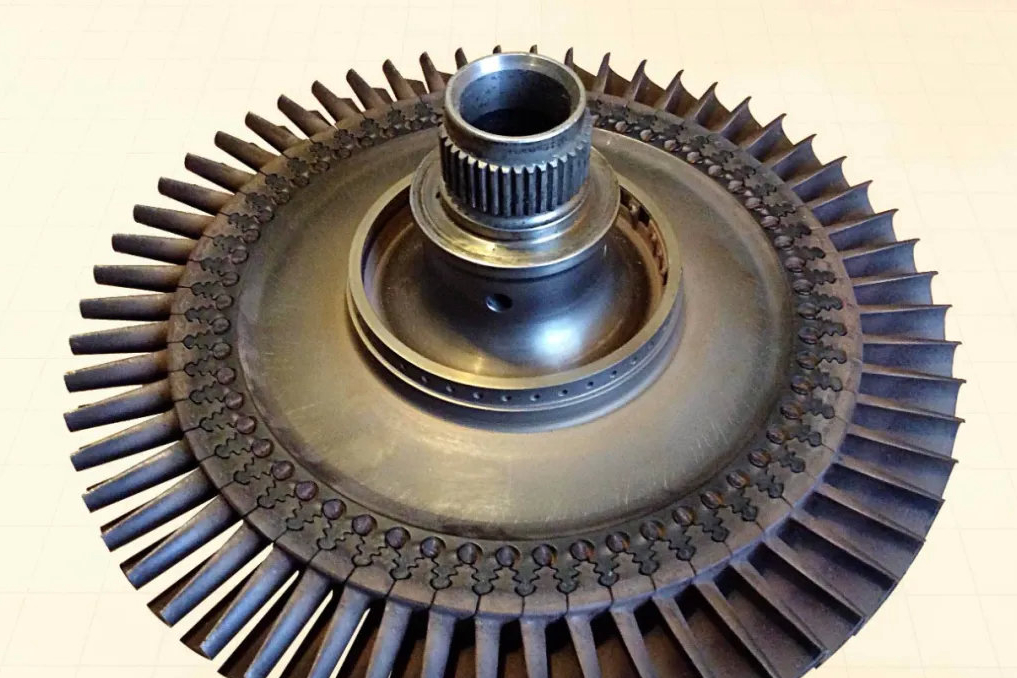

Powder Preparation for High-Quality Turbine Discs
Powder preparation plays a crucial role in manufacturing high-performance turbine discs, components essential to industries like aerospace, power generation, and oil & gas. Powder metallurgy is a key technology for producing turbine discs with superior mechanical properties, such as high temperature and fatigue resistance, which are required to perform reliably in extreme operating conditions. In this blog, we will explore the types of powders used for turbine disc manufacturing, the methods of powder production, quality control, and the impact of powder preparation on the final product.

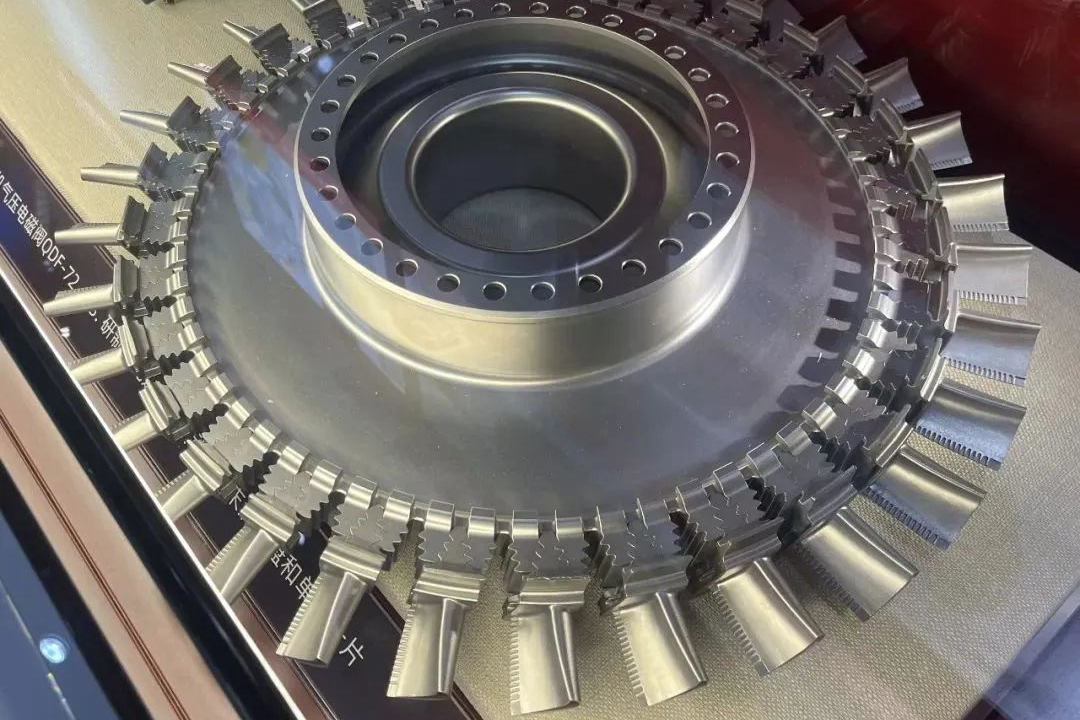

Advantages of Powder Metallurgy for Turbine Disc Manufacturing
Material Homogeneity
One of the key benefits of powder metallurgy is the ability to achieve uniform material composition throughout the part. The powder preparation process ensures that the alloy components are evenly distributed, producing homogeneous material properties. This is especially important in turbine discs, where uniformity in material properties, such as strength, fatigue resistance, and thermal stability, is crucial for ensuring reliable performance in high-temperature and high-stress environments. Achieving material homogeneity is essential in turbine parts, where even minor variations can affect their performance and longevity.
High-Performance Properties
Powder metallurgy allows manufacturers to produce turbine discs with superior mechanical properties. The sintering process enhances the strength and fatigue resistance of the material, while the precise control of powder composition allows for customization of the material properties to suit specific applications. For example, the ability to design the alloy composition to meet gas turbines' specific thermal, mechanical, and corrosion resistance requirements is a significant advantage. Powder metallurgy also enhances wear resistance, making it ideal for turbine discs operating in harsh environments where wear and tear are constant concerns. Combining powder metallurgy with processes like superalloy precision forging ensures the ultimate durability for turbine components.
Complex Geometries
Another significant advantage of powder metallurgy is its ability to produce exact complex geometries. Unlike traditional casting and forging methods, which may require multiple steps or complex molds to create intricate shapes, powder metallurgy can directly form complex turbine disc geometries in a single process. This ability to create complex shapes reduces the need for additional machining or rework, improving efficiency and cost-effectiveness. This is particularly important for modern turbine designs incorporating advanced cooling features or lightweight structures. Integrating superalloy single crystal casting with powder metallurgy can further optimize the performance and complexity of turbine discs.
Cost-Effectiveness
Powder metallurgy can be more cost-effective than traditional methods such as casting or forging. The process produces less material waste, as the metal powder can be precisely measured and used with minimal excess. Additionally, powder metallurgy requires fewer steps in the manufacturing process, reducing the need for additional machining or complex tooling. These factors contribute to lower production costs, especially for high-volume manufacturing. By combining powder metallurgy with hot isostatic pressing (HIP), manufacturers can achieve near-net shape components requiring minimal post-processing, reducing production time and costs.
Powder Blending and Alloying
Once the powder is produced, it is often blended with other powders to achieve specific material properties required for turbine disc applications. The blending process ensures that the alloy is homogeneous and that the various metallic components are evenly distributed throughout the powder. The correct blending ratios are crucial for achieving the desired characteristics in the final product, such as high-temperature resistance, fatigue strength, and corrosion resistance.
Alloy Design for Specific Applications
Alloy design involves selecting the right mix of metal powders to meet the performance requirements of the turbine disc. For example, an Inconel 718 powder might be blended with a small amount of titanium or aluminum to improve the material’s strength at high temperatures. Additionally, certain alloying elements may be added to enhance properties such as creep or oxidation resistance. CMSX-10 and Rene 104 powders may also be used depending on the specific application and required properties, such as higher creep or thermal fatigue resistance for jet turbine blades.
Post-blending Quality Control
Post-blending quality control ensures the blending process results in a uniform powder mixture. Quality control techniques, such as X-ray fluorescence (XRF) or inductively coupled plasma (ICP) analysis, are used to verify the elemental composition of the powder blend. Any deviation from the desired composition could result in a turbine disc that does not meet the required specifications, affecting its high-temperature performance and long-term durability in demanding environments like those found in aerospace applications.
Key Methods of Powder Production
The production of high-quality powder is the first step in ensuring the performance of the turbine disc. Several powder production techniques are used to manufacture powders for turbine disc production, each offering distinct advantages.
Gas Atomization
Gas Atomization is one of the most commonly used methods for producing metal powders. This technique involves melting the metal in a furnace and spraying it through a nozzle with a high-pressure gas (typically argon or nitrogen). The molten metal solidifies rapidly as it travels through the gas, creating fine, spherical powder particles. This process is highly effective for producing uniform powder with consistent particle sizes, making it ideal for high-performance turbine discs. When combined with techniques like powder metallurgy turbine discs, gas atomization ensures the creation of highly durable and precise components suitable for critical applications in the aerospace and energy sectors.
Vacuum Atomization
Vacuum Atomization is similar to gas atomization, but it occurs in a vacuum chamber, which helps to minimize contamination during powder production. This method is essential for producing high-purity powders crucial for turbine disc manufacturing. The vacuum environment prevents the oxidation of the metal, ensuring the powder retains its original material properties and remains impurities-free. This is particularly valuable when working with alloys like Inconel or Hastelloy, often used in turbine discs that must withstand extreme environments.
Mechanical Alloying
Mechanical Alloying is another powder production method for creating more complex alloy powders. In this process, metal powders are mixed and mechanically processed to achieve the desired alloy composition. The powders are repeatedly welded, fractured, and re-welded in a ball mill, resulting in a uniform distribution of elements throughout the powder. This technique is beneficial for creating custom alloys and composite powders that meet the specific needs of turbine disc applications. For example, superalloy precision forging relies on high-quality alloy powders to ensure excellent material properties for complex turbine disc geometries.
Other Techniques
Other techniques, such as Plasma Atomization and Centrifugal Atomization, are also used, although they are less common in turbine disc manufacturing. Plasma atomization is known for producing ultra-fine powders with very uniform particle sizes. In contrast, centrifugal atomization can produce larger particles for applications that do not require such fine powder consistency. These processes can complement powder metallurgy techniques like hot isostatic pressing (HIP) to create turbine discs with enhanced properties, ensuring optimal performance and longevity in demanding environments.
Factors Influencing Powder Quality
Powder quality is essential for producing high-performance turbine discs. Several factors influence the quality of the powder, and controlling these variables is critical for ensuring that the final product meets industry standards and specifications.
Purity
Purity is one of the most critical factors in powder preparation. Impurities such as oxygen, carbon, or other metals can negatively affect the material properties of the turbine disc. For example, even small amounts of oxygen can significantly reduce the high-temperature strength of superalloys. To maintain powder purity, manufacturers use controlled atmospheres during powder production and handling, such as inert gas environments (argon or nitrogen), to avoid oxidation. This process is especially important for producing alloys used in turbine discs, such as Inconel and Hastelloy, where purity is crucial to maintaining performance in extreme environments.
Particle Shape and Distribution
Particle Shape and Distribution also play a significant role in the quality of the powder. Spherical particles are generally preferred because they flow better and pack more uniformly than irregularly shaped particles. This uniformity ensures that the powder fills the mold evenly during manufacturing, reducing the risk of defects such as porosity or cracks. Particle size distribution is also essential for achieving the desired density and strength in the final turbine disc. A tightly controlled particle size distribution helps ensure consistent compaction during sintering. When used in conjunction with powder metallurgy, precise particle control enhances turbine components' mechanical properties and performance.
Flowability
Flowability is another critical factor, as it affects the powder’s behavior during manufacturing. Powders with good flowability are easier to handle, mix, and compact. Poor flowability can lead to uneven compaction, resulting in defects like voids or misalignment in the final part. Flowability is typically tested using parameters such as the Hausner ratio and Carr index, which measure how easily the powder flows and packs. This is particularly relevant for processes like hot isostatic pressing (HIP), where uniform compaction is critical for achieving the desired material properties in turbine discs.
Moisture and Oxide Control
Moisture and Oxide Control are essential to maintaining the integrity of the powder. Moisture can introduce impurities and cause unwanted reactions during the sintering process, while oxide layers can alter the metal’s properties and reduce the final component’s performance. High-quality powders are carefully stored and handled to prevent moisture absorption, and powders are often treated in vacuum or inert gas environments to minimize oxidation. This is particularly important for materials like CMSX alloys, where oxidation can significantly affect their high-temperature properties and overall durability in turbine applications.

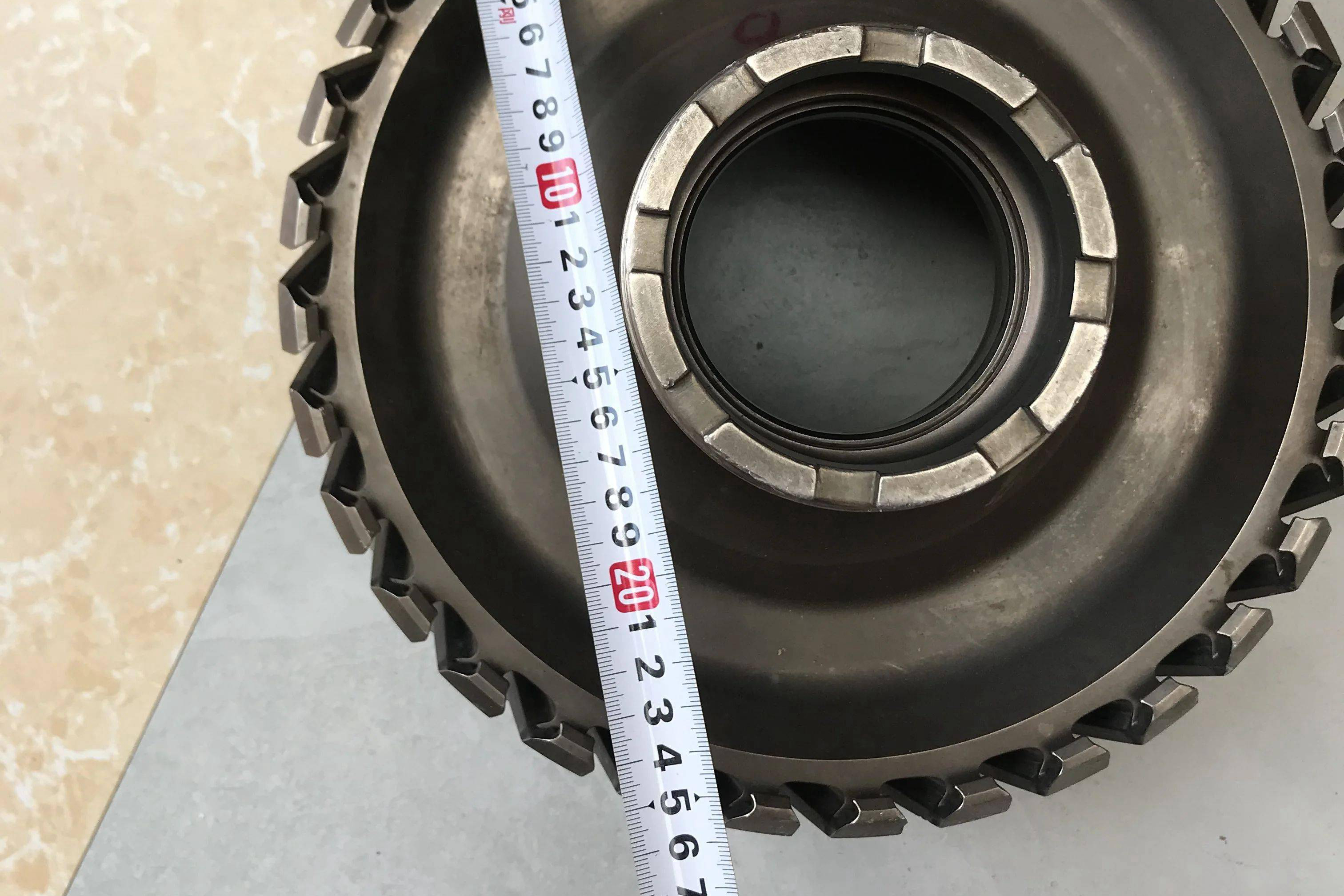

Impact of Powder Preparation on Final Turbine Disc Quality
The powder's quality directly impacts the final turbine disc's mechanical properties and performance. Well-prepared powders lead to enhanced properties in the finished components, such as:
Enhanced Mechanical Properties
High-quality powder preparation improves turbine discs' strength, fatigue resistance, and thermal stability. The powder's consistent particle size and purity ensure that the final turbine disc exhibits excellent mechanical properties, including high creep resistance at elevated temperatures. This is particularly important for applications that use alloys such as Inconel and CMSX, known for their exceptional high-temperature strength and thermal stability. Powder preparation, combined with advanced processes like powder metallurgy turbine discs, ensures that these properties are retained throughout manufacturing.
Reduced Porosity and Inclusions
Properly prepared powder results in less porosity in the final turbine disc. Porosity can weaken the disc and affect its ability to withstand high stress and extreme temperatures. Additionally, careful control of powder quality reduces the likelihood of inclusions, which can cause defects in the turbine disc and compromise its integrity. Techniques like vacuum atomization ensure the powder is free from contaminants, producing a more robust and reliable final product. Reducing porosity and inclusions is critical in applications like gas turbines, where material integrity is vital for operational safety.
Consistency and Repeatability
High-quality powder preparation ensures that each batch of turbine discs has consistent properties, making it possible to achieve tight tolerances and high reliability in mass production. This consistency is crucial in aerospace and power generation industries, where safety and performance are critical. By integrating processes like superalloy precision forging with powder metallurgy, manufacturers can produce turbine discs with uniform properties, ensuring that each component meets the required standards for durability and performance.
Industry Standards and Specifications for Powder Preparation
Manufacturers adhere to various industry standards and specifications to meet the demanding requirements of turbine disc applications. These standards are defined by organizations like ASTM, AMS, and ISO, and they outline the required material properties, dimensional tolerances, and testing methods for powders used in turbine disc manufacturing. Meeting these standards ensures that the final product is reliable, durable, and safe for critical applications like jet engines and gas turbines.
For example, powder metallurgy turbine discs used in aerospace and aviation must meet strict material and testing requirements to withstand the extreme conditions of jet engines. Similarly, in power generation, turbine discs are subjected to rigorous testing to ensure they can handle gas turbines' thermal and mechanical stresses.
By adhering to these standards, manufacturers can guarantee that their turbine discs—such as superalloy turbine discs—can perform reliably and safely in high-temperature, high-stress environments, whether in aerospace, marine, or oil and gas industries.
