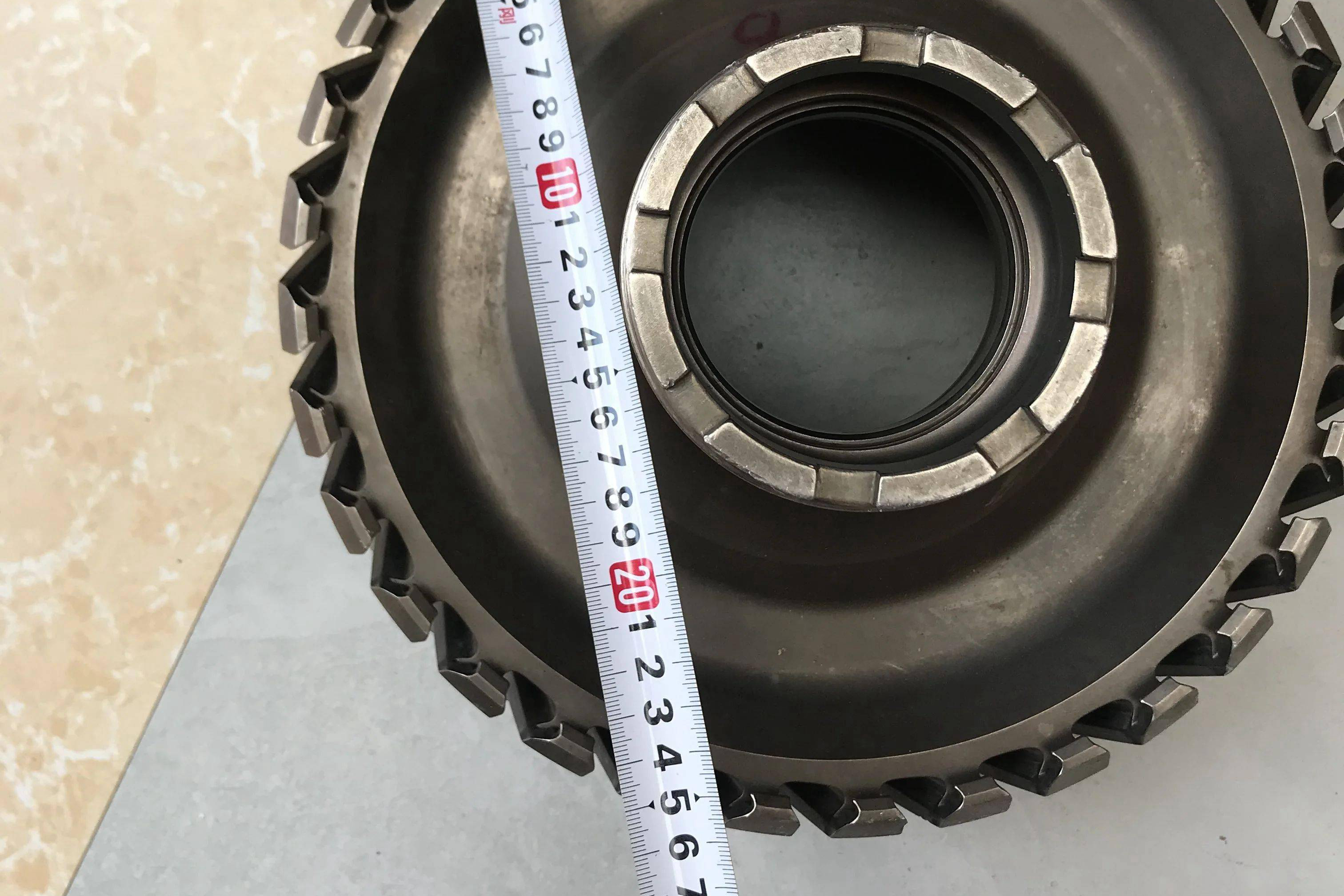

Powder Metallurgy Turbine Discs Manufacturing Technologies and Service
Key Manufacturing Technologies for Powder Metallurgy Turbine Discs
Powder Preparation
The quality of the powder used in producing turbine discs plays a crucial role in the final properties of the component. Metal powders for turbine discs are typically produced through gas or vacuum atomization, allowing precise control over powder size and distribution. These techniques ensure that the powders are uniform and free from contaminants. The powder quality directly impacts the final product's density, strength, and thermal stability. Powder preparation also involves blending different alloy powders to achieve the desired material composition, which is crucial for ensuring the turbine disc’s performance in high-temperature environments.
Compaction Process
Once the powder is prepared, it is compacted into a disc shape using powder compaction. In this step, the powder is subjected to high pressure in a mold, which forms it into the rough shape of the turbine disc. The compaction process is critical for ensuring that the final product has uniform density and strength. The correct pressure and compaction time are essential to achieve the desired geometry and material integrity, and the compaction process's accuracy determines the turbine disc's precision.
Sintering and Heat Treatment
The next step in the powder metallurgy process is sintering, where the compacted part is heated in a furnace to temperatures below the melting point of the metal. This process causes the individual powder particles to bond, forming a solid material. The sintering process is typically carried out in a controlled atmosphere, such as a vacuum or inert gas environment, to avoid the material's oxidation and ensure the superalloy's purity.
After sintering, the turbine disc may undergo heat treatment, such as solution or age-hardening, to improve its mechanical properties. These heat treatments enhance strength, flexibility, and fatigue resistance, making the turbine disc suitable for high-stress, high-temperature applications.
Post-sintering Processes
Post-sintering processes, such as hot isostatic pressing (HIP), are used to refine the material’s properties further. HIP involves subjecting the sintered part to high pressure and temperature in a controlled environment. This process eliminates any internal porosity and enhances the density and mechanical properties of the turbine disc. In some cases, forging may also be applied after sintering to refine the material’s grain structure further and enhance its mechanical strength.
Overview of Powder Metallurgy Turbine Disc Manufacturing
Powder metallurgy is a manufacturing process that involves the creation of parts from fine metal powders. These powders are compacted into the desired shape and then subjected to high temperatures in a sintering process to bond the particles and achieve the necessary material properties. Regarding turbine discs, this process provides significant advantages over traditional casting and forging techniques, such as improved material homogeneity, the ability to form complex shapes, and enhanced mechanical properties. For example, powder metallurgy turbine discs offer superior performance in high-temperature environments and are often used in aerospace and power generation applications.
The key steps in powder metallurgy for turbine disc production are preparation, compaction, sintering, and post-sintering treatment. First, metal powders are prepared with precise specifications regarding size, purity, and alloy composition, which are critical for achieving the required performance characteristics. Once the powder is prepared, it is compacted under high pressure into a disc shape. This process can be optimized with advanced techniques like superalloy precision forging to improve the part's final properties.
Following this, the disc undergoes a sintering process, where it is heated in a controlled atmosphere to form solid bonds between the particles, making it strong enough for further processing. Post-sintering processes such as hot isostatic pressing (HIP) and forging may further enhance the material’s properties and ensure optimal performance under extreme conditions. By integrating these processes, manufacturers can produce turbine discs with enhanced mechanical properties that are ideal for use in critical industries like aerospace and energy.
Challenges in Powder Metallurgy for Turbine Discs
Powder Quality Control
Ensuring the quality and consistency of the powder is one of the primary challenges in powder metallurgy. The powder particles' size, shape, and purity directly affect the final product's properties. Variations in powder quality can result in defects such as porosity, weak bonding, or inconsistent material properties in the turbine disc. Strict quality control measures must be implemented during the powder production phase to achieve the desired material characteristics.
Sintering Challenges
Sintering is a delicate process that requires precise temperature and time control. If the sintering temperature is too high, it can cause grain growth or distortion of the part. If higher, the bond between the powder particles may be sufficient, resulting in a more robust structure. Additionally, any inconsistencies in the sintering process can lead to defects such as porosity or dimensional inaccuracies, which can compromise the performance of the turbine disc.
Post-processing Needs
Although powder metallurgy offers advantages such as reduced material waste and the ability to form complex shapes, post-processing steps such as hot isostatic pressing (HIP) and forging are still required to achieve optimal mechanical properties. These additional processes can add time and cost to the production cycle, and careful coordination of each step is necessary to ensure the final product meets the required specifications.
Advantages of Powder Metallurgy for Turbine Disc Manufacturing
Material Homogeneity
One of the key benefits of powder metallurgy is the ability to achieve uniform material composition throughout the part. The powder preparation process ensures that the alloy components are evenly distributed, producing homogeneous material properties. This is especially important in turbine discs, where uniformity in material properties, such as strength, fatigue resistance, and thermal stability, is crucial for ensuring reliable performance in high-temperature and high-stress environments. Achieving material homogeneity is essential in turbine parts, where even minor variations can affect their performance and longevity.
High-Performance Properties
Powder metallurgy allows manufacturers to produce turbine discs with superior mechanical properties. The sintering process enhances the strength and fatigue resistance of the material, while the precise control of powder composition allows for customization of the material properties to suit specific applications. For example, the ability to design the alloy composition to meet gas turbines' specific thermal, mechanical, and corrosion resistance requirements is a major advantage. Powder metallurgy also enhances wear resistance, making it ideal for turbine discs operating in harsh environments where wear and tear are constant concerns. Combining powder metallurgy with processes like superalloy precision forging ensures the ultimate durability of turbine components.
Complex Geometries
Another significant advantage of powder metallurgy is its ability to produce exact complex geometries. Unlike traditional casting and forging methods, which may require multiple steps or complex molds to create intricate shapes, powder metallurgy can directly form complex turbine disc geometries in a single process. This ability to create complex shapes reduces the need for additional machining or rework, improving both efficiency and cost-effectiveness. This is particularly important for modern turbine designs that incorporate advanced cooling features or lightweight structures. Integrating superalloy single crystal casting with powder metallurgy can further optimize the performance and complexity of turbine discs.
Cost-Effectiveness
Powder metallurgy can be more cost-effective than traditional methods such as casting or forging. The process produces less material waste, as the metal powder can be precisely measured and used with minimal excess. Additionally, powder metallurgy requires fewer steps in the manufacturing process, reducing the need for additional machining or complex tooling. These factors contribute to lower production costs, especially for high-volume manufacturing. By combining powder metallurgy with hot isostatic pressing (HIP), manufacturers can achieve near-net shape components requiring minimal post-processing, reducing production time and costs.
Post-Processing and Heat Treatment for Powder Metallurgy Turbine Discs
After sintering, powder metallurgy turbine discs are typically subjected to post-processing treatments to enhance their mechanical properties further. These may include hot isostatic pressing (HIP), forging, and additional heat treatments. HIP is handy for eliminating internal porosity and ensuring the disc’s structural integrity. This process, combined with subsequent heat treatments such as solution treatment or age-hardening, helps optimize the turbine disc’s strength, creep resistance, and fatigue resistance. These treatments ensure the disc can perform reliably under turbine engines' extreme stresses and temperatures.
In addition to HIP, heat treatment processes like solution treatment and age-hardening are essential in further improving the material's properties. Solution treatment involves heating the disc to a high temperature and then rapidly cooling it to achieve a uniform microstructure. Age-hardening, on the other hand, increases hardness and strength by promoting the formation of precipitates within the alloy.
Furthermore, precision CNC machining is often used to achieve the necessary geometries and tight tolerances for the turbine discs. After machining, a final heat treatment step is usually performed to relieve any residual stresses introduced during the machining process, ensuring the discs maintain their strength and dimensional accuracy.
These post-processing steps are essential for ensuring that powder metallurgy turbine discs meet the demanding performance requirements of turbine engines, where high-temperature performance and resistance to mechanical degradation are crucial.
Testing and Quality Control of Powder Metallurgy Turbine Discs
To ensure the quality and reliability of powder metallurgy turbine discs, rigorous testing is performed throughout the manufacturing process. Several testing methods are employed to detect defects, assess performance, and verify dimensional accuracy.
Non-Destructive Testing (NDT)
Non-destructive testing (NDT) methods such as X-ray inspection, ultrasonic testing, and metallographic analysis are critical for detecting internal defects such as porosity, cracks, or inclusions. These tests ensure the turbine disc meets the required structural integrity without damaging the component. X-ray Inspection in Superalloy Components and Ultrasonic Testing for Superalloy Castings are essential in identifying subsurface anomalies.
Mechanical Testing
Mechanical testing such as tensile, fatigue, and impact testing is performed to verify the turbine disc's performance under operational conditions. These tests help assess the component's strength, flexibility, and resistance to wear under cyclic loading. Tensile and Fatigue Testing ensures that the turbine discs perform reliably in high-stress environments.
Dimensional Control
Dimensional control techniques ensure the turbine disc meets the required tolerances and fits within the specified design parameters. These techniques ensure that the turbine disc fits appropriately within the assembly and functions as intended in the engine system. Dimensional Accuracy Verification is key to maintaining tight tolerances in critical parts like turbine discs.
By combining these testing methods, manufacturers can ensure the durability, performance, and quality of powder metallurgy turbine discs, making them suitable for demanding applications in industries like aerospace and energy.
Applications in Aerospace, Power Generation, and More
Powder metallurgy turbine discs are widely used in industries that require high-performance components capable of withstanding extreme operating conditions. In aerospace and aviation, turbine discs for jet engines and gas turbines must operate at high temperatures and resist fatigue and creep. Powder metallurgy turbine discs ensure these components have the strength and durability needed for reliable performance in the extreme conditions faced in aerospace applications.
In power generation, gas turbines rely on powder metallurgy turbine discs to provide reliable, long-term performance in electricity generation. These turbine discs must withstand high thermal and mechanical stresses, and powder metallurgy ensures superior performance and durability under these harsh conditions.
Similarly, in industries such as petrochemical and marine, turbine discs must perform in environments subject to high temperatures and corrosive conditions, making the superior material properties achieved through powder metallurgy essential. These industries rely on superalloy turbine discs to maintain reliability and performance even in extreme environments.
