Post-Processing for Standards Compliance in Alloys
Superalloys: High-Performance Materials for Extreme Conditions
Superalloys are high-performance materials designed to perform under extreme conditions, such as high temperatures, high pressure, and harsh chemical environments. They are predominantly used in industries where reliability, strength, and performance are non-negotiable, such as aerospace, power generation, and the automotive sector. Superalloys, including materials like Inconel, CMSX alloys, and Rene alloys, are essential in producing components such as turbine blades, combustion chambers, and other critical parts subjected to extreme operational environments.
Superalloys' ability to maintain their strength and stability at elevated temperatures, often exceeding 1,000°C, makes them indispensable in advanced manufacturing applications. These alloys are tailored to deliver superior mechanical properties, including creep resistance, thermal stability, and oxidation resistance, making them crucial in gas turbines, jet engines, and industrial turbines. Their specialized composition ensures they can withstand the high stresses, extreme temperatures, and aggressive environments typical in these applications.
Purpose of Post-Processing
Post-processing is the critical phase in superalloy parts manufacturing, where additional steps are taken to refine the material properties and ensure compliance with these stringent standards. After the initial manufacturing process, parts often require heat treatment, surface finishing, and various other post-processing steps to achieve the necessary mechanical properties, surface integrity, and dimensional accuracy required by the relevant standards.
Post-processing plays a pivotal role in enhancing the quality and performance of the final product. This phase eliminates residual defects from casting or machining, and the material achieves the desired properties for its specific application. Techniques like superalloy CNC machining are often employed to ensure that each part meets the precise dimensional and performance requirements, which is crucial in aerospace and power generation industries.
Critical Standards in Superalloy Manufacturing
Industry Standards
In superalloy manufacturing, several industry standards help ensure the quality and consistency of parts. These standards are crucial for ensuring superalloy parts meet the rigorous performance requirements across various industries, including aerospace, power generation, and more.
ASTM (American Society for Testing and Materials): ASTM standards provide guidelines on material composition, mechanical properties, and testing methods, ensuring superalloy parts meet rigorous performance requirements. For example, ASTM B168 governs the specification for nickel-chromium alloys widely used in superalloy manufacturing.
ISO (International Organization for Standardization): ISO standards ensure uniformity and quality across the manufacturing process, covering everything from material specifications to testing protocols. ISO 9001, for instance, is a widely recognized quality management system standard that applies to the superalloy production process.
AS9100: This standard focuses on quality management systems in the aerospace industry and is critical in ensuring superalloy components meet aerospace-specific requirements for safety and reliability. Compliance with AS9100 is essential for ensuring that superalloy turbine blades and other aerospace components maintain their performance under extreme conditions.
NADCAP: NADCAP (National Aerospace and Defense Contractors Accreditation Program) certifies unique processes like heat treatment and welding for aerospace components, ensuring the highest level of quality. The NADCAP certification guarantees that critical processes such as superalloy heat treatment are carried out precisely and consistently.
Specific Superalloy Standards
Superalloy materials are often required to meet specific standards related to:
Material Composition: Ensuring the correct alloying elements are present and within specified tolerances for optimal performance. For example, guidelines are outlined for Nickel-based alloys like Inconel or CMSX alloys, which require precise composition for high-temperature performance.
Testing Methods: To ensure the material is defect-free and compliant with non-destructive testing (NDT) methods such as X-ray, ultrasonic, and Eddy Current testing. Glow Discharge Mass Spectrometer (GDMS) checking and electron microscopy are commonly used to verify material integrity.
Mechanical Properties: Specifications for tensile strength, hardness, fatigue resistance, and creep resistance under elevated temperatures are fundamental. For instance, ISO 2432 outlines the standards for the tensile strength and creep resistance of superalloy materials used in aerospace applications.
Surface Integrity: Guidelines to ensure that components meet required surface finish, roughness, and porosity standards. Surface finishing processes such as superalloy precision forging achieve the smooth, high-integrity surface necessary for applications like turbine blades.
Impact on Applications

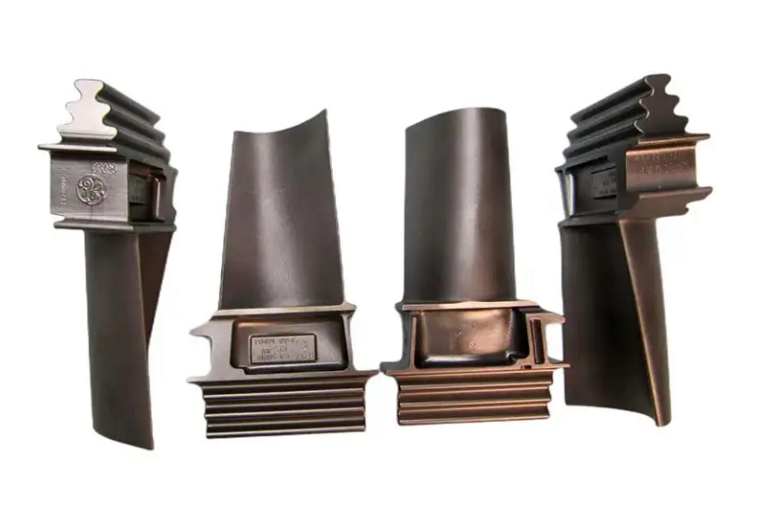

Compliance with these standards ensures that superalloy parts perform reliably in critical applications. For instance, aerospace turbine blades must withstand extreme stresses and temperatures without failing. Vacuum heat treatment can be used to optimize the performance of these components, ensuring they meet the mechanical properties required for aerospace performance.
Similarly, power plant parts must be resistant to corrosion and fatigue to ensure the efficient and safe operation of turbines and engines. By adhering to the appropriate material testing standards, manufacturers can ensure that superalloy components meet the rigorous demands of such high-stress environments.
Standard Post-Processing Techniques for Standards Compliance
Heat Treatment
Heat treatment processes are integral to achieving the desired material properties in superalloys. Depending on the alloy, various heat treatment processes such as solution annealing, aging, and stress relief are employed to:
Enhance Hardness: Achieving the required hardness for wear resistance and strength.
Improve Creep Resistance: Strengthening the material's ability to resist deformation under long-term stress at elevated temperatures.
Reduce Residual Stresses: Stress-relief heat treatment ensures parts are dimensionally stable and less likely to experience warping or failure under operational conditions.
Hot Isostatic Pressing (HIP)
Hot Isostatic Pressing (HIP) eliminates internal porosity and improves the material's overall mechanical properties. The process involves applying high temperature and pressure to the superalloy part, which helps eliminate voids and enhances density. HIP is essential for parts that require high integrity, such as turbine discs and combustion chambers.
HIP plays a significant role in ensuring parts meet the strict standards for material integrity in aerospace and power generation applications. To learn more about eliminating porosity and enhancing superalloy casting density, visit our blog on HIP's impact on mechanical properties.
Superalloy Welding
Welding superalloys require precise control to avoid compromising their material properties. Post-welding heat treatment (PWHT) is often necessary to relieve stresses and restore the part's mechanical properties. Adhering to welding standards, such as those provided by AWS (American Welding Society), is crucial for ensuring the part's performance after welding. For detailed insights on superalloy welding, refer to our dedicated content on its importance in aerospace and energy applications.
Thermal Barrier Coating (TBC)
Thermal Barrier Coating (TBC) is applied to superalloy parts, especially turbine blades, to provide thermal insulation and protect the underlying metal from high-temperature oxidation. This coating is crucial in increasing the part's service life and performance. Standards for TBC application, such as ASTM C923, ensure uniform thickness and proper bonding to the substrate. For more on thermal barrier coatings, visit our blog on their impact on high-temperature durability.
Surface Finishing
Surface finishing techniques such as grinding, polishing, and coating are essential to achieving the required surface integrity in superalloy components. The part's reliability is critical to achieving the proper surface roughness, removing surface defects, and ensuring uniformity. Post-processing surface treatments ensure that components perform optimally, minimizing the risk of early failure due to surface flaws. Techniques like polishing and grinding are crucial for ensuring the surface quality of critical aerospace parts like turbine blades.
The Role of 3D Printing in Post-Processing for Standards Compliance
Advantages of 3D Printing
3D printing offers unparalleled flexibility in manufacturing superalloy parts, allowing for complex geometries that would be difficult or impossible to achieve with traditional methods. It enables rapid prototyping and customized production, which is particularly valuable in the aerospace and automotive industries. With 3D printing, manufacturers can quickly iterate designs and create highly optimized parts for performance in extreme conditions.
Challenges of 3D Printed Parts
One challenge with 3D printing superalloy parts is ensuring they meet the same mechanical and thermal properties as traditionally cast parts. Post-processing steps such as heat treatment, Hot Isostatic Pressing (HIP), and surface finishing are essential to ensure that 3D-printed components meet industry standards. These processes help eliminate internal stresses, enhance mechanical strength, and improve part integrity.
Post-Processing for 3D Printed Parts
After 3D printing, parts often require heat treatment to relieve internal stresses and improve mechanical properties. HIP also eliminates porosity, while surface finishing techniques improve the part's surface integrity. These steps are essential to compliance with relevant industry standards, particularly in power generation and aerospace industries.
Overcoming Challenges in Post-Processing for Compliance
Precision and Tolerance Control
Maintaining tight tolerances during post-processing is essential to ensuring the final part fits precisely in its intended application. Advanced CNC machining, automated measurement systems, and process simulations help ensure that parts meet the required dimensional accuracy. Achieving these tolerances ensures the functionality and longevity of parts used in high-stress applications like gas turbines.
Material Handling and Contamination
Contamination during post-processing can severely impact the material's performance, especially for high-temperature applications. Controlled environments, such as clean rooms or vacuum systems, are often required during heat treatment and HIP processes to prevent contamination. It helps ensure the integrity and reliability of the final component, particularly for critical aerospace or military applications.
Process Optimization
Advanced technologies, such as process simulations and real-time monitoring systems, help optimize post-processing steps, ensuring efficiency and reducing the risk of errors. These systems are critical in ensuring all superalloy parts comply with the required standards. They are invaluable for reducing production time and enhancing the reliability of components, especially in demanding industries such as nuclear.
Post-Processing FAQs
What is the importance of post-processing in superalloy manufacturing?
How does heat treatment affect the mechanical properties of superalloy parts?
Why is Hot Isostatic Pressing (HIP) used for superalloy parts?
What are the essential standards for surface finishing in superalloy manufacturing?
How does 3D printing affect the post-processing requirements for superalloy parts?
