On-demand 3D printing for aluminum parts has rapidly transformed how manufacturers and industries produce parts and prototypes. The technology offers unmatched flexibility, reduced lead times, and cost savings, making it an ideal solution for industries that require lightweight, high-performance components. By using advanced 3D printing technologies, aluminum parts can be produced with intricate designs, reduced waste, and faster turnaround times. This blog explores the manufacturing process, suitable materials for 3D printing, post-processing, testing methods, and how aluminum 3D printing is applied across various industries.

on-demand-aluminum-parts-3d-printing-manufacturing-service

Manufacturing Process for Aluminum Parts 3D Printing

The manufacturing process for on-demand aluminum parts 3D printing involves several stages: design, material selection, printing, post-processing, and testing. The process begins with the digital design of the part, often using computer-aided design (CAD) software, followed by the 3D printing and post-processing phases that finalize the part for its intended application.

3D Printing Technologies for Aluminum Parts

There are several 3D printing technologies used for aluminum parts manufacturing, with the most common being Direct Energy Deposition (DED), Powder Bed Fusion (PBF), and Fused Deposition Modeling (FDM).

  • Direct Energy Deposition (DED): DED is widely used for on-demand manufacturing, particularly for adding material to existing components. It uses a focused laser or electron beam to melt metal powder or wire and deposits it directly onto the workpiece. This process can be used to create new parts and repair existing ones, which is highly beneficial in aerospace and power generation industries.

  • Powder Bed Fusion (PBF): PBF uses a laser or electron beam to melt a thin layer of aluminum powder, which is then fused into solid form. The process is repeated layer by layer to build the part from the ground up. PBF is particularly useful for creating complex geometries and fine details, making it an excellent choice for parts that need to be lightweight yet strong, such as aerospace components.

  • Fused Deposition Modeling (FDM): FDM, though primarily used for plastic, also applies to certain aluminum-based materials. It works by extruding molten material through a nozzle onto a heated platform, building up the part layer by layer. While less common for aluminum, this method is gaining traction in specific applications that demand high precision, particularly in automotive and aerospace industries.

Each of these technologies offers distinct advantages, and the choice of process depends on factors such as part complexity, material requirements, and speed.

Design for Additive Manufacturing (DfAM)

Designing for additive manufacturing is crucial to the success of 3D printing. Unlike traditional subtractive manufacturing, 3D printing allows for the creation of more complex geometries and lightweight designs that would be difficult or impossible to achieve with conventional methods.

During the design phase, engineers optimize the geometry of aluminum parts to reduce weight while maintaining strength, functionality, and integrity. This is particularly important in industries like aerospace and automotive, where minimizing weight while enhancing performance is a key priority.

DfAM also focuses on designing parts that use efficient materials. By using lattice structures, internal voids, or honeycomb designs, manufacturers can reduce material waste, cut costs, and still achieve the necessary strength and performance of the part.

Material Selection for Aluminum 3D Printing

The choice of Aluminum alloy is crucial in determining the printed part's mechanical properties, weight, and performance characteristics. Aluminum alloys have been developed to offer various combinations of strength, corrosion resistance, and thermal properties, making them suitable for various applications.

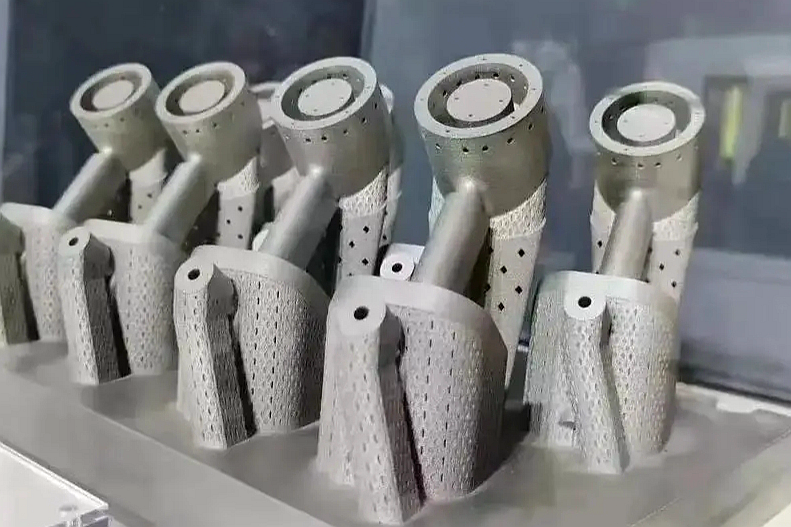

AlSi10Mg

AlSi10Mg is one of the most commonly used alloys for 3D printing. AlSi10Mg is used primarily in automotive and aerospace applications because of its high strength and excellent fluidity. The alloy offers good thermal conductivity and corrosion resistance, which makes it ideal for parts exposed to high temperatures and environmental factors.

Al7075

Al7075 is known for its superior mechanical properties and fatigue strength, making it ideal for aerospace, military, and high-performance applications. It has a high strength-to-weight ratio and is often used in parts that require enhanced durability and performance under high-stress conditions, such as structural components and airframe parts.

Al6061

Al6061 is one of the most versatile aluminum alloys, offering a balance of strength, workability, and corrosion resistance. Al6061 is commonly used in industries like automotive, marine, and construction. When 3D printed, Al6061 can produce lightweight structural parts, frames, and heat exchangers, among other components.

Each of these alloys has its own strengths, and selecting the right material for 3D printing depends on the requirements of the end-use application. Factors like strength, corrosion resistance, weight, and thermal properties must be considered when choosing a suitable material.

Post-Processing for Aluminum Parts

Once the 3D-printed aluminum parts have been created, post-processing is essential to enhance their mechanical properties, improve surface finish, and ensure they meet the required specifications. Standard post-processing techniques include heat treatment, surface finishing, machining, and quality inspection.

Heat Treatment

Heat treatment plays a crucial role in improving aluminum parts' strength, hardness, and fatigue resistance. For example, Al6061 parts may undergo T6 heat treatment, which involves solution heat treatment followed by aging, to improve the alloy’s hardness and strength. Heat treatment can also relieve residual stresses created during printing and ensure uniform material properties across the part. Proper heat treatment is essential to optimize the mechanical properties and extend the service life of aluminum components.

Surface Finishing

Post-printing surface finishing techniques such as bead blasting, polishing, anodizing, and painting are commonly used to enhance aluminum parts' appearance, corrosion resistance, and wear resistance. Anodizing, for example, creates a protective oxide layer that improves corrosion resistance and enhances the part's aesthetic appearance. Surface finishing is essential for improving aluminum components' performance and visual quality, especially in demanding industries like aerospace and automotive.

Machining

While 3D printing allows for complex geometries, CNC machining may still be necessary to achieve precise tolerances or to refine the surface finish. Post-printing machining allows manufacturers to meet tight dimensional requirements and achieve the high-quality standards expected in industries like aerospace and automotive. Machining ensures that parts meet the final design specifications and perform reliably under operational conditions.

Inspection and Quality Control

Rigorous inspection and testing are critical in ensuring the part meets the necessary quality standards. Dimensional accuracy is verified using tools such as Coordinate Measuring Machines (CMM), while material properties are often verified using mechanical testing methods such as tensile, hardness, and fatigue testing. This thorough testing ensures that all parts conform to the highest industry standards and are ready for their intended applications.

Testing for 3D Printed Aluminum Parts

Testing is a vital step in the production of high-performance aluminum parts. Various mechanical, surface, and material tests ensure the parts meet the required strength, durability, and performance criteria.

Mechanical Property Testing

Mechanical testing involves testing the tensile strength, yield strength, elongation, and fatigue resistance of the 3D printed parts. These tests help manufacturers understand the part's ability to withstand stresses, strains, and repeated loading, which is particularly important in aerospace and automotive applications.

Surface and Structural Integrity Testing

To ensure the structural integrity of 3D printed aluminum parts, testing methods such as Scanning Electron Microscopy (SEM), X-ray, and ultrasonic testing are used to detect defects like porosity, cracks, and inclusions. These tests are essential for validating the quality of the printed part and ensuring it will perform reliably in service.

Corrosion Resistance Testing

Aluminum parts, especially in marine, automotive, and aerospace industries, often face harsh environmental conditions. Testing methods such as salt spray tests and immersion tests help determine the part’s resistance to corrosion, ensuring long-lasting performance.

Thermal Performance Testing

Given aluminum's role in heat-sensitive applications, testing its thermal performance is critical. Thermal conductivity and resistance to thermal expansion are tested to ensure the part will perform under high-temperature conditions without failing or deforming.

Industries and Applications for On-Demand Aluminum Parts

The ability to quickly and cost-effectively produce aluminum parts using 3D printing transforms several industries by enabling rapid prototyping, low-volume production, and complex geometries. Below are the industries and applications where aluminum 3D printing is making a significant impact.

Aerospace and Aviation

Aerospace manufacturers rely on lightweight, high-strength materials for critical components like brackets, housings, and engine parts. Aluminum 3D printing offers the flexibility to produce complex geometries that reduce weight while maintaining strength and durability. 3D printing also accelerates the prototyping process, enabling faster testing and iteration of new designs. For example, aluminum engine components can be rapidly prototyped and tested for performance, reducing development cycles.

Automotive

In the automotive industry, aluminum is commonly used to reduce vehicle weight and improve fuel efficiency. 3D-printed aluminum parts, such as engine components, brackets, and transmission parts, offer design freedom, reduce material waste, and cut lead times. Manufacturers can create low-volume, customized parts for specific models or performance applications. Custom brackets and engine parts can be produced to fit unique specifications, improving overall vehicle performance.

Marine and Naval

The marine industry requires corrosion-resistant parts, particularly when exposed to seawater. Aluminum alloys are widely used for their lightweight and resistance to corrosion. Aluminum 3D printing allows for creating intricate, lightweight components for ships, submarines, and offshore platforms that can withstand harsh marine environments. For example, aluminum marine brackets can be printed for use in saltwater-resistant applications.

Medical and Healthcare

Aluminum 3D printing is gaining traction in the medical field, where customized surgical tools, implants, and prosthetics can be created on demand. The lightweight nature of aluminum makes it an ideal material for these applications, offering comfort, functionality, and precision. Custom medical implants can be designed to fit patients' specific needs, improving patient outcomes.

Industrial and Commercial Equipment

3D-printed aluminum parts are used in manufacturing tools, custom brackets, fixtures, and other specialized components for industrial applications. These parts are often produced in small batches, perfect for industries requiring flexible production schedules and low-volume runs. 3D-printed aluminum fixtures allow for faster prototyping and adjustments in industrial processes.

Consumer Products

Aluminum is widely used in consumer products, such as electronics housings, sporting goods, and automotive accessories. With 3D printing, manufacturers can quickly produce parts with intricate designs, reduced weight, and excellent thermal properties. Custom aluminum electronic housings can be produced to meet specific consumer needs in high-tech applications.
